Siemens 6SL3224-0BE32-2UA0 Retrofit PM240 Power Module

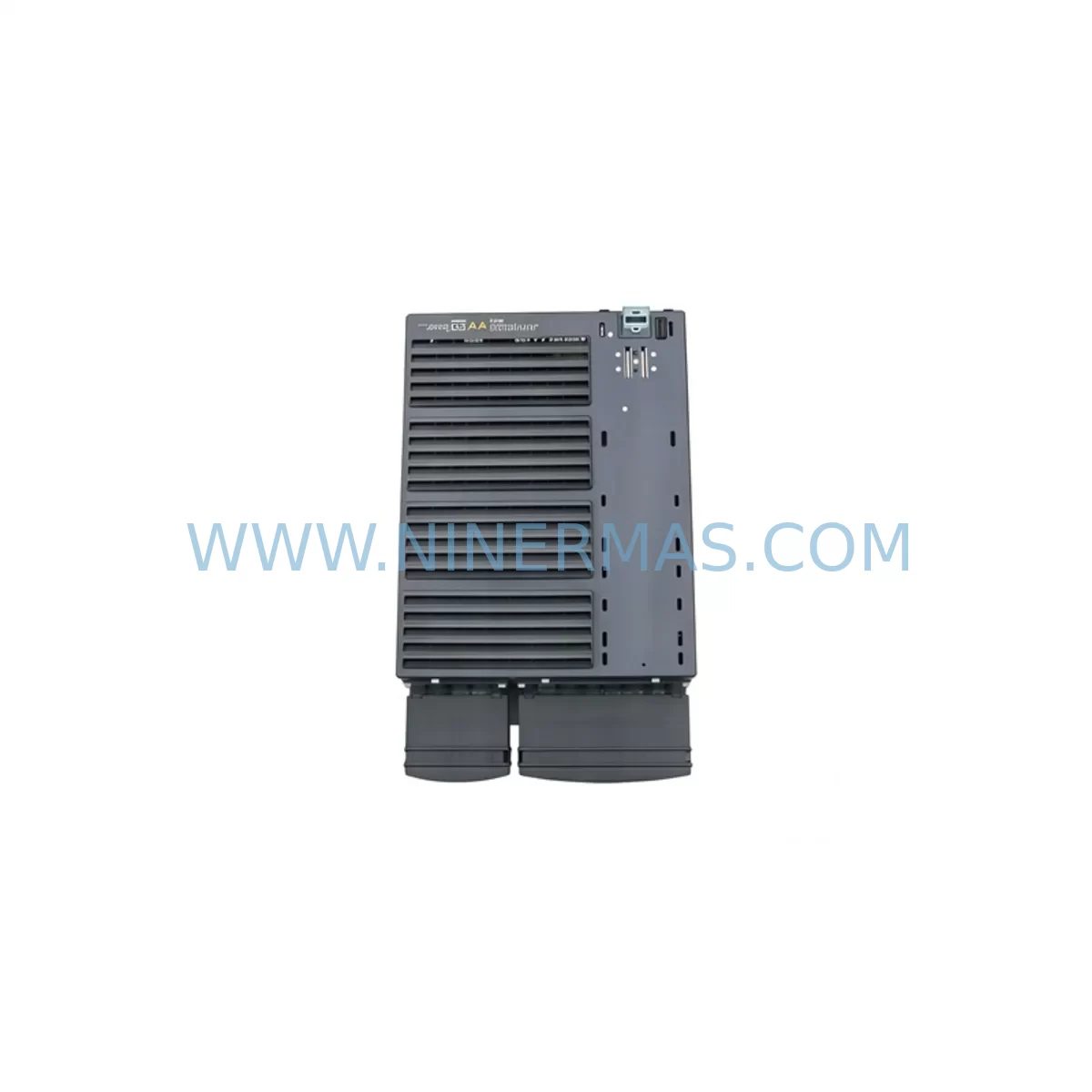

Siemens 6SL3224-0BE32-2UA0 Retrofit PM240 Power Module: Legacy-Compatible Drive Upgrade for SINAMICS G120 Systems

The Siemens 6SL3224-0BE32-2UA0 is a PM240 Power Module within the SINAMICS G120 modular drive platform, designed for demanding industrial motor control applications. As legacy automation lines age and original components approach or exceed their service life, sourcing a verified, retrofit-compatible replacement for this power module becomes critical to maintaining production continuity. NINERMAS supplies this unit as a direct retrofit solution for engineers and maintenance teams managing older SINAMICS G120 installations, discontinued spare parts cycles, and control cabinet modernization projects.

Whether you are replacing a failed unit on an existing line, upgrading a control cabinet to extend its operational lifespan, or migrating from an older drive generation, the 6SL3224-0BE32-2UA0 fits directly into established G120 mechanical and electrical frameworks — minimizing re-engineering effort and reducing unplanned downtime.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting the 6SL3224-0BE32-2UA0 into an existing SINAMICS G120 installation requires a structured approach to ensure electrical compatibility, mechanical fit, and software continuity. Before beginning the replacement process, maintenance engineers should confirm the available power supply capacity in the control cabinet. The PM240 draws significant input current at full load, and aging distribution boards or upstream circuit breakers may need to be evaluated alongside the drive swap.

Terminal wiring is a key checkpoint. The existing motor cable connections — U, V, W output terminals and PE grounding — must be verified against the replacement unit’s terminal layout. In many legacy installations, cable lengths and routing were optimized for the original unit’s terminal positions, and minor adjustments may be needed. Similarly, the DC bus connection points and braking resistor terminals (if an external braking resistor such as those in the 6SE6400 accessory range is in use) should be inspected for compatibility.

The backplane interface between the Power Module and the Control Unit is standardized across the G120 platform, which means the existing CU240E-2 or CU240B-2 Control Unit can typically remain in place during a PM swap. This significantly reduces commissioning time, as the parameter set stored on the Control Unit or on a BOP-2 operator panel remains intact. Engineers should nonetheless perform a full parameter review using STARTER software or Startdrive within TIA Portal to confirm that motor data, ramp times, and protection settings are correctly applied to the new power stage.

For installations where the Control Unit is also being upgraded — for example, migrating from a CU240B-2 to a CU250S-2 for enhanced closed-loop positioning capability — the parameter migration process requires careful mapping of I/O assignments, digital input functions, and analog scaling. HMI screens connected via PROFIBUS or PROFINET to the drive should be validated after the upgrade to confirm that process variable displays, fault code mappings, and operator control functions remain accurate.

In multi-drive cabinet installations, the 6SL3224-0BE32-2UA0 may share a common DC bus with adjacent drives. In such configurations, the 6SL3300 series line reactors or shared DC bus components should be inspected as part of the retrofit scope. I/O expansion modules connected to the Control Unit, such as the 6SL3255-0AA00-4CA1 I/O extension board, should also be checked for firmware compatibility if the Control Unit firmware is being updated during the same maintenance window.

Signal isolators between the drive and upstream PLC analog outputs are another consideration in older installations. Where 4–20 mA speed reference signals pass through legacy signal conditioning equipment, verifying the input impedance and signal range of the replacement PM240’s associated Control Unit inputs ensures accurate speed control after commissioning. Programming cables such as the PC Adapter USB A2 are recommended for direct parameter backup before and after the swap.

Downtime Control During System Migration

Minimizing production downtime during a drive replacement is a primary concern for any maintenance team. For the 6SL3224-0BE32-2UA0, the most effective strategy begins well before the physical swap. A full parameter backup should be performed using STARTER or Startdrive, with the exported file stored both locally and on a backup medium. If a BOP-2 panel is installed, its internal parameter copy function provides an additional on-site backup that does not require a laptop connection.

Where production schedules allow, a staged replacement approach is recommended: install and pre-configure the replacement PM240 on a bench, load the backed-up parameter set, and perform a no-load motor test before the unit is installed in the cabinet. This approach allows the majority of commissioning work to be completed offline, reducing the live cabinet intervention window to the physical swap and final wiring verification.

For critical lines where even brief interruptions are costly, coordinating the replacement during a scheduled maintenance window — and having a pre-tested spare unit on hand — is the most reliable approach. NINERMAS maintains stock of the 6SL3224-0BE32-2UA0 and related G120 components to support rapid dispatch for urgent replacement requirements. All units are tested prior to shipment and covered by a 12-month warranty, providing confidence in the replacement unit’s reliability from the moment it arrives on site.

After installation, a controlled restart sequence should be followed: verify input voltage, confirm motor connection integrity, check Control Unit status LEDs, and perform a low-speed test run before returning the drive to full production load. Fault history logs should be cleared after successful commissioning, and a new parameter backup should be saved to reflect the post-retrofit configuration.

Retrofit Support FAQ

Q1: Is the 6SL3224-0BE32-2UA0 a direct replacement for my existing PM240 unit without reprogramming?
In most cases, yes. If the replacement unit is the same frame size and power rating as the original, and the Control Unit (e.g., CU240E-2) remains in place with its existing parameter set, the drive can be returned to service with minimal reprogramming. A parameter review and motor identification run are still recommended to confirm correct operation.

Q2: What commissioning steps are required after installing the replacement power module?
After physical installation and wiring verification, connect to the drive using STARTER or Startdrive, load the backed-up parameter file, and perform a motor data identification run if the motor parameters were not previously optimized. Verify all digital and analog I/O functions, confirm communication link status (PROFIBUS/PROFINET), and conduct a supervised test run at reduced speed before returning to full production.

Q3: Can NINERMAS supply the 6SL3224-0BE32-2UA0 for urgent replacement needs?
Yes. NINERMAS maintains inventory of this and related SINAMICS G120 components to support urgent dispatch requirements. All units undergo pre-shipment functional testing and are supplied with a 12-month warranty. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock and lead times.

Q4: What should I check if the replacement drive shows a fault immediately after startup?
Common causes include incorrect motor data parameters, wiring errors on the output terminals, or a mismatch between the parameter set and the new power module’s firmware version. Check the fault code using the BOP-2 panel or STARTER software, verify all terminal connections, and confirm that the motor nameplate data matches the parameters stored in the Control Unit. If a firmware update is required, this can be performed via STARTER before the drive is returned to service.
