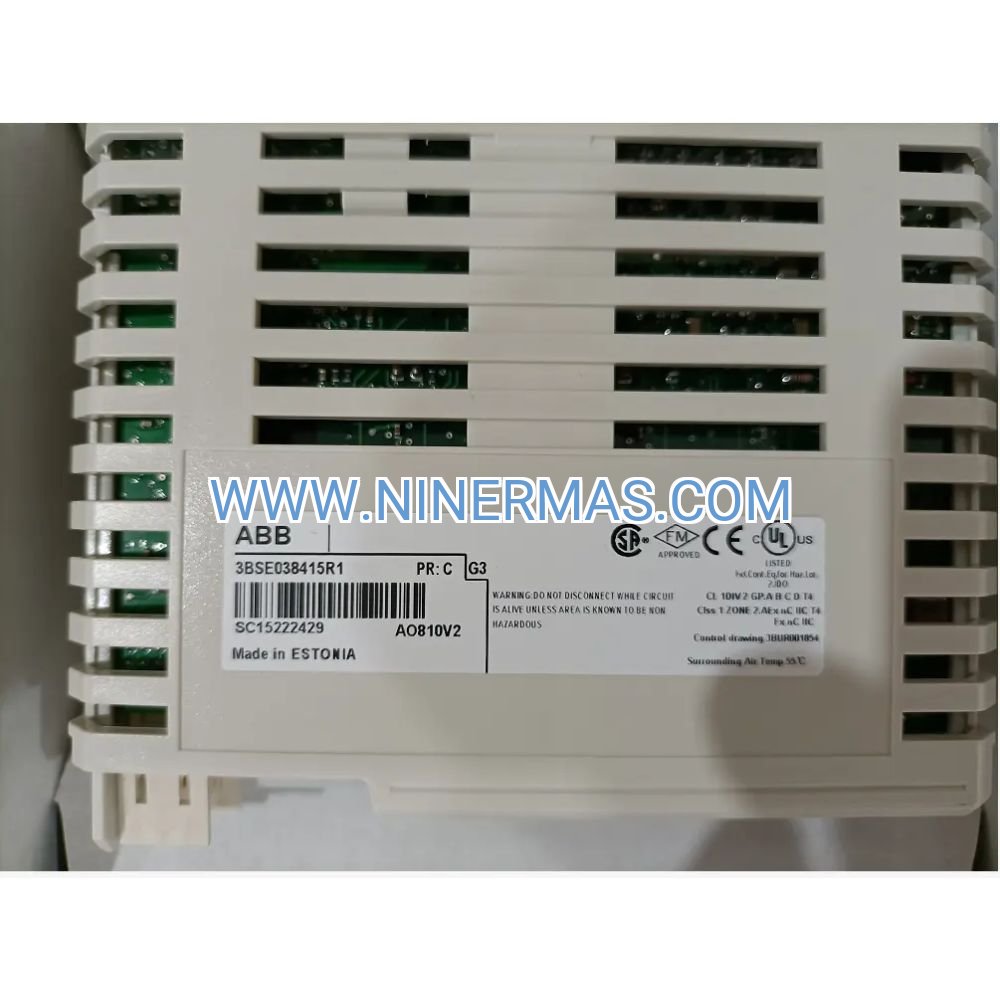

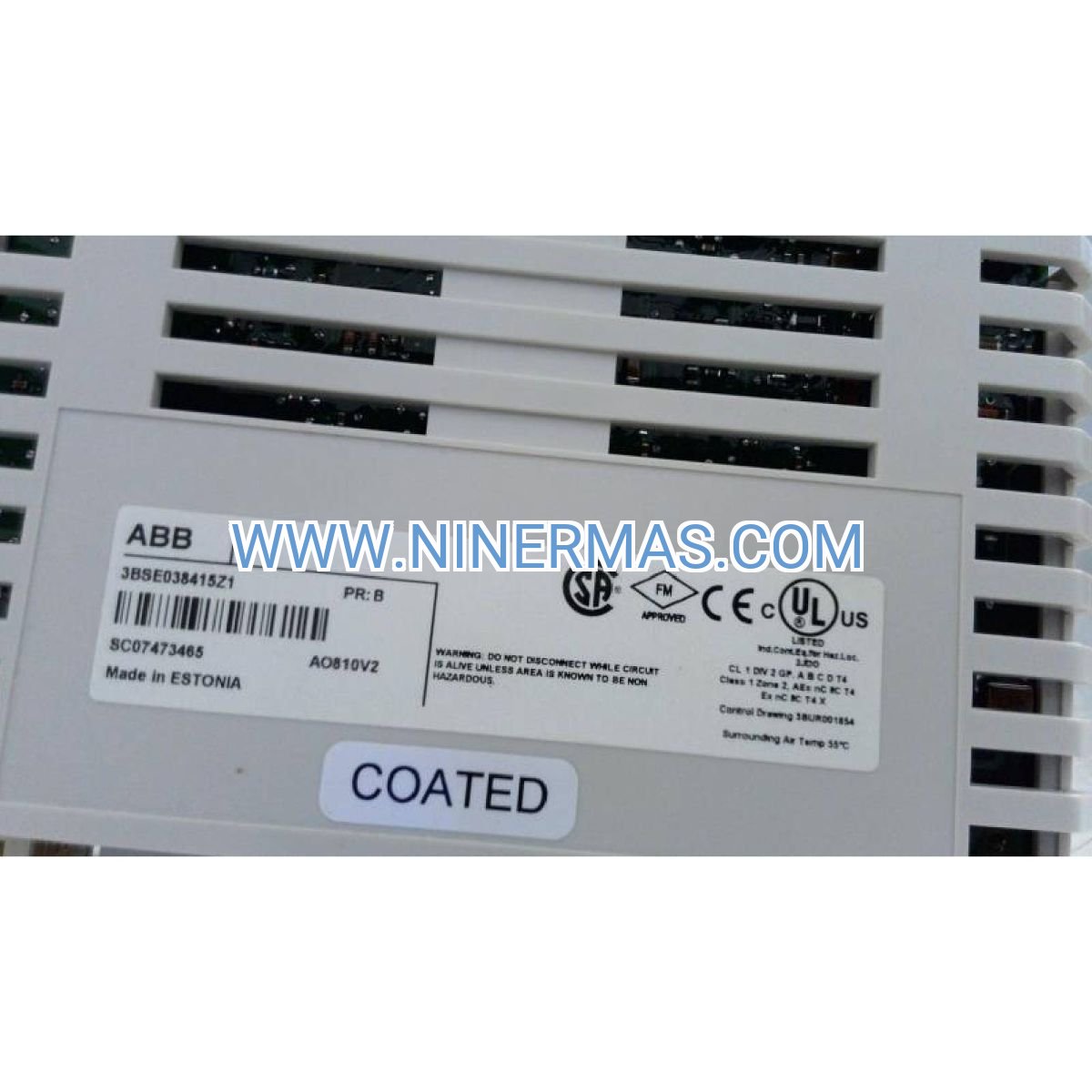

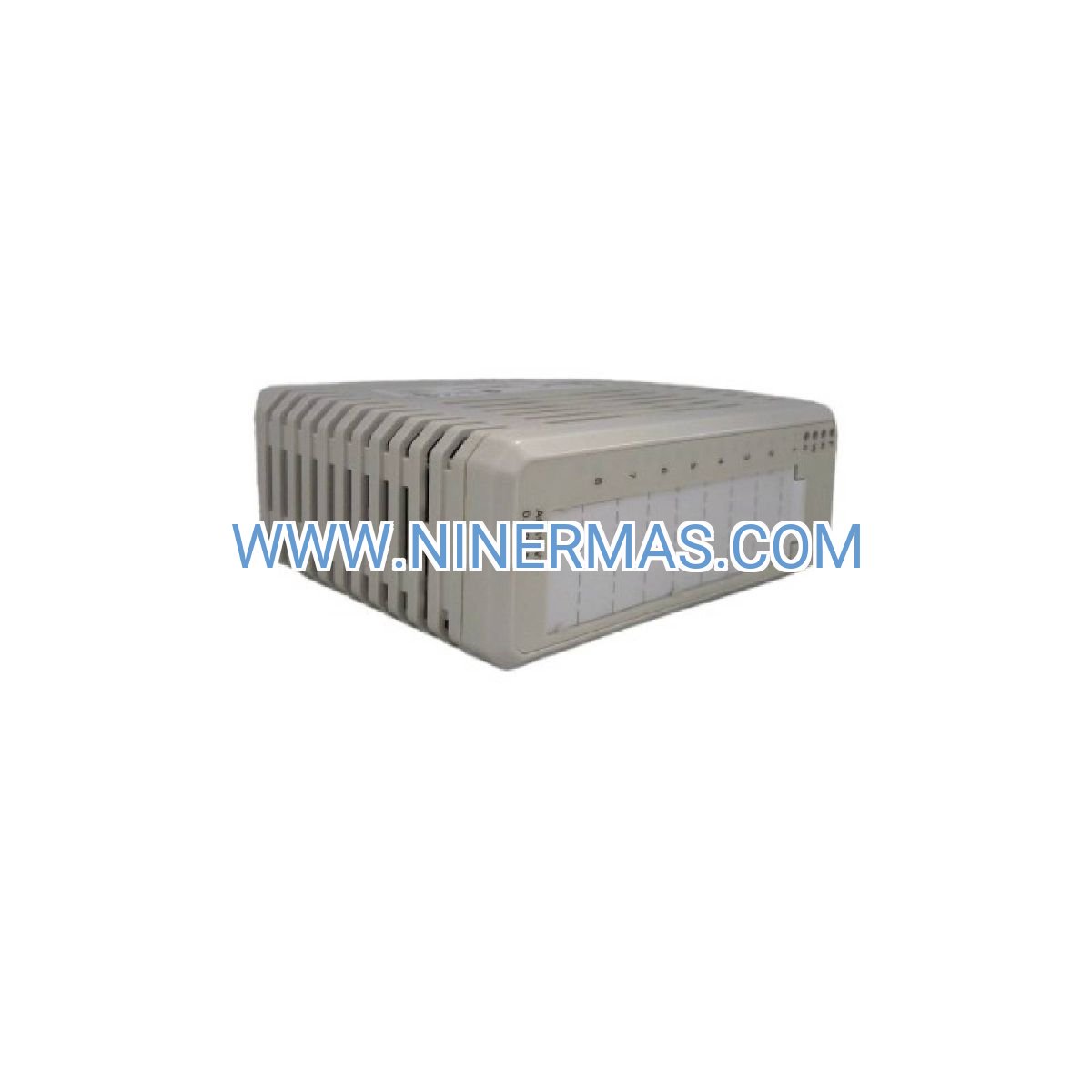

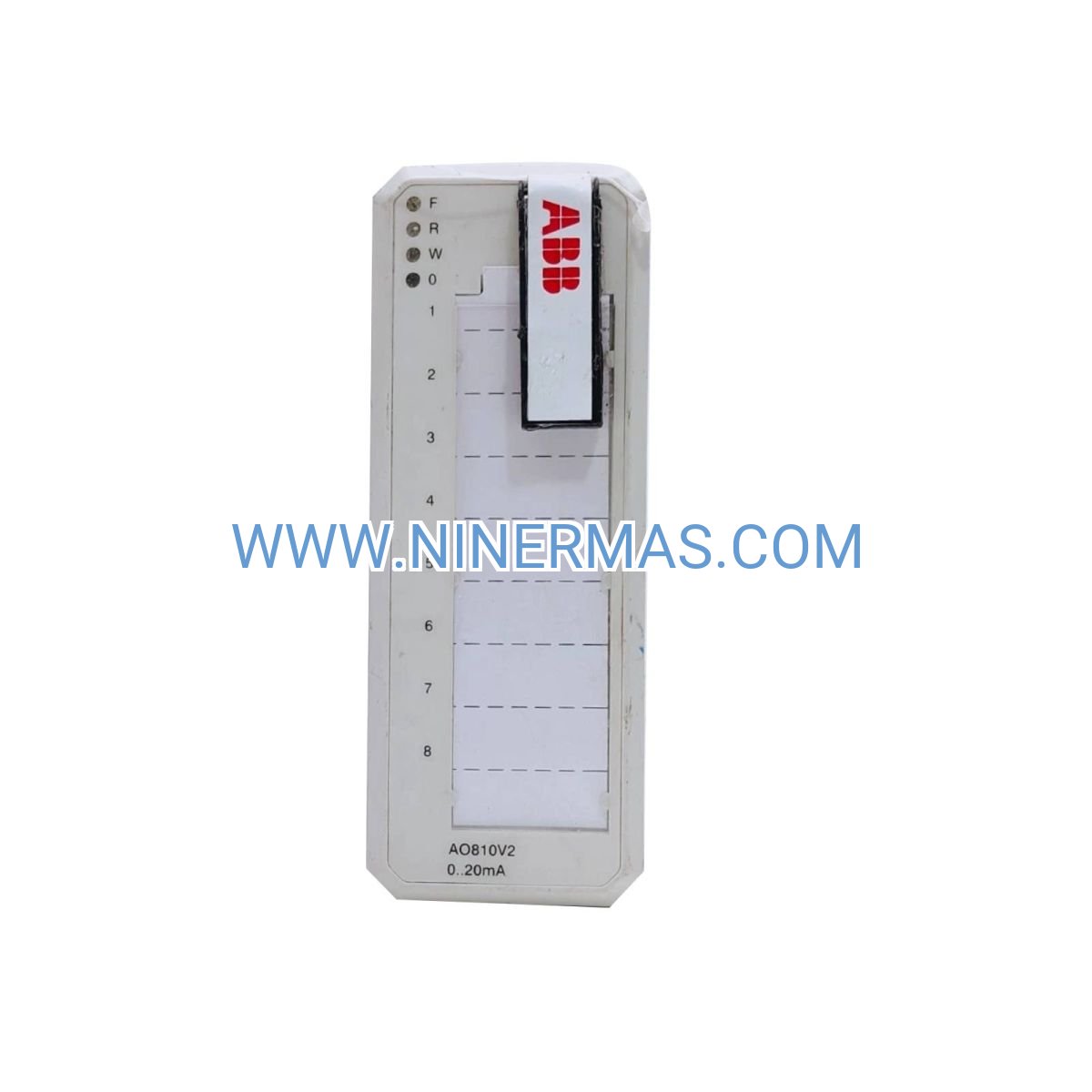

ABB AO810V2 Analog Output Module – Industrial-Grade 4-20mA Control Solution

The ABB AO810V2 is a precision-engineered 8-channel analog output module designed for mission-critical industrial process control applications. Utilizing industry-standard 4-20 mA current loop technology with 12-bit resolution, this module delivers reliable, accurate signal transmission to field devices in distributed control systems (DCS), SCADA networks, programmable logic controllers (PLC), and advanced automation infrastructures.

Ideal for process manufacturing, oil & gas facilities, power generation plants, and water treatment systems, the AO810V2 addresses common challenges including signal drift, electromagnetic interference, system downtime during maintenance, and integration complexity. Through advanced galvanic isolation, hot-swap capability, and intelligent diagnostics, this module ensures stable operation in electrically noisy environments while minimizing unplanned outages.

Featuring standardized design with customizable configuration options, the AO810V2 offers superior noise immunity, seamless ModuleBus integration, real-time fault detection, and scalable architecture—making it the preferred choice for design engineers, system integrators, automation contractors, and plant maintenance teams. Contact our application engineers for system integration guidance, technical specifications, and project quotations.

Core Features & Technical Advantages

• High-Precision Signal Generation
  12-bit digital-to-analog conversion with ±0.1% full-scale accuracy ensures precise control of valve positioners, variable frequency drives, and actuators, reducing process variability and improving product quality in critical applications.
• Advanced Galvanic Isolation
  Channel-to-channel and channel-to-system isolation eliminates ground loops and suppresses electromagnetic interference, maintaining signal integrity in high-voltage switchgear environments and heavy industrial facilities with multiple motor drives.
• Hot-Swap Maintenance Capability
  Replace or upgrade modules during live operation without system shutdown, significantly reducing mean time to repair (MTTR) and maximizing production uptime in continuous process industries where every minute of downtime costs thousands.
• Intelligent Diagnostic Monitoring
  Built-in self-test functions continuously detect open circuits, short circuits, over-current conditions, and out-of-range signals, with real-time status reporting to supervisory systems for proactive maintenance and rapid troubleshooting.
• Robust Environmental Performance
  Operates reliably across -40°C to +70°C temperature range with industrial-grade components, suitable for outdoor installations, harsh chemical processing environments, and extreme climate conditions without performance degradation.
• Seamless System Integration
  ModuleBus communication interface enables plug-and-play integration with ABB AC 800M controllers and third-party DCS platforms, supporting standard protocols and reducing engineering time during commissioning and system expansion.

Typical Application Scenarios

The AO810V2 module is engineered for industrial environments demanding high reliability, precise analog control, and continuous operation availability, particularly in:

• Chemical & Pharmaceutical Manufacturing
  Control reactor temperature loops, chemical dosing pumps, and distillation column pressure regulators where precise analog signals ensure batch consistency, regulatory compliance, and safe operation within narrow process windows.
• Oil & Gas Production Facilities
  Regulate wellhead choke valves, separator level controls, and pipeline pressure management systems in upstream, midstream, and downstream operations, maintaining optimal flow rates and preventing equipment damage from pressure surges.
• Power Generation & Utilities
  Manage steam turbine governor controls, boiler feedwater regulation, flue gas damper positioning, and emissions control systems in coal, gas, nuclear, and renewable energy plants requiring millisecond-level response and 99.9% availability.
• Water & Wastewater Treatment
  Adjust chemical feed pumps for coagulation and disinfection, control filtration backwash cycles, regulate aeration blower speeds, and position flow control valves in municipal and industrial water treatment facilities serving thousands of users.
• HVAC & Building Automation
  Modulate variable air volume (VAV) damper actuators, chilled water valve positioning, fan speed controllers, and humidity control systems in commercial buildings, data centers, and cleanroom facilities requiring precise environmental control.
• Food & Beverage Processing
  Control pasteurization temperature profiles, fermentation vessel conditions, CIP (clean-in-place) system parameters, and packaging line speed regulation where hygiene standards and product quality depend on accurate process control.

Technical Specifications & Selection Guide

To facilitate design and procurement decisions, we provide comprehensive technical parameters for the AO810V2 module. Custom configurations are available to meet specific project requirements.

Selection Recommendations: When specifying the AO810V2, consider maximum simultaneous channel loading, field device loop resistance, cable length and capacitance, ambient temperature extremes, required isolation levels, and available panel space. For applications requiring HART protocol communication, Foundation Fieldbus, or PROFIBUS integration, consult our engineering team for compatible interface solutions. Provide your process requirements including signal range, update speed, accuracy class, and environmental conditions for optimized module selection and system architecture recommendations.

Advanced Integration Capabilities

• Redundancy Support: Dual-module configurations with automatic failover for critical control loops requiring 99.99% availability
• Remote I/O Extension: Distributed architecture support for installations spanning multiple process areas or buildings
• Protocol Gateways: Integration with Modbus RTU/TCP, OPC UA, EtherNet/IP, and PROFINET networks via communication modules
• Calibration Services: Factory calibration certificates traceable to national standards, with field recalibration procedures and test equipment recommendations
• Spare Parts Management: Recommended spare module quantities based on installed base size and criticality classification

Delivery, Service & Quality Assurance

Standard catalog modules ship from stock within 3-5 business days; custom-configured or large-quantity orders typically require 10-15 business days lead time. All AO810V2 modules include a minimum 24-month manufacturer warranty covering defects in materials and workmanship. Technical support includes remote diagnostic assistance, on-site commissioning services (location-dependent), and emergency replacement programs for critical applications.

Each module ships with complete documentation package including electrical schematics, terminal wiring diagrams, ModuleBus configuration files, installation and operation manual (English/Chinese), safety precautions, and dimensional drawings—ensuring smooth installation and simplified maintenance procedures. Optional services include pre-configured modules, system integration testing, FAT (Factory Acceptance Test) protocols, and customized training programs.

Frequently Asked Questions (FAQ)

Q: How does the ABB AO810V2 analog output module integrate with existing control systems?
A: The AO810V2 connects via ModuleBus interface to ABB AC 800M controllers and compatible DCS platforms. Integration requires configuration through Control Builder software, mapping output channels to control logic, and verifying loop calibration. Our engineers provide configuration files and commissioning support to ensure seamless integration with your existing infrastructure.

Q: What is the maximum cable distance between the AO810V2 module and field devices?
A: For 4-20 mA current loop signals, typical maximum distance is 1000-1500 meters using shielded twisted-pair cable, depending on cable capacitance and load resistance. Longer distances may require signal repeaters or consider upgrading to HART-enabled devices for digital communication overlay on the analog signal.

Q: Can the AO810V2 module be used in hazardous area applications?
A: The module itself is rated for Zone 2 / Division 2 hazardous locations when properly installed in approved enclosures. For Zone 1 / Division 1 applications, the module must be installed in a safe area with intrinsically safe barriers or isolators protecting field wiring entering hazardous zones. Consult our application engineers for specific hazardous area installation requirements.

Q: What diagnostic information does the AO810V2 provide to the control system?
A: The module reports channel-level diagnostics including output current status, open circuit detection, short circuit faults, over-range conditions, module health status, and communication errors. Diagnostic data is accessible through the DCS operator interface and can trigger alarms or initiate automatic control actions based on your system configuration.

Q: How many AO810V2 modules can be installed in a single control system?
A: System capacity depends on the controller model and rack configuration. A typical AC 800M controller supports multiple I/O racks with dozens of modules. Practical limits are determined by scan time requirements, power supply capacity, and physical rack space. For large systems requiring 100+ analog outputs, our engineers will design optimized rack layouts and communication architecture.

Q: What is the expected service life and recommended spare parts inventory?
A: Under normal industrial operating conditions, the AO810V2 has a design life exceeding 15 years. We recommend maintaining 10% spare module inventory for systems with 10-20 modules, or minimum 2 spare modules for smaller installations. Critical applications should consider redundant module configurations rather than relying solely on spare parts inventory.

Request Technical Support & Quotation

To receive detailed application engineering support, system integration recommendations, or project quotations, please provide the following information: Project name and location, application description (process type, control objectives), number of analog output points required, signal specifications (4-20mA, voltage, other), field device types and quantities, environmental conditions (temperature range, hazardous area classification), control system platform (ABB AC 800M, third-party DCS, PLC brand/model), required certifications, and project timeline. Our application engineers will respond within 24 hours with customized recommendations and competitive pricing.
