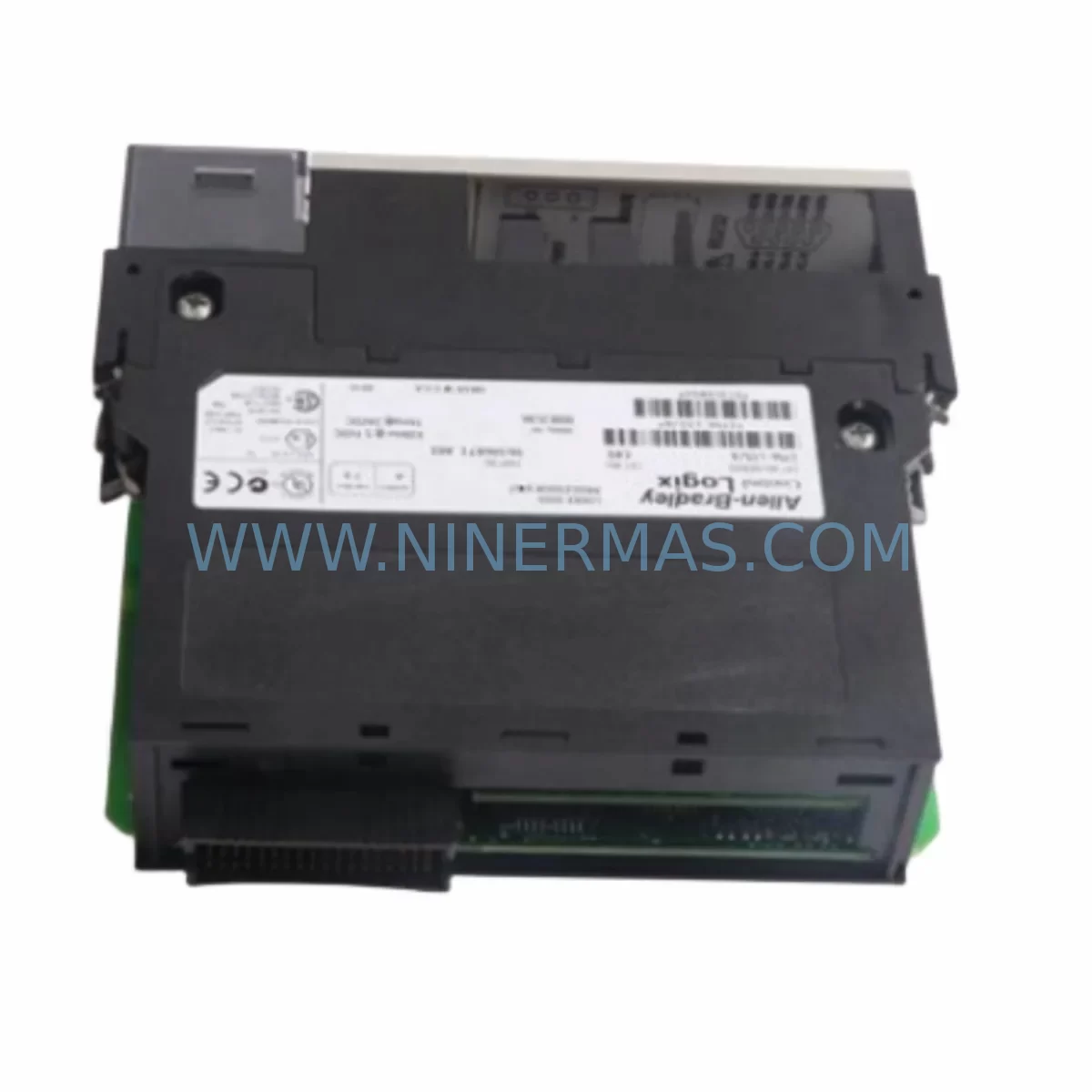

Allen-Bradley 1756-L83E Retrofit ControlLogix Controller

Allen-Bradley 1756-L83E Retrofit ControlLogix Controller: Legacy System Compatibility & Smooth Upgrade

The Allen-Bradley 1756-L83E is a high-performance ControlLogix Series L8x processor designed for demanding industrial automation environments. As legacy 1756-L6x and earlier L8x-generation controllers approach end-of-life, the 1756-L83E has become a critical retrofit solution for facilities seeking to extend the operational life of their existing ControlLogix chassis infrastructure without committing to a full platform migration.

NINERMAS supplies the 1756-L83E as a retrofit-compatible spare, fully tested prior to shipment and backed by a 12-month warranty. Whether you are replacing a failed 1756-L61, 1756-L62, 1756-L63, or an earlier L8x unit, the 1756-L83E offers expanded memory, improved scan performance, and native EtherNet/IP connectivity — all within the same 1756 backplane form factor your existing control cabinet was built around.

For maintenance engineers and automation integrators managing aging production lines, the 1756-L83E provides a technically sound upgrade path that preserves existing I/O wiring, rack configurations, and — with appropriate Studio 5000 Logix Designer project conversion — the original ladder logic and function block programs developed for predecessor controllers.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 1756-L83E retrofit begins well before the replacement unit arrives on site. The first step is a thorough audit of the existing 1756 chassis configuration. Engineers should document every module slot assignment — including 1756-IB16 digital input modules, 1756-OB16E digital output modules, 1756-IF8 analog input modules, and any 1756-OF8 analog output modules — and confirm that the total chassis current draw remains within the capacity of the installed 1756-PA72 or 1756-PB72 power supply. The L83E’s own current consumption must be factored into this budget, particularly in fully populated 17-slot chassis.

Communication architecture is the next critical area. Many legacy installations rely on a 1756-EN2T or 1756-EN2TR EtherNet/IP bridge module to connect the ControlLogix backplane to the plant network. With the 1756-L83E’s dual built-in EtherNet/IP ports, it may be possible to simplify the network topology and reduce the number of bridge modules required — though existing device-level ring (DLR) configurations using 1756-EN2TR should be carefully re-evaluated before any topology changes are made.

For installations that also include a 1756-DNB DeviceNet bridge or a 1756-RIO Remote I/O adapter, these modules remain fully compatible with the 1756-L83E and do not require replacement as part of the controller upgrade. Similarly, any 1756-L83E installation in a redundancy configuration will require a matched 1756-L83E in the secondary chassis along with the 1756-RM2 redundancy module — a detail that must be confirmed during the pre-retrofit planning phase.

Terminal wiring on all I/O modules is unaffected by the controller swap, which is one of the primary advantages of remaining within the 1756 platform. Field wiring connected to 1756-IB16, 1756-OB16E, and analog modules does not need to be disturbed. However, engineers should verify that module firmware versions are compatible with the L83E’s target firmware revision, as mismatches can cause unexpected module faults on first power-up.

HMI integration is another area requiring pre-retrofit attention. PanelView Plus 6 and PanelView Plus 7 terminals running FactoryTalk View ME applications communicate with the controller via EtherNet/IP. After the controller swap, the communication path configuration in the HMI application must be verified to ensure it references the correct controller IP address and slot number. Tag name changes introduced during program conversion can cause display faults if not reconciled with the HMI tag database before go-live.

For sites using a 1784-U2DHP USB-to-DH+ adapter or a 1747-UIC USB-to-DH485 interface cable for legacy programming connections, these remain useful during the transition period for accessing any co-existing SLC 500 or MicroLogix controllers on the same production line — a common scenario in phased modernization projects where not all controllers are replaced simultaneously.

Downtime Control During System Migration

Minimizing unplanned downtime is the central concern in any ControlLogix controller replacement project. NINERMAS recommends a structured cold-swap procedure: back up the existing controller program using Studio 5000 or RSLogix 5000 before any hardware is disturbed, and store a verified copy of the .ACD project file in a location independent of the controller itself. If the existing controller is still functional, use it to generate a full program backup including all controller tags, I/O configuration, motion groups, and produced/consumed tag definitions.

Once the 1756-L83E is installed in the chassis, restore power and allow the module to complete its self-test sequence before attempting to download the program. Apply the correct firmware version using ControlFLASH prior to program download — downloading to a controller running mismatched firmware is a common source of avoidable commissioning delays. After firmware is confirmed, download the converted project file and transition the controller to Run mode in a controlled sequence, monitoring the I/O tree for any module faults before enabling output control.

For critical continuous-process applications where even brief output interruptions are unacceptable, a 1756-L83E-based redundancy pair using the 1756-RM2 redundancy module provides automatic switchover capability. In redundant configurations, the primary and secondary controllers maintain synchronized program state, allowing a failed primary to be replaced without interrupting process control — a significant advantage in chemical, oil and gas, and power generation applications where the cost of an unplanned shutdown far exceeds the cost of the redundancy hardware.

Post-swap commissioning should include a structured I/O checkout, verification of all communication links (EtherNet/IP, DeviceNet, ControlNet where applicable), confirmation of HMI display integrity, and a timed scan-cycle check to ensure the L83E’s task execution times are within the original design parameters. NINERMAS pre-shipment testing reduces the risk of DOA hardware, but site-level commissioning verification remains the engineer’s responsibility and should be planned into the project schedule.

Retrofit Support FAQ

Q1: Is the 1756-L83E a direct drop-in replacement for the 1756-L63 or 1756-L73?
The 1756-L83E occupies the same single backplane slot as the 1756-L63 and 1756-L73 and is mechanically compatible with all standard 1756 chassis. However, it is not a firmware-level drop-in: the program must be converted in Studio 5000 Logix Designer, and the controller firmware must be updated post-installation. Tag databases and AOI (Add-On Instruction) libraries are generally preserved during conversion, but should be verified before going live.

Q2: What pre-shipment testing does NINERMAS perform on the 1756-L83E?
Each 1756-L83E unit supplied by NINERMAS undergoes a powered functional test prior to dispatch. This includes power-on self-test verification, communication port functionality check, and firmware version confirmation. Units that do not pass testing are not shipped. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can the 1756-L83E be used in an existing ControlLogix redundancy system?
Yes, provided the secondary chassis also contains a matched 1756-L83E and the system includes a 1756-RM2 redundancy module. Both primary and secondary controllers must run identical firmware revisions. NINERMAS can supply matched pairs on request — contact our sales team to confirm availability and lead time.

Q4: What is the stock availability and lead time for the 1756-L83E?
NINERMAS maintains stock of the 1756-L83E and can typically ship within 2–5 business days of order confirmation. For urgent requirements or large-quantity orders, contact us directly at sale@ninermas.com or +0086 187 5021 5667 to confirm current inventory levels and expedited shipping options.
