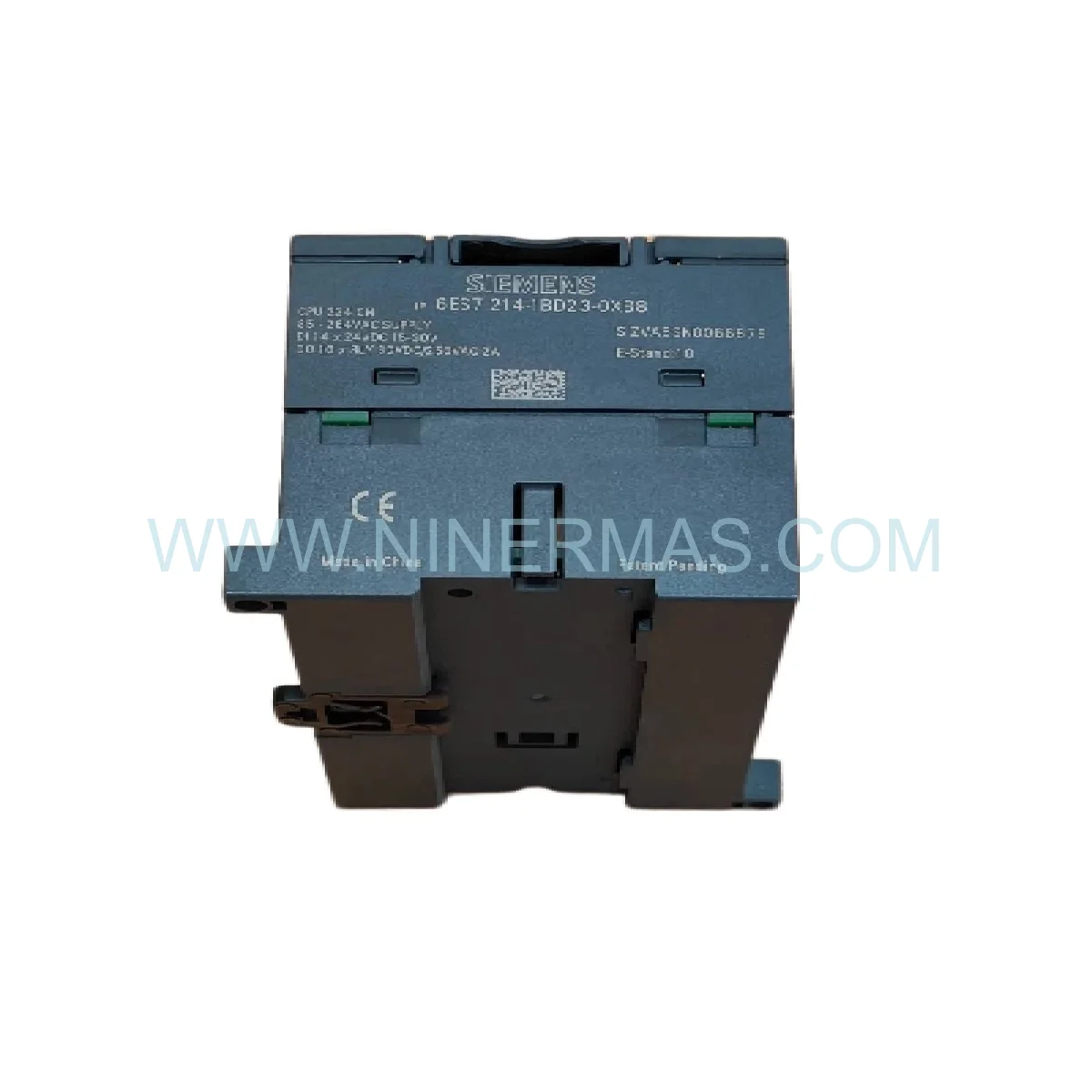

Siemens SIMATIC S7-200 CPU 224 6ES7214-1BD23-0XB8 | New & Original in Stock

Siemens SIMATIC S7-200 CPU 224 6ES7214-1BD23-0XB8 | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing mission-critical production assets, the 6ES7214-1BD23-0XB8 stands as a cornerstone of system availability in compact automation architectures. This CPU 224 module — part of Siemens’ proven SIMATIC S7-200 platform — delivers deterministic scan-cycle execution at 0.22 ms per 1,000 instructions, directly reducing unplanned downtime risk across discrete manufacturing, process control, and machine automation environments. Its role in process optimization is not incidental; it is structural.

Engineered for operational excellence in demanding industrial conditions, the 6ES7214-1BD23-0XB8 operates reliably across a 0°C to 55°C ambient temperature range with IP20 ingress protection — suitable for standard control cabinet deployment in environments subject to vibration, electrical noise, and thermal cycling. Installation personnel should ensure proper DIN-rail torque specifications are observed and that 24V DC supply ripple remains within ±5% to preserve CPU stability during high-load cycles.

As production lines age and OEM support windows close, maintaining a verified stock of the CPU 224 as a critical spare is a fundamental SRE discipline. The 6ES7214-1BD23-0XB8 is an end-of-life (EOL) legacy module — sourcing original, factory-sealed units from a qualified distributor is the only path to guaranteed firmware compatibility and seamless integration without re-engineering costs.

Key Operational Features

High-Speed Deterministic Processing: 0.22 ms/1,000 instructions — ensures real-time responsiveness for time-sensitive automation components.
Onboard I/O Density: 14 — 24V DC digital inputs + 10 — relay/transistor digital outputs — maximizing I/O modules per cabinet footprint.
Expandable Architecture: Supports up to 7 expansion modules for analog I/O, communication, and specialty functions — enabling seamless integration into multi-tier control networks.
Redundancy-Ready Networking: Built-in RS-485 PPI/MPI port supports multi-node topologies for high-availability SCADA and HMI connectivity.
Compact Form Factor: 196 — 80 — 62 mm — optimized for space-constrained control panels without sacrificing processing capability.
STEP 7-Micro/WIN Compatible: Full support for LAD, FBD, and STL programming — zero retraining overhead for existing Siemens-trained engineering teams.

Maintenance & Performance Benchmarks

The 6ES7214-1BD23-0XB8 is architected to adapt across a broad spectrum of industrial network scales. In standalone configurations, it functions as a self-contained controller managing up to 248 I/O points (with full expansion). In distributed architectures, it operates as a PPI slave or MPI node, integrating with supervisory systems via RS-485 without requiring additional communication processors.

For maintenance benchmarking: mean time between failures (MTBF) for the S7-200 CPU 224 series under standard operating conditions exceeds 100,000 hours. Firmware version compatibility should be validated against the STEP 7-Micro/WIN release matrix prior to replacement — particularly in systems running V2.0 or earlier instruction sets. Battery-backed data retention (up to 190 hours at 40°C) ensures program and data memory integrity during power interruptions, a critical parameter for operational continuity in process-sensitive environments.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every unit of the 6ES7214-1BD23-0XB8 dispatched from our facility is shipped in Original Factory Packaging — sealed, labeled, and traceable to manufacturer batch records. This is non-negotiable for mission-critical spare parts management, where counterfeit risk and improper storage history can compromise system reliability from day one.

Same-Day Dispatch: Orders confirmed before cut-off time are processed and handed to carrier the same business day (subject to stock confirmation).
Global EOL/Legacy Supply: We maintain dedicated inventory buffers for discontinued Siemens SIMATIC modules — including the S7-200 series — to support facilities operating legacy automation infrastructure beyond standard OEM support windows.
Worldwide Express Logistics: DHL Express, FedEx International Priority, and UPS Worldwide available — typical transit 2-5 business days to major industrial hubs globally.
Export Documentation: Full commercial invoice, packing list, and certificate of origin provided for customs clearance in all major import jurisdictions.

Engineering Support & FAQ

Q1: What is the correct installation sequence for the 6ES7214-1BD23-0XB8 on a DIN rail?
A: Mount the CPU 224 on a 35mm DIN rail with the bus connector aligned to the right for expansion module attachment. Secure with end brackets, connect 24V DC supply to terminals L+ and M, then connect I/O field wiring before powering up. Always verify supply polarity before energizing.

Q2: Which firmware versions are compatible with this CPU model?
A: The 6ES7214-1BD23-0XB8 carries firmware version 2.01. It is fully compatible with STEP 7-Micro/WIN V4.0 SP9 and later. Earlier software versions may not support all instruction set features — always verify the software release notes before deployment.

Q3: Can this CPU communicate with S7-300 or S7-400 systems?
A: Yes, via MPI protocol over the RS-485 port. The CPU 224 can function as an MPI slave node in a mixed-generation Siemens network, enabling data exchange with higher-tier PLCs and SCADA systems without additional hardware gateways in most configurations.

Q4: How is the warranty claim process handled?
A: All units carry a 1-Year Warranty from date of invoice. To initiate a claim, contact our technical support team with the order reference, unit serial number, and a description of the fault symptom. DOA (Dead on Arrival) units are replaced within 5 business days upon receipt and inspection of the returned module.

Q5: Is the CPU 224 suitable for use in safety-rated (SIL) applications?
A: The standard 6ES7214-1BD23-0XB8 is not certified for IEC 61508 SIL-rated safety functions. For safety system applications requiring SIL 2/3 compliance, Siemens SIMATIC Safety or S7-300F/S7-400F series controllers are the appropriate platform.

Q6: What is the data memory retention behavior during a power loss?
A: The CPU 224 uses a supercapacitor for short-term data retention (approximately 5 days at 25°C) and supports an optional battery cartridge for extended retention up to 200 days. Retentive memory ranges (M, T, C areas) are configurable in STEP 7-Micro/WIN system block settings.
