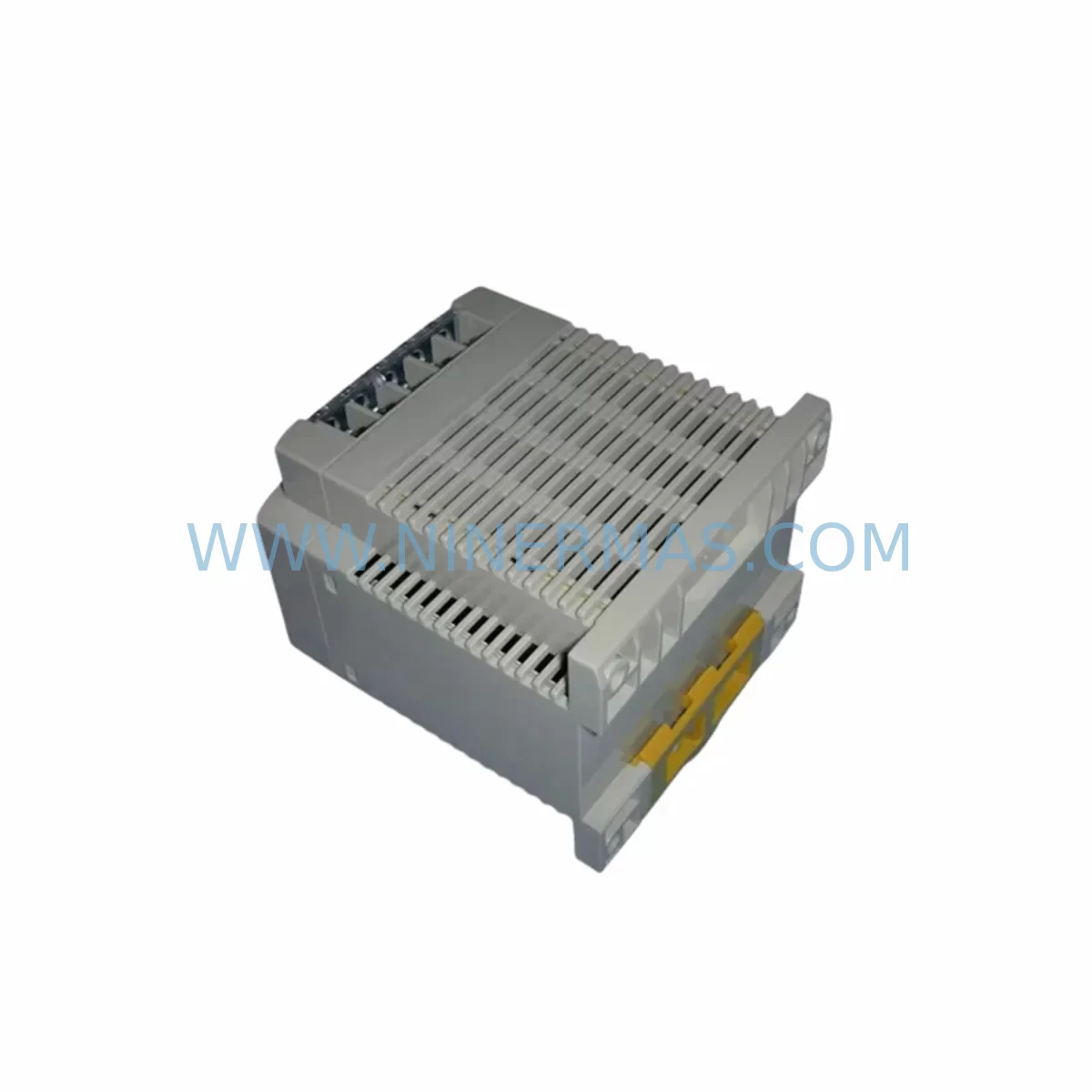

The OMRON S82K-03024 is a compact DIN-rail-mounted switching power supply from OMRON’s proven S82K series, delivering 24 VDC output at 1.3 A (30 W) from a universal 100–240 VAC input. Designed for retrofit-ready deployment, this unit serves as a direct replacement for aging or discontinued power supply modules in legacy control panels, PLC enclosures, and distributed I/O cabinets. Its slim form factor and wide input voltage tolerance make it a practical choice for engineers modernizing older automation systems without redesigning the entire control architecture.

When a legacy control system reaches end-of-life or its original power supply fails, the S82K-03024 provides a reliable, in-stock alternative that minimizes engineering rework. The unit is compatible with standard 35 mm DIN rail mounting and fits within the same panel footprint as many earlier OMRON and third-party PSU modules. Pre-shipment functional testing is performed on every unit before dispatch, and each module is backed by a 12-month warranty covering manufacturing defects and performance deviations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a failed or end-of-life power supply in a running production environment requires careful pre-work to avoid unplanned downtime. Before removing the original unit, document the existing wiring layout, photograph terminal connections, and record the output voltage and current readings under normal operating load. This baseline data is essential when commissioning the S82K-03024 as a drop-in replacement.

In a typical OMRON CJ-series or CS-series PLC rack, the power supply module feeds the CPU unit and all installed I/O modules through the backplane bus. When the S82K-03024 is used as an external 24 VDC supply for field devices — such as OMRON CJ1W-ID211 digital input modules, CJ1W-OD211 digital output modules, or CJ1W-AD081 analog input modules — the installer must verify that the combined current draw of all powered devices does not exceed the 1.3 A output rating. If the existing panel also powers an OMRON NS-series HMI terminal or a CP1W expansion unit, those loads must be included in the current budget calculation.

For panels that include communication modules such as the CJ1W-EIP21 EtherNet/IP unit or the CJ1W-DRM21 DeviceNet master, the 24 VDC supply rail must remain stable during module initialization. A brief voltage dip during power-up can cause network nodes to drop offline and require manual re-registration. The S82K-03024’s built-in output voltage adjustment trimmer (±10%) allows fine-tuning to compensate for long cable runs or high-resistance terminal connections in older wiring harnesses.

When the retrofit involves replacing an older OMRON S82J or S82W series power supply, the installer should compare the terminal block layout of the original unit against the S82K-03024. In most cases, the +V, -V, and FG (functional ground) terminals are in equivalent positions, but the physical width of the new unit may differ by a few millimetres. Confirm available DIN rail space and adjacent component clearance — particularly if the cabinet also houses an OMRON G7SA safety relay, a 3G3MX2 inverter drive, or a row of OMRON G2R relay modules, all of which may be mounted on the same rail segment.

For systems that include an OMRON CJ1W-SCU21 serial communications unit or a CJ1W-PRM21 PROFIBUS-DP master, the 24 VDC supply stability directly affects fieldbus communication reliability. Ensure the S82K-03024 output is connected to a dedicated 24 VDC bus bar rather than daisy-chained through terminal blocks, which can introduce voltage drop under load. Use appropriately rated wire (minimum 1.5 mm² for runs exceeding 3 m) and install a fast-blow fuse or circuit breaker rated at 2 A on the output circuit for overcurrent protection.

If the retrofit also involves migrating from an older OMRON SYSMAC C200H or CQM1 platform to a current CJ2M or CP2E controller, the S82K-03024 can serve as the 24 VDC supply for the new CPU’s I/O power rail while the legacy backplane is decommissioned. This staged approach — powering the new controller from the replacement PSU while the old system is still partially operational — allows program verification and HMI screen mapping to be completed before the final cutover, significantly reducing the risk of extended production stops.

Downtime Control During System Migration

Minimizing unplanned downtime during a power supply replacement or broader control system migration is the primary concern for most maintenance engineers. The S82K-03024 supports a structured hot-swap preparation workflow: with the replacement unit pre-wired on a temporary DIN rail segment and output voltage verified off-line, the actual panel swap can be completed in under 15 minutes for a straightforward single-PSU installation.

Before initiating the cutover, place the PLC CPU in STOP mode and save the current program to a memory card or PC-based backup using OMRON CX-Programmer or Sysmac Studio, depending on the controller generation. This ensures that the ladder logic, function block diagrams, and I/O table configuration are preserved even if the CPU loses power unexpectedly during the swap. For systems with an OMRON NX-series safety CPU or a CJ2H with built-in EtherNet/IP, also export the network configuration and node address table before disconnecting power.

After installing the S82K-03024 and restoring power, perform a systematic check: verify 24 VDC at the output terminals, confirm all I/O module status LEDs return to their normal run state, and check that any connected HMI (such as an OMRON NB7W or NS12 terminal) re-establishes its communication link to the CPU without requiring a manual IP address re-entry. If the system includes a DeviceNet or PROFIBUS network, monitor the network master’s diagnostic screen for any node fault flags that may have been triggered by the power interruption.

For larger panel retrofits where multiple power supply zones are being upgraded simultaneously, stagger the replacement sequence by zone rather than cutting all power at once. This preserves partial system functionality during the migration window and allows each zone to be independently verified before the next is taken offline. Document each completed zone with a post-commissioning checklist that records output voltage, load current, terminal torque, and the serial number of the installed S82K-03024 unit for traceability and warranty registration purposes.

Retrofit Support FAQ

Q1: Is the S82K-03024 a direct replacement for the S82J-0024D and other discontinued OMRON 24 VDC power supplies?
In most cases, yes. The S82K-03024 shares the same output voltage (24 VDC), DIN rail mounting standard (35 mm), and terminal polarity convention as the S82J-0024D and several other discontinued OMRON DIN-rail PSU models. However, the output current rating (1.3 A / 30 W) must be verified against the actual load in your panel. If your original unit was rated above 30 W, consider the S82K-05024 (2.1 A / 50 W) as an alternative. Always cross-reference the original nameplate data before ordering.

Q2: What pre-shipment testing is performed on each S82K-03024 unit?
Every S82K-03024 dispatched from our warehouse undergoes a functional pre-shipment test that includes: input voltage application at both 100 VAC and 240 VAC, output voltage measurement under no-load and 50% rated load conditions, output ripple check, and visual inspection of terminal block integrity and housing condition. A test record is maintained for each unit. Test certificates are available on request for customers requiring documentation for quality audits or incoming inspection procedures.

Q3: How do I verify wiring compatibility before installing the S82K-03024 in my existing panel?
Compare the terminal layout of the S82K-03024 (L, N, FG on the AC input side; +V, -V, FG on the DC output side) against your existing wiring diagram. Photograph the original terminal connections before disconnecting any wires. Verify wire gauge compatibility — the S82K-03024 accepts conductors up to 2.5 mm² (AWG 14) with ferrules. If your existing wiring uses larger conductors, install a short pigtail adapter. Confirm that the functional ground (FG) terminal is bonded to the panel earth bus in accordance with local electrical codes.

Q4: What does the 12-month warranty cover, and how is a warranty claim initiated?
The 12-month warranty covers manufacturing defects, output voltage deviation beyond the specified ±1% regulation tolerance, and premature component failure under normal operating conditions. It does not cover damage resulting from incorrect wiring, overvoltage input, physical impact, or installation in environments exceeding the rated operating temperature (0–50 °C). To initiate a warranty claim, contact our sales team with the unit serial number, purchase date, and a description of the observed fault. Replacement units are dispatched after fault verification, and return shipping of the defective unit is arranged at our cost for confirmed warranty cases.
