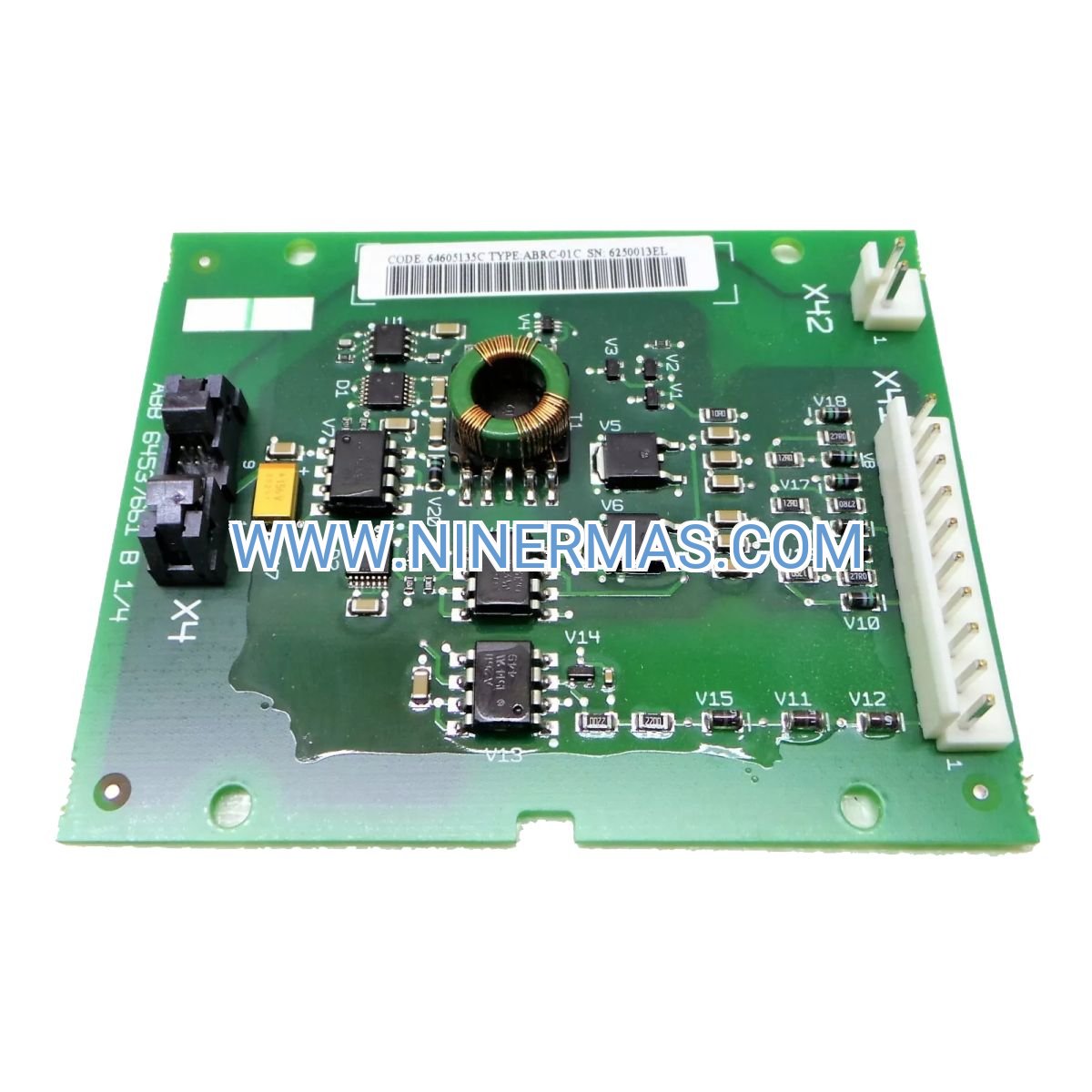

ABB ABRC-01C Resolver Interface Module (Industrial-Grade Motor Position Feedback)

The ABB ABRC-01C is a high-precision resolver interface module engineered to convert analog resolver signals into accurate digital position data for closed-loop motor control systems. Designed specifically for ABB's ACS800 and ACS880 variable frequency drive platforms, this module delivers robust performance in industrial environments where traditional optical encoders face reliability challenges from contamination, vibration, or extreme temperatures.

This solution addresses critical feedback requirements in heavy-duty applications—eliminating encoder maintenance cycles while maintaining sub-degree positioning accuracy. Target users include automation engineers, OEM integrators, and maintenance teams managing servo-driven machinery in metals processing, mining operations, marine propulsion, and material handling sectors.

Key advantages include resolver-based immunity to electromagnetic interference, simplified wiring through direct drive-slot integration, and compatibility with ABB's Direct Torque Control (DTC) technology for superior dynamic response. The ABRC-01C transforms challenging feedback scenarios into reliable, maintenance-free motor control architectures.

Core Features & Technical Benefits

→ Precision Signal Conversion
Transforms analog sine/cosine resolver outputs into 12-bit digital position data with ±0.1° accuracy, enabling precise speed regulation and torque control across 0-100% load ranges.

→ Plug-and-Play Drive Integration
Direct installation into ACS800/ACS880 option slots eliminates external signal conditioning hardware, reducing installation time by 60% compared to standalone converter solutions.

→ Harsh-Environment Resilience
Operates reliably in -10°C to +50°C ambient conditions with IP20 protection, maintaining signal integrity in high-vibration (5g) and electrically noisy industrial settings where encoders typically fail.

✓ Multi-Pole Resolver Support
Configurable for 1x to 8x pole-pair resolvers through DriveWindow software, providing flexibility for diverse motor specifications without hardware modifications.

✓ Real-Time Diagnostics
Continuous monitoring of resolver signal amplitude and phase balance with fault detection algorithms that trigger drive alarms before position errors impact production quality.

✓ Compact DIN-Rail Mounting
Space-efficient design (45mm width) fits standard control cabinet layouts, supporting both panel-mount and DIN-rail installation methods for retrofit or new-build projects.

Typical Application Scenarios

Metal Rolling Mills & Forming Equipment
In hot rolling operations, the ABRC-01C withstands ambient temperatures exceeding 40°C and airborne scale particles that would destroy optical encoders within weeks. Resolver feedback maintains ±0.5% speed accuracy during coil tension control, preventing material defects and reducing scrap rates by 15-20%.

Mining Conveyor & Hoist Systems
Underground conveyor drives operating in coal dust and moisture-laden atmospheres rely on resolver-based feedback for continuous operation. The module's EMI immunity ensures accurate positioning during emergency stop sequences, critical for personnel safety in shaft hoist applications.

Marine Propulsion & Thruster Control
Shipboard variable-pitch propeller drives demand feedback systems immune to salt spray and vibration. ABRC-01C modules paired with ACS880 marine drives deliver precise blade angle control (±0.2°) for dynamic positioning systems, reducing fuel consumption by 8-12% versus open-loop operation.

Heavy-Duty Material Handling
Crane and gantry systems in steel mills and ports use resolver feedback to achieve smooth acceleration profiles and precise load positioning. The module's 10ms update rate supports jerk-limited motion control, extending mechanical component life by 30% compared to encoder-based systems requiring frequent recalibration.

Cement & Aggregate Processing
Kiln drive applications benefit from resolver durability in high-dust, high-temperature zones. Continuous position feedback enables torque-sharing algorithms across multiple drive sections, balancing mechanical stress and reducing gearbox maintenance intervals from quarterly to annual schedules.

Technical Parameters & Selection Guide

Selection Criteria:
→ Choose ABRC-01C when resolver feedback is specified by motor manufacturer or when operating environments exceed IP54-rated encoder limits
→ Verify resolver pole-pair count matches module configuration range (1x-8x); consult motor nameplate or manufacturer datasheet
→ Confirm drive firmware version supports resolver option (ACS800: R7.x+, ACS880: R1.x+)
→ For applications requiring SIL2/PLd safety ratings, combine with RTAC-01 safe torque-off module

Extended Functions & Integration Capabilities

DriveWindow Configuration Suite
The module integrates with ABB's DriveWindow Lite/Pro software for parameter setup, including resolver pole-pair selection (99.01), offset angle compensation (99.02), and signal amplitude monitoring (99.05-99.06). Real-time oscilloscope functions display sine/cosine waveforms for commissioning verification.

Fieldbus Connectivity
Position data streams to PROFIBUS DP, EtherNet/IP, or PROFINET networks via drive communication modules (FPBA-01, FENA-21), enabling integration with Siemens TIA Portal, Rockwell ControlLogix, or Schneider Unity Pro PLC platforms for coordinated multi-axis motion.

Advanced Control Modes
Supports ABB DTC (Direct Torque Control) for 5ms torque response times and DTC-300 for permanent magnet motor applications. Resolver feedback enables field-oriented control algorithms that deliver 98% efficiency across 20-100% load ranges.

Customization Options
Factory-configured variants available for non-standard resolver specifications (custom excitation frequencies, differential input stages). Consult ABB Drive Products division for lead times and MOQ requirements on modified units.

Delivery Timeline & Service Guarantee

Standard Delivery: 3-5 business days for in-stock units (North America/Europe warehouses)
Custom Configuration: 4-6 weeks for factory-programmed resolver parameters or modified hardware
Warranty Period: 24 months from shipment date, covering manufacturing defects and component failures
Technical Support: Email/phone assistance during commissioning; remote DriveWindow session support available
Documentation Package: Installation manual (3AFE64527121), parameter guide, resolver wiring diagrams, and DriveWindow configuration files included

Frequently Asked Questions

Q: How do I connect the ABRC-01C to my existing ACS800 drive system?
A: The module installs directly into the drive's option slot (typically slot B or C). Connect resolver wires to terminals X1:1-6 following the color-coded wiring diagram in section 4.2 of the installation manual. Set parameter 99.01 to match your resolver's pole-pair count, then run the auto-tuning sequence (parameter 99.10) to optimize signal processing.

Q: What resolver specifications are compatible with this interface module?
A: The ABRC-01C accepts resolvers with 1x to 8x pole pairs, 7V RMS excitation (5-10 kHz), and sine/cosine output impedance between 40-200Ω. Common compatible models include Tamagawa TS2651, Heidenhain ROD, and Sick/Stegmann resolvers. Verify your resolver's transformation ratio falls within 0.4-0.6 for optimal accuracy.

Q: Can this module improve energy efficiency compared to open-loop motor control?
A: Yes. Closed-loop control enabled by resolver feedback typically reduces energy consumption by 10-18% in variable-torque applications (fans, pumps) and 5-12% in constant-torque loads (conveyors, extruders) by eliminating slip losses and enabling optimized flux control. Actual savings depend on load profile and duty cycle.

Q: What are the installation requirements for harsh industrial environments?
A: Mount the drive and ABRC-01C module in a NEMA 12/IP54 minimum enclosure. Use shielded twisted-pair cable (Belden 9536 or equivalent) for resolver connections, grounding shield at drive end only. Maintain 300mm minimum separation from VFD power cables. In high-vibration applications (>3g), add shock-absorbing cabinet mounts and verify resolver shaft coupling alignment within 0.1mm.

Q: Does the ABRC-01C support remote monitoring and diagnostics?
A: Yes, when paired with drive communication modules (FENA-21 Ethernet or FPBA-01 PROFIBUS). Resolver signal quality parameters (amplitude, offset, fault codes) are accessible via Modbus TCP, EtherNet/IP, or PROFINET protocols. Integration with SCADA systems like Wonderware or FactoryTalk enables predictive maintenance alerts based on signal degradation trends.

Q: How does resolver-based feedback compare to encoder systems for motor positioning accuracy?
A: Resolvers provide absolute position within one electrical revolution (±0.1° with ABRC-01C) versus incremental encoders requiring homing sequences. While high-resolution encoders (>10,000 PPR) offer finer resolution, resolvers excel in accuracy retention over time—no optical disc degradation or bearing wear affecting counts. For multi-turn absolute positioning, combine with ACS880 multi-turn tracking (parameter 20.05).

Get Precision Motor Control for Your Application

Ready to eliminate encoder maintenance and achieve reliable closed-loop performance? Contact our drive systems specialists for application-specific configuration guidance, resolver compatibility verification, and volume pricing. Request a technical datasheet or schedule a DriveWindow remote commissioning session to validate your system architecture.
