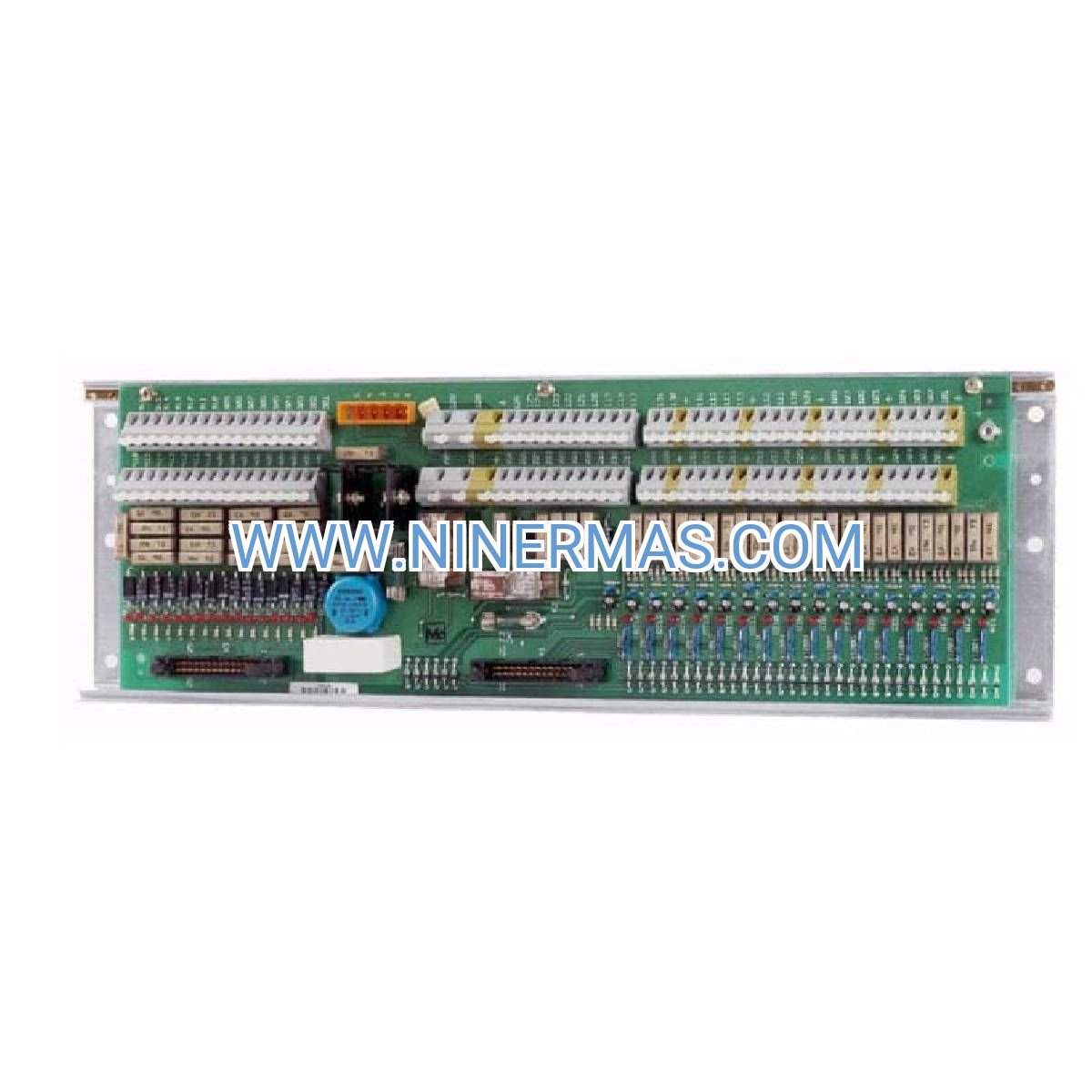

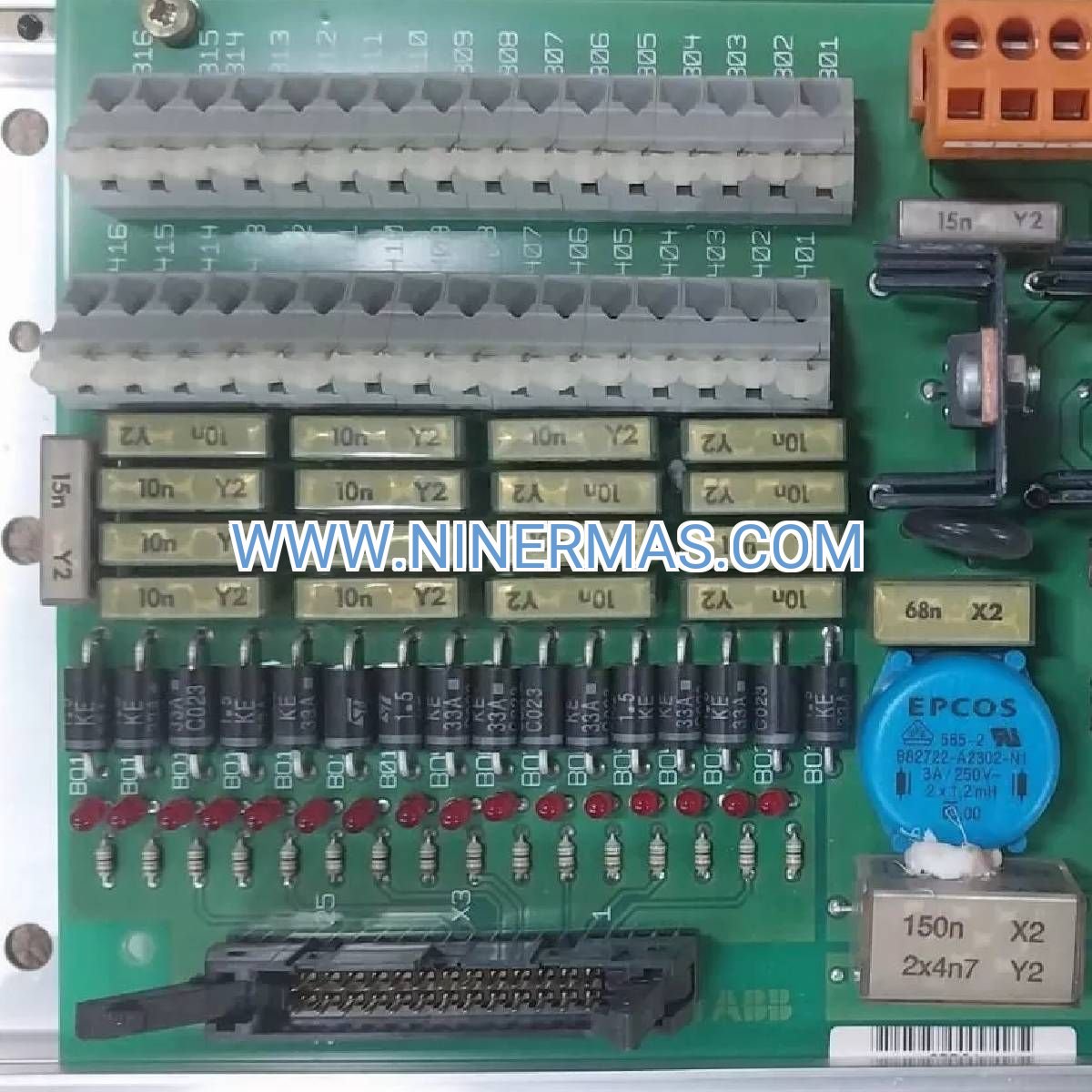

ABB TU837V1 Extended Module Termination Unit (Industrial-Grade Signal Distribution Hub)

The ABB TU837V1 (3BSE013238R1) represents a critical infrastructure component for industrial control systems requiring fault-tolerant signal routing. This extended module termination unit (MTU) integrates 8x1 fused isolated channels with galvanic separation technology, delivering uncompromising protection for distributed I/O architectures in process automation, manufacturing execution systems, and critical infrastructure applications.

Designed for engineers managing complex S800 I/O networks, the TU837V1 solves the persistent challenge of signal integrity degradation and fault propagation in multi-zone control environments. Whether you're coordinating turbine control loops in power generation facilities, managing hazardous area instrumentation in chemical plants, or maintaining uptime in pharmaceutical batch processing systems, this MTU provides the isolation barrier and modular flexibility your operation demands.

With proven reliability across -40°C to +70°C operating ranges and seamless integration with AC 800M controllers, the TU837V1 enables rapid system expansion without compromising safety standards. The unit's terminal block architecture allows hot-swappable module replacement—reducing mean time to repair (MTTR) by up to 60% compared to hardwired alternatives while maintaining full compliance with IEC 61131 industrial automation standards.

Core Features & Technical Advantages

✓ 8x1 Fused Isolated Signal Architecture
Independent fuse protection on each channel prevents single-point failures from cascading across your control network, ensuring continuous operation even during field device faults. Galvanic isolation exceeds 1500V AC test voltage for superior noise immunity in electrically harsh environments.

✓ Flexible Terminal Configuration
8x1 L terminals paired with 2x6 N terminals accommodate diverse wiring topologies—from star configurations in centralized control rooms to daisy-chain layouts in distributed cabinet installations. Spring-cage terminal technology accepts 0.5-2.5mm² conductors without ferrules.

✓ Extended Environmental Specification
Operates reliably from -40°C to +70°C ambient temperature range with conformal coating protection against humidity, dust, and corrosive atmospheres. Meets IP20 ingress protection for standard industrial enclosures.

✓ DIN Rail Mounting System
Secure locking mechanism enables tool-free installation on 35mm DIN rails (EN 50022 standard). Compact 12.5mm width conserves valuable panel space in high-density I/O configurations—install up to 48 channels per meter of rail.

✓ S800 I/O Ecosystem Compatibility
Native integration with ABB's complete S800 module portfolio including analog input (AI), digital output (DO), communication interfaces, and safety-rated modules. Supports AC 800M, AC 700F, and third-party controllers via PROFIBUS DP/PA and Modbus protocols.

✓ Maintenance-Optimized Design
Color-coded terminal blocks and laser-etched channel numbering accelerate troubleshooting procedures. Field wiring remains undisturbed during I/O module replacement—technicians swap modules in under 90 seconds without process interruption.

Industrial Application Scenarios

→ Chemical Process Automation
In petrochemical refineries and specialty chemical plants, the TU837V1 isolates hazardous area signals from safe area control systems. Deploy between intrinsically safe barriers and S800 analog input modules to monitor reactor temperatures, pressure transmitters, and flow meters while maintaining SIL 2 safety integrity levels. The fused isolation prevents ground loop currents that cause measurement drift in long cable runs exceeding 500 meters.

→ Power Generation & Distribution
Utility-scale power plants leverage the TU837V1 for turbine control, generator protection, and auxiliary systems coordination. The unit's extended temperature rating supports installation in non-climate-controlled switchgear rooms and outdoor substations. Galvanic isolation protects sensitive PLC inputs from high-voltage transients during circuit breaker operations and lightning strikes.

→ Water & Wastewater Treatment
Municipal SCADA networks utilize the TU837V1 to interface remote lift stations, clarifier controls, and chemical dosing systems with central monitoring platforms. The MTU's corrosion-resistant construction withstands chlorine vapors and high-humidity environments typical of treatment facilities. Fused channels prevent pump motor faults from damaging expensive I/O cards.

→ Pharmaceutical Manufacturing
GMP-compliant batch processing systems depend on the TU837V1 for validated signal distribution in cleanroom environments. The unit supports 21 CFR Part 11 audit trail requirements through integration with ABB's 800xA DCS platform. Isolated channels eliminate cross-contamination risks between sterile and non-sterile zone instrumentation.

→ Oil & Gas Pipeline Monitoring
Midstream operators deploy the TU837V1 at remote metering stations and compressor facilities where ambient temperatures fluctuate from desert heat to arctic cold. The MTU's -40°C cold-start capability ensures reliable operation during winter shutdowns. Fused isolation protects against lightning-induced surges common in exposed pipeline infrastructure.

Technical Parameters & Selection Guide

Selection Criteria: Choose the TU837V1 when your application requires isolated signal distribution with individual channel protection. For non-isolated applications with lower channel counts, consider the standard TU810V1 (compact MTU). If your system demands higher voltage ratings (up to 50V), the TU830V1 provides 16-channel capacity. Verify compatibility with your specific S800 I/O module types—analog input modules (AI810, AI820) and digital output modules (DO810, DO820) integrate seamlessly with this MTU variant.

Extended Functionality & Integration Options

IoT & Remote Monitoring Integration: When paired with ABB Ability™ cloud connectivity modules, the TU837V1 enables predictive maintenance analytics through vibration signature analysis and thermal imaging correlation. Real-time channel health monitoring alerts maintenance teams to degraded fuse conditions before failures occur, reducing unplanned downtime by 40-50%.

Advanced Diagnostic Capabilities: The MTU supports ABB's Control Builder M engineering environment for comprehensive I/O diagnostics including wire break detection, short circuit identification, and channel-by-channel current monitoring. Diagnostic data integrates with CMMS platforms (SAP PM, Maximo) for automated work order generation.

Customization Services: NINERMAS offers pre-configured TU837V1 assemblies with customer-specific terminal labeling, pre-wired jumper configurations, and factory acceptance testing (FAT) documentation. Custom conformal coating options available for extreme chemical exposure environments (consult engineering team for specifications).

Delivery Timeline & Service Commitments

Standard Delivery: 3-5 business days for in-stock units via express courier (DHL, FedEx). Tracking information provided within 24 hours of order confirmation.

Custom Configuration Lead Time: 10-15 business days for pre-wired assemblies and special coating treatments. Expedited processing available for critical outage situations (contact sales team).

Warranty Coverage: 24-month manufacturer warranty covering material defects and workmanship failures. Extended warranty programs available for mission-critical installations requiring 5-year coverage.

Technical Support: Lifetime access to application engineering support via email, phone, and remote desktop assistance. Average response time: 4 hours for critical issues, 24 hours for general inquiries. Mandarin and English language support available.

Documentation Package: Each unit ships with installation manual, wiring diagrams, dimensional drawings (DXF/PDF), and compliance certificates (CE, UL). Digital library access includes 3D CAD models (STEP format) and PLC configuration examples for Siemens TIA Portal, Rockwell Studio 5000, and ABB Control Builder.

Frequently Asked Questions

Q: How does the TU837V1 fused isolation protect my control system from field device failures?
A: Each of the 8 signal channels incorporates an independent fuse element that interrupts current flow when a short circuit or overload condition occurs on the field side. The galvanic isolation barrier (1500V AC rated) prevents fault voltages from reaching your expensive S800 I/O modules or PLC backplane. This dual-layer protection strategy has proven effective in preventing $50,000+ controller damage incidents during lightning strikes and motor starter failures.

Q: What is the maximum cable distance between the TU837V1 and field instrumentation?
A: Cable length depends on signal type and environmental noise levels. For 4-20mA analog signals, we recommend maximum 500 meters using shielded twisted pair cable (Belden 9841 or equivalent). Digital signals (24V DC) can extend to 1000 meters with proper cable sizing to compensate for voltage drop. The MTU's isolation technology maintains signal integrity even in high-EMI environments near VFDs and welding equipment.

Q: Can the TU837V1 reduce energy consumption in my control cabinet?
A: While the MTU itself consumes negligible power (<2W), the modular architecture enables energy optimization through selective I/O module activation. Customers report 15-25% reduction in control cabinet cooling requirements by consolidating I/O density—fewer cabinets mean lower HVAC loads. The unit's passive isolation design eliminates the standby power draw associated with active signal conditioners.

Q: What are the installation requirements for DIN rail mounting?
A: The TU837V1 mounts on standard 35mm DIN rail per EN 50022 specification. Ensure minimum 10mm clearance above and below the unit for adequate convection cooling. Torque terminal screws to 0.5-0.6 Nm using a calibrated screwdriver—over-tightening damages spring-cage mechanisms. For vibration-prone environments (mobile equipment, seismic zones), add DIN rail end stops to prevent lateral movement.

Q: Is the TU837V1 compatible with third-party PLC systems beyond ABB controllers?
A: Yes, the MTU functions as a passive termination interface compatible with any S800 I/O module configuration. We've successfully integrated TU837V1 assemblies with Siemens S7-1500, Allen-Bradley ControlLogix, and Schneider Electric Modicon controllers using appropriate S800 communication modules (CI854, CI856). Consult our integration guide for protocol-specific wiring diagrams.

Q: How do I verify proper fuse operation during commissioning?
A: ABB recommends continuity testing each channel using a digital multimeter before energizing field circuits. Measure resistance between L and N terminals—readings should indicate <1Ω for intact fuses. The Control Builder M software provides real-time fuse status monitoring when paired with diagnostic-capable S800 modules (AI835, DI840). LED indicators on connected I/O modules will illuminate red if a fuse opens during operation.

Take the Next Step Toward Reliable Signal Distribution

Protect your control system investment with proven isolation technology trusted by Fortune 500 manufacturers worldwide. Our application engineers are standing by to review your I/O architecture and recommend the optimal TU837V1 configuration for your specific requirements.

Request a Technical Consultation: Email your single-line diagram and I/O list to sale@ninermas.com for a complimentary system design review within 48 hours.

Order Now: In-stock units ship same-day for orders placed before 3:00 PM CST. Volume pricing available for projects requiring 10+ units.

Phone Support: +0086 187 5021 5667 (Mandarin/English, Monday-Friday 8:00-18:00 CST)
