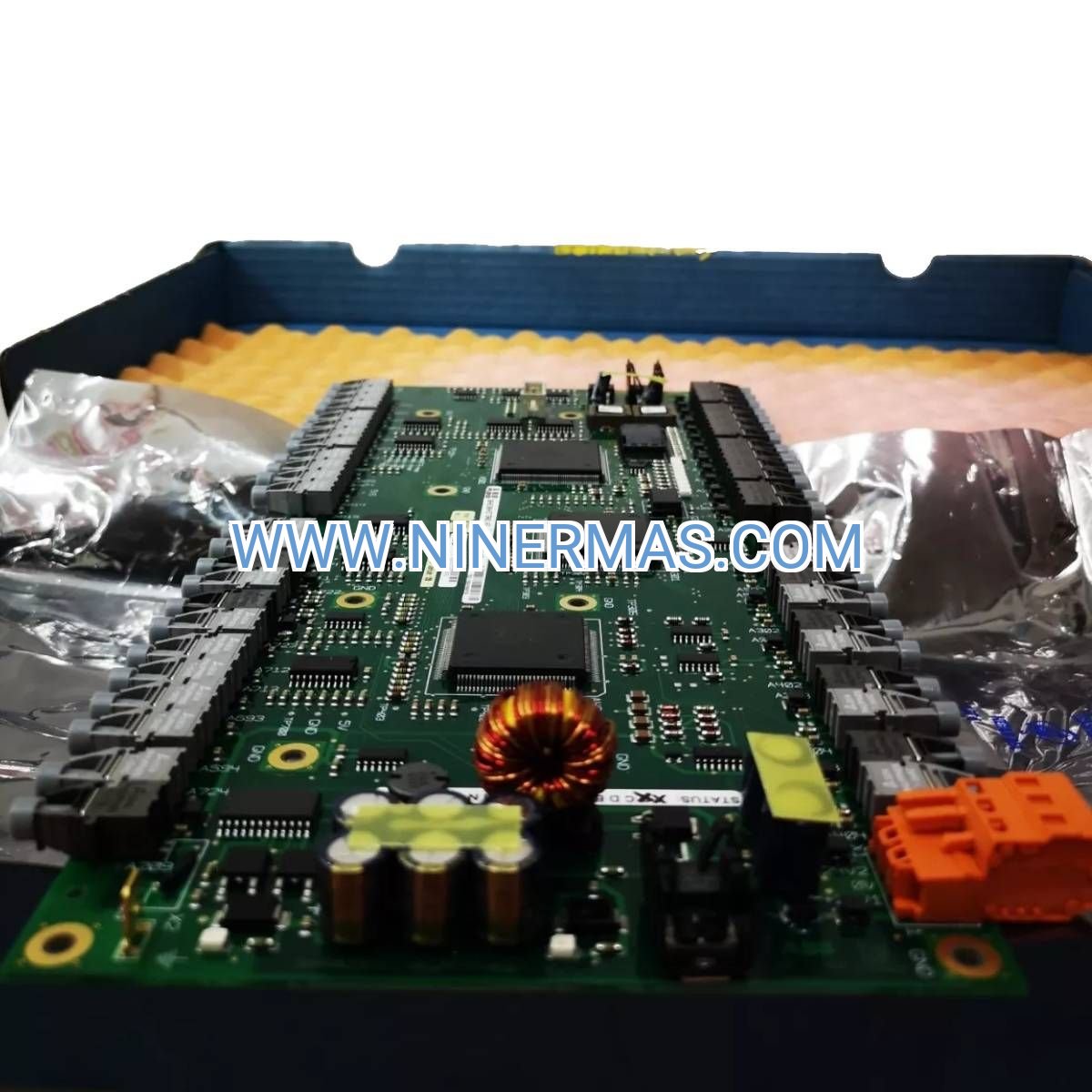

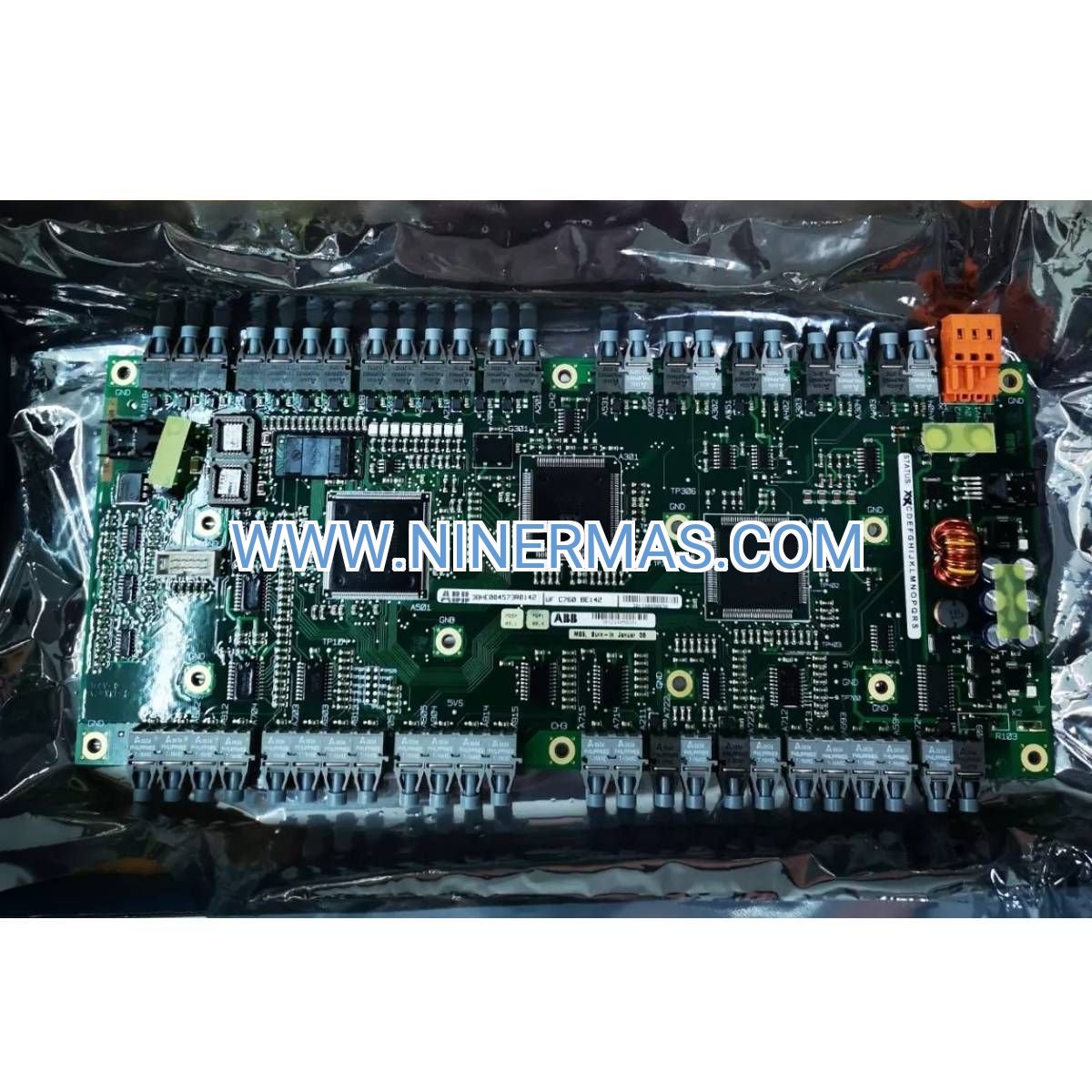

ABB 3BHE004573R0142 Interface Board (Industrial-Grade Signal Processing Module)

The ABB 3BHE004573R0142 UF C760 BE142 represents a critical control interface engineered for ACS 6000 series medium voltage AC drive systems. Manufactured in Switzerland under ISO 9001-certified quality protocols, this interface module delivers microsecond-precision signal conditioning and real-time communication between control logic and power conversion stages in high-demand industrial applications.

Designed for environments where drive reliability directly impacts production continuity, the UF C760 BE142 processes multi-channel sensor feedback, executes control algorithms, and coordinates system-level operations across mining, marine propulsion, oil & gas, and power generation installations. Its conformal-coated architecture withstands extreme temperature swings, electromagnetic interference, and mechanical vibration inherent to heavy industrial settings.

With factory-calibrated parameters and plug-compatible design, this interface board reduces commissioning time by up to 40% compared to field-configured alternatives while eliminating human error in critical control pathways. The module's self-diagnostic capabilities provide continuous health monitoring, enabling predictive maintenance strategies that minimize unplanned downtime.

Core Features & Technical Advantages

→ High-Speed Signal Conditioning: Integrated analog-to-digital converters with 16-bit resolution capture sensor data at 10 kHz sampling rates, ensuring precise feedback for vector control and direct torque control (DTC) algorithms. Built-in anti-aliasing filters eliminate signal distortion across the full 0-10V/4-20mA input range.

→ EMI-Hardened Communication Architecture: Differential signaling with galvanic isolation up to 2.5 kV protects control circuits from ground loops and electrical noise generated by high-power switching events. Shielded connector interfaces maintain signal integrity in environments with electromagnetic field strengths exceeding 10 V/m.

→ Extended Environmental Tolerance: Operates reliably across -40°C to +70°C ambient temperature range with automatic thermal derating. Humidity resistance up to 95% RH (non-condensing) and vibration tolerance to 2G at 10-150 Hz enable deployment in offshore platforms, underground mines, and tropical processing facilities.

✓ Backward-Compatible Retrofit Solution: Direct replacement for legacy part numbers LXEE1400P0, 3BHE004573R0042, and LXEE2210P0P1KIT without firmware modifications or control system reprogramming. Maintains existing I/O mapping and communication protocols, protecting installed infrastructure investments.

✓ Modular Hot-Swap Design: Tool-free installation with keyed connectors prevents incorrect insertion. In redundant configurations, the board supports online replacement during operation, reducing mean time to repair (MTTR) to under 15 minutes for trained personnel.

✓ Comprehensive Diagnostics: Onboard microcontroller executes continuous self-tests including power supply monitoring, signal path verification, and communication link validation. Fault codes transmit via DriveWindow software for remote troubleshooting, reducing on-site service calls by 30%.

Industrial Application Scenarios

Mining & Minerals Processing:
In SAG mills and conveyor systems handling 5,000+ tons per hour, the UF C760 BE142 coordinates variable-speed drives that optimize throughput while preventing mechanical overload. Real-time torque monitoring detects material blockages within 50 milliseconds, triggering protective shutdowns that prevent catastrophic equipment damage. Energy savings of 15-25% result from load-responsive speed control compared to fixed-speed operation.

Marine Propulsion & Thruster Control:
Dynamic positioning systems on offshore vessels rely on the interface board's sub-100ms response time to translate bridge commands into precise thrust vector adjustments. The module's vibration resistance ensures reliable operation in engine rooms experiencing continuous 1.5G acceleration, while salt-fog resistance prevents corrosion-related failures in marine atmospheres.

Oil & Gas Pipeline Operations:
Compressor stations maintaining 1,200 PSI pipeline pressure use the UF C760 BE142 to execute anti-surge control algorithms that prevent compressor stall during load transients. The board's failsafe logic automatically initiates controlled shutdowns if sensor signals fall outside validated ranges, protecting multi-million-dollar turbomachinery from damage.

Cement & Steel Production:
Rotary kilns and rolling mills operating at temperatures exceeding 1,500°C depend on the interface board's thermal stability to maintain precise speed regulation. Coordinated multi-drive control enables synchronized operation of material handling systems, reducing product quality variations by 12% through consistent process timing.

Power Generation Auxiliary Systems:
Boiler feed pumps and induced draft fans in 500+ MW thermal plants utilize the module's PID control capabilities to maintain optimal combustion air ratios. Smooth startup sequences programmed through the interface board reduce thermal stress on turbine components, extending overhaul intervals by 8-12 months.

Technical Parameters & Selection Guide

Selection Criteria: Verify drive system firmware version compatibility before ordering. For ACS 6000 systems manufactured before 2010, consult factory documentation to confirm interface board revision requirements. Systems operating in ATEX Zone 2 environments require additional enclosure certification beyond the board's intrinsic specifications.

Extended Capabilities & Integration Options

Industrial IoT Connectivity: When paired with ABB's CI868AK01 Ethernet/IP module, the UF C760 BE142 enables cloud-based condition monitoring and predictive analytics. Real-time drive performance data streams to ABB Ability™ platforms for machine learning-based anomaly detection and remaining useful life (RUL) estimation.

Multi-Protocol Communication: Supports integration with Profibus DP, Modbus RTU, and DeviceNet fieldbus networks through companion interface modules. Enables centralized SCADA control of distributed drive systems across plant-wide automation architectures.

Custom Parameter Sets: Factory programming services available for application-specific control algorithms, including custom PID tuning, specialized protection logic, and industry-specific operational sequences. Reduces field commissioning time for OEM machine builders and system integrators.

Delivery & Service Assurance

Lead Time: In-stock items ship within 24 hours via DHL/FedEx express. Standard delivery to North America: 3-5 business days; Europe: 4-6 days; Asia-Pacific: 5-7 days. Expedited same-day shipping available for critical breakdown situations.

Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship failures. Extended warranty programs available for up to 36 months with optional advance replacement service.

Technical Support: Pre-sales application engineering assistance included at no charge. Post-installation support via phone, email, and remote diagnostics. Access to ABB-certified technicians for complex integration challenges.

Documentation Package: Each unit ships with installation manual, wiring diagrams, dimensional drawings, and compliance certificates (CE, UL, RoHS). Digital copies of firmware update procedures and troubleshooting guides provided via secure download portal.

Frequently Asked Questions

Q: How does this interface board connect to existing PLC control systems?
A: The UF C760 BE142 communicates via the ACS 6000 drive's internal control bus. External PLC integration requires a separate communication module (such as CI868AK01 for Ethernet/IP or CI840 for Profibus). The interface board handles drive-internal signal processing, while the communication module bridges to plant automation networks. Wiring diagrams for common PLC brands (Siemens, Allen-Bradley, Schneider) are included in the technical documentation.

Q: What are the power consumption specifications for this module?
A: The interface board draws 12W typical, 18W maximum from the drive's internal 24VDC power supply. No external power connection required. The drive's power supply must have at least 25W available capacity to accommodate the board plus margin for transient loads during startup.

Q: Can this board improve energy efficiency in my existing drive installation?
A: The UF C760 BE142 enables advanced control algorithms (vector control, DTC) that optimize motor efficiency across the speed range. Typical energy savings of 8-15% result from improved flux control and reduced slip losses compared to V/Hz control methods. Actual savings depend on load profile and motor characteristics. Our application engineers can perform energy audits to quantify potential savings for your specific installation.

Q: What installation qualifications are required for field replacement?
A: Replacement requires basic electrical safety training and familiarity with medium voltage drive systems. The procedure involves de-energizing the drive control section (not the entire power system), removing four mounting screws, disconnecting keyed connectors, and reversing the process with the new board. Total time: 20-30 minutes for experienced technicians. ABB recommends Level 2 electrical qualification as minimum requirement. Remote guidance available during first-time installations.

Q: Is remote monitoring and diagnostics supported through this interface?
A: Yes, when connected to ABB's DriveWindow software via the drive's communication port. The interface board reports 40+ diagnostic parameters including signal quality metrics, temperature readings, and fault history logs. Remote access requires network connectivity to the drive controller. Cloud-based monitoring available through ABB Ability™ subscription services for predictive maintenance and performance benchmarking.

Q: How do I verify compatibility with my specific ACS 6000 drive configuration?
A: Provide your drive's nameplate data (model number, serial number, firmware version) to our technical team. We cross-reference ABB's compatibility matrix to confirm the UF C760 BE142 is the correct interface board for your system. For drives manufactured before 2008, firmware updates may be required before installation. Compatibility verification typically completed within 4 business hours.

Order Your ABB Interface Board Today

Ensure uninterrupted operation of your critical drive systems with genuine ABB components backed by expert technical support. Our global inventory network maintains stock across six distribution centers for rapid fulfillment to any industrial location worldwide.

Request a quote: Contact our drive systems specialists at sale@ninermas.com or call +0086 187 5021 5667 for volume pricing, technical specifications, or application engineering assistance.
