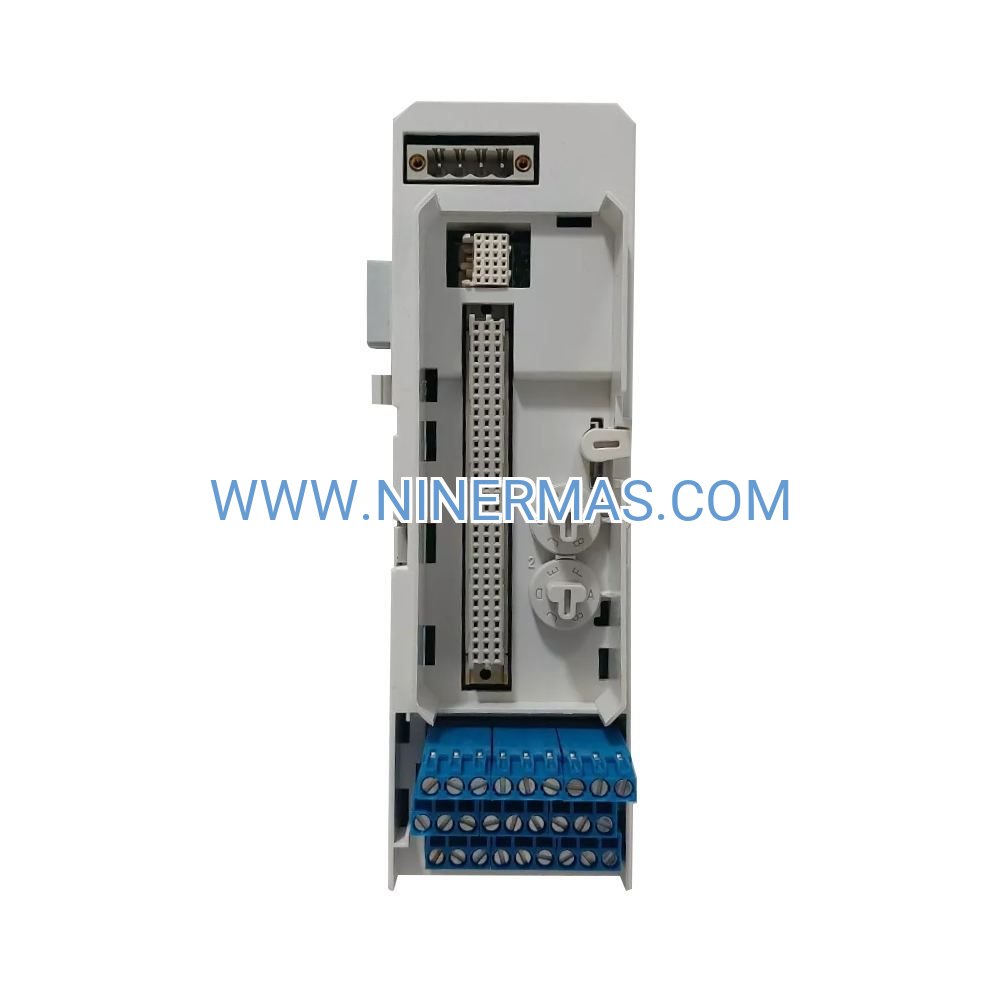

ABB TU890 IS MTU (Industrial-Grade Intrinsically Safe Termination Solution)

The ABB TU890 IS MTU (Model: 3BSC690075R1) delivers certified intrinsically safe signal termination for S800 I/O systems operating in explosive atmospheres. This module termination unit bridges field instrumentation and control systems in Zone 0, Zone 1, and Zone 2 classified locations where conventional wiring methods pose unacceptable ignition risks. Engineered for oil & gas, petrochemical, pharmaceutical, and chemical processing facilities, the TU890 IS MTU combines robust 3x9 terminal architecture with ATEX and IECEx safety approvals to ensure regulatory compliance and operational reliability.

Process engineers and automation specialists deploy this termination unit to establish safe signal paths from hazardous field zones to control room equipment. Unlike standard termination blocks, the IS MTU incorporates energy-limiting barriers and galvanic isolation that prevent fault currents from creating ignition sources—even during short circuits or ground faults. The result is a certified safe interface that protects personnel, assets, and production continuity in high-risk industrial environments.

With DIN rail mounting compatibility and modular cluster design, the TU890 IS MTU integrates seamlessly into ABB's 800xA distributed control architecture. Whether you're retrofitting legacy systems or designing new installations, this termination unit provides the foundation for scalable, compliant intrinsically safe I/O networks that meet global safety standards.

Core Features & Technical Advantages

✓ Multi-Zone Hazardous Area Certification
ATEX and IECEx approvals qualify the unit for Zone 0/1/2 (gas) and Zone 20/21/22 (dust) environments, eliminating the need for separate equipment in different classified zones. This versatility reduces inventory complexity and simplifies spare parts management across multi-zone facilities.

✓ High-Density 3x9 Terminal Configuration
Twenty-seven connection points accommodate multiple I/O modules within a compact footprint, optimizing panel space utilization. The three-row layout facilitates organized wiring practices that improve troubleshooting efficiency and reduce installation errors during commissioning.

✓ Extended Temperature Range (-40°C to +70°C)
Industrial-grade components maintain signal integrity across extreme ambient conditions found in outdoor installations, unheated enclosures, and process areas with thermal cycling. This temperature tolerance extends equipment lifespan and reduces climate-related failures.

✓ Galvanic Isolation Architecture
Built-in isolation between field and system sides prevents ground loops and electrical noise propagation, ensuring measurement accuracy in electrically noisy industrial environments. Isolation also enhances personnel safety by blocking hazardous voltages from reaching accessible terminals.

✓ HART Protocol Transparency
When paired with compatible analog modules, the termination unit passes HART digital signals without attenuation, enabling remote device configuration and diagnostics while maintaining intrinsic safety certification. This capability reduces field service trips and accelerates troubleshooting.

✓ Tool-Free DIN Rail Installation
Spring-loaded mounting clips allow rapid installation and removal without specialized tools, reducing labor costs during initial builds and subsequent modifications. The standardized rail interface ensures compatibility with industry-standard enclosures and panel designs.

Industrial Application Scenarios

→ Offshore Oil & Gas Production Platforms
Connect subsea wellhead sensors, separator level transmitters, and compressor vibration monitors in Zone 1 process areas. The TU890 IS MTU's corrosion-resistant construction and salt-fog tolerance make it ideal for marine environments where equipment reliability directly impacts production uptime and platform safety.

→ Petrochemical Refinery Process Units
Interface temperature, pressure, and flow instrumentation in distillation columns, catalytic crackers, and alkylation units handling volatile hydrocarbons. The unit's certified energy limitation prevents ignition during instrument failures or wiring faults, protecting against catastrophic incidents in high-value assets.

→ Chemical Manufacturing Batch Reactors
Terminate reactor temperature cascades, agitator speed feedback, and emergency shutdown sensors in facilities producing solvents, polymers, or specialty chemicals. The modular design supports recipe-driven processes requiring frequent I/O reconfiguration without compromising safety certification.

→ Pharmaceutical Solvent Recovery Systems
Provide safe signal routing for explosion-proof analytical instruments and LEL (Lower Explosive Limit) detectors in solvent distillation and recovery operations. Compliance with ATEX directives satisfies regulatory requirements for FDA-inspected facilities and GMP documentation.

→ Grain Elevator Dust Collection Systems
Monitor filter differential pressure, rotary valve position, and combustible dust concentration in grain handling facilities where organic dust creates Zone 21/22 hazards. The unit's IP20 rating (when properly enclosed) protects against dust ingress while maintaining accessibility for maintenance.

Technical Parameters & Selection Guide

Selection Criteria for System Designers:

When specifying the TU890 IS MTU, confirm that your I/O module count and signal types align with the 3x9 terminal capacity. For larger clusters, combine multiple MTUs on the same DIN rail segment. Calculate total entity parameters (voltage, current, capacitance, inductance) for each loop to ensure compliance with certification limits—consult ABB's entity parameter tables in the installation documentation. If your application requires Ethernet connectivity, pair the TU890 IS MTU with a TU860 or TU861 cluster communication unit to establish network links to the control system.

Extended Functionality & Integration Options

IoT-Enabled Predictive Maintenance
When integrated with ABB Ability™ digital platforms, the S800 I/O cluster can stream diagnostic data to cloud analytics engines. Monitor terminal connection resistance, module temperature trends, and communication error rates to predict failures before they impact production. This proactive approach reduces unplanned downtime by 15-25% in typical installations.

Redundant Configuration Support
The TU890 IS MTU supports redundant I/O architectures when deployed with dual communication units and redundant power supplies. This configuration provides fault-tolerant operation for critical safety instrumented systems (SIS) meeting IEC 61511 requirements. Automatic failover occurs within 100ms, maintaining process control during single-point failures.

Custom Cable Assemblies
For projects requiring pre-terminated field wiring, we offer factory-assembled cable harnesses with certified IS barriers and color-coded conductors. Custom assemblies reduce on-site labor by 40-60% and eliminate wiring errors that delay commissioning. Assemblies ship with loop-tested certification documentation for quality assurance.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units (North America, Europe, Asia-Pacific regions)
Custom Configurations: 10-15 business days for pre-assembled clusters with tested I/O modules
Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship failures
Technical Support: Lifetime access to application engineers for loop calculations, certification questions, and troubleshooting assistance
Documentation Package: Installation manual, entity parameter tables, ATEX/IECEx certificates, and CAD drawings (DXF/PDF formats)

All shipments include anti-static packaging and shock-absorbing materials to prevent transit damage. Expedited shipping options available for emergency replacements and critical project deadlines—contact our logistics team for same-day dispatch on qualifying orders.

Frequently Asked Questions

How do I verify that my field wiring meets intrinsic safety requirements?
Calculate the total loop capacitance and inductance by summing cable parameters and connected device values. Compare these totals against the entity parameters listed in the TU890 IS MTU certificate (typically Co and Lo values). If your loop values exceed certified limits, reduce cable length, use lower-capacitance cable types, or add galvanic isolators. Our technical team provides free loop verification services—submit your cable specifications and device datasheets for analysis.

Can this termination unit interface with non-ABB I/O modules?
The TU890 IS MTU is mechanically and electrically designed for ABB S800 I/O modules. While the terminal blocks accept standard wire gauges, the safety certification applies only to ABB-approved module combinations. Using third-party modules voids intrinsic safety approvals and creates liability risks. For multi-vendor systems, consider ABB's gateway solutions that maintain certification boundaries.

What maintenance procedures are required to maintain certification?
Perform annual visual inspections for terminal corrosion, wire insulation damage, and mounting security. Verify that terminal screws maintain specified torque (0.5 Nm) and that no unauthorized modifications have been made. Document inspections in your facility's hazardous area equipment register. No routine calibration is required for the MTU itself, though connected I/O modules may require periodic verification per manufacturer specifications.

Does the unit support hot-swappable module replacement?
Yes, when used with ABB's ModuleBus architecture and redundant power supplies, individual I/O modules can be replaced without shutting down the entire cluster. However, hot-swap operations in hazardous areas require a valid hot work permit and confirmation that the atmosphere is non-explosive during the procedure. Always follow site-specific safety protocols and consult your area classification drawings.

How does ambient temperature affect the number of modules I can install?
At temperatures above 60°C, derate the maximum module count per cluster to prevent thermal stress on components. ABB's configuration tools (available in the 800xA engineering environment) automatically calculate thermal budgets based on ambient temperature, module power dissipation, and enclosure ventilation. For outdoor installations in hot climates, consider forced-air cooling or heat-reflective enclosure coatings.

What cable shielding practices ensure optimal noise immunity?
Terminate cable shields at the MTU end using 360-degree shield clamps or grounding bars—avoid pigtail connections that create high-frequency noise coupling. For analog signals, use twisted-pair cables with overall foil shields and drain wires. Separate IS and non-IS cable bundles by at least 50mm, and route power cables perpendicular to signal cables where crossings are unavoidable. Ground shields at one end only to prevent ground loop currents.
