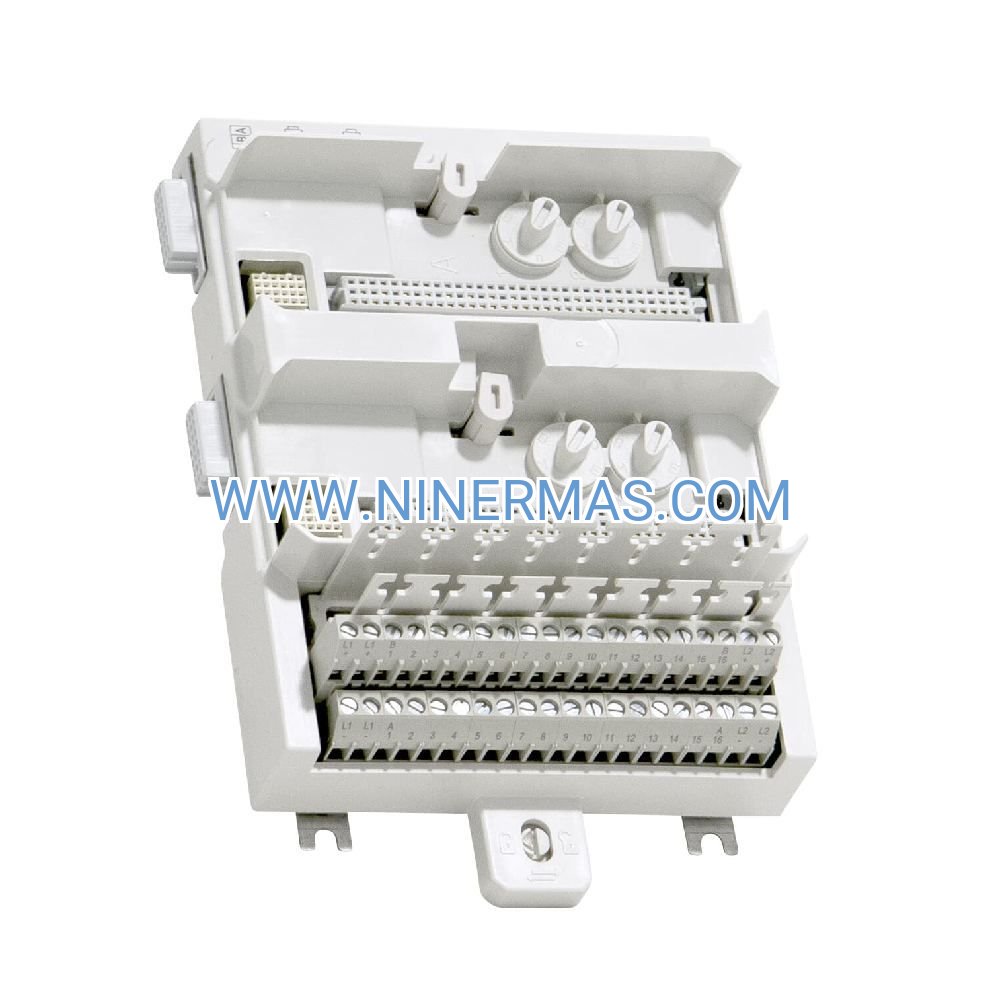

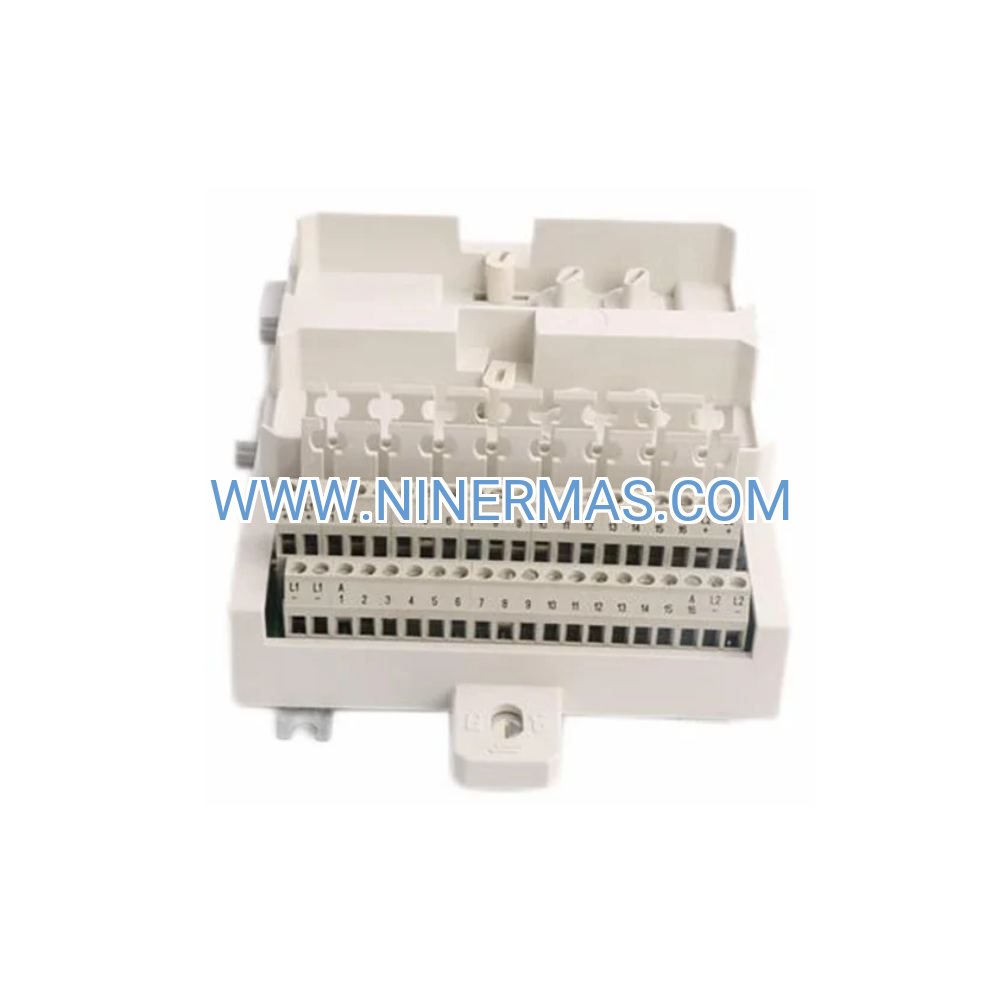

ABB TU845 Terminal Block (Industrial-Grade Redundant Connectivity)

The ABB TU845 (3BSE021447R1) represents a fault-tolerant terminal interface engineered for high-availability process control environments. Designed as part of the S800 I/O platform, this 8-channel redundant terminal unit delivers uninterrupted signal routing for AC 800M controller architectures where downtime translates to operational losses.

Process engineers and system integrators deploy the TU845 in applications demanding continuous operation—from petrochemical facilities to power generation plants. Its hot-swappable architecture enables maintenance activities without halting production, while dual-path signal routing eliminates single-point vulnerabilities in critical control loops.

With CE/UL/CSA certifications and a proven track record in extreme industrial conditions (-40°C to +70°C), the TU845 terminal block serves as the backbone for mission-critical automation infrastructure requiring 99.9%+ uptime guarantees.

Core Features & Benefits

✓ Dual-Path Redundancy Architecture
Automatic failover between primary and backup signal paths ensures zero-interruption operation during module failures or maintenance events, protecting against revenue loss from unplanned shutdowns.

✓ Hot-Swap Capability Without System Halt
Replace or service terminal units during live operation—no need to de-energize control panels or interrupt process monitoring, reducing maintenance windows by up to 75%.

✓ 8-Channel High-Density Configuration
Maximizes panel real estate efficiency with compact DIN-rail mounting, supporting up to 50V DC and 2A per channel for diverse sensor and actuator interfaces.

✓ Extended Temperature Range (-40°C to +70°C)
Proven reliability in harsh environments including offshore platforms, desert installations, and arctic processing facilities where standard components fail.

✓ Plug-and-Play S800 Ecosystem Integration
Seamless compatibility with ABB AC 800M controllers and entire S800 I/O module family—no custom programming or adapter hardware required.

→ Industrial-Hardened Construction
IP20-rated enclosure with vibration-resistant terminals withstands shock, electromagnetic interference, and corrosive atmospheres typical in heavy industry.

Application Scenarios

Petrochemical Refinery Control Systems
In catalytic cracking units and distillation towers, the TU845 maintains continuous monitoring of temperature, pressure, and flow sensors. Redundant signal paths prevent catastrophic failures during emergency shutdown sequences, while hot-swap capability allows technicians to replace modules during scheduled turnarounds without extending downtime.

Power Generation Turbine Monitoring
Gas and steam turbine control systems rely on the TU845 for vibration analysis, bearing temperature monitoring, and governor control signals. Dual-channel architecture ensures protection systems remain active even during component failures, meeting NERC reliability standards.

Pharmaceutical Batch Processing
GMP-compliant manufacturing lines use the TU845 to interface reactor temperature controllers, pH sensors, and dosing pump feedback. Uninterrupted signal integrity maintains batch consistency and prevents costly product losses due to control system faults.

Water Treatment SCADA Networks
Municipal water facilities deploy the TU845 in chlorination control, filtration monitoring, and pump station automation. Redundant I/O ensures public health protection systems never lose connectivity to critical sensors.

Offshore Oil Platform Safety Systems
In hazardous area applications, the TU845 connects fire and gas detection systems, emergency shutdown valves, and blowout preventer controls. Fault-tolerant design meets SIL 2/3 requirements for safety-instrumented systems.

Technical Parameters & Selection Guide

Selection Criteria: Choose the TU845 when your application requires redundant I/O architecture with AC 800M controllers. For simplex (non-redundant) systems, consider the TU841 standard termination unit. Verify that your S800 I/O modules support redundant operation before specifying the TU845. Consult ABB's configuration tools to ensure compatibility with your existing control system topology.

Extended Functions

Advanced Diagnostic Integration: The TU845 supports ABB's Asset Monitor software for predictive maintenance analytics. Real-time health monitoring tracks connection integrity, thermal drift, and signal quality degradation—enabling proactive replacement before failures occur.

Cybersecurity-Ready Architecture: When paired with AC 800M High Integrity controllers, the TU845 participates in IEC 62443-compliant security zones, supporting encrypted communication protocols and role-based access controls for critical infrastructure protection.

Custom Configuration Services: NINERMAS offers pre-wired terminal assemblies with customer-specified cable lengths, connector types, and labeling schemes. Reduce installation time by up to 60% with factory-tested harnesses delivered ready for panel integration.

Delivery & Service Assurance

Lead Time: Stock items ship within 2-3 business days. Custom configurations require 10-15 business days for assembly and testing.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Extended warranty programs available for critical applications.

Technical Support: Our automation engineers provide application assistance including I/O mapping, redundancy configuration, and troubleshooting support. Access to ABB technical documentation and configuration software included with purchase.

Documentation Package: Each unit ships with installation manual, wiring diagrams, compliance certificates, and traceability documentation for quality management systems.

Frequently Asked Questions

How does the TU845 redundant terminal block improve system uptime?
The TU845 eliminates single points of failure through dual signal paths. If one channel experiences a fault, the backup path automatically maintains connectivity without operator intervention, preventing process interruptions that could cost thousands per hour in lost production.

What cable specifications are required for optimal TU845 performance?
Use shielded twisted-pair cables rated for industrial environments, 18-22 AWG gauge. For analog signals, maintain cable runs under 100 meters to minimize noise. In high-EMI environments, specify cables with 90%+ shield coverage and proper grounding at both ends.

Can the TU845 terminal block operate in hazardous area classifications?
The TU845 itself carries IP20 rating for standard industrial environments. For Zone 1/Division 1 hazardous areas, install the terminal unit in a purged enclosure or use ABB's intrinsically safe barrier modules between field devices and the TU845.

Is the TU845 compatible with third-party I/O modules or only ABB components?
The TU845 is engineered specifically for ABB S800 I/O modules and AC 800M controllers. While physical mounting may accommodate other DIN-rail devices, electrical compatibility and redundancy functions require genuine ABB components to ensure proper operation.

What is the typical energy consumption of the TU845 during operation?
The TU845 draws approximately 2.5W from the S800 I/O bus under normal load conditions. Total system power requirements depend on connected I/O modules and field device loads—consult ABB's power budget calculator for complete system design.

How do I verify proper redundancy operation after TU845 installation?
Use ABB's Control Builder software to monitor redundancy status in real-time. The diagnostic interface displays active/standby channel states, fault conditions, and switchover events. Perform manual failover tests during commissioning to validate automatic recovery behavior.
