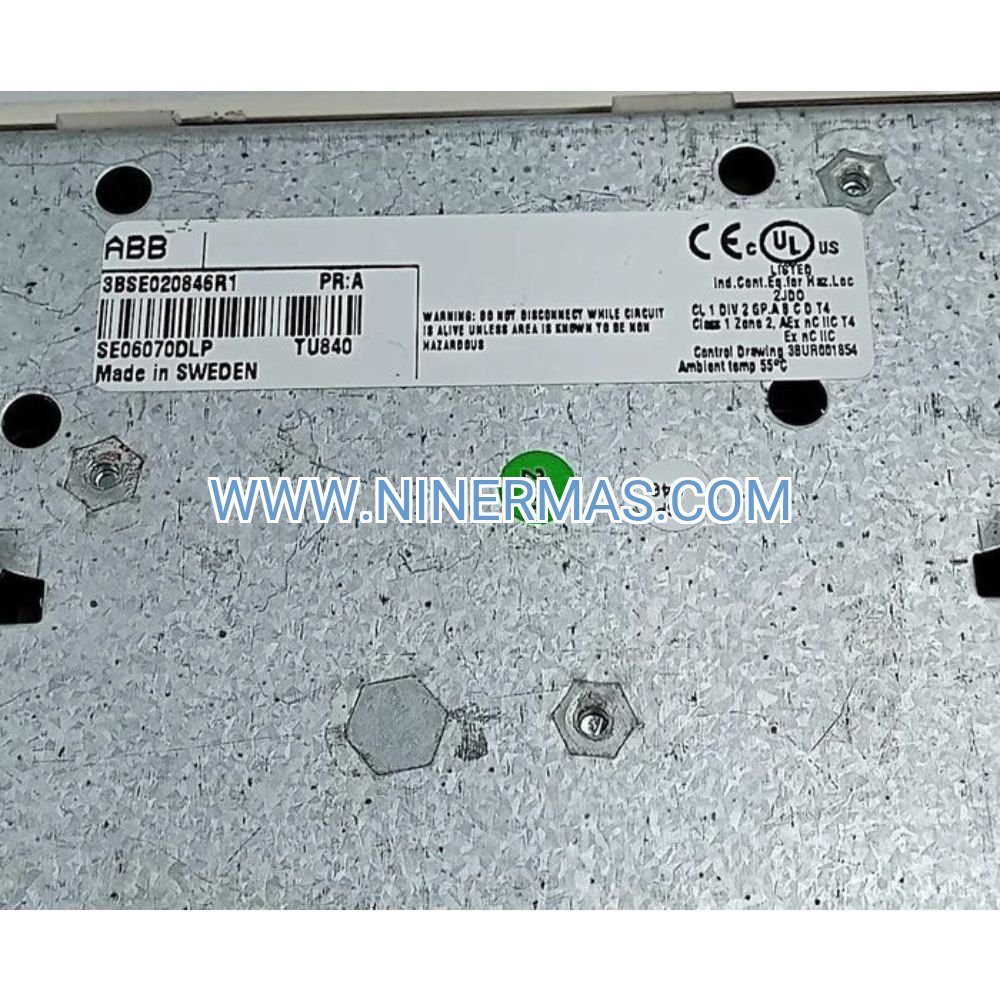

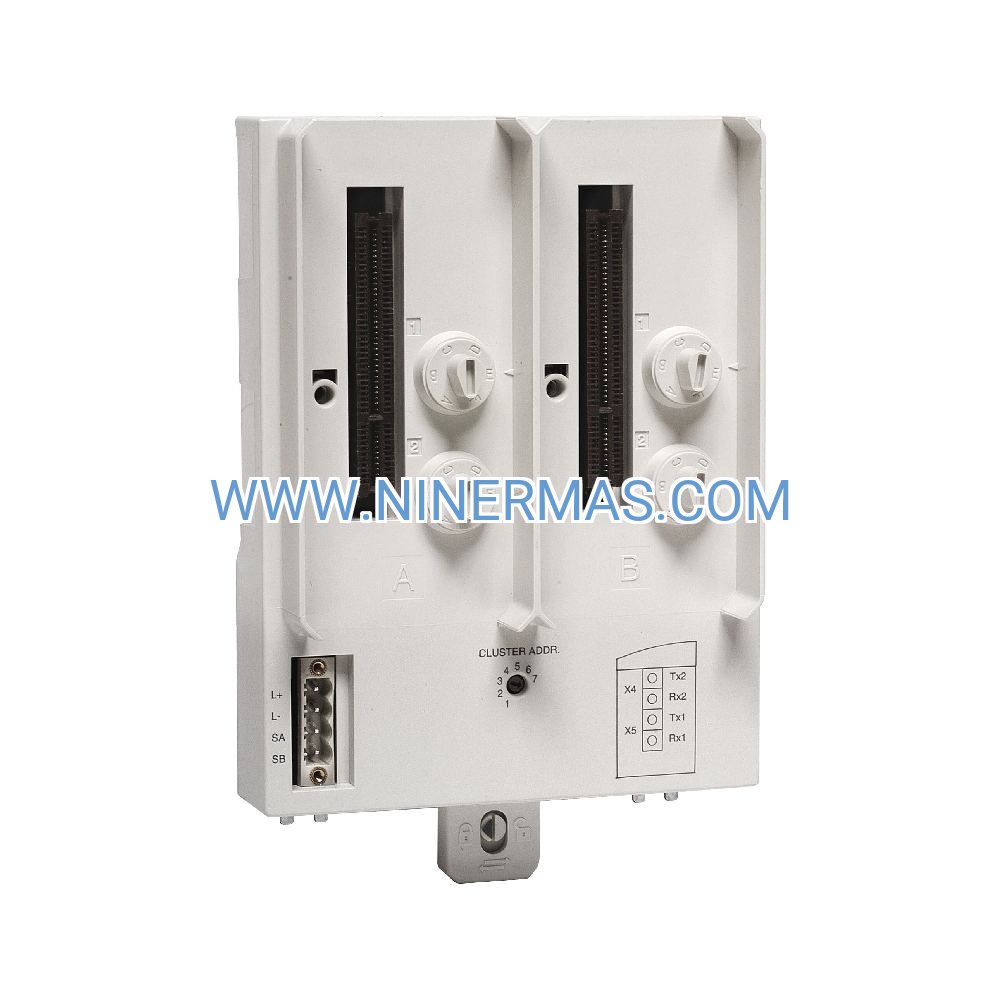

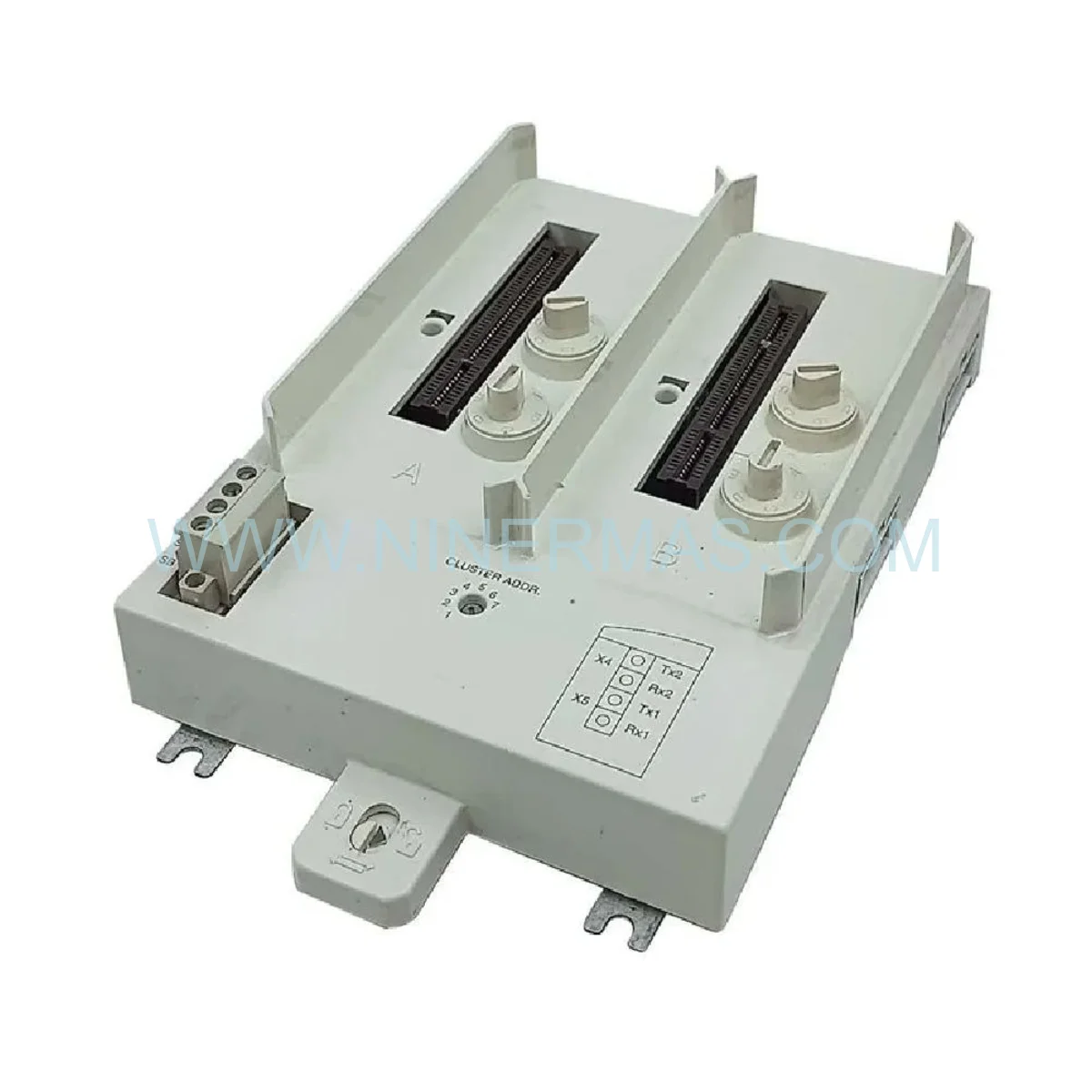

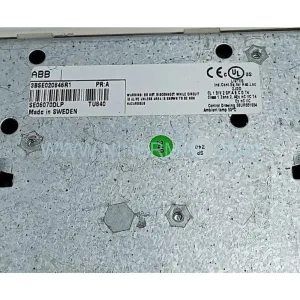

ABB TU840 Redundant Module Termination Unit (Industrial-Grade Fault-Tolerant Solution)

The ABB TU840 (3BSE020846R1) represents a mission-critical component in high-availability industrial control architectures. Engineered as a redundant Module Termination Unit for the S800 I/O ecosystem, this device delivers dual optical ModuleBus termination to eliminate communication failures in process-critical environments.

Designed for industries where downtime translates to significant operational losses, the TU840 serves as the backbone for fault-tolerant distributed control systems. Its dual-channel optical architecture ensures continuous data flow between AC 800M controllers and field I/O modules, even during component failures or maintenance activities.

With proven reliability in oil refineries, chemical plants, and power generation facilities worldwide, this redundant MTU combines Swedish engineering precision with field-tested durability. The hot-swappable design and comprehensive diagnostic capabilities make it the preferred choice for automation engineers prioritizing system uptime and operational continuity.

Core Features & Business Value

✓ Dual Optical ModuleBus Architecture
Two independent fiber optic communication channels provide automatic failover protection. When one path experiences disruption, the secondary channel maintains uninterrupted I/O communication, preventing costly process shutdowns.

✓ Hot-Swappable Maintenance Capability
Replace faulty units during live operation without halting production processes. This feature reduces planned maintenance windows by 60-80% compared to non-redundant systems, directly improving plant availability metrics.

✓ Extended Temperature Range (-40°C to +70°C)
Operate reliably in extreme industrial environments from Arctic installations to desert facilities. Eliminates the need for climate-controlled enclosures in many applications, reducing infrastructure costs.

→ Seamless S800 I/O Integration
Plug-and-play compatibility with the complete ABB S800 module family accelerates commissioning timelines. Pre-configured communication parameters reduce engineering hours by 40% versus competitive solutions.

→ Real-Time Diagnostic LEDs
Visual indicators for power status, ModuleBus health, and fault conditions enable rapid troubleshooting. Maintenance teams identify issues 3x faster compared to systems requiring software-based diagnostics.

→ DIN Rail Mounting Standard
Universal mounting compatibility simplifies panel design and reduces installation labor. Standard footprint allows retrofitting into existing control cabinets without modifications.

Industrial Application Scenarios

Petrochemical Refining Operations
In catalytic cracking units and distillation columns, the TU840 maintains continuous monitoring of temperature, pressure, and flow sensors. Redundant communication prevents emergency shutdowns caused by I/O failures, protecting equipment worth millions and avoiding production losses exceeding $50,000 per hour.

Municipal Water Treatment Facilities
Water purification plants rely on the TU840 for uninterrupted control of chemical dosing pumps, filtration systems, and quality monitoring instruments. Dual-channel architecture ensures regulatory compliance by preventing data gaps in treatment process records.

Power Generation Turbine Control
Gas and steam turbine systems use redundant MTUs to guarantee fail-safe operation of critical safety instrumented systems (SIS). The TU840's fault tolerance meets IEC 61508 requirements for high-integrity protective functions.

Pharmaceutical Batch Processing
GMP-compliant manufacturing environments depend on continuous data logging for batch traceability. The TU840 eliminates communication interruptions that could invalidate production batches, protecting product quality and regulatory documentation.

Mining Conveyor Systems
Long-distance material handling networks spanning kilometers utilize the TU840's optical communication for noise immunity. Redundant architecture prevents conveyor stoppages that cascade into plant-wide production delays.

Technical Parameters & Selection Guide

Selection Criteria: Choose the TU840 when your application requires guaranteed I/O communication uptime exceeding 99.9%. For non-critical applications where brief communication interruptions are acceptable, consider the standard TU810 non-redundant MTU. Verify that your AC 800M controller supports redundant ModuleBus operation before specifying the TU840.

Extended Functionality & Integration

Controller Compatibility: The TU840 integrates with ABB AC 800M high-integrity and standard controllers running Control Builder software. Configuration is managed through the S800 I/O Configuration Tool, which automatically detects redundant MTU pairs and configures failover parameters.

Network Topology Options: Deploy in star, linear, or ring topologies depending on physical layout requirements. Maximum fiber optic cable distance of 5 km between MTU and controller enables distributed I/O architectures across large facilities.

Cybersecurity Features: Optical communication provides inherent immunity to electromagnetic interference and eliminates electrical ground loop vulnerabilities. Physical layer isolation enhances protection against network-based cyber threats.

Customization Capabilities: While the TU840 ships with standard firmware, ABB offers application-specific configuration services for unique redundancy switching requirements or specialized diagnostic protocols. Contact technical support for custom engineering consultation.

Delivery Timeline & Service Guarantee

Standard Delivery: In-stock units ship within 2-3 business days via express courier. Typical delivery to major industrial centers: North America 5-7 days, Europe 4-6 days, Asia-Pacific 6-9 days.

Custom Configuration: Pre-programmed units with customer-specific settings require 10-15 business days for engineering and testing before shipment.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranty programs available for up to 5 years on request.

Technical Support: Access to ABB-certified application engineers via email and phone during business hours (GMT+8). Emergency support available 24/7 for critical system failures.

Documentation Package: Each unit includes installation manual, wiring diagrams, configuration guide, and compliance certificates. CAD drawings and 3D STEP models available for download.

Frequently Asked Questions

How does the redundant MTU improve system availability compared to single-channel designs?
Redundant architecture eliminates ModuleBus communication as a single point of failure. Statistical analysis shows systems using TU840 achieve 99.95% uptime versus 98.5% for non-redundant configurations—a 15x reduction in communication-related downtime events.

What fiber optic cable specifications are required for optimal ModuleBus performance?
Use multimode fiber (50/125 μm or 62.5/125 μm) with LC duplex connectors. Maximum attenuation: 3.5 dB at 850nm wavelength. ABB recommends OM2-rated cables for installations up to 2 km and OM3 for longer distances.

Can the TU840 operate in hazardous area classifications?
The unit carries ATEX Zone 2 certification for installation in non-hazardous areas of facilities with explosive atmospheres. For Zone 1 or Division 1 applications, mount the TU840 in a purged enclosure or safe area with fiber optic cables extending into the hazardous zone.

What maintenance procedures are recommended for long-term reliability?
Inspect fiber optic connectors annually for contamination or damage. Verify LED diagnostic indicators monthly. Test failover functionality semi-annually by disconnecting one ModuleBus channel. No consumable parts require replacement under normal operating conditions.

How do I configure redundancy switching parameters in Control Builder?
The S800 I/O Configuration Tool automatically detects redundant MTU pairs when both units are connected. Switching time defaults to <100ms but can be adjusted from 50-500ms based on process requirements. Detailed configuration procedures are provided in document 3BSE020846-510.

Is the TU840 compatible with legacy S800 I/O modules from earlier production years?
Yes, full backward compatibility is maintained with all S800 I/O modules manufactured since 1998. Firmware updates may be required for modules with revision codes earlier than R1C to enable advanced diagnostic features.

Get Your Redundant MTU Solution Today

Protect your critical processes with proven fault-tolerant technology. Contact our automation specialists to discuss your high-availability I/O requirements and receive a customized system proposal within 24 hours.

Request a Quote: Email your application details to sale@ninermas.com
Technical Consultation: Call +0086 187 5021 5667 (English/Mandarin)
Volume Pricing: Discounts available for orders of 5+ units
