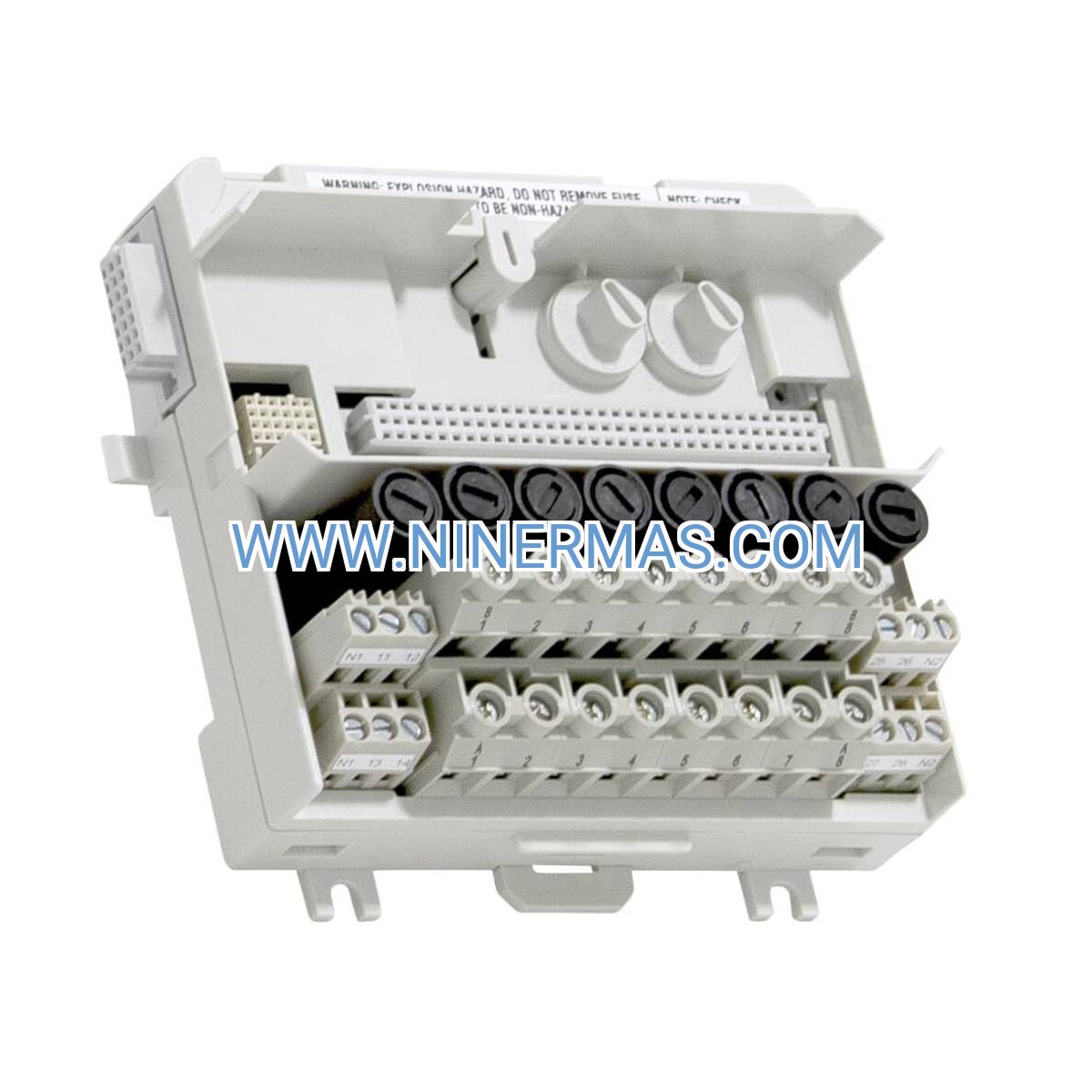

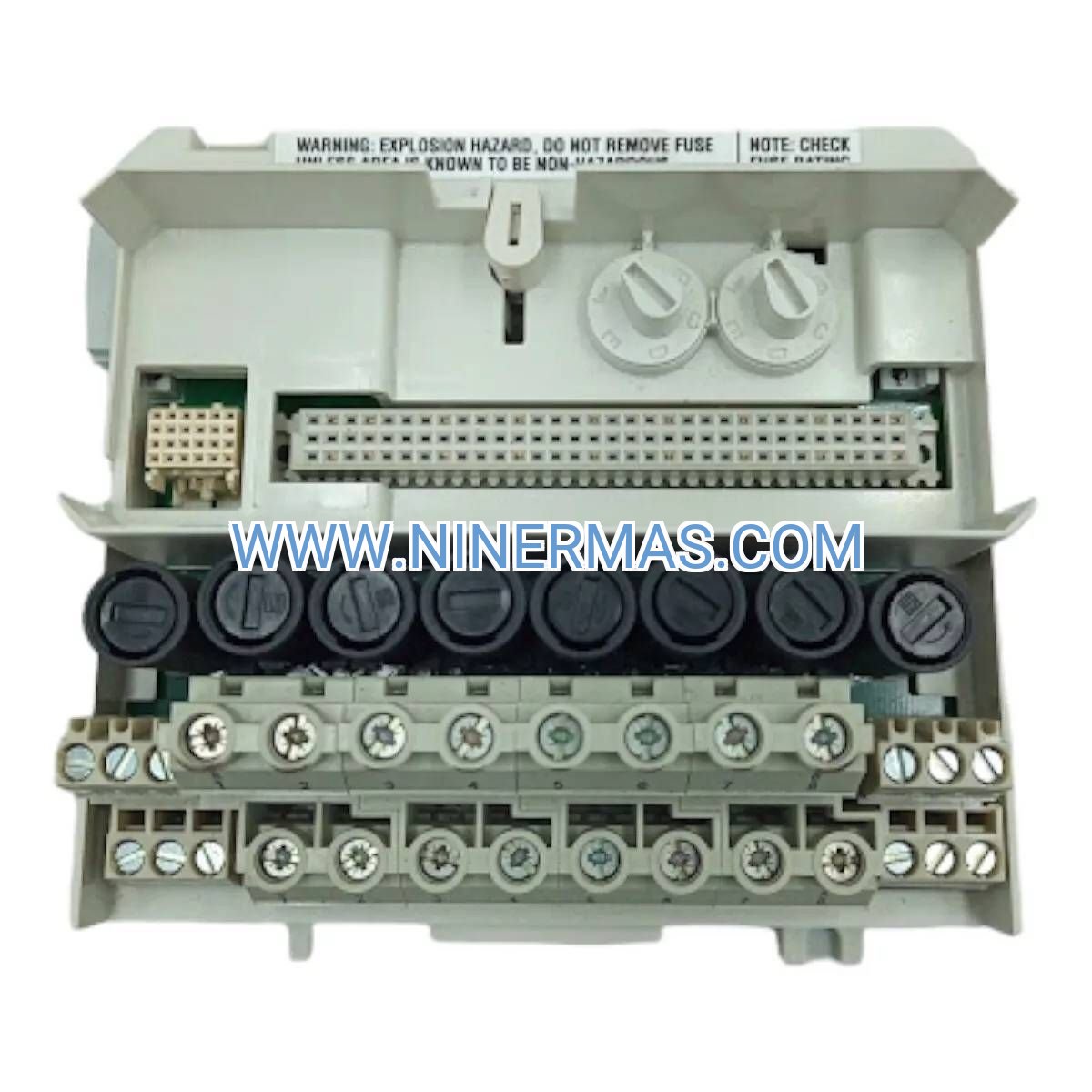

ABB TB807 Termination Unit (Industrial-Grade Modulebus Interface)

The ABB TB807 (3BSE008538R1) represents a critical connectivity component within distributed control architectures, specifically engineered to provide dependable signal termination for S800 I/O cluster configurations. This termination unit bridges field instrumentation with central processing modules through robust Modulebus protocol implementation.

Designed for environments where electrical noise, temperature extremes, and continuous operation define daily challenges, the TB807 addresses the fundamental need for stable, interference-resistant connections in process control networks. Industrial facilities deploying S800 I/O ecosystems rely on this unit to maintain signal integrity across distributed automation topologies.

With CE, UL, and CSA certifications backing its design, the TB807 delivers proven reliability for manufacturers, system integrators, and plant engineers seeking standardized termination solutions that minimize downtime and simplify maintenance protocols.

Core Capabilities & Technical Advantages

✓ Modulebus Protocol Compatibility
Native support for ABB's Modulebus communication standard ensures seamless integration with S800 I/O modules, cluster modems, and AC 800M controllers without protocol conversion overhead.

✓ Extended Temperature Performance
Operates reliably across -40°C to +70°C range, making it suitable for outdoor enclosures, unheated facilities, and high-ambient industrial zones where standard components fail.

✓ DIN Rail Mounting System
Standardized 35mm DIN rail compatibility accelerates installation, reduces cabinet space requirements, and enables tool-free removal during maintenance cycles.

✓ IP20 Protection Rating
Enclosure design prevents solid object ingress while maintaining ventilation for thermal management in densely populated control panels.

✓ Multi-Standard Certification
CE, UL, and CSA approvals streamline compliance documentation for projects spanning European, North American, and international jurisdictions.

✓ LED Diagnostic Indicators
Real-time visual feedback for power status, communication activity, and fault conditions accelerates troubleshooting and reduces mean time to repair.

Industrial Application Scenarios

→ Chemical Processing Plants
In batch reactors and continuous flow systems, the TB807 terminates analog signals from temperature transmitters, pressure sensors, and flow meters, ensuring precise process variable monitoring despite corrosive atmospheres and vibration.

→ Power Generation Facilities
Turbine control systems and auxiliary equipment monitoring networks utilize TB807 units to maintain communication integrity between field devices and SCADA platforms across geographically distributed substations.

→ Water Treatment Infrastructure
Municipal and industrial water systems deploy these termination units to interface pump controls, valve actuators, and quality sensors within chlorination, filtration, and distribution networks.

→ Automotive Manufacturing Lines
Robotic assembly cells and conveyor systems leverage TB807 connectivity for coordinating pneumatic actuators, safety interlocks, and quality inspection stations in high-speed production environments.

→ Food & Beverage Production
Hygienic processing lines require reliable I/O termination for temperature control loops, CIP system coordination, and packaging line synchronization where washdown conditions prevail.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the TB807 when your S800 I/O architecture requires Modulebus cluster termination with DIN rail mounting. For extended I/O capacity, pair with TU837V1 units. Verify compatibility with your specific AC 800M controller firmware version and existing cluster modem models before procurement.

Extended Integration Capabilities

The TB807 functions as a foundational element within larger automation ecosystems. When combined with TB820V2 cluster modems, it enables multi-drop Modulebus networks supporting up to 12 I/O modules per cluster. Integration with CI801 PROFIBUS interfaces extends connectivity to third-party field devices and legacy systems.

For applications requiring redundant communication paths, deploy dual TB807 units in parallel configurations with appropriate cluster modem redundancy. The unit's hot-swap capability (when system configuration permits) supports online maintenance without process interruption.

Advanced users can leverage the TB807's diagnostic data streams for predictive maintenance analytics, monitoring connection quality metrics and identifying degradation trends before failures occur.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units; expedited shipping available for urgent requirements
Custom Configuration: 10-15 business days for pre-tested assemblies with specific cable lengths or mounting accessories
Warranty Coverage: 12-month comprehensive warranty against manufacturing defects and material failures
Technical Support: Lifetime access to installation guides, wiring diagrams, and configuration assistance from certified ABB specialists
Documentation Package: Product datasheet, compliance certificates, and integration manuals included with every shipment

Frequently Asked Questions

How does the TB807 termination unit interface with existing S800 I/O clusters?
The TB807 mounts directly onto standard DIN rail alongside S800 I/O modules and connects via Modulebus cabling to cluster modems. It provides screw-terminal connections for field wiring while maintaining electrical isolation between signal circuits.

What cable specifications ensure optimal signal integrity with this termination unit?
Use shielded twisted-pair cables with conductor cross-sections between 0.5mm² and 1.5mm². Maintain shield continuity through 360-degree grounding at the termination unit, and observe maximum cable run lengths specified in ABB's S800 I/O installation manual.

Can the TB807 support hot-swap operations during system runtime?
Hot-swapping is technically supported when your AC 800M controller configuration enables online module replacement and proper safety interlocks are active. Always consult system documentation and follow lockout-tagout procedures before attempting live maintenance.

What diagnostic capabilities help troubleshoot communication issues?
Integrated LED indicators display power status (green), Modulebus activity (yellow flashing), and fault conditions (red). These visual cues, combined with controller-level diagnostics, pinpoint connection problems, protocol errors, or hardware failures.

Is this termination unit compatible with legacy S800 I/O installations?
Yes, the TB807 maintains backward compatibility with earlier S800 I/O generations while supporting current Modulebus protocol revisions. Verify firmware compatibility between your controller, cluster modem, and I/O modules for optimal performance.

What environmental conditions might affect TB807 reliability?
While rated for -40°C to +70°C operation, prolonged exposure to condensing humidity, corrosive gases, or excessive vibration may degrade connection integrity. Install units in IP54-rated enclosures for harsh environments and implement regular inspection schedules.

Request Technical Consultation

Our automation specialists provide complimentary system design reviews, helping you optimize TB807 deployment within your specific control architecture. Contact our team for cable routing recommendations, redundancy configurations, or integration with third-party systems.
