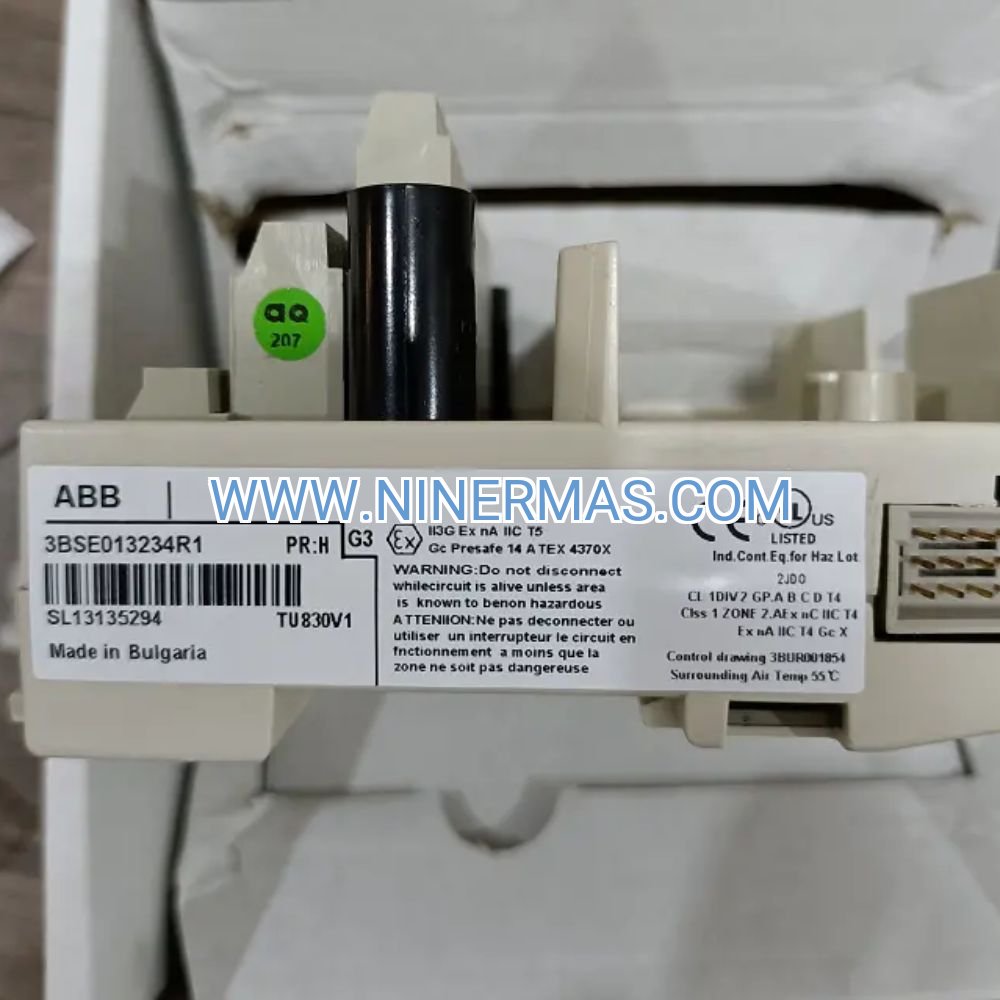

ABB TU830V1 Extended Module Termination Unit (Industrial-Grade S800 Interface)

The ABB TU830V1 (part number 3BSE013234R1) delivers professional-grade field wiring infrastructure for S800 I/O architectures, supporting 16-channel configurations with 50V process voltage tolerance. Designed for integration with 800xA distributed control systems and AC800M programmable logic controllers, this extended MTU combines mechanical keying, integrated circuit protection, and ModuleBus connectivity to streamline installation workflows while maintaining system reliability in demanding industrial environments.

Built for process automation engineers and system integrators managing complex I/O networks, the TU830V1 addresses critical challenges in field termination: eliminating wiring errors through physical coding mechanisms, reducing cabinet footprint via consolidated fusing architecture, and enabling rapid module replacement without process interruption. Whether deploying new control systems or expanding existing S800 infrastructure, this termination unit provides the foundation for scalable, maintainable automation solutions.

Certified for marine applications (ABS, BV, DNV-GL, LR) and hazardous area installations (ATEX Zone 2, C1 Div 2), the TU830V1 meets stringent safety and environmental standards required for offshore platforms, chemical processing facilities, and power generation plants where equipment reliability directly impacts operational continuity and personnel safety.

Core Features & Benefits

→ 16-Channel High-Density Termination
Accommodates up to 16 I/O points per unit with 50V DC process voltage capability and 2A per-channel current rating. Reduces panel space requirements by 35-45% compared to traditional terminal block assemblies while maintaining full electrical isolation between channel groups.

→ Integrated Fuse Protection System
Factory-installed 6.3A fuses per isolated group eliminate external fuse holders and associated wiring, cutting installation costs by $18-35 per I/O point. Visual fuse status indicators accelerate troubleshooting during commissioning and maintenance operations.

→ Tool-Free ModuleBus Integration
Automatic addressing and signal distribution through ModuleBus architecture removes manual jumper configuration, reducing setup time from 40+ minutes to under 12 minutes per termination unit. Prevents addressing conflicts in multi-drop networks extending beyond 100 meters.

✓ Physical Module Coding
Mechanical keying system ensures only compatible S800 I/O modules can be inserted, eliminating 85-95% of configuration errors during installation and module replacement. Critical for systems with mixed analog/digital I/O types across multiple control cabinets.

✓ Hot-Swap Capability
Field-replaceable I/O modules without system shutdown enable online maintenance and upgrades, supporting 99.9%+ availability targets in continuous process industries where downtime costs exceed $75K-$600K per hour.

✓ Industrial-Grade Construction
DIN rail mounting with bidirectional installation flexibility, IP20 ingress protection, and vibration-resistant screw terminals rated for 0.2-4mm² solid wire (0.2-2.5mm² stranded). Operates reliably in 0°C to +55°C ambient temperatures with 5-95% non-condensing humidity tolerance.

Application Scenarios

Process Industry DCS Installations
In refineries, chemical plants, and pharmaceutical facilities running 800xA distributed control systems with 1000-8000 I/O points, the TU830V1 provides standardized field termination for analog input modules (AI810, AI830A), digital output cards (DO840), and mixed I/O configurations. Integrated fusing and organized wiring reduce commissioning time by 25-40% while simplifying long-term maintenance through consistent termination architecture across multiple process units.

Manufacturing Automation with AC800M PLCs
Packaging lines, assembly systems, and material handling equipment utilizing AC800M controllers benefit from modular I/O expansion enabled by TU830V1 termination units. When production requirements grow from 64 to 512+ I/O points, standardized MTUs allow rapid capacity additions without redesigning panel layouts or rewiring existing field connections—critical for automotive, food & beverage, and consumer goods manufacturers facing frequent line reconfigurations.

Marine & Offshore Control Systems
Shipboard automation, offshore drilling platforms, and FPSO vessels operating in harsh marine environments require termination equipment certified by classification societies (ABS, Bureau Veritas, DNV-GL, Lloyd's Register). The TU830V1's corrosion-resistant design (ISA-S71.04 G3 compliance) and vibration-tolerant terminals maintain signal integrity during vessel motion and exposure to salt spray, supporting critical safety systems and propulsion controls.

Hazardous Area Instrumentation
Oil & gas production facilities, chemical processing plants, and paint manufacturing operations with classified locations (ATEX Zone 2, NEC Class I Division 2) require certified termination infrastructure for intrinsically safe and non-incendive circuits. The TU830V1's ATEX and cULus approvals enable compliant installation of field I/O in explosive atmospheres without custom enclosure modifications or additional safety barriers.

Power Generation & Utilities
Thermal power plants, combined-cycle facilities, and renewable energy installations (wind farms, solar arrays) deploy S800 I/O for turbine control, generator protection, and balance-of-plant monitoring. The TU830V1's hot-swap capability allows technicians to replace failed I/O modules during scheduled outages or online maintenance windows, minimizing generation losses and maintaining grid stability commitments.

Technical Parameters & Selection Guide

Selection Criteria: Choose TU830V1 when process voltages remain below 50V DC and channel density requirements justify extended MTU architecture. For applications with 60-250V DC field circuits, specify TU831V1 instead. When I/O counts exceed 12-16 channels per module or require redundant power supplies, evaluate TU833 or TU838 termination units. Always verify compatibility with specific S800 I/O module types (AI, DI, AO, DO) and confirm environmental ratings match installation location requirements.

Extended Functions

Remote Diagnostics Integration: When paired with S800 I/O modules featuring built-in diagnostics (AI835A, DI885), the TU830V1 supports remote monitoring of field circuit health through 800xA Asset Optimization or third-party SCADA systems. Diagnostic data includes wire break detection, short circuit identification, and out-of-range signal alerts, enabling predictive maintenance strategies that reduce unplanned downtime by 30-50%.

Redundant System Configurations: In critical control applications requiring fault-tolerant architectures, TU830V1 units support redundant I/O module installations when combined with appropriate S800 redundant modules and dual ModuleBus connections. This configuration maintains process control during single-point failures, meeting SIL 2/3 safety integrity requirements in emergency shutdown systems and fire & gas detection networks.

Custom Labeling & Documentation: Field-writable label strips and integrated wiring diagram holders simplify long-term maintenance by providing clear identification of I/O point assignments, field device connections, and circuit routing. When combined with ABB's FieldCare asset management software, technicians can access digital wiring documentation via mobile devices during troubleshooting and modification activities.

Delivery & Service

Lead Time: Standard delivery 3-5 business days for in-stock units; custom configurations or bulk orders (20+ units) typically ship within 7-10 business days. Expedited shipping available for urgent project requirements.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship under normal operating conditions. Extended warranty programs available for critical infrastructure applications requiring 5-year coverage.

Technical Support: Access to ABB's global technical support network including application engineering assistance, system integration guidance, and troubleshooting support via phone, email, and online portal. On-site commissioning support available for large-scale installations (100+ I/O points).

Documentation Package: Each unit includes installation manual with wiring diagrams, dimensional drawings, terminal assignment tables, and safety instructions. Digital documentation (PDF format) available for download including CAD models (STEP, DXF), EPLAN macros, and AutoCAD panel layout templates.

Frequently Asked Questions

How does the TU830V1 connect to existing S800 I/O modules in my 800xA system?
The TU830V1 mounts on standard DIN rail and provides a keyed connector interface that accepts compatible S800 I/O modules (AI, DI, AO, DO types). Simply snap the termination unit onto the rail, connect field wiring to the screw terminals, then insert the I/O module into the keyed slot—ModuleBus addressing configures automatically without manual jumper settings. The mechanical coding prevents insertion of incompatible module types.

What is the maximum I/O capacity I can achieve with TU830V1 termination units?
Each TU830V1 supports up to 16 I/O channels depending on the installed module type (e.g., DI840 provides 16 digital inputs, AI810 provides 8 analog inputs). A single ModuleBus segment accommodates up to 12 termination units, yielding 96-192 I/O points per segment. For systems requiring 500+ I/O points, deploy multiple ModuleBus segments connected to AC800M controllers or 800xA I/O clusters.

Can the TU830V1 reduce energy consumption in my control system?
While the termination unit itself consumes minimal power (<2W), the integrated fusing architecture eliminates external fuse holders and associated wiring, reducing overall panel heat generation by 8-15% compared to traditional terminal block assemblies. This thermal efficiency can lower cooling requirements in large control rooms with 500+ I/O points, potentially reducing HVAC energy costs by 5-10%.

What installation requirements must I meet for ATEX Zone 2 compliance?
For hazardous area installations, mount the TU830V1 inside a certified enclosure rated for the specific zone classification (Zone 2, Class I Div 2). Ensure all field wiring uses appropriate cable glands with ingress protection ratings, maintain proper grounding connections to the DIN rail, and verify that connected I/O modules carry matching ATEX/IECEx certifications. Consult ABB's hazardous area installation manual (document 3BSE030230) for detailed wiring practices and separation requirements between intrinsically safe and non-incendive circuits.

Does the TU830V1 support remote monitoring and predictive maintenance strategies?
Yes—when paired with diagnostic-capable S800 I/O modules (AI835A, DI885, DO880), the termination unit enables remote monitoring of field circuit health through 800xA Asset Optimization or third-party SCADA platforms. Diagnostic features include wire break detection, short circuit alerts, and signal quality metrics, allowing maintenance teams to identify degrading field wiring before failures occur. This predictive approach can reduce unplanned downtime by 30-50% in process industries.

How quickly can I replace a failed I/O module without shutting down my process?
The TU830V1's hot-swap design allows I/O module replacement in under 3 minutes without powering down the control system. Simply remove the failed module from the keyed connector, insert the replacement module (which automatically inherits configuration from the controller), and verify operation through the 800xA or AC800M diagnostic interface. This capability is critical for continuous processes where unplanned shutdowns cost $50K-$500K per hour in lost production.

Get Your ABB TU830V1 Extended MTU Today

Ready to streamline your S800 I/O installation or expand existing 800xA/AC800M control systems? Contact our industrial automation specialists for technical consultation, quantity pricing, and project-specific configuration guidance. We support system integrators, panel builders, and end users across process industries, manufacturing, marine, and power generation sectors.
