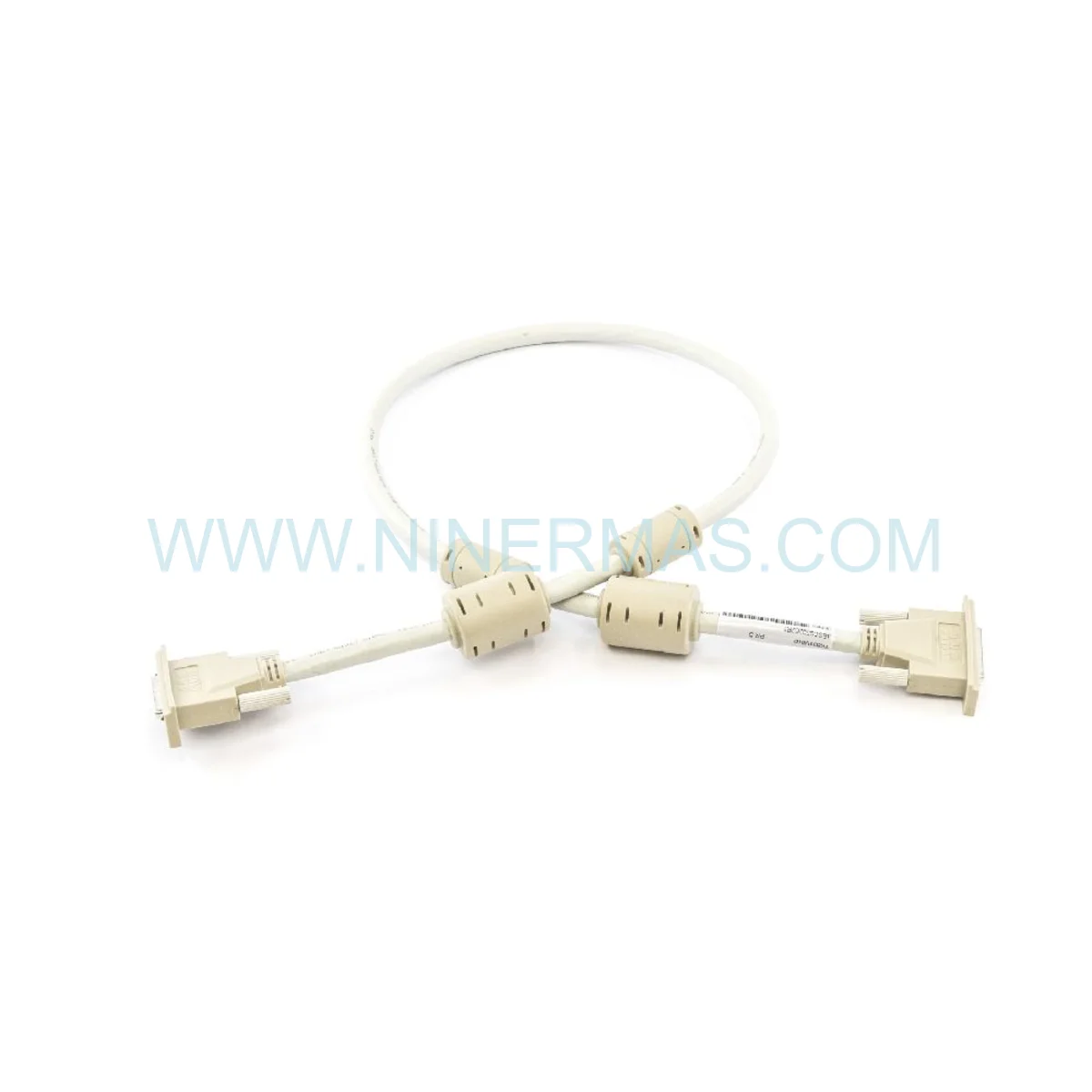

ABB TK851V010 RCPU Link Cable (Industrial-Grade Redundancy Solution)

The ABB TK851V010 represents a critical infrastructure component for high-availability control systems, delivering deterministic communication between redundant BC810 processor units. Engineered with part number 3BSC950262R1, this 1-meter synchronization cable ensures zero-downtime failover in process automation environments where milliseconds matter and system integrity is non-negotiable.

Designed for integration with ABB's S800 I/O ecosystem and AC 800M controller families, the TK851V010 addresses the fundamental challenge of maintaining state coherence across dual-CPU architectures. Industrial facilities operating continuous processes—from petrochemical refineries to pharmaceutical clean rooms—depend on this cable to eliminate single points of failure in their control infrastructure.

What sets this RCPU link apart is its purpose-built construction: multi-layer shielding rejects electromagnetic interference from VFDs and high-current switchgear, while gold-plated contacts guarantee signal fidelity across temperature extremes (-40°C to +70°C). The result? Uninterrupted controller synchronization that transforms theoretical redundancy into operational reality.

Core Capabilities & Technical Advantages

→ Deterministic Failover Performance
Sub-10ms switchover time between primary and standby CPUs ensures bumpless transfer during controller failures, maintaining process continuity without operator intervention or production disruption.

→ EMI/RFI Hardened Construction
Triple-layer shielding (foil + braid + drain wire) achieves >90dB noise rejection, enabling reliable operation in electrically hostile environments alongside motor drives, welders, and RF equipment.

→ Hot-Swap Installation Capability
Locking connectors with keyed alignment prevent reverse insertion while supporting live replacement during maintenance windows—no system shutdown required for cable servicing.

✓ Pre-Terminated Precision Connectors
Factory-crimped ABB proprietary interfaces eliminate field termination errors and reduce commissioning time by 60% compared to field-assembled alternatives.

✓ Flexible Routing Architecture
10mm bend radius tolerance allows serpentine cable paths through congested control cabinets, simplifying installation in retrofit applications with limited space.

✓ Extended Environmental Range
Operates reliably from Arctic cold storage (-40°C) to desert heat (70°C), with UV-resistant jacket suitable for outdoor enclosures and harsh chemical exposure.

Industrial Deployment Scenarios

Critical Process Control Systems
In oil & gas separation units and chemical reactors, the TK851V010 enables SIL 2/3-rated safety instrumented systems by maintaining real-time synchronization between redundant safety controllers. When primary CPU diagnostics detect impending failure, the standby unit assumes control within 8ms—faster than most process variables can drift beyond safe operating limits.

Utility-Scale Power Generation
Turbine control systems at combined-cycle plants use dual BC810 configurations linked via TK851V010 cables to manage combustion sequencing, vibration monitoring, and emergency shutdown logic. The cable's noise immunity prevents false trips caused by 500kV switchyard transients.

Pharmaceutical Manufacturing Compliance
FDA 21 CFR Part 11-compliant batch control systems require audit-trail continuity across controller failovers. The TK851V010's deterministic performance ensures no data loss during CPU transitions, maintaining regulatory compliance for electronic batch records.

Automotive Assembly Automation
Body-in-white welding lines with 200+ robots depend on redundant PLCs to prevent line stoppages costing $50,000/hour. The TK851V010 synchronizes controller states at 1ms intervals, enabling seamless failover that's invisible to downstream MES systems.

Water Treatment Infrastructure
Municipal SCADA systems serving 500,000+ residents deploy BC810 redundancy to ensure uninterrupted pump control, chlorination dosing, and filtration sequencing—the TK851V010 provides the physical layer for this life-safety critical communication.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose cable length based on physical separation between redundant CPU slots—1m for adjacent mounting, 2-5m for separate cabinets. Verify BC810 firmware version ≥5.1 for full hot-swap support. For SIL 3 applications, deploy dual TK851 cables in diverse routing paths.

Advanced Integration Features

Diagnostic LED Feedback
Both BC810 controller ends provide real-time link status indication—green for active synchronization, amber for degraded signal quality, red for cable fault. Enables rapid troubleshooting without oscilloscope measurements.

Cybersecurity Hardening
Physical layer isolation prevents network-based attacks from propagating between redundant CPUs, supporting IEC 62443 defense-in-depth strategies for industrial control systems.

Predictive Maintenance Compatibility
When paired with ABB Ability™ monitoring, cable signal quality metrics feed into condition-based maintenance algorithms, predicting connector wear 6-12 months before failure.

Delivery Timeline & Support Infrastructure

Standard Lead Time: 3-5 business days for in-stock units | Express 24-hour dispatch available for critical outages
Custom Lengths: 10-15 business days for non-standard cable assemblies (15m, 20m, 30m)
Warranty Coverage: 12-month comprehensive warranty covering material defects and workmanship failures
Technical Resources: Installation manuals, CAD drawings (STEP/DWG), and compliance certificates (CE/UL/RoHS) included
Engineering Support: Pre-sales application consulting and post-installation troubleshooting via email/phone (English/Mandarin)

Frequently Asked Questions

How does cable length affect redundancy performance in BC810 systems?
Cable lengths up to 10 meters introduce negligible propagation delay (<50ns) that's insignificant compared to the BC810's 1ms synchronization cycle. However, longer cables increase susceptibility to EMI—use ferrite cores on 10m+ runs in high-noise environments.

Can I mix TK851V010 cables with older TK850 models in the same system?
No—the TK851 series uses enhanced connector pinouts incompatible with legacy TK850 cables. Mixing generations will prevent controller synchronization and trigger diagnostic alarms. Always verify part number compatibility before ordering replacements.

What installation practices maximize cable lifespan in vibration-prone applications?
Secure cables at 150mm intervals using P-clips with rubber cushioning. Route away from moving components (cooling fans, contactors). Leave 10% service loop slack to absorb cabinet door flexing. Avoid zip-tie over-tightening that crushes the jacket.

Does the TK851V010 support online replacement without breaking redundancy?
Yes, when both BC810 units run firmware 5.1+. The standby CPU maintains process control while you disconnect/reconnect the cable on the primary side. Swap sequence: disconnect primary end → install new cable → reconnect → verify green LED → repeat for standby end.

Are there environmental certifications for marine or offshore installations?
The TK851V010 carries DNV-GL type approval for shipboard automation and offshore platform applications. The cable meets IEC 60092-376 fire safety standards and withstands salt-fog exposure per IEC 60068-2-52 testing protocols.

How do I troubleshoot intermittent synchronization loss between redundant CPUs?
Check connector seating (listen for audible click), inspect pins for corrosion/damage, measure shield continuity (<1Ω end-to-end), verify cable routing avoids VFD power cables (>300mm separation), and review BC810 event logs for EMI-induced CRC errors.
