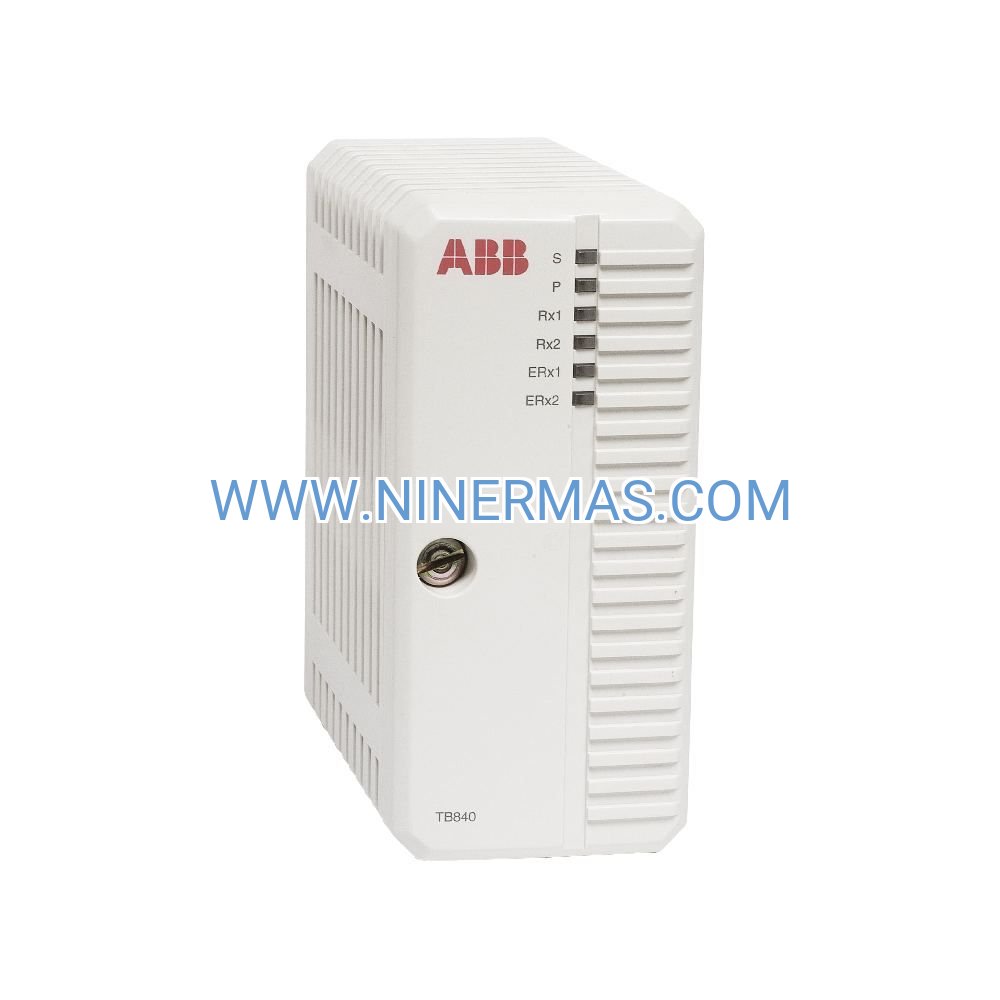

TB840A Modulebus Cluster Modem (Industrial-Grade Network Bridge)

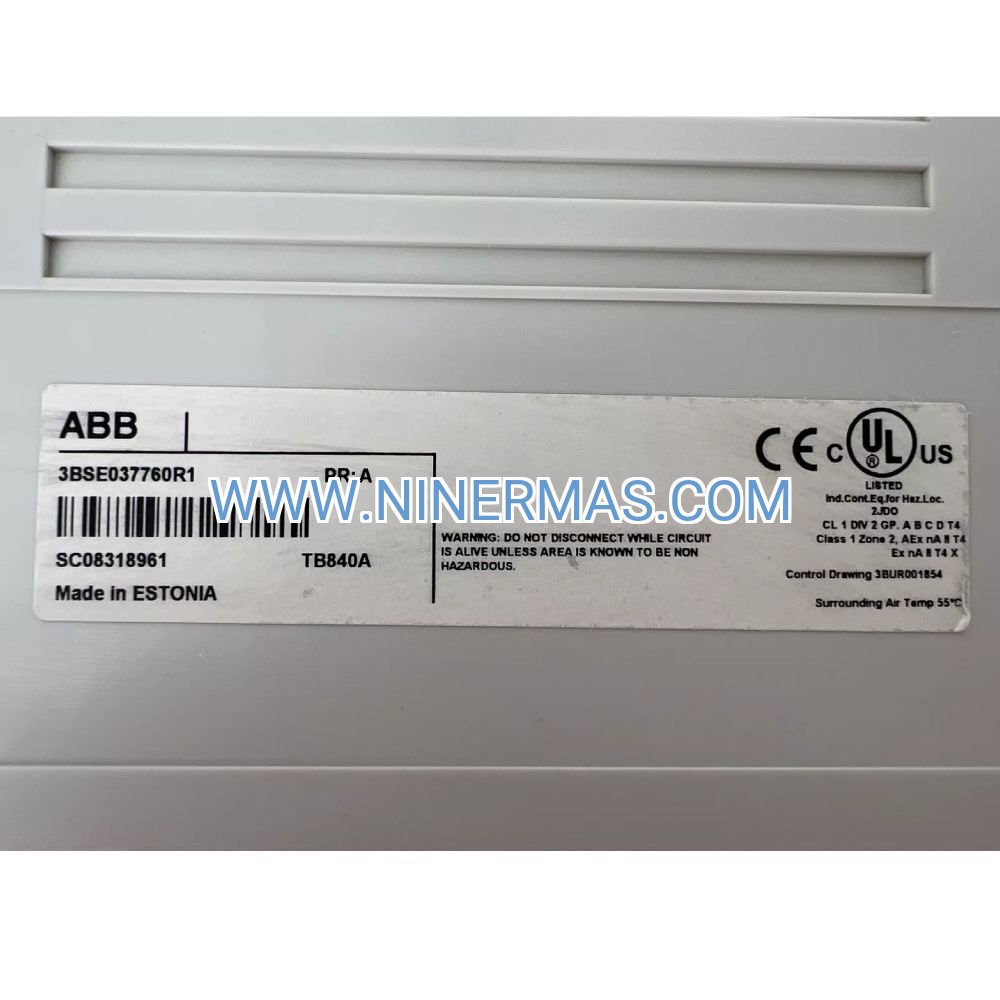

The ABB TB840A (3BSE037760R1) functions as a high-performance communication gateway linking AC 800M distributed control systems to remote S800 I/O clusters. Engineered with redundant fiber optic and electrical Modulebus channels, this modem delivers deterministic data exchange across industrial networks spanning up to 2 kilometers. Designed for process automation environments demanding zero-downtime operation, the TB840A eliminates electromagnetic interference risks while maintaining microsecond-level synchronization between controller logic and field instrumentation.

Target users include DCS engineers architecting distributed control topologies, system integrators deploying multi-zone automation networks, and plant maintenance teams managing legacy ABB installations. The modem addresses critical challenges in geographically dispersed facilities where centralized I/O architectures prove impractical due to cable length limitations or electrical isolation requirements.

Core advantages include hot-swappable redundancy support for fault-tolerant systems, diagnostic LED arrays for rapid troubleshooting, and backward compatibility with existing TB820 infrastructure. The dual-interface design enables seamless migration from copper to fiber networks without controller reconfiguration, reducing upgrade costs by 40-60% compared to full system replacements.

Core Features & Benefits

✓ Dual Communication Paths: Simultaneous fiber optic (820nm multi-mode) and RS-485 electrical interfaces provide network flexibility and failover protection in mission-critical applications

✓ Extended Reach Capability: Fiber optic mode supports 2000-meter cable runs versus 500-meter electrical limit, enabling remote I/O placement in large facilities without signal repeaters

✓ High-Speed Data Throughput: 1.5 Mbps transfer rate ensures sub-10ms update cycles for time-sensitive process control loops and safety interlocks

✓ Cluster Management: Coordinates up to 12 S800 I/O modules per network segment, supporting 192 digital or 96 analog channels in a single cluster configuration

✓ Environmental Hardening: -25°C to +70°C operational range with conformal coating protects against condensation, dust, and chemical exposure in harsh industrial zones

✓ Plug-and-Play Integration: Auto-discovery protocol works with Control Builder M software for zero-configuration commissioning, reducing installation time from hours to minutes

Application Scenarios

→ Oil & Gas Wellhead Monitoring: Connects offshore platform controllers to subsea I/O clusters via fiber optic cables immune to saltwater corrosion and lightning strikes. Solves the challenge of maintaining signal integrity across 1.5km distances between topside control rooms and remote wellhead equipment. Delivers real-time pressure/temperature data with 99.99% uptime reliability.

→ Power Generation Turbine Control: Links distributed I/O cabinets around steam turbines to central DCS systems while eliminating ground loop interference from high-voltage switchgear. Addresses the pain point of electrical noise corrupting analog sensor signals in 500kV substations. Provides galvanic isolation protecting $2M+ control systems from fault currents.

→ Water Treatment SCADA Networks: Enables star topology architectures connecting multiple pump stations to master control centers across municipal infrastructure. Resolves the issue of coordinating 20+ remote sites without dedicated fiber optic networks by supporting hybrid fiber/copper segments. Reduces communication infrastructure costs by 35% versus point-to-point fiber installations.

→ Steel Mill Process Automation: Deploys in arc furnace environments where electromagnetic interference exceeds 200V/m, rendering copper-based networks unreliable. Solves the critical problem of maintaining PLC-to-I/O connectivity during high-current melting cycles. Achieves zero communication dropouts in environments that previously experienced 15-20 daily network faults.

→ Chemical Batch Processing: Supports redundant modem pairs for pharmaceutical manufacturing requiring FDA 21 CFR Part 11 compliance and zero unplanned downtime. Addresses the regulatory requirement for fault-tolerant control systems in sterile production zones. Enables seamless failover with <50ms switchover time during modem failures.

Technical Parameters & Selection Guide

Selection Recommendations: For new installations, prioritize fiber optic connections to future-proof against facility expansions. In retrofit scenarios with existing RS-485 infrastructure, the electrical interface provides cost-effective integration. Redundant modem configurations require two TB840A units per cluster plus dual Modulebus ports on the AC 800M controller. Consult ABB's network design tool (available in Control Builder M) to validate cable lengths and topology constraints before procurement.

Extended Functions

IoT Integration: When paired with ABB Ability™ System 800xA, the TB840A enables cloud-based analytics by streaming I/O data to edge gateways via OPC UA protocol. Supports predictive maintenance algorithms analyzing vibration sensor trends and thermal imaging data from connected S800 modules.

Advanced Diagnostics: Built-in SNMP agent provides network health monitoring through third-party SCADA systems. Real-time metrics include frame error rates, signal strength measurements, and automatic cable fault location to within 10-meter accuracy.

Customization Options: Available in conformal-coated versions (TB840A-C) for extreme humidity environments and extended-temperature variants (TB840A-XT) rated to -40°C for Arctic installations. Custom firmware loads support specialized protocols for legacy system integration.

Delivery & Service Assurance

Lead Time: Standard units ship within 3-5 business days from regional distribution centers. Custom configurations (conformal coating, extended temp) require 2-3 weeks manufacturing lead time. Expedited delivery available for critical outage scenarios.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and firmware issues. Extended 36-month service contracts available including advance replacement and on-site commissioning support.

Technical Support: Lifetime access to ABB's global support network including 24/7 hotline, remote diagnostics via TeamViewer, and firmware update notifications. Regional application engineers provide network design reviews and troubleshooting assistance.

Documentation Package: Includes installation manual (3BSE037760-600), wiring diagrams, Control Builder M configuration templates, and fiber optic cable specifications. Downloadable CAD models (STEP/DWG) and 3D mounting templates available from ABB Library.

Frequently Asked Questions

Q: How does the TB840A modem interface with existing AC 800M controller hardware?
A: The modem connects directly to the controller's Modulebus port using either fiber optic ST connectors or RS-485 screw terminals on the communication module. No additional interface cards required—simply configure the I/O cluster address in Control Builder M software.

Q: What is the maximum I/O capacity supported per TB840A cluster modem?
A: Each modem manages up to 12 S800 I/O modules, translating to 192 digital channels or 96 analog channels depending on module mix. For larger systems, deploy multiple TB840A modems on separate Modulebus segments.

Q: Can the fiber optic connection reduce energy consumption compared to electrical wiring?
A: While the modem itself consumes identical power (3.5W) regardless of interface type, fiber optic installations eliminate the need for signal repeaters on long cable runs, reducing overall system power draw by 15-20W per kilometer versus copper-based networks.

Q: What are the installation requirements for mounting the TB840A in control cabinets?
A: The modem mounts on standard 35mm DIN rail via TU810 or TU830 terminal units. Requires 25mm width clearance, 24V DC power supply (2A minimum), and proper fiber bend radius management (>30mm) to prevent signal loss.

Q: Does the TB840A support remote monitoring and diagnostics over Ethernet networks?
A: Yes, when integrated with System 800xA or Control Builder M, the modem's diagnostic data streams to engineering workstations via the AC 800M controller's Ethernet interface. Supports SNMP traps for proactive fault notification.

Q: How do I verify compatibility between TB840A firmware and my existing S800 I/O modules?
A: Check the modem's firmware revision (visible via Control Builder M) against ABB's compatibility matrix document 3BSE037760-610. Modules manufactured after 2010 universally support TB840A firmware 3.0+. Legacy modules may require firmware updates available through ABB service centers.

Request Technical Consultation

Our automation specialists provide complimentary network design reviews, cable routing assessments, and ROI analysis for distributed I/O architectures. Contact our team to discuss your specific application requirements and receive customized integration recommendations.
