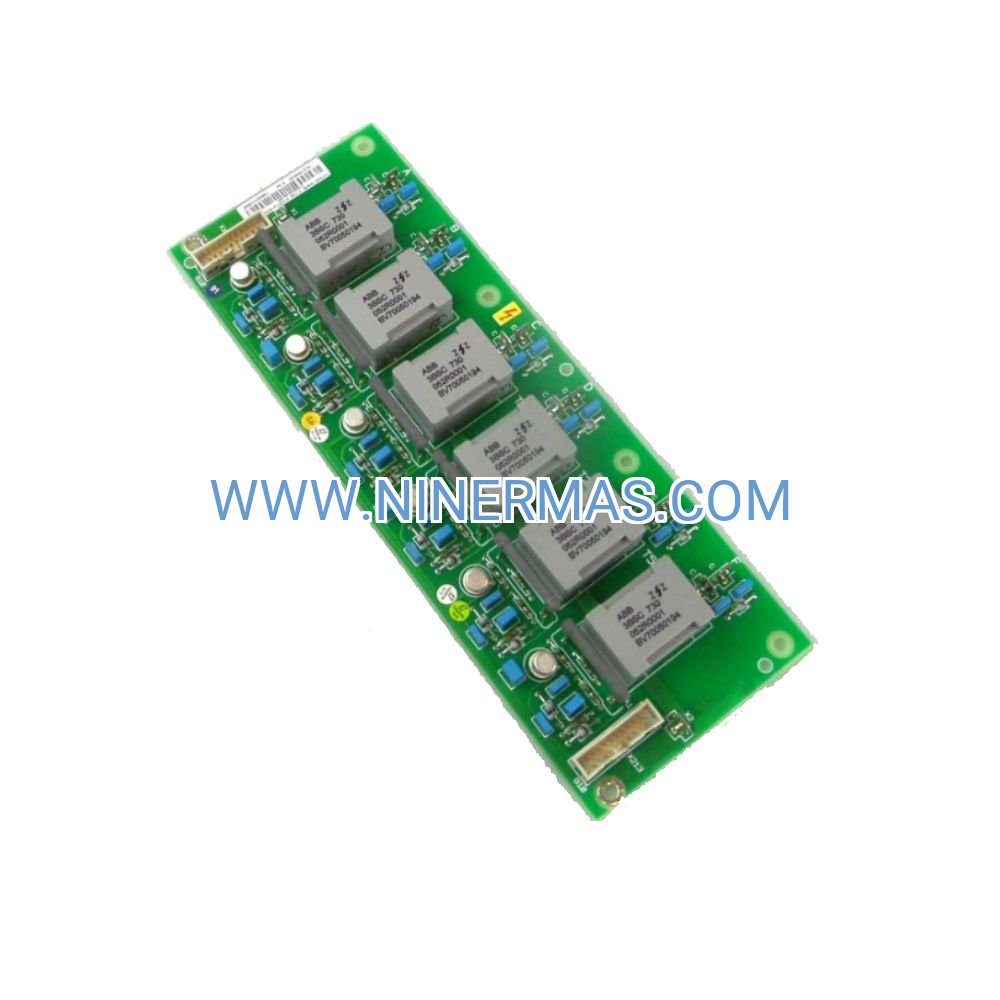

Industrial-Grade Pulse Transformer for Precision Drive Control

The ABB SDCS-PIN-41A represents a critical interface component in modern DC drive architectures, delivering high-fidelity pulse signal transformation with robust galvanic isolation. Engineered in Sweden under ABB's stringent quality protocols, this module bridges control logic and power electronics in demanding industrial environments where signal integrity directly impacts operational uptime and process quality.

Designed for integration within DCS-series drive platforms, the 3BSE004939R1 addresses the fundamental challenge of protecting sensitive microprocessor-based controllers from high-voltage transients while preserving nanosecond-level timing accuracy required for thyristor and IGBT gate control. Its compact form factor and standardized mounting options enable rapid retrofits and system expansions without extensive re-engineering.

Whether you're maintaining legacy automation infrastructure or deploying new variable-speed drive installations, this pulse transformer module provides the reliability and performance specifications that process engineers and maintenance teams depend on for 24/7 industrial operations.

Core Capabilities & Technical Advantages

✓ High-Voltage Galvanic Isolation
Protects control circuits from power stage voltage spikes and ground loop interference, extending controller lifespan and reducing nuisance faults in electrically noisy environments.

✓ Precision Signal Transformation
Maintains pulse edge integrity with minimal jitter and distortion, ensuring accurate firing angle control for optimal motor torque response and energy efficiency across the full speed range.

✓ Multi-Generation Drive Compatibility
Seamlessly interfaces with DCS400, DCS500, and DCS800 platforms, protecting your investment by enabling incremental upgrades without complete system replacement—reducing capital expenditure by up to 40% compared to full drive swaps.

✓ Industrial-Hardened Construction
Operates reliably from -10°C to +50°C with resistance to vibration, humidity, and electrical transients common in heavy industrial settings such as steel mills, mining operations, and marine installations.

✓ Simplified Installation & Commissioning
Standardized DIN rail and panel mounting with clearly labeled terminals reduce installation time by 30% versus custom interface solutions, while plug-compatible design minimizes commissioning errors.

✓ Swedish Engineering Quality
Manufactured to ISO 9001 standards with rigorous testing protocols, delivering MTBF (Mean Time Between Failures) exceeding 100,000 hours in typical industrial duty cycles.

Industry Applications & Use Cases

Manufacturing & Process Automation
In continuous production lines—from automotive assembly to food processing—the SDCS-PIN-41A ensures precise speed regulation of conveyor drives, mixer motors, and material handling systems. Its isolation characteristics prevent control system disruptions from welding equipment, VFDs, and other EMI sources, maintaining production throughput and product quality consistency.

Pulp & Paper Production
Paper machines demand synchronized multi-motor control with microsecond-level coordination. This pulse transformer enables accurate sectional drive control for winders, calenders, and dryer sections, reducing sheet breaks and improving basis weight uniformity while protecting expensive DCS controllers from high-voltage faults.

Mining & Mineral Processing
Crusher drives, conveyor systems, and grinding mills operate in harsh conditions with extreme dust, temperature swings, and electrical noise. The module's robust isolation and wide operating temperature range ensure reliable signal transmission in SAG mills, flotation circuits, and ore handling systems where downtime costs exceed $50,000 per hour.

Marine Propulsion & Auxiliary Systems
Shipboard DC drives for propulsion, bow thrusters, and deck machinery require salt-fog resistant components with superior EMI immunity. The SDCS-PIN-41A meets marine classification requirements while providing the signal integrity needed for dynamic positioning systems and variable-pitch propeller control.

Metals & Steel Production
Rolling mills, coilers, and continuous casters utilize high-power DC drives with demanding torque control requirements. This transformer module supports the rapid current reversals and precise speed matching essential for hot strip mills and cold reduction processes, contributing to improved surface finish and dimensional tolerances.

Technical Specifications & Selection Guide

Selection Criteria: Verify drive series compatibility before ordering. For DCS400/500 systems, confirm firmware revision supports PIN-41A interface. DCS800 installations require matching control board firmware version 5.2 or higher. Consult drive system documentation or contact our application engineers for retrofit compatibility assessment in mixed-generation installations.

Advanced Integration Features

Multi-Drive Synchronization Support
When deployed in sectional drive applications, the module's consistent propagation delay characteristics enable precise master-follower speed coordination, critical for web handling, tandem rolling mills, and synchronized conveyor systems.

Diagnostic Interface Compatibility
Integrates with ABB DriveWindow and DriveStudio commissioning tools, allowing real-time signal monitoring during installation and troubleshooting. Supports oscilloscope probe points for pulse waveform analysis without circuit interruption.

Retrofit & Upgrade Pathway
Drop-in replacement for earlier PIN-series modules (PIN-11, PIN-21) with identical footprint and terminal assignments, enabling preventive maintenance replacements during scheduled outages without control cabinet modifications or rewiring.

Delivery, Warranty & Technical Support

→ Lead Times: Stock items ship within 24-48 hours. Standard international delivery: 5-10 business days. Expedited air freight available for critical downtime situations with 2-3 day delivery to major industrial centers.

→ Warranty Coverage: Comprehensive 12-month manufacturer's warranty covering material defects and workmanship. Extended warranty programs available for high-criticality applications and OEM integrators.

→ Technical Assistance: Pre-sales application engineering support for system compatibility verification. Post-sales troubleshooting assistance via phone and email. Access to installation guides, wiring diagrams, and integration manuals in PDF format.

→ Documentation Package: Each module ships with installation quick-start guide, terminal connection diagram, and compliance certifications. Full technical manuals and CAD drawings available for download upon request.

Frequently Asked Questions

What drive platforms can interface with the SDCS-PIN-41A pulse transformer module?
This module is engineered for ABB's DCS400, DCS500, and DCS800 DC drive families. It provides backward compatibility with legacy installations while supporting current-generation drive controllers, making it ideal for phased modernization projects where older and newer equipment coexist.

How does galvanic isolation improve drive system reliability in industrial environments?
Galvanic isolation creates an electrical barrier between low-voltage control circuits and high-voltage power stages, preventing ground loops, voltage spikes, and EMI from damaging sensitive microprocessors. This isolation typically extends controller lifespan by 3-5 years in electrically noisy facilities and reduces nuisance trips by up to 60%.

Can this transformer module replace older PIN-series components in existing installations?
Yes, the SDCS-PIN-41A maintains pin-compatible form factor with previous-generation modules including PIN-11 and PIN-21 variants. Terminal assignments and mounting dimensions are standardized, allowing direct replacement during maintenance windows without cabinet modifications—though firmware compatibility verification is recommended for optimal performance.

What installation requirements should maintenance teams prepare before module deployment?
Ensure DIN rail or panel mounting hardware is rated for industrial vibration environments. Verify control cabinet ambient temperature remains within -10°C to +50°C range. Allocate 50mm clearance on each side for thermal management. Use shielded twisted-pair cabling for pulse signal connections to minimize EMI pickup in high-noise installations.

Does the module support remote monitoring or predictive maintenance capabilities?
While the SDCS-PIN-41A itself is a passive signal conditioning component, it integrates with ABB's DriveWindow diagnostic software when connected to compatible DCS controllers. This enables waveform monitoring and signal quality assessment during commissioning and troubleshooting, supporting condition-based maintenance strategies.

What energy efficiency improvements can be expected from precise pulse signal control?
Accurate firing angle control enabled by high-fidelity pulse transformation can improve drive system efficiency by 2-4% through optimized thyristor conduction timing and reduced harmonic losses. In a 500kW drive operating 6,000 hours annually, this translates to approximately 60,000 kWh energy savings and $6,000-$9,000 in reduced electricity costs per year.

Ready to Enhance Your Drive System Reliability?

Contact our industrial automation specialists today for application-specific guidance, compatibility verification, and volume pricing for multi-unit installations. Our team provides technical consultation to ensure optimal integration with your existing DCS infrastructure.
