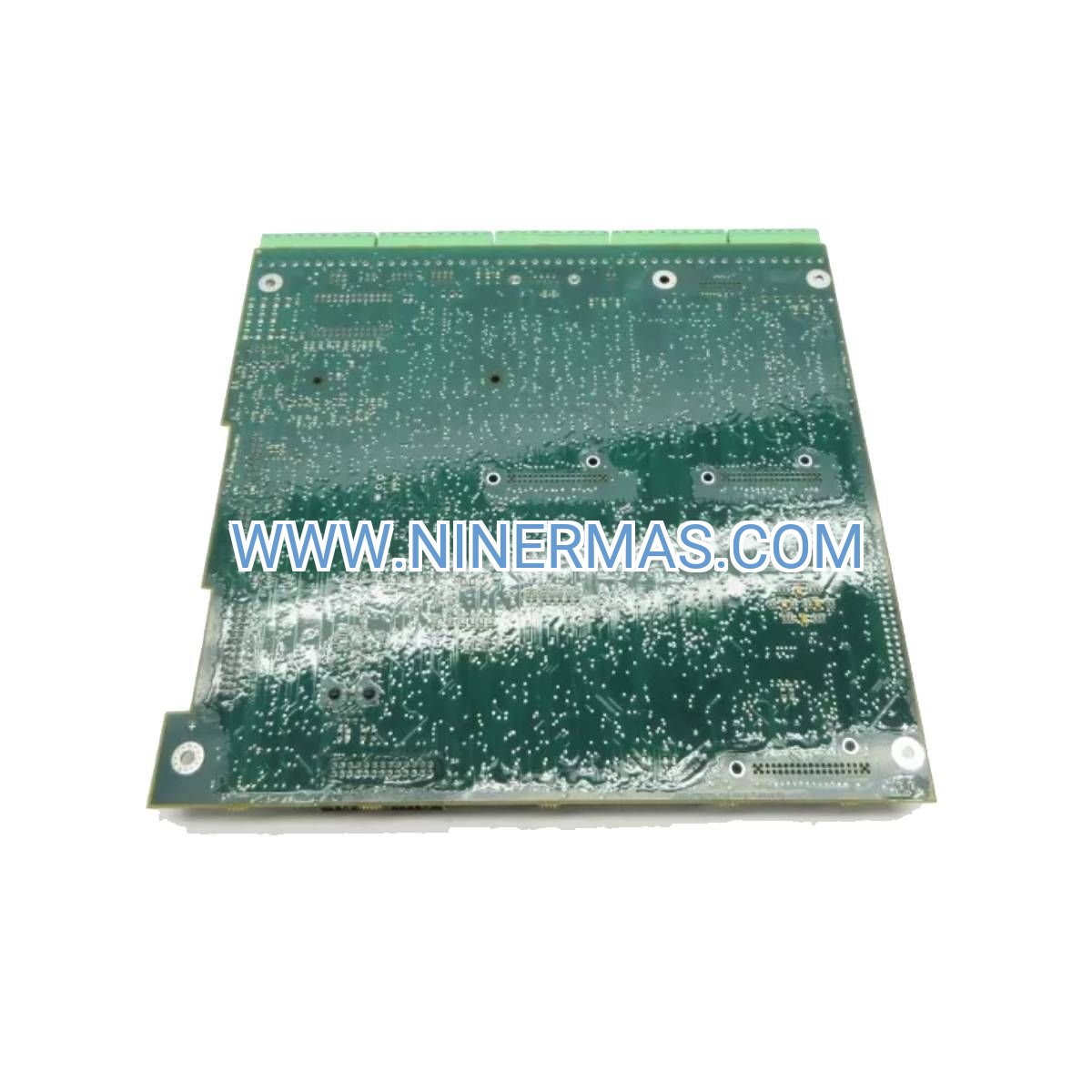

ABB SDCS-CON 3BSE006196R1 – Industrial-Grade DC Drive Control Board

The ABB SDCS-CON 3BSE006196R1 represents Swiss precision engineering for DC motor drive control in heavy-duty industrial environments. This control board integrates advanced signal processing, real-time diagnostics, and fault-tolerant architecture to deliver consistent performance across steel production, mining operations, and continuous process industries where motor control reliability directly impacts production uptime.

Designed for engineers managing legacy ABB SDCS drive systems or planning retrofit projects, this control board bridges proven technology with modern performance requirements. Its standardized interface architecture reduces integration complexity while maintaining compatibility with existing power electronics and I/O infrastructure.

Whether you're maintaining critical production lines or upgrading aging drive systems, the SDCS-CON delivers the control precision and operational reliability that industrial applications demand—backed by ABB's decades of drive technology expertise.

Core Capabilities & Technical Advantages

→ Real-Time Control Processing: Executes closed-loop control algorithms with microsecond-level response times, ensuring precise torque and speed regulation even under dynamic load conditions—critical for applications like tension control in paper machines or positioning accuracy in material handling.

→ Fault Detection & Diagnostics: Integrated monitoring circuits continuously track voltage levels, current signatures, and thermal conditions, triggering protective actions before component damage occurs while logging fault data for predictive maintenance strategies.

→ Environmental Hardening: Conformal coating and industrial-grade components withstand temperature extremes (-10°C to +55°C), vibration exposure, and electromagnetic interference typical of steel mills, mining sites, and heavy manufacturing facilities.

→ Plug-Compatible Architecture: Standardized connector pinouts and mounting dimensions enable direct replacement in existing SDCS drive cabinets, minimizing downtime during maintenance windows and eliminating custom wiring requirements.

✓ Communication Interface Support: Provides serial communication ports for integration with SCADA systems, HMI panels, and distributed control networks, enabling remote monitoring and parameter adjustment without cabinet access.

✓ Parameter Flexibility: Configurable control loops, acceleration profiles, and protection thresholds allow optimization for specific motor characteristics and application requirements—from high-inertia loads to rapid reversing operations.

Industrial Application Scenarios

Steel Rolling Mills: In hot and cold rolling operations, the SDCS-CON manages DC motors driving work rolls with precise speed synchronization across multiple stands. The board's fast response characteristics maintain consistent material thickness while its robust design withstands the thermal cycling and electrical noise inherent to steel production environments. Result: Improved product quality and reduced scrap rates.

Mining Hoist Systems: For shaft hoists and material conveyors in underground mining, this control board regulates motor torque during acceleration, constant-speed transport, and controlled deceleration phases. Its fault detection capabilities prevent overload conditions that could compromise safety, while diagnostic logging supports compliance with mining equipment regulations.

Paper Machine Sections: In paper manufacturing, the SDCS-CON controls DC motors in dryer sections, calender stacks, and winder drives where precise tension control prevents web breaks. The board's ability to maintain speed ratios between multiple drive sections ensures consistent paper quality across production runs spanning thousands of meters.

Cement Kiln Drives: For rotary kilns in cement production, the control board manages the main drive motor through varying load conditions as material progresses through the kiln. Its thermal monitoring prevents motor damage during extended operation cycles, while parameter adjustment capabilities accommodate different product recipes.

Water Treatment Pumping: In municipal water systems, the SDCS-CON regulates DC motors driving high-capacity pumps, adjusting speed to match demand fluctuations while minimizing energy consumption. The board's reliability reduces maintenance interventions in remote pumping stations.

Technical Parameters & Selection Guide

Selection Criteria: When evaluating the SDCS-CON for your application, verify drive system compatibility by confirming your existing installation uses ABB SDCS-series power modules. Check that your motor ratings fall within the drive's capacity range, and ensure your control cabinet provides adequate ventilation for the specified operating temperature range. For applications requiring network integration, confirm that serial communication protocols match your SCADA or PLC infrastructure.

Extended Integration Capabilities

Multi-Drive Coordination: When deployed in systems with multiple DC motors, the SDCS-CON supports master-follower configurations through communication links, enabling synchronized operation for applications like multi-section conveyors or coordinated winder/unwinder pairs.

Analog Interface Options: The board accepts standard industrial analog signals (4-20mA, 0-10V) for speed reference and feedback, facilitating integration with existing process control instrumentation without signal conditioning requirements.

Digital I/O Expansion: Auxiliary digital inputs accommodate external enable signals, emergency stop circuits, and operational mode selection, while digital outputs provide status indication for remote monitoring panels and alarm systems.

Parameter Backup & Transfer: Configuration parameters can be uploaded and stored externally, enabling rapid commissioning of replacement boards and maintaining consistent settings across multiple identical drive installations.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 2-3 business days via international courier (DHL/FedEx/UPS), with typical transit times of 5-7 days to major industrial centers in North America, Europe, and Asia-Pacific regions.

Quality Verification: Every control board undergoes comprehensive functional testing including power-up sequencing, communication protocol verification, analog/digital I/O validation, and control loop response characterization before shipment. Test reports available upon request.

Warranty Coverage: 12-month warranty against manufacturing defects and functional failures under normal operating conditions. Warranty covers replacement or repair at our discretion, with return shipping costs covered for confirmed warranty claims.

Technical Support: Our applications engineering team provides installation guidance, parameter configuration assistance, and troubleshooting support via email and phone. Support includes wiring diagram interpretation, startup procedures, and integration with existing drive systems.

Documentation Package: Shipments include available technical documentation such as installation guides, parameter lists, and connection diagrams. Additional resources including service manuals and application notes can be provided based on availability.

Frequently Asked Questions

Q: How do I verify compatibility between the SDCS-CON control board and my existing ABB drive system?
A: Check the model designation on your current drive's nameplate or control cabinet labeling. The SDCS-CON is designed for ABB SDCS-series drives. If you can provide your drive's complete model number and serial number, we can confirm compatibility before purchase. Additionally, verify that connector types and mounting dimensions match your existing installation.

Q: What is the typical power consumption range for this control board during normal operation?
A: The SDCS-CON control board itself draws approximately 15-25 watts from the drive's internal power supply during normal operation. This low power consumption is typical for control electronics and does not significantly impact overall drive system efficiency. The board's power draw remains relatively constant regardless of motor load conditions.

Q: Can this control board support variable speed operation with precise speed regulation accuracy?
A: Yes, the SDCS-CON provides closed-loop speed control with typical regulation accuracy of ±0.5% of set speed under steady-state conditions. For applications requiring tighter regulation (such as synchronized multi-motor systems), additional encoder feedback and parameter tuning can achieve ±0.1% accuracy. Speed range typically spans 10:1 to 100:1 depending on motor characteristics.

Q: What installation requirements should I prepare before receiving the control board?
A: Ensure your control cabinet provides adequate ventilation to maintain ambient temperature below 50°C. Verify that mounting rails or brackets match standard DIN rail or chassis mount configurations. Prepare connection documentation for power supply lines, motor feedback signals, and communication interfaces. Have appropriate hand tools available for connector assembly and a multimeter for signal verification during commissioning.

Q: Does the board support remote monitoring and parameter adjustment capabilities?
A: Yes, through the serial communication interface (RS-232 or RS-485 depending on configuration), the SDCS-CON enables remote access to operational parameters, status monitoring, and fault history. Integration with SCADA systems or HMI panels allows operators to adjust speed references, view real-time current and voltage values, and acknowledge fault conditions without physical access to the drive cabinet.

Q: What energy efficiency improvements can I expect when upgrading to this control board?
A: While the control board itself doesn't directly determine drive efficiency (which depends primarily on power electronics and motor characteristics), the SDCS-CON's optimized control algorithms can reduce energy consumption by 3-8% compared to older control platforms. This improvement comes from better current regulation, reduced harmonic content, and more precise matching of motor torque to load requirements, particularly during partial-load operation.

Ready to Optimize Your DC Drive System?

Contact our industrial automation specialists to discuss your specific application requirements, verify compatibility with your existing ABB drive infrastructure, and receive detailed technical specifications. We provide comprehensive pre-sale consultation to ensure the SDCS-CON control board meets your performance and integration needs.

Request a quote today: Email sale@ninermas.com or call +0086 187 5021 5667 to speak with our technical team.
