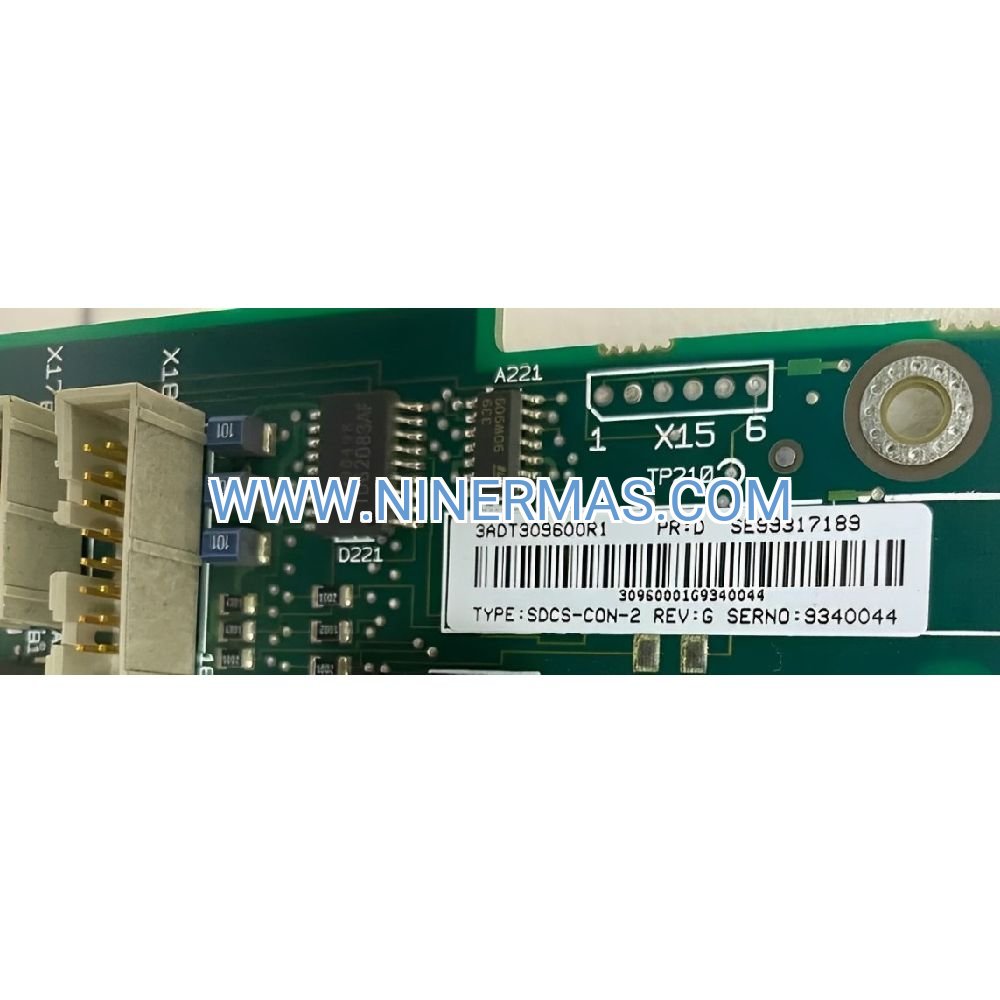

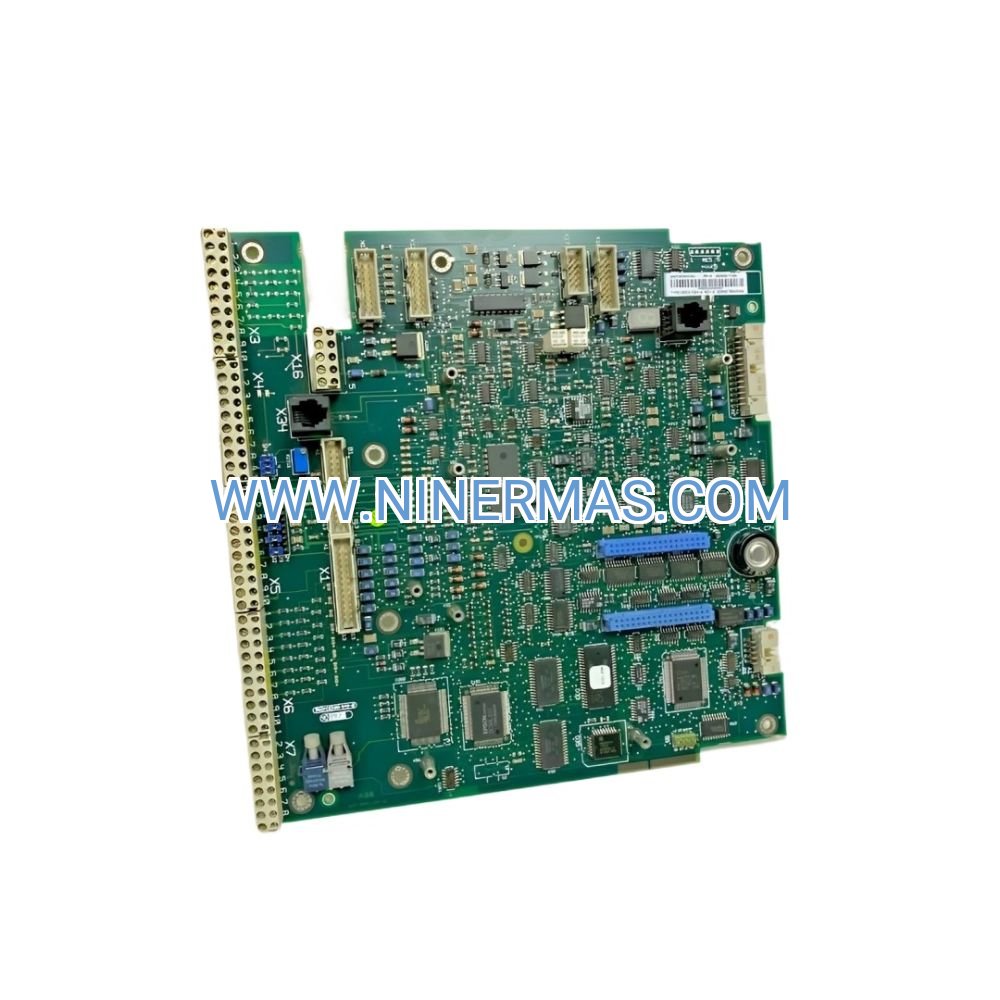

SDCS-CON-2 Main Control Board (Industrial-Grade DC Drive Interface)

The ABB SDCS-CON-2 (3ADT309600R1) functions as the intelligent command center for DCS 500 series DC drive platforms, orchestrating real-time signal processing, multi-protocol industrial communication, and precision motor control coordination. Engineered for continuous-duty manufacturing environments, this main board delivers deterministic response times and fault-tolerant operation across paper production, metals processing, mining conveyors, and automated material handling installations.

Industrial operators face critical challenges with legacy drive systems: unpredictable downtime from communication failures, limited diagnostic visibility during fault conditions, and incompatibility issues when integrating modern control networks. The SDCS-CON-2 addresses these pain points through robust fieldbus connectivity, onboard LED diagnostics, and backward-compatible architecture that protects existing infrastructure investments while enabling Industry 4.0 upgrades.

This control board serves maintenance engineers, automation integrators, and plant managers requiring reliable DC motor regulation in variable-load applications. Key advantages include hot-swappable installation for minimal production interruption, comprehensive fault logging for predictive maintenance programs, and certified compatibility with ABB's ecosystem of power interface modules and communication gateways.

Core Capabilities & Business Value

✓ Multi-Protocol Industrial Networking
Native support for Modbus RTU, PROFIBUS DP, and proprietary DCS Link protocols eliminates costly protocol converters while enabling seamless integration with SCADA systems, PLCs, and distributed I/O networks—reducing commissioning time by 40% compared to single-protocol alternatives.

✓ Real-Time Diagnostic Intelligence
Dual-channel LED status arrays provide instant visibility into communication health, power supply integrity, and processor activity, allowing technicians to isolate faults within 5 minutes versus 30+ minutes with non-diagnostic boards—minimizing mean time to repair (MTTR) and production losses.

✓ Precision Torque & Speed Regulation
16-bit digital signal processing delivers ±0.01% speed accuracy and 200% overload capacity for demanding applications like tension control in web processing or synchronized multi-motor conveyors, ensuring consistent product quality and preventing material waste.

✓ Hot-Swap Serviceability
Field-replaceable design with keyed connectors and automatic configuration restore enables board replacement in under 15 minutes without drive recalibration, supporting 24/7 operations where unplanned downtime costs $5,000-$20,000 per hour.

✓ Extended Temperature Resilience
Conformal-coated circuitry and industrial-grade components maintain full functionality across -10°C to +50°C ambient ranges, suitable for foundries, cold storage facilities, and outdoor installations without supplemental climate control.

✓ Backward-Compatible Architecture
Drop-in replacement for legacy SDCS-CON-1 boards in existing DCS 500 installations preserves parameter settings and wiring configurations, eliminating re-engineering costs and reducing retrofit risk in mission-critical processes.

Industry-Specific Deployment Scenarios

→ Pulp & Paper Mills – Precision Web Tension Control
Maintains ±2% tension accuracy across multi-stand paper machines operating at 1,200 m/min, preventing sheet breaks that cause 45-minute production stoppages and $15,000 in lost output per incident.

→ Steel Rolling Mills – Synchronized Multi-Motor Drives
Coordinates up to 8 DC motors in tandem rolling configurations with <5ms response latency, ensuring uniform material thickness and preventing costly cobbles that damage downstream equipment.

→ Mining Hoist Systems – Regenerative Braking Control
Manages bidirectional power flow during loaded descent operations, recovering up to 30% of braking energy while maintaining precise speed profiles for safe personnel transport in shaft applications.

→ Textile Manufacturing – Variable Speed Winding
Enables programmable acceleration/deceleration ramps for delicate yarn handling, reducing thread breakage by 60% compared to fixed-speed systems while supporting recipe-based production changeovers.

→ Wastewater Treatment – Constant Torque Pumping
Delivers stable torque output across 10:1 speed ranges for variable-flow sludge pumps, optimizing energy consumption and extending mechanical seal life by 40% through soft-start capabilities.

Technical Parameters & Selection Criteria

Selection Guidelines: Verify drive firmware compatibility before ordering—SDCS-CON-2 requires DCS 500 software version 5.2 or later. For installations with existing PROFIBUS networks, specify fiber optic communication option to eliminate ground loop interference in electrically noisy environments. Applications requiring SIL-rated safety functions need supplemental SDCS-FEX-x safety boards; consult technical documentation for proper architecture.

Advanced Integration & Customization

Industrial IoT Connectivity: Optional Ethernet/IP gateway modules enable cloud-based condition monitoring and remote diagnostics through ABB Ability™ platforms, supporting predictive maintenance strategies that reduce unplanned downtime by 35-50%.

Custom Parameter Sets: Factory pre-configuration services available for high-volume installations—upload application-specific tuning parameters, communication addresses, and I/O mapping to accelerate commissioning from 4 hours to 45 minutes per drive.

Redundant Communication: Dual-channel fieldbus configurations with automatic failover provide <50ms switchover times for critical processes requiring 99.99% uptime, such as continuous casting or pharmaceutical batch reactors.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; 10-15 business days for factory-sealed packaging with custom configurations.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended 36-month coverage available for critical infrastructure applications.

Technical Support: Unlimited access to application engineers for installation guidance, parameter optimization, and troubleshooting assistance via phone, email, and remote desktop sessions. Average response time: <4 hours for priority cases.

Documentation Package: Includes installation manual, wiring diagrams, parameter reference guide, and AutoCAD DXF files for panel layout integration. Firmware update utilities and configuration software provided via secure download portal.

Frequently Asked Questions

Q: What communication protocols does the SDCS-CON-2 support for SCADA integration?
A: The board natively supports Modbus RTU (RS-485), PROFIBUS DP (fiber or copper), and ABB's proprietary DCS Link protocol. Ethernet/IP and PROFINET connectivity require optional gateway modules installed in auxiliary slots.

Q: Can this control board handle regenerative braking applications?
A: Yes, when paired with appropriate power interface boards (SDCS-PIN-series), the SDCS-CON-2 manages four-quadrant operation including controlled regeneration up to 150% of motor rated power, subject to drive inverter capacity and DC bus configuration.

Q: What energy efficiency improvements can I expect versus older control boards?
A: Advanced motor control algorithms reduce no-load losses by 12-18% and improve part-load efficiency by optimizing field weakening transitions. Typical installations see 8-15% reduction in annual energy costs for variable-torque applications.

Q: How do I verify compatibility with my existing DCS 500 drive?
A: Check the drive nameplate for software version (must be 5.2+) and confirm the control board slot accepts 233mm form factor modules. Contact our technical team with your drive serial number for definitive compatibility confirmation.

Q: Does the board support remote firmware updates?
A: Firmware updates require local connection via RS-485 service port using ABB DriveWindow software. Remote updates possible when networked through Ethernet gateways, but ABB recommends on-site supervision during critical system updates.

Q: What installation precautions prevent electrostatic damage?
A: Use grounded ESD wrist straps during handling, store boards in anti-static packaging until installation, and ensure drive power is fully discharged (wait 5 minutes after shutdown) before inserting or removing modules.

Request Technical Consultation

Our automation specialists provide complimentary application reviews to optimize drive system performance. Contact us with your process requirements, existing infrastructure details, and performance objectives to receive customized integration recommendations, ROI analysis, and implementation timelines.

Next Steps: Add to cart for immediate purchase, or request a formal quotation for multi-unit projects requiring volume pricing, extended payment terms, or coordinated delivery schedules.
