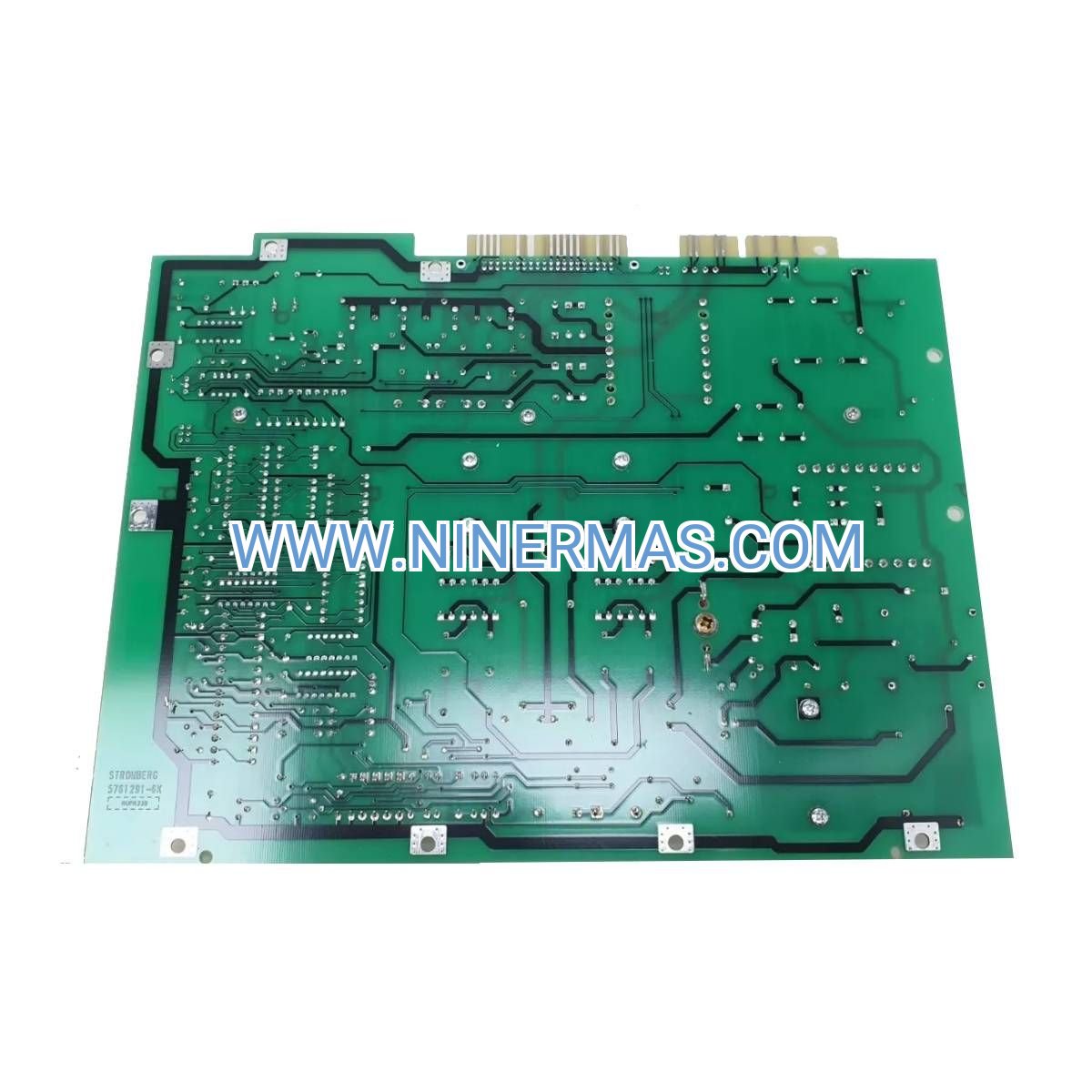

SAFT 113 POW Power Distribution Module (Industrial-Grade Reliability)

The SAFT 113 POW represents ABB's commitment to uncompromising power integrity in industrial automation. This Swiss-engineered power distribution board transforms unstable grid input into precision-regulated DC output, safeguarding your control infrastructure against voltage fluctuations, transient spikes, and brownout conditions that threaten production continuity.

Designed for system integrators and plant engineers managing ABB Advant, MOD 300, or AC 800M platforms, this module addresses the critical challenge of maintaining stable power across distributed I/O networks and remote field devices. Whether you're retrofitting legacy systems or building new installations, the SAFT 113 POW ensures your control logic executes flawlessly—even in electrically noisy environments.

With triple-layer protection circuitry and diagnostic feedback, this power supply doesn't just deliver watts—it delivers peace of mind. Reduce unplanned downtime, eliminate nuisance trips, and extend the service life of downstream components through intelligent power management.

Core Capabilities & Business Impact

→ Fault-Tolerant Architecture
Built-in overvoltage, overcurrent, and short-circuit protection automatically isolates faults without cascading failures. Your production line stays operational even when individual circuits experience anomalies—critical for 24/7 manufacturing environments where every minute of downtime costs thousands.

✓ Wide Operating Range
Functions reliably from -25°C to +70°C, making it suitable for outdoor enclosures, unheated warehouses, and tropical climates. Eliminates the need for costly climate control in remote installations while maintaining ±2% voltage regulation accuracy.

✓ Plug-and-Play Integration
DIN rail mounting with standardized terminal blocks enables 15-minute installation by qualified technicians. Pre-configured for ABB ecosystems, reducing commissioning time by 40% compared to third-party alternatives and minimizing configuration errors.

→ Predictive Diagnostics
Multi-color LED indicators and relay outputs provide real-time status monitoring. Connect to SCADA systems for remote health checks, enabling condition-based maintenance strategies that reduce service calls and spare parts inventory.

✓ Compliance-Ready Design
CE, UL, and CSA certifications streamline regulatory approvals for North American and European installations. Meets IEC 61010 safety standards for industrial control equipment, protecting both personnel and capital equipment.

→ Long-Term Availability
ABB's industrial product lifecycle guarantees spare parts availability for 15+ years, protecting your capital investment and avoiding forced system redesigns due to component obsolescence.

Proven Applications Across Industries

Automotive Manufacturing: Powers robotic welding cells and conveyor control systems in body shops where electromagnetic interference from high-current welders would destabilize standard power supplies. The SAFT 113 POW's filtering capabilities maintain clean power to motion controllers, preventing position errors that cause quality defects.

Water Treatment Facilities: Energizes PLC-based SCADA systems monitoring pump stations and chemical dosing equipment. Its corrosion-resistant housing and wide temperature tolerance handle humid environments, while diagnostic outputs trigger alarms before power anomalies affect water quality compliance.

Food & Beverage Processing: Supplies power to temperature controllers, flow meters, and packaging line PLCs where voltage sags during motor startups could corrupt batch recipes. Washdown-compatible enclosure options meet sanitation requirements for direct installation in production zones.

Building Automation: Distributes power to HVAC controllers, access control panels, and lighting management systems across multi-story facilities. Centralized power distribution reduces wiring costs by 30% compared to individual wall adapters while simplifying troubleshooting.

Oil & Gas Upstream: Operates wellhead control systems and remote telemetry units in Class I Division 2 hazardous locations when paired with appropriate enclosures. Survives temperature extremes and vibration common in drilling operations.

Technical Parameters & Selection Criteria

Sizing Guidance: Sum the current draw of all connected devices (PLCs, I/O modules, sensors) and multiply by 1.2 to account for inrush currents. For systems requiring redundancy, deploy two units in parallel with diode-OR configuration. Consult ABB application note AN-PS-2024 for detailed load calculations.

Advanced Integration Options

Redundant Power Configurations: Pair with a second SAFT 113 POW unit using diode modules for N+1 redundancy. If one supply fails, the backup seamlessly assumes the full load without interrupting control system operation—essential for critical infrastructure applications.

Remote Monitoring: Connect the diagnostic relay output to your DCS or SCADA system to track power supply health metrics. Set up email/SMS alerts for pre-failure warnings based on output voltage drift or thermal derating conditions.

Battery Backup Integration: Interface with UPS systems or DC battery banks to maintain power during grid outages. The SAFT 113 POW's wide input range accepts 18-32 VDC from battery sources, enabling graceful shutdowns or continued operation during short blackouts.

Custom Enclosures: Available in NEMA 4X stainless steel housings for outdoor or corrosive environments. Explosion-proof variants support Class I Division 1 installations in petrochemical facilities (consult factory for lead times).

Delivery Timeline & Support Services

Standard Delivery: Ships within 3-5 business days for stock items. Express 24-hour dispatch available for emergency replacements (additional fees apply).

Custom Configurations: Modified units with extended temperature ratings or conformal coating require 2-3 weeks for factory customization. Minimum order quantities may apply.

Warranty Coverage: 36-month manufacturer's warranty covering defects in materials and workmanship. Extended 5-year warranties available for critical applications.

Technical Support: Access to ABB-certified application engineers for pre-sales sizing assistance and post-installation troubleshooting. Phone and email support included; on-site commissioning services available regionally.

Documentation Package: Each unit ships with installation manual, wiring diagrams, CAD drawings (DWG/STEP formats), and compliance certificates. Downloadable resources include PLC integration examples and preventive maintenance checklists.

Frequently Asked Questions

Q: How do I connect the SAFT 113 POW to my existing ABB PLC system?
A: The module uses industry-standard screw terminals for input/output connections. Connect AC mains to L/N terminals, then distribute 24 VDC output to your PLC's power input and I/O modules. Refer to wiring diagram WD-SAFT113-01 included in the manual. For systems with multiple power zones, use separate units to isolate circuits and prevent fault propagation.

Q: What total current capacity do I need for a system with 12 I/O modules and one CPU?
A: A typical ABB CPU draws 1.2A, with each I/O module consuming 0.15-0.3A depending on type. For your configuration: (1.2A CPU) + (12 × 0.25A I/O) = 4.2A average. The SAFT 113 POW's 5A continuous rating provides adequate headroom. For systems approaching 4.5A, consider a higher-capacity model or redundant configuration.

Q: Can this power supply reduce energy costs in my facility?
A: Yes—the 88% efficiency rating means only 12% of input power converts to heat, compared to 20-25% losses in older linear supplies. For a 120W load operating 8,760 hours annually, you'll save approximately 105 kWh/year versus legacy units. Multiply by your local electricity rate to calculate ROI; typical payback periods are 18-24 months in high-runtime applications.

Q: What are the installation requirements for DIN rail mounting?
A: Requires standard 35mm DIN rail (EN 60715 compliant) with 7 module widths of clearance. Maintain 50mm vertical spacing above/below for convection cooling. Ambient temperature must not exceed 60°C; derate output by 2.5% per °C above 50°C. Torque terminal screws to 0.5 Nm using insulated screwdriver.

Q: Does the SAFT 113 POW support remote monitoring and diagnostics?
A: The unit includes a relay contact output (Form C, 2A @ 30 VDC) that signals power-good status. Wire this to a PLC digital input or alarm panel for remote monitoring. For voltage/current telemetry, add an external monitoring module like ABB's PM-Monitor accessory, which provides 4-20mA analog outputs proportional to load conditions.

Q: How does this compare to third-party power supplies for ABB systems?
A: While generic 24V supplies may offer lower upfront costs, the SAFT 113 POW provides ABB-specific advantages: guaranteed compatibility with proprietary backplanes, factory-tested EMC performance in ABB cabinets, and unified warranty coverage when purchased as part of a complete system. Third-party units may void ABB system warranties and lack the diagnostic integration features.

Get Expert Guidance for Your Application

Unsure if the SAFT 113 POW meets your specific requirements? Our application engineers can review your system architecture, calculate precise load profiles, and recommend optimal power distribution strategies. Contact us with your PLC model, I/O count, and environmental conditions for a customized solution proposal—typically delivered within 24 hours.

Ready to order? Add to cart for immediate checkout, or request a formal quotation for multi-unit purchases. Volume discounts available for orders of 5+ units. All products ship with test certificates and full traceability documentation.
