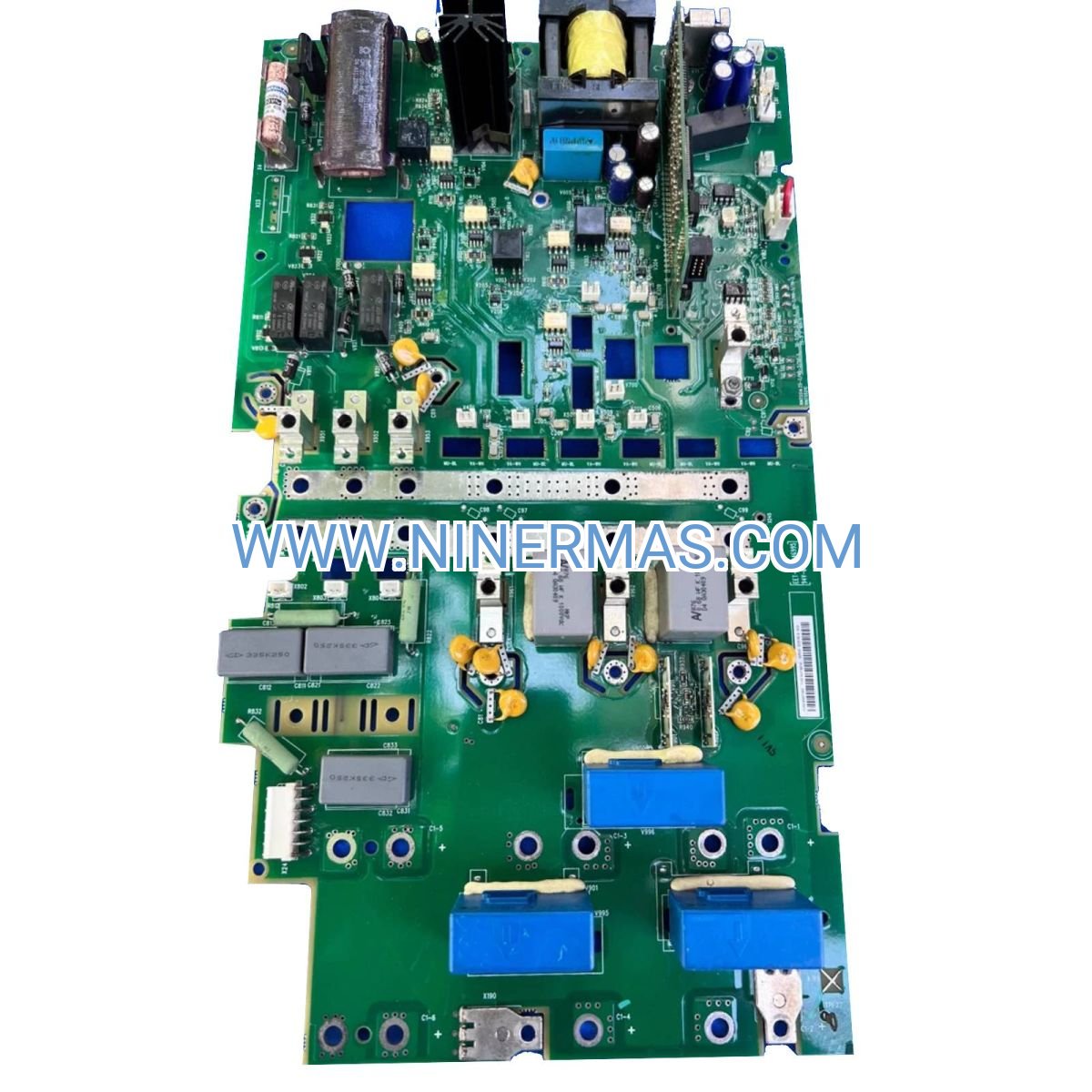

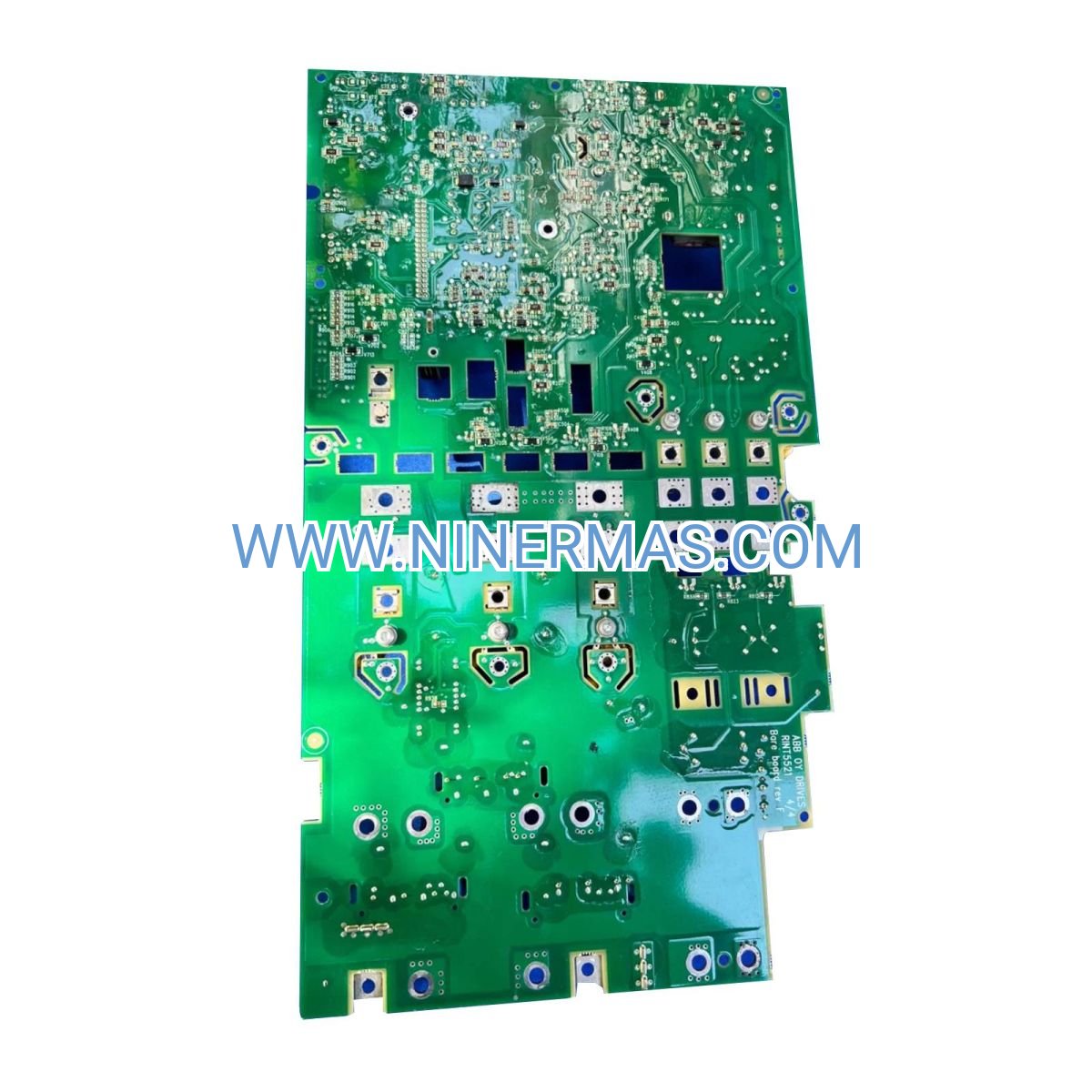

ABB RINT-5211C Digital Interface Module (Industrial-Grade Binary I/O for Relion Protection)

The ABB RINT-5211C represents a mission-critical binary signal interface engineered for ABB Relion protection and control ecosystems in electrical substations, power generation plants, and industrial distribution networks. This module delivers galvanically isolated digital I/O channels with advanced signal conditioning, enabling seamless integration of field devices—circuit breaker auxiliaries, isolator position indicators, transformer alarms, and control outputs—into modern IEC 61850-compliant protection architectures.

Designed for utility-grade reliability, the RINT-5211C addresses the fundamental challenge of interfacing legacy electromechanical devices with digital protection relays while maintaining electrical isolation, noise immunity, and diagnostic transparency. Whether you're upgrading aging substation infrastructure or deploying greenfield automation projects, this interface module provides the robust signal translation layer essential for safe, reliable power system operations.

With proven performance across thousands of global installations, the RINT-5211C combines ABB's century of power engineering expertise with contemporary digital protection requirements—delivering the dependable I/O foundation your critical infrastructure demands.

Key Features & Technical Advantages

✓ Universal Input Voltage Compatibility
Accepts 24-250 VDC station battery and auxiliary supply voltages without configuration changes, eliminating the need for multiple module variants and simplifying spare parts inventory across diverse substation designs.

✓ Complete Galvanic Isolation
High-voltage isolation barriers between input circuits, output circuits, and relay logic prevent ground loops and enhance electromagnetic immunity—critical in high-noise switchyard environments with intense switching transients and fault currents.

✓ Software-Configurable I/O Mapping
Flexible channel assignment through PCM600 configuration software enables application-specific customization without hardware jumpers or DIP switches, accelerating commissioning and supporting future functional modifications.

→ Intelligent Debounce Filtering
Integrated input conditioning eliminates mechanical contact bounce and electrical noise from auxiliary switches, ensuring clean binary state detection for reliable protection logic execution and preventing false trip conditions.

→ Extended Environmental Qualification
Operates reliably across -40°C to +70°C temperature range with conformal coating protection against moisture, dust, and corrosive atmospheres—suitable for outdoor kiosks, coastal substations, and harsh industrial environments.

→ Built-In Diagnostic Intelligence
Per-channel LED status indicators and self-monitoring capabilities provide immediate visual feedback during commissioning and enable remote diagnostics through SCADA integration, reducing troubleshooting time and improving system availability.

Application Scenarios & Industry Solutions

Transmission Substation Protection Coordination
Challenge: Coordinating multiple protection zones with legacy electromechanical devices
Solution: RINT-5211C interfaces breaker auxiliary contacts, lockout relay outputs, and transfer trip signals into Relion REF615 feeder protection relays, enabling comprehensive zone interlocking and backup protection schemes while maintaining compatibility with existing switchgear infrastructure.

Industrial Power Distribution Automation
Challenge: Implementing automatic transfer switching in critical manufacturing facilities
Solution: Module connects source availability sensors, generator ready signals, and load priority inputs to Relion REM615 motor protection relays, executing programmable load shedding and automatic source transfer sequences that minimize production downtime during utility supply interruptions.

Renewable Energy Integration
Challenge: Monitoring distributed solar inverter status across large PV installations
Solution: RINT-5211C aggregates inverter fault contacts, DC disconnect positions, and combiner box alarms into centralized Relion protection controllers, providing unified alarm management and enabling rapid fault isolation in multi-megawatt solar farms.

Hydroelectric Plant Modernization
Challenge: Retrofitting 1970s-era generator protection with digital relays
Solution: Interface module preserves existing turbine trip circuits, excitation system interlocks, and bearing temperature switches while connecting to modern Relion RET615 transformer protection relays, avoiding costly field device replacement during protection system upgrades.

Gas-Insulated Switchgear (GIS) Monitoring
Challenge: Comprehensive status monitoring in compact GIS installations
Solution: RINT-5211C processes SF6 gas density alarms, disconnector position switches, and earthing switch status from GIS bays, integrating critical equipment health data into Relion protection relays for IEC 61850 GOOSE messaging to substation SCADA systems.

Technical Specifications & Selection Guide

Selection Criteria: When specifying the RINT-5211C, verify total I/O point count requirements, station battery voltage (48/110/125/220 VDC), output contact load characteristics (resistive vs. inductive), and environmental conditions (indoor panel vs. outdoor kiosk). For applications requiring >32 I/O points per relay, consider multiple modules with distributed I/O architecture. Consult factory application notes for proper grounding practices in multi-voltage installations.

Advanced Integration Capabilities

IEC 61850 GOOSE Messaging: When integrated with Relion relays supporting IEC 61850 Edition 2, the RINT-5211C enables peer-to-peer GOOSE (Generic Object-Oriented Substation Event) communication for high-speed interlocking between protection devices—achieving <4ms trip signal propagation for bus protection and breaker failure schemes without traditional hardwired copper.

PCM600 Configuration Workflow: ABB's Protection and Control IED Manager (PCM600) software provides graphical I/O mapping tools that assign physical module channels to relay logic elements, configure input debounce timers, set output pulse durations, and define alarm priorities—all through intuitive drag-and-drop interfaces that generate downloadable configuration files for rapid multi-relay commissioning.

Hot-Swap Redundancy: In critical applications requiring zero-downtime maintenance, dual RINT-5211C modules can be configured in redundant pairs with automatic failover—allowing module replacement during live operation without interrupting protection functions or losing I/O state information.

Delivery, Warranty & Technical Support

Standard Lead Time: 3-5 business days for stock items; 4-6 weeks for factory-direct orders with custom configurations
Express Shipping: Available for critical outage restoration and emergency replacement scenarios
Warranty Period: 24 months from shipment date covering manufacturing defects and component failures
Extended Protection: Optional 5-year extended warranty with advance replacement service
Technical Documentation: Complete installation manual, wiring diagrams, PCM600 configuration templates, and IEC 61850 SCL files included
Application Support: Pre-sale engineering consultation for I/O architecture design and post-sale commissioning assistance available

Frequently Asked Questions

Q: Can the RINT-5211C interface with non-ABB protection relays?
A: The module is specifically designed for ABB Relion relay integration via proprietary module bus communication. For interfacing with third-party relays (SEL, Siemens, GE), consider standalone I/O modules with Modbus RTU or DNP3 protocols that provide universal connectivity.

Q: What is the maximum cable distance between the I/O module and field devices?
A: Input circuits support up to 300 meters (1000 feet) with 1.5mm² shielded cable for 110 VDC signals; output circuits support similar distances for resistive loads. For longer runs or high-noise environments, use fiber optic I/O extenders or increase wire gauge to maintain signal integrity.

Q: Does the module require external power supply or draw from the relay?
A: The RINT-5211C receives operating power from the host Relion relay via the module bus connection—no separate auxiliary power supply required. Ensure relay power budget accommodates total I/O module count per manufacturer specifications.

Q: How do I verify proper I/O operation during commissioning?
A: Use PCM600's built-in I/O test functions to force individual inputs/outputs and observe LED indicators and relay logic response. For comprehensive testing, apply known voltage sources to inputs and measure output contact continuity with multimeter while monitoring SCADA points for correct state reporting.

Q: Is the module suitable for hazardous area installations?
A: The RINT-5211C carries Class I Division 2 suitability when installed in properly rated enclosures with appropriate barriers. For Class I Division 1 or ATEX Zone 1 applications, consult ABB for intrinsically safe I/O solutions with certified barriers and entity parameters.

Q: Can I retrofit this module into existing Relion installations?
A: Yes—the RINT-5211C uses standard Relion module mounting and communication interfaces, allowing field upgrades to add I/O capacity or replace aging modules. Verify relay firmware version compatibility and available module slots before ordering; some older relay versions may require firmware updates for full feature support.

Order Your ABB RINT-5211C Today

Secure your substation automation project with factory-certified ABB components backed by comprehensive technical support. Contact our protection system specialists at sale@ninermas.com or +0086 187 5021 5667 for application-specific guidance, volume pricing, and expedited delivery options. Request a detailed quotation including recommended accessories, configuration services, and extended warranty coverage tailored to your project requirements.
