ABB REX521 Feeder Protection Relay – Industrial-Grade MV Distribution Control System

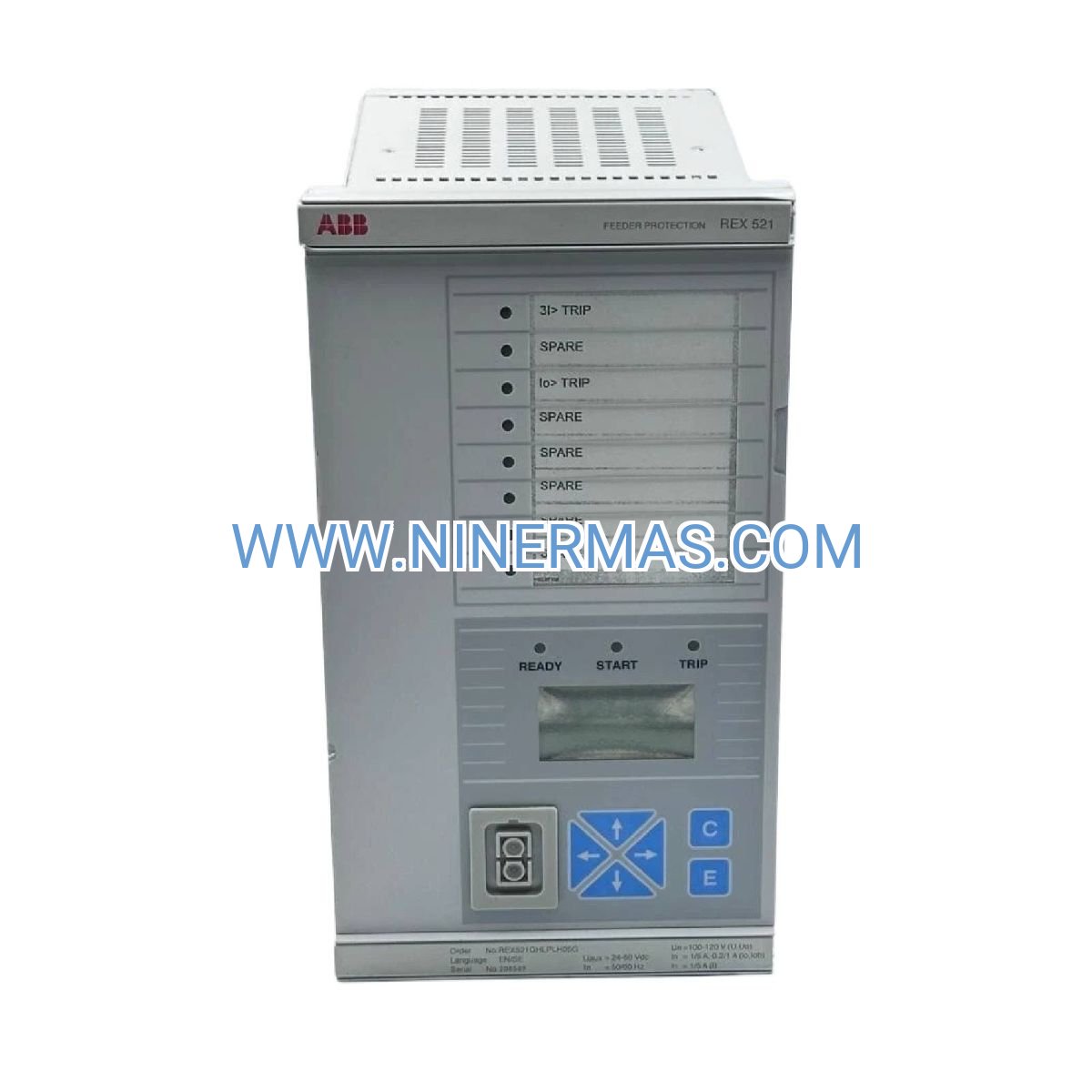

The ABB REX521 Feeder Protection Relay is a high-performance protection and control device designed for medium voltage (MV) distribution networks. Utilizing advanced microprocessor-based technology and IEC 61850 communication protocols, it delivers comprehensive overcurrent, earth fault, directional, and short-circuit protection, ensuring reliable operation and enhanced grid stability.

Ideal for utility substations, industrial power distribution systems, renewable energy plants, and commercial facilities, the REX521 addresses critical challenges including fault detection delays, equipment damage from overcurrent events, inadequate earth fault sensitivity, and limited remote monitoring capabilities.

Through standardized design and flexible configuration options, this relay offers superior protection accuracy, seamless integration with SCADA systems, user-friendly HMI interface, and compliance with international standards (IEC 60255, IEC 61850). Suitable for consulting engineers, EPC contractors, system integrators, and facility managers. Contact our application engineers for customized protection schemes and technical quotations.

Core Functions & Advantages

• Comprehensive Protection Portfolio
  Integrates overcurrent (ANSI 50/51), earth fault (ANSI 50N/51N), directional (ANSI 67), and thermal overload (ANSI 49) protection functions. Advanced algorithms ensure selective tripping and minimize nuisance outages, protecting transformers, cables, and downstream equipment.
• Enhanced System Reliability
  Dual-core processor architecture with self-monitoring diagnostics ensures continuous operation even under harsh industrial environments. Fault event recording with precise time-stamping (±1ms accuracy) facilitates rapid root-cause analysis and reduces downtime.
• Flexible Communication & Integration
  Native support for IEC 61850, Modbus RTU/TCP, DNP3, and PROFIBUS protocols enables seamless integration with existing SCADA/DCS systems. Remote parameter adjustment and real-time monitoring reduce on-site maintenance requirements.
• Intuitive Human-Machine Interface
  High-resolution LCD display with multi-language support (English/Chinese/Spanish) provides clear visualization of system status, measured values, and alarm information. Simplified menu navigation reduces training time for operations personnel.
• Proven Industrial Durability
  Designed to withstand extreme temperatures (-40°C to +70°C), high humidity, and electromagnetic interference per IEC 60255-26 standards. Conformal-coated PCBs and ruggedized enclosure ensure long-term reliability in demanding applications.
• Cost-Effective Lifecycle Management
  Modular design allows field-upgradable firmware and expandable I/O modules, protecting your investment as system requirements evolve. Comprehensive self-diagnostics reduce unplanned maintenance costs by up to 40%.

Typical Application Scenarios

The ABB REX521 is engineered for applications demanding high protection selectivity, operational continuity, and advanced monitoring capabilities, including:

• Utility Substation Feeders
  Protects outgoing feeders in 6kV to 35kV distribution substations, coordinating with upstream breakers to isolate faults while maintaining service to healthy sections. Directional elements prevent false tripping during reverse power flow conditions.
• Industrial Power Distribution Networks
  Safeguards critical production equipment in petrochemical plants, steel mills, mining operations, and manufacturing facilities. Thermal overload protection prevents motor and transformer damage, while arc flash detection minimizes personnel safety risks.
• Renewable Energy Integration
  Manages bidirectional power flow in solar farms and wind power plants connected to MV grids. Anti-islanding protection and voltage/frequency monitoring ensure compliance with grid codes (IEEE 1547, VDE-AR-N 4120).
• Commercial & Infrastructure Projects
  Deployed in hospitals, data centers, airports, and metro systems where power quality and uptime are mission-critical. Load shedding and automatic transfer schemes maintain service during grid disturbances.

Technical Parameters & Selection Guide

To facilitate engineering design and equipment selection, we provide standardized configurations covering common MV applications. Custom solutions are available for project-specific requirements.

Selection Recommendations: When specifying the REX521, consider the following parameters: primary system voltage level, CT/VT ratios, required protection functions, communication protocol requirements, environmental conditions, and panel space constraints. For complex applications involving generator protection, motor control, or transformer differential schemes, consult our application engineers with single-line diagrams and protection coordination studies.

Advanced Features & Customization

• Programmable Logic Controller (PLC)
  Built-in logic engine with 200+ function blocks enables custom interlocking, automatic switching sequences, and load management without external controllers.
• Disturbance Recording
  Captures waveform data (up to 64 samples/cycle) for 10 seconds pre/post-fault, supporting COMTRADE format export for detailed power quality analysis.
• Synchrophasor Measurement (Optional)
  GPS-synchronized phasor measurement unit (PMU) functionality provides real-time grid visibility for wide-area monitoring and stability assessment.
• Cybersecurity Hardening
  Role-based access control (RBAC), encrypted communications (TLS 1.2), and audit logging comply with IEC 62351 and NERC CIP standards for critical infrastructure protection.

Delivery, Service & Quality Assurance

Lead Time: Standard configurations ship within 3-5 business days from stock. Custom-engineered solutions require 15-25 days depending on specification complexity.

Warranty: All units include a 24-month manufacturer warranty covering defects in materials and workmanship. Extended service agreements available for mission-critical installations.

Technical Support: Comprehensive commissioning assistance includes remote configuration support, on-site startup services (region-dependent), and 24/7 technical hotline access. Factory acceptance testing (FAT) available upon request.

Documentation Package: Each relay ships with complete electrical schematics, terminal wiring diagrams, protection setting calculation worksheets, IEC 61850 ICD files, and multilingual operation/maintenance manuals in PDF and printed formats.

Certifications: CE marked, UL/cUL listed, RoHS compliant. Type-tested per IEC 60255-26 (EMC), IEC 60255-27 (shock/vibration), and IEC 60068 (environmental).

Frequently Asked Questions (FAQ)

Q: How does the ABB REX521 feeder protection relay integrate with existing substation automation systems?
A: The REX521 supports multiple industrial protocols including IEC 61850 (MMS/GOOSE), Modbus RTU/TCP, and DNP3. For IEC 61850 integration, import the provided ICD file into your SCADA configurator. Legacy systems using Modbus can map relay data points via the built-in register table (refer to communication manual section 4.2). Ethernet ports support redundant network topologies (PRP/HSR) for high-availability applications.

Q: What is the maximum number of feeders one REX521 unit can protect?
A: Each REX521 relay is designed to protect a single feeder circuit with up to 4× three-phase current inputs (e.g., main feeder + 3× branch circuits). For multi-feeder applications, deploy one relay per protected zone to ensure selective fault isolation. Consult our application note AN-REX521-03 for zone protection coordination strategies.

Q: What energy savings can be achieved with the REX521 protection relay?
A: While the REX521 is primarily a protection device, its load monitoring and demand management functions can reduce energy costs by 8-15% through optimized feeder switching, power factor correction triggering, and non-critical load shedding during peak demand periods. Actual savings depend on load profile characteristics and utility tariff structures.

Q: What are the environmental requirements for installing the REX521 relay?
A: The relay operates reliably in ambient temperatures from -40°C to +70°C with up to 95% relative humidity (non-condensing). Front panel meets IP54 protection (dust and splash resistant); rear terminals are IP20. For outdoor or harsh industrial environments, install in NEMA 4X/IP65-rated enclosures with climate control. Ensure adequate ventilation (minimum 50mm clearance on all sides) to prevent thermal derating.

Q: Can the REX521 support remote monitoring and data acquisition?
A: Yes. The relay provides real-time data streaming via IEC 61850 MMS (Manufacturing Message Specification) or Modbus TCP for integration with SCADA/HMI platforms. Supported data includes instantaneous currents/voltages, power measurements (kW/kVAR/kVA), protection element status, and event logs. Secure remote access is available through VPN tunnels or cellular gateways compliant with IEC 62351 cybersecurity standards.

Q: What communication protocols does the ABB REX521 support for industrial IoT integration?
A: Native support includes IEC 61850 Edition 2 (MMS, GOOSE, SV), Modbus RTU/TCP, DNP3 (Level 2), and PROFIBUS DP. Optional gateways enable OPC UA, MQTT, and RESTful API connectivity for cloud-based analytics platforms. All protocols support time synchronization via SNTP, PTP (IEEE 1588), or IRIG-B for precise event correlation.

Request Engineering Support

To receive a detailed protection coordination study, customized relay settings, or technical quotation, please provide the following project information:

• Project name and application type (utility/industrial/renewable)
• System voltage level and fault current magnitude
• CT/VT ratios and accuracy class requirements
• Required protection functions (ANSI device numbers)
• Communication protocol and SCADA platform
• Environmental conditions and enclosure specifications
• Single-line diagram and protection coordination curves (if available)

Our protection engineering team will provide one-on-one application support, relay setting files, and commissioning checklists within 48 hours.
