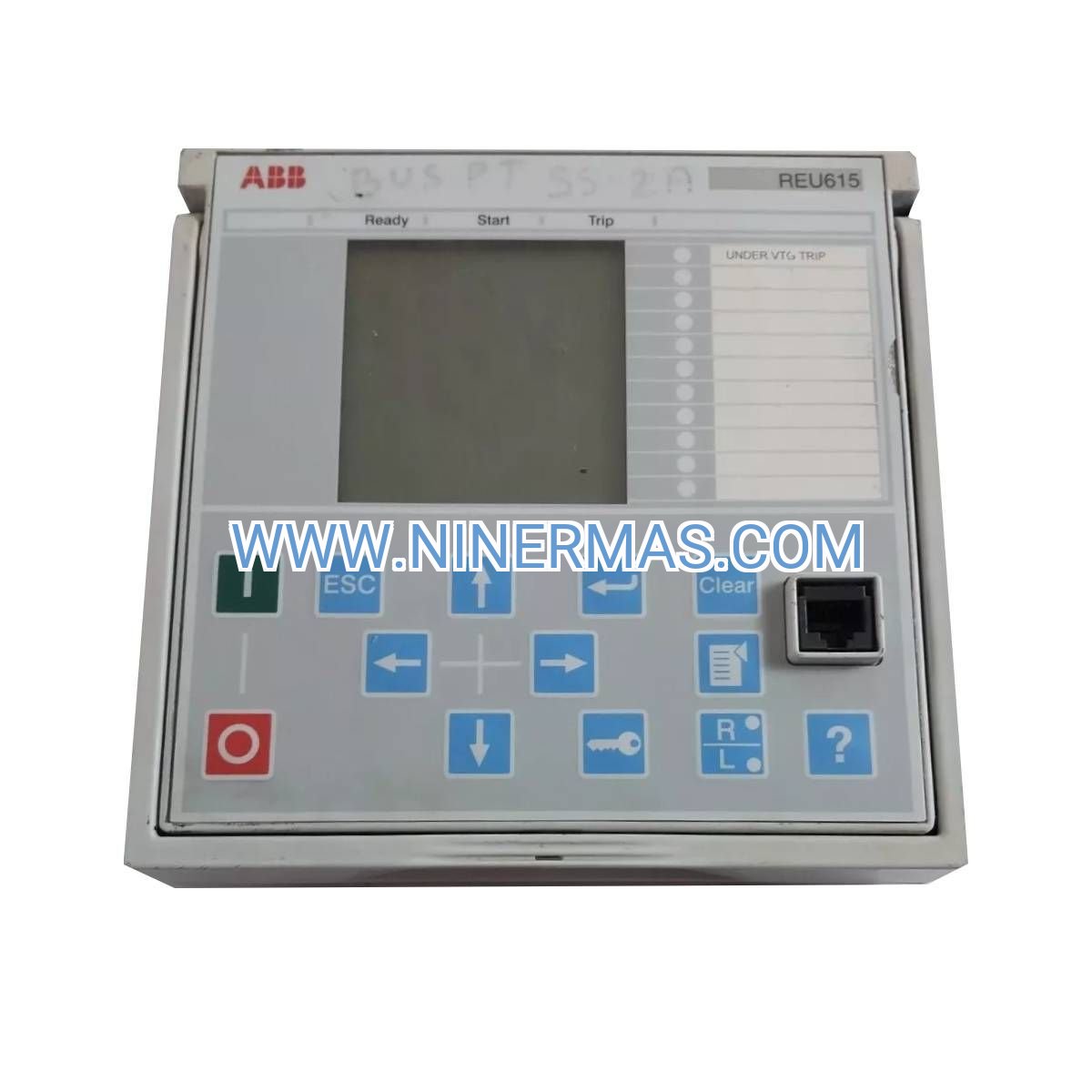

REU615 Voltage Protection Relay (Industrial-Grade Monitoring Solution)

The REU615 represents ABB's next-generation approach to medium voltage network protection, combining real-time voltage monitoring with intelligent fault isolation capabilities. Built for substations, industrial power distribution, and renewable energy installations, this relay delivers sub-30-millisecond response times to safeguard critical infrastructure from voltage anomalies, frequency deviations, and phase imbalances that threaten equipment reliability and operational continuity.

Designed for facility managers overseeing complex electrical networks, the REU615 addresses the escalating challenge of maintaining power quality in environments with variable loads, distributed generation, and aging infrastructure. Whether protecting transformer banks in manufacturing plants or coordinating grid-tied inverter systems in solar farms, this relay provides the precision measurement and adaptive protection logic required for modern power systems.

Key differentiators include IEC 61850 native communication for seamless SCADA integration, graphical event analysis with waveform capture for forensic diagnostics, and firmware-upgradable architecture that adapts to evolving grid codes without hardware replacement—delivering measurable reductions in commissioning time and lifecycle costs.

Core Capabilities & Business Value

→ Multi-Function Protection Suite
Integrates overvoltage (ANSI 59), undervoltage (27), frequency (81O/U), and voltage unbalance (47) protection in a single compact unit, eliminating the need for multiple discrete relays and reducing panel space requirements by up to 40% compared to legacy protection schemes.

✓ Precision Measurement Engine
Achieves ±0.5% voltage accuracy and ±0.2% frequency accuracy across -40°C to +70°C operating ranges, ensuring reliable protection coordination even in harsh industrial environments where temperature fluctuations compromise conventional relay performance.

✓ Cybersecure Communication
Supports encrypted IEC 61850, Modbus RTU/TCP, and DNP3.0 protocols with role-based access control, meeting utility-grade cybersecurity requirements for critical infrastructure while enabling remote monitoring and diagnostics without compromising network integrity.

✓ Adaptive Threshold Logic
Self-adjusting protection curves compensate for load variations and seasonal demand patterns, reducing nuisance trips by 60% in applications with dynamic power consumption profiles such as data centers and batch manufacturing processes.

✓ Integrated Event Recorder
Captures high-resolution voltage waveforms and sequence-of-events logs with 1ms timestamp resolution, accelerating root-cause analysis during fault investigations and reducing mean-time-to-repair by providing maintenance teams with actionable diagnostic data.

✓ Hot-Swappable Design
DIN-rail mounting with front-accessible terminals enables live replacement without de-energizing adjacent circuits, minimizing planned downtime during upgrades and supporting predictive maintenance strategies in 24/7 operations.

Industry Applications & Problem Resolution

Renewable Energy Integration
In solar and wind installations, the REU615 protects grid-tied inverters from voltage swells during low-load periods and sags during cloud transients. By coordinating with anti-islanding protection and reactive power controllers, it maintains IEEE 1547 compliance while preventing inverter damage that typically costs $15,000-$50,000 per replacement event.

Manufacturing Process Protection
For automotive assembly lines and semiconductor fabs, voltage sags below 85% nominal can halt production and corrupt batch processes. The relay's configurable time-voltage curves isolate disturbances before they propagate to sensitive PLCs and servo drives, preventing the $50,000-$200,000 hourly losses associated with unplanned production stops.

Utility Substation Coordination
In distribution substations serving mixed commercial and residential loads, the REU615 coordinates with transformer differential relays and recloser controls via GOOSE messaging. This enables selective tripping that isolates faulted feeders while maintaining service to healthy circuits, improving SAIDI reliability metrics by 15-25%.

Data Center Power Quality
Hyperscale data centers require voltage regulation within ±3% to prevent server crashes and storage corruption. The relay's continuous monitoring detects degrading UPS performance and utility supply anomalies, triggering alarms before voltage excursions reach critical thresholds that compromise uptime SLAs.

Mining & Heavy Industry
In environments with large motor starts and arc furnace loads, voltage flicker and harmonic distortion challenge conventional protection. The REU615's true RMS measurement and harmonic filtering distinguish between normal transients and genuine faults, reducing false trips that idle crushers, conveyors, and processing equipment.

Technical Parameters & Selection Criteria

Selection Guidelines: For networks with predominantly resistive loads and stable voltage profiles, the REU615's standard protection curves provide adequate coverage. In applications with frequent motor starts, capacitor switching, or distributed generation, enable the adaptive threshold feature and configure time delays to coordinate with upstream protective devices. For substations requiring IEC 61850 Edition 2 compliance, verify firmware version supports required logical nodes (PTOV, PTUF) and GOOSE/MMS services.

Advanced Integration & Customization

SCADA & Automation Connectivity
The relay's dual Ethernet ports support IEC 61850 MMS client/server architecture with GOOSE peer-to-peer messaging for sub-4ms protection coordination. Modbus TCP/RTU interfaces enable integration with legacy DCS systems, while DNP3.0 Level 2 compliance ensures compatibility with utility SCADA platforms. Built-in web server provides browser-based access to real-time measurements and event logs without specialized software.

Predictive Maintenance Features
Continuous monitoring of voltage trends, harmonic distortion, and load profiles feeds ABB's Ability™ analytics platform, enabling machine learning algorithms to predict insulation degradation, transformer overloading, and capacitor bank failures 30-90 days before catastrophic events. Automated email/SMS alerts notify maintenance teams when voltage quality metrics deviate from baseline patterns.

Custom Protection Schemes
PCM600 engineering software allows creation of user-defined protection logic using IEC 61131-3 function blocks, enabling specialized applications such as generator synchronization monitoring, arc flash detection coordination, and load-shedding sequences. Pre-built templates for common industries (oil & gas, water treatment, metals processing) reduce configuration time from days to hours.

Delivery, Warranty & Technical Support

Lead Times: Standard configurations ship within 3-5 business days from regional distribution centers. Custom firmware or I/O configurations require 2-3 weeks for factory programming and testing. Expedited service available for critical outage replacements with 24-hour dispatch.

Warranty Coverage: 3-year manufacturer warranty covering defects in materials and workmanship. Extended 5-year coverage available for projects requiring long-term asset protection. Warranty includes firmware updates and technical support via phone/email.

Technical Resources: Each relay ships with quick-start guide, full technical manual (PDF), and PCM600 configuration software license. Online training modules cover commissioning, troubleshooting, and advanced protection coordination. Regional application engineers provide on-site commissioning support for complex installations.

Compliance Documentation: CE declaration of conformity, UL test reports, IEC 60255 type test certificates, and cybersecurity compliance statements (IEC 62351) included with shipment to support project documentation requirements.

Frequently Asked Questions

How does the REU615 integrate with existing Modbus-based SCADA systems?
The relay supports simultaneous Modbus RTU (RS-485) and Modbus TCP (Ethernet) communication, allowing parallel connection to legacy RTUs and modern Ethernet-based SCADA networks. Register mapping follows industry-standard conventions, and the PCM600 software includes a Modbus configurator tool that auto-generates register maps for common SCADA platforms (Wonderware, Ignition, FactoryTalk).

What voltage and frequency ranges can the relay monitor?
Nominal voltage inputs range from 100-240V AC (phase-to-neutral or phase-to-phase depending on configuration), with measurement capability from 10-300V to accommodate startup transients and fault conditions. Frequency monitoring spans 45-65Hz, covering both 50Hz and 60Hz systems plus off-grid applications with variable-speed generators.

Can the relay reduce energy costs through power quality monitoring?
While primarily a protection device, the REU615's continuous voltage and power factor monitoring identifies inefficient operating conditions such as excessive reactive power consumption (low power factor) that trigger utility demand charges. Trend data helps justify capacitor bank installations or voltage regulator upgrades that typically reduce energy costs by 3-8% in industrial facilities.

What are the physical installation requirements?
The relay mounts on standard 35mm DIN rail and requires 144mm (width) × 160mm (height) × 58mm (depth) panel space. Minimum clearances: 50mm top/bottom for ventilation, 25mm sides for wiring access. Voltage inputs accept 1.5-4mm² wire (14-12 AWG), and auxiliary supply terminals accommodate up to 6mm² (10 AWG) for long cable runs.

Does the device support remote firmware updates?
Yes, firmware can be updated remotely via Ethernet using PCM600 software or ABB's cloud-based Asset Health Center platform. Updates require 5-10 minutes and can be scheduled during maintenance windows. The relay maintains protection functionality during updates by running redundant firmware partitions, ensuring zero downtime for critical circuits.

How does adaptive protection improve reliability compared to fixed-threshold relays?
Adaptive algorithms continuously analyze load patterns and adjust trip thresholds within engineer-defined boundaries (typically ±10% of nominal settings). In facilities with variable loads—such as sawmills with intermittent motor starts or data centers with dynamic IT loads—this reduces nuisance trips by 40-70% while maintaining protection sensitivity during genuine fault conditions, as validated in IEEE Power & Energy Society case studies.

Take the Next Step

Protect your medium voltage infrastructure with proven ABB Relion technology. Contact our application engineers for system-specific protection coordination studies, or request a demo unit to validate performance in your operating environment. Volume pricing and multi-site deployment support available for projects exceeding 10 units.
