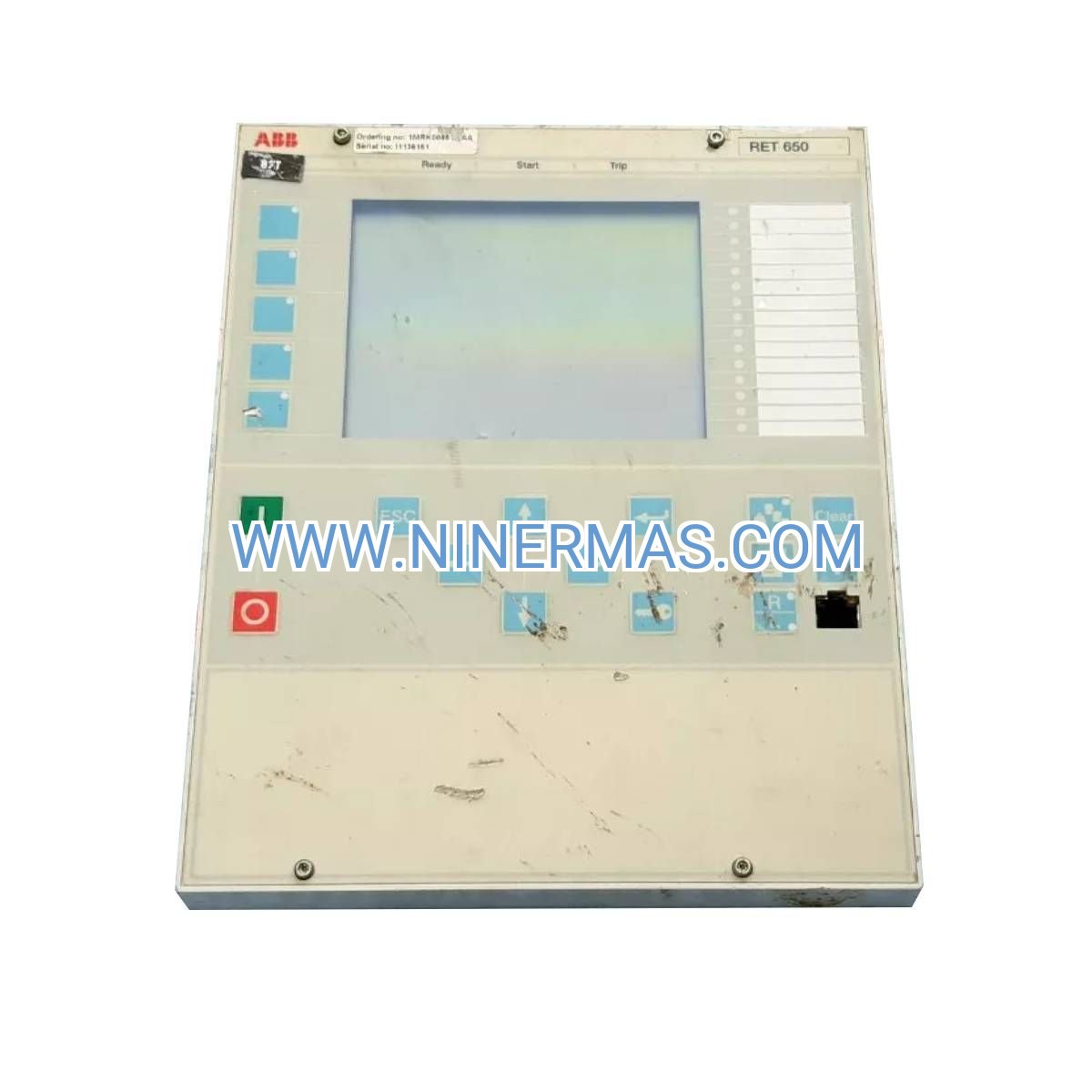

RET650 Transformer Differential Protection Manual (Industrial-Grade Reference)

The ABB RET650 Technical Manual 1MRK504125-UUS delivers mission-critical documentation for protection engineers deploying advanced transformer differential protection systems across utility substations, industrial facilities, and renewable energy installations. This Version 1.1 reference guide consolidates configuration methodologies, commissioning protocols, and diagnostic procedures essential for maximizing protection reliability in high-voltage power systems.

Designed for protection specialists managing complex transformer assets, this manual addresses the complete lifecycle from initial parameter calculation through long-term maintenance optimization. Whether you're implementing percentage differential schemes for 500kV transmission transformers or configuring IEC 61850 GOOSE messaging for substation automation, this documentation provides the technical foundation for successful RET650 deployment.

Gain immediate access to ABB's engineering expertise through structured technical specifications, real-world application examples, and proven troubleshooting methodologies that reduce commissioning time and enhance protection system performance.

Core Technical Content & Engineering Value

→ Protection Algorithm Documentation: Master differential protection theory with detailed explanations of percentage differential characteristics, harmonic restraint logic, CT saturation detection, and inrush current discrimination—critical for preventing false trips during transformer energization.

→ Hardware Integration Specifications: Complete terminal assignment diagrams, CT/VT connection schematics, auxiliary power requirements, and module configuration details that eliminate wiring errors and accelerate panel fabrication.

→ Parameter Calculation Methodologies: Step-by-step procedures for deriving differential pickup settings, slope percentages, and time delays from transformer nameplate data—ensuring protection coordination aligns with system fault studies.

→ IEC 61850 Configuration Guidance: Comprehensive coverage of substation automation integration including ICD file structure, GOOSE messaging setup, MMS client/server configuration, and time synchronization protocols for modern digital substations.

→ Commissioning Test Procedures: Validated injection testing protocols for verifying differential slope characteristics, CT polarity, vector group compensation, and harmonic blocking performance—reducing commissioning duration by 30-40%.

→ Cybersecurity Implementation: Role-based access control configuration, secure communication protocols, audit trail management, and firmware authentication procedures compliant with NERC CIP standards.

Industrial Application Scenarios

Utility Transmission Substations: Protection scheme design for 115kV to 765kV power transformers with multiple winding configurations. The manual addresses challenges including CT ratio mismatch compensation, zero-sequence current filtering, and coordination with breaker failure protection—critical for maintaining grid stability during fault conditions.

Industrial Cogeneration Facilities: Application guidelines for generator step-up transformers in combined-cycle plants and manufacturing facilities. Covers integration with turbine protection, synchronization controls, and load rejection scenarios where rapid fault clearing prevents equipment damage.

Renewable Energy Installations: Configuration procedures for wind farm and solar plant collector transformers requiring grid code compliance. Details low-voltage ride-through coordination, reactive power control integration, and protection during inverter-based resource faults.

Distribution Network Automation: Implementation strategies for distribution transformers with automatic voltage regulation and SCADA integration. Addresses load tap changer coordination, parallel transformer operation, and network reconfiguration scenarios.

Mining & Heavy Industry: Protection settings for transformers supplying high-inrush loads such as arc furnaces, grinding mills, and conveyor systems. Covers harmonic restraint optimization and coordination with motor protection relays.

Technical Specifications & Selection Criteria

Selection Guidance: Choose RET650 for transformers 10-1000MVA requiring differential protection with IEC 61850 integration. For distribution transformers below 10MVA, consider RET620 series. For arc flash detection requirements, upgrade to RET670 platform.

Advanced Configuration Capabilities

✓ Multi-Winding Protection: Configure differential zones for two-winding, three-winding, and autotransformer configurations with independent slope characteristics and harmonic restraint per winding.

✓ Adaptive Protection Algorithms: Dynamic CT saturation detection adjusts differential sensitivity during external faults, preventing relay desensitization while maintaining security against false trips.

✓ Programmable Logic Engine: Implement custom protection schemes using graphical logic editor for applications requiring specialized trip logic, breaker failure coordination, or load shedding integration.

✓ Oscillography & Event Recording: Capture high-resolution waveforms (up to 20kHz sampling) and sequence-of-events with 1ms resolution for post-fault analysis and protection performance validation.

✓ Remote Access & Diagnostics: Secure web-based interface for parameter modification, event retrieval, and real-time monitoring from SCADA workstations or mobile devices.

Delivery Timeline & Technical Support

Documentation Delivery: Digital PDF manual available for immediate download upon order confirmation. Physical printed manuals ship within 3-5 business days via express courier with tracking.

Warranty & Updates: Lifetime access to manual updates and firmware release notes. Version control notifications ensure you receive documentation revisions reflecting latest protection algorithms and cybersecurity enhancements.

Engineering Support: Complimentary 30-day technical consultation for protection scheme design questions, parameter calculation verification, and commissioning troubleshooting via email and phone.

Training Resources: Access to ABB University online courses, webinar recordings, and application notes covering advanced topics including adaptive protection, synchrophasor integration, and IEC 61850 Edition 2 migration.

Frequently Asked Questions

Q: How do I calculate differential pickup settings for transformers with off-nominal tap positions?
A: Section 4.3 of the manual provides tap compensation formulas and worked examples. The relay automatically adjusts differential thresholds based on configured tap changer position inputs, maintaining protection sensitivity across the full tap range (typically ±10% to ±20%).

Q: What CT accuracy class is required for reliable differential protection operation?
A: Class 5P or 10P CTs are recommended per IEC 60044-1. The manual includes CT burden calculations and knee-point voltage requirements to ensure linear operation during maximum fault currents. Section 5.2 details CT selection criteria for various transformer MVA ratings.

Q: Can the RET650 interface with legacy RTUs using DNP3 protocol?
A: Yes, the relay supports DNP3 Level 2 over serial (RS-485) and Ethernet connections. Appendix C provides DNP3 point mapping tables and configuration examples for integration with existing SCADA systems while maintaining IEC 61850 capability for future upgrades.

Q: How does harmonic restraint prevent false trips during transformer energization?
A: The relay analyzes 2nd and 5th harmonic content in differential current. During energization, inrush currents contain 15-70% 2nd harmonic, which blocks tripping. Section 3.4 explains restraint threshold settings and provides oscillography examples distinguishing inrush from internal faults.

Q: What cybersecurity features protect against unauthorized parameter changes?
A: Role-based access control supports up to 5 user privilege levels. All parameter modifications are logged with timestamp and user ID. Section 8.5 covers password policies, session timeout configuration, and secure firmware update procedures compliant with NERC CIP-007 requirements.

Q: Is the manual applicable to both new installations and retrofit projects?
A: Absolutely. Chapter 9 specifically addresses retrofit scenarios including CT circuit modifications, panel space constraints, and migration from electromechanical relays. Includes comparison tables showing functional equivalence between RET650 and legacy relay models.

Order Your RET650 Technical Manual Today

Equip your protection engineering team with the authoritative reference for ABB RET650 transformer protection systems. Whether you're commissioning a new substation, upgrading legacy protection schemes, or troubleshooting existing installations, this manual delivers the technical depth required for mission-critical power system applications.

Add to cart now to receive instant digital access plus expedited shipping of the printed manual. Questions about relay selection or protection scheme design? Contact our certified protection engineers at sale@ninermas.com or +0086 187 5021 5667 for complimentary pre-sale consultation.
