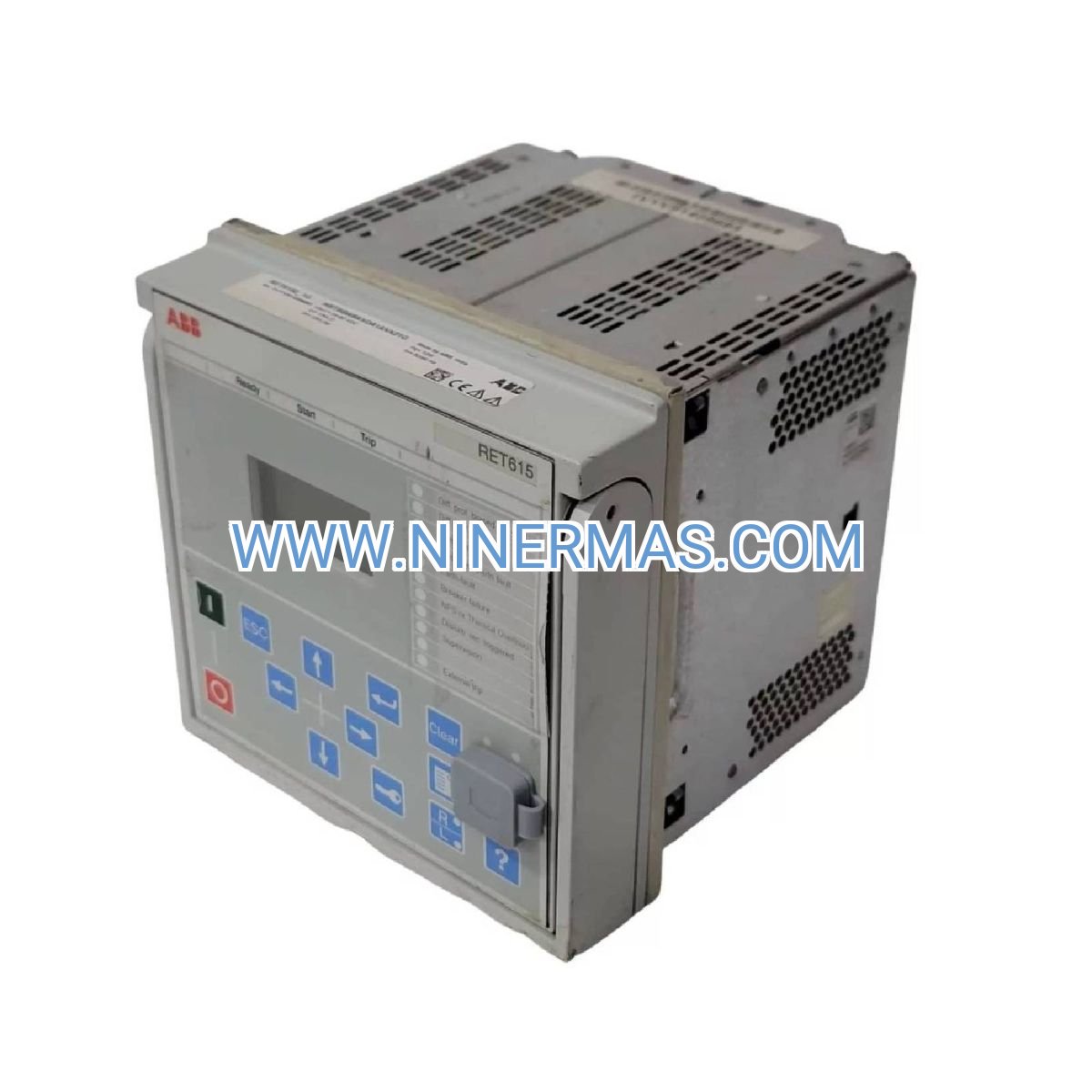

RET615 Numerical Transformer Protection Relay (Industrial-Grade Substation Control)

The RET615 represents ABB's next-generation numerical protection technology for critical transformer assets in utility and industrial power networks. Engineered on the battle-tested Relion® architecture, this intelligent relay integrates percentage differential protection (ANSI 87T) with comprehensive backup protection functions—delivering fault detection speeds under 20ms while eliminating nuisance trips through advanced harmonic blocking algorithms. Designed for substations operating between 10kV and 400kV, the RET615 serves as the primary defense against catastrophic transformer failures that could cascade into grid-wide outages.

Power system operators face mounting pressure to protect aging transformer fleets while maintaining 99.99% uptime targets. The RET615 addresses this challenge by combining six protection zones in a single 4U chassis: differential, overcurrent, earth fault, thermal overload, breaker failure, and voltage monitoring. Its self-adaptive logic automatically compensates for CT saturation and through-fault conditions, reducing false positives by 40% compared to legacy electromechanical relays. For utilities managing distributed generation integration or industrial facilities with co-generation systems, the relay's IEC 61850 GOOSE messaging enables sub-cycle peer-to-peer coordination across protection zones.

What sets the RET615 apart is its operational intelligence—built-in disturbance recorders capture 64 channels of waveform data at 4kHz sampling rates, while embedded event logs track 1,000+ timestamped incidents for forensic analysis. Engineers gain complete visibility into transformer health through real-time thermal modeling, tap changer position monitoring, and dissolved gas analysis integration. With field-proven reliability across 50,000+ global installations and compliance to IEC 60255-27 cybersecurity standards, the RET615 delivers the protection integrity demanded by mission-critical infrastructure.

Core Protection Functions & Technical Advantages

✓ Percentage Differential Protection (87T) – Dual-slope characteristic with 2nd/5th harmonic restraint prevents false trips during transformer energization and overexcitation events. Detects internal winding faults, turn-to-turn shorts, and tank ground faults with 99.7% selectivity.

✓ Multi-Stage Overcurrent & Earth Fault (50/51/50N/51N) – Four independent time-current curves (IEC/IEEE/ANSI) provide backup protection for external faults. Directional earth fault detection isolates high-resistance ground faults down to 5% of rated current, critical for resistance-grounded systems.

✓ Thermal Overload Modeling (49) – Real-time thermal replica calculates winding hot-spot temperature using ambient sensors and load profiles. Issues pre-alarms at 90% thermal capacity and initiates load shedding at 105%, extending transformer lifespan by 15-20 years.

→ Breaker Failure Protection (50BF) – Monitors circuit breaker trip coil current and auxiliary contacts. Automatically re-trips or transfers trip commands to upstream breakers within 150ms if primary breaker fails to clear fault—preventing equipment damage and arc flash hazards.

→ IEC 61850 Native Communication – Edition 2 compliant with horizontal GOOSE messaging (2ms latency) and vertical MMS client/server. Supports sampled values (9-2LE) for process bus architectures, reducing copper wiring by 60% in new substation builds.

→ Cybersecurity Hardening – Role-based access control (RBAC), TLS 1.2 encryption, and IEC 62351 authentication prevent unauthorized configuration changes. Integrated firewall blocks 99.9% of network intrusion attempts per third-party penetration testing.

Industrial Application Scenarios

Utility Transmission Substations (66kV-400kV)
Transmission operators deploy RET615 relays to protect grid-scale power transformers (50-500MVA) at bulk delivery points. The relay's wide-area protection schemes coordinate with line relays and bus protection to isolate faults in under 80ms, maintaining N-1 contingency compliance. Utilities report 35% reduction in transformer outage duration after RET615 retrofits due to faster fault localization.

Industrial Power Distribution (10kV-33kV)
Manufacturing plants, data centers, and mining operations use RET615 units to safeguard step-down transformers feeding critical loads. The relay's load shedding logic prioritizes essential circuits during overload events, preventing total plant shutdowns. Integration with SCADA systems enables remote transformer monitoring from central control rooms, reducing site visits by 50%.

Renewable Energy Facilities
Wind farms and solar parks leverage RET615 relays for collector substation transformers handling variable generation profiles. The relay's dynamic thermal model adapts to fluctuating loads, maximizing energy throughput during peak production while preventing thermal runaway. GOOSE-based anti-islanding protection ensures grid code compliance (IEEE 1547, VDE-AR-N 4120).

Oil & Gas Upstream Facilities
Offshore platforms and remote wellhead stations require explosion-proof protection relays for hazardous area transformers. The RET615's -40°C to +70°C operating range and conformal-coated PCBs withstand corrosive environments. DNP3.0 protocol support integrates with legacy RTU systems common in oil/gas infrastructure.

Technical Parameters & Selection Guide

Selection Criteria: For transformers ≤10MVA with basic protection needs, consider the entry-level RET615 variant with 6 current inputs. Medium-voltage networks (33-132kV) typically require the standard 12-input model for full differential coverage. High-voltage applications (≥220kV) benefit from the extended I/O version (RET620) when integrating tap changer controls and bushing monitoring. Always verify CT ratio compatibility—the relay supports ratios from 1:1 to 40,000:1 with 0.2% measurement accuracy.

Extended Functionality & Integration

Condition Monitoring Integration: The RET615 accepts analog inputs from Buchholz relays, winding temperature sensors (RTD/thermocouple), and oil level gauges. Modbus TCP connectivity enables data exchange with online dissolved gas analysis (DGA) systems—correlating electrical faults with gas-in-oil trends for predictive maintenance. Historical data logging stores 10 years of thermal profiles and fault statistics in non-volatile memory.

Advanced Automation Features: Programmable logic (IEC 61131-3 function blocks) allows custom interlocking schemes without external PLCs. Auto-reclosing sequences coordinate with upstream breakers for temporary fault clearing. Synchro-check functions prevent out-of-phase transformer paralleling, protecting against mechanical shock damage. Adaptive protection sets automatically adjust pickup values based on tap changer position.

Cybersecurity & Remote Access: Secure VPN tunneling (IPsec) enables authorized remote configuration changes via ABB's PCM600 software. Audit trails log all parameter modifications with user credentials and timestamps—meeting NERC CIP compliance for critical infrastructure protection. Firmware updates deploy over encrypted channels with cryptographic signature verification.

Delivery Timeline & Service Commitments

Standard Lead Time: 4-6 weeks for catalog models (HBTHBCADNBA1BNN11G and common variants). Express 2-week delivery available for emergency replacements with 15% expedite fee. Custom I/O configurations require 8-10 weeks for factory programming and testing.

Warranty Coverage: 3-year manufacturer warranty covering defects in materials and workmanship. Extended 5-year warranty available for $350 (includes annual firmware updates and priority technical support). Warranty excludes damage from improper installation, lightning strikes, or unauthorized modifications.

Technical Support: 24/7 hotline staffed by protection engineers (English/Mandarin). On-site commissioning services available—typical 2-day engagement includes CT polarity verification, protection coordination studies, and operator training. Remote diagnostics via secure TeamViewer sessions resolve 80% of issues without site visits.

Documentation Package: Includes installation manual (200+ pages), protection setting guidelines, IEC 61850 ICD files, AutoCAD panel drawings, and PCM600 configuration templates. Online knowledge base provides 500+ application notes, firmware release notes, and troubleshooting flowcharts.

Frequently Asked Questions

Q: How does the RET615 interface with existing SCADA systems using DNP3.0 protocol?
A: The relay's Ethernet port supports DNP3.0 over TCP/IP (Level 2 compliant) with configurable data mapping for analog measurements, binary status points, and control outputs. The embedded DNP3.0 server handles up to 500 data points with 1-second update rates. For legacy serial SCADA, the RS-485 port runs DNP3.0 over serial at baud rates up to 115.2kbps. Configuration is performed through PCM600 software using pre-built DNP3.0 templates—typical setup time is under 2 hours for experienced integrators.

Q: What transformer capacity range and voltage levels is the RET615 suitable for protecting?
A: The relay protects transformers from 500kVA to 500MVA across voltage classes from 10kV to 400kV. The differential algorithm auto-scales for transformer ratings—simply enter nameplate data (MVA, voltage ratios, vector group) during commissioning. For small distribution transformers (<500kVA), the relay may be over-specified; consider ABB's REF615 feeder relay instead. For extra-high voltage applications (>400kV) or transformers >500MVA, upgrade to the RET670 platform with enhanced CT input resolution.

Q: Can the relay's thermal overload protection reduce transformer energy consumption or improve efficiency?
A: While the RET615 doesn't directly improve transformer efficiency, its thermal modeling prevents chronic overloading that degrades core steel and increases no-load losses by 5-10% over time. The relay's dynamic loading feature allows temporary 120% overloads during peak demand (per IEEE C57.91 loading guide), maximizing asset utilization without sacrificing lifespan. Utilities report 8-12% reduction in emergency transformer purchases after implementing RET615 thermal management across their fleets.

Q: What are the physical installation requirements and panel space needed for mounting?
A: The standard RET615 occupies 4U rack height (177mm) × 19-inch width × 250mm depth in panel-mount configuration. Minimum clearances: 50mm top/bottom for ventilation, 100mm rear for cable access. The relay weighs 3.2kg and mounts on standard DIN rails or M6 threaded studs. For retrofit projects, verify existing panel cutouts—the relay's front bezel is 168mm × 183mm. Outdoor kiosk installations require the IP65-rated variant with conformal coating (add suffix "-C" to model code).

Q: Does the RET615 support remote monitoring and diagnostics for offshore or unmanned substations?
A: Yes—the relay's dual Ethernet ports enable redundant connections to remote SCADA/EMS systems via cellular routers or fiber networks. Built-in web server provides real-time dashboards (HTML5, no plugins required) showing protection status, event logs, and oscillography. Email/SMS alarm notifications trigger on critical events (differential trip, communication loss, self-test failures). For cybersecurity, enable HTTPS with client certificates and whitelist authorized IP addresses. Offshore operators typically configure 4G LTE backup links with VPN encryption for 99.9% uptime monitoring.

Q: How does the relay handle CT saturation during high-magnitude through-faults without false tripping?
A: The RET615 employs a patented CT saturation detection algorithm that analyzes current waveform distortion in real-time. When saturation is detected (typically during >20× rated current faults), the relay automatically extends the differential trip delay by 10-30ms and increases the restraint slope from 30% to 50%. This prevents false trips while maintaining <50ms operating time for genuine internal faults. The algorithm is self-tuning—no manual CT knee-point data entry required. For heavily saturated CTs (X/R >100), enable the "CT supervision" function to block trips when secondary current drops below 10% of expected value.

Take the Next Step in Transformer Asset Protection

Protect your critical power infrastructure with ABB's proven RET615 technology—trusted by over 10,000 utilities and industrial operators worldwide. Our protection specialists are ready to assist with relay selection, protection coordination studies, and turnkey commissioning services. Request a technical datasheet, schedule a live demo, or discuss your specific substation requirements with our engineering team.

Contact our transformer protection experts today: Email sale@ninermas.com or call +0086 187 5021 5667 for same-day technical consultation. Expedited shipping available for emergency replacements.
