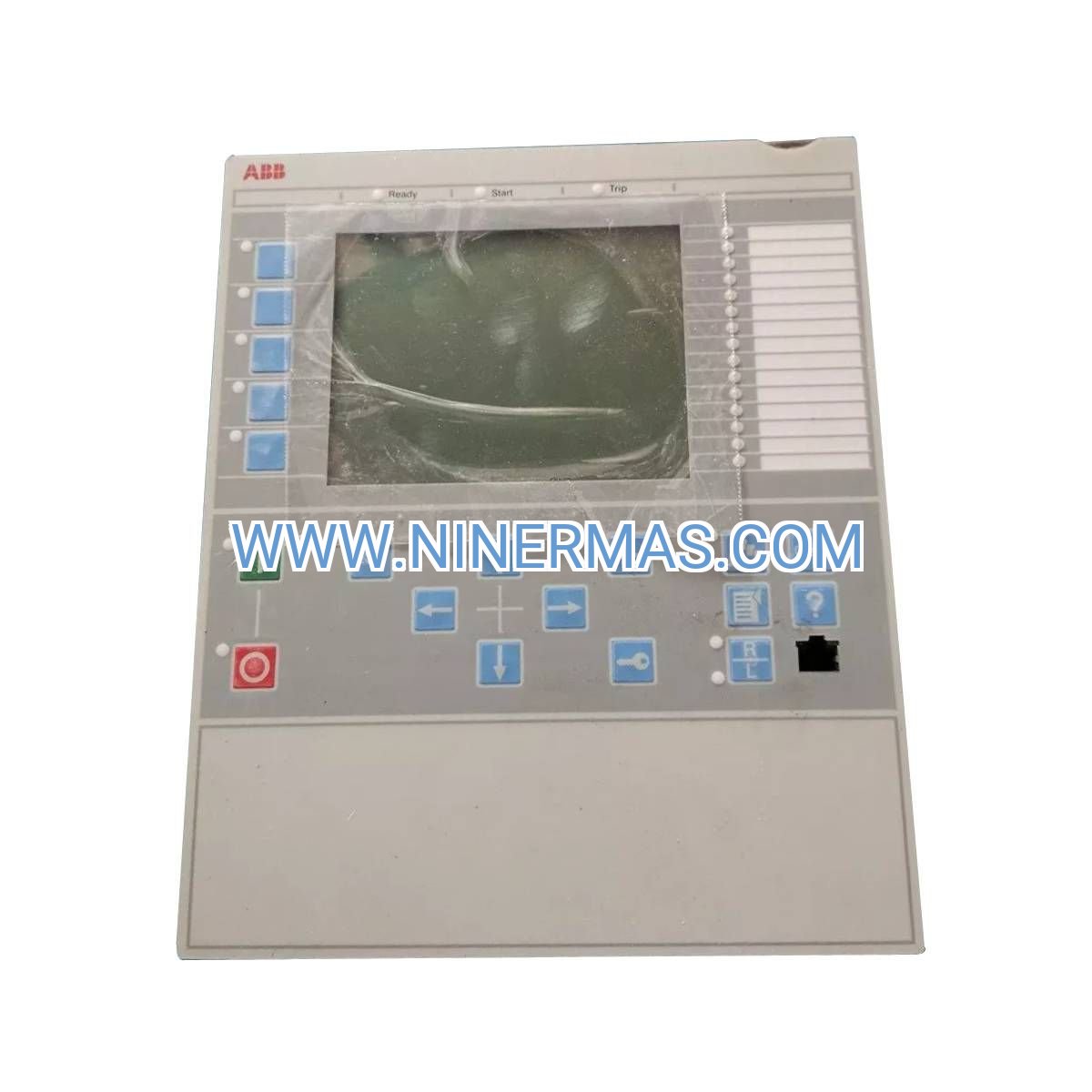

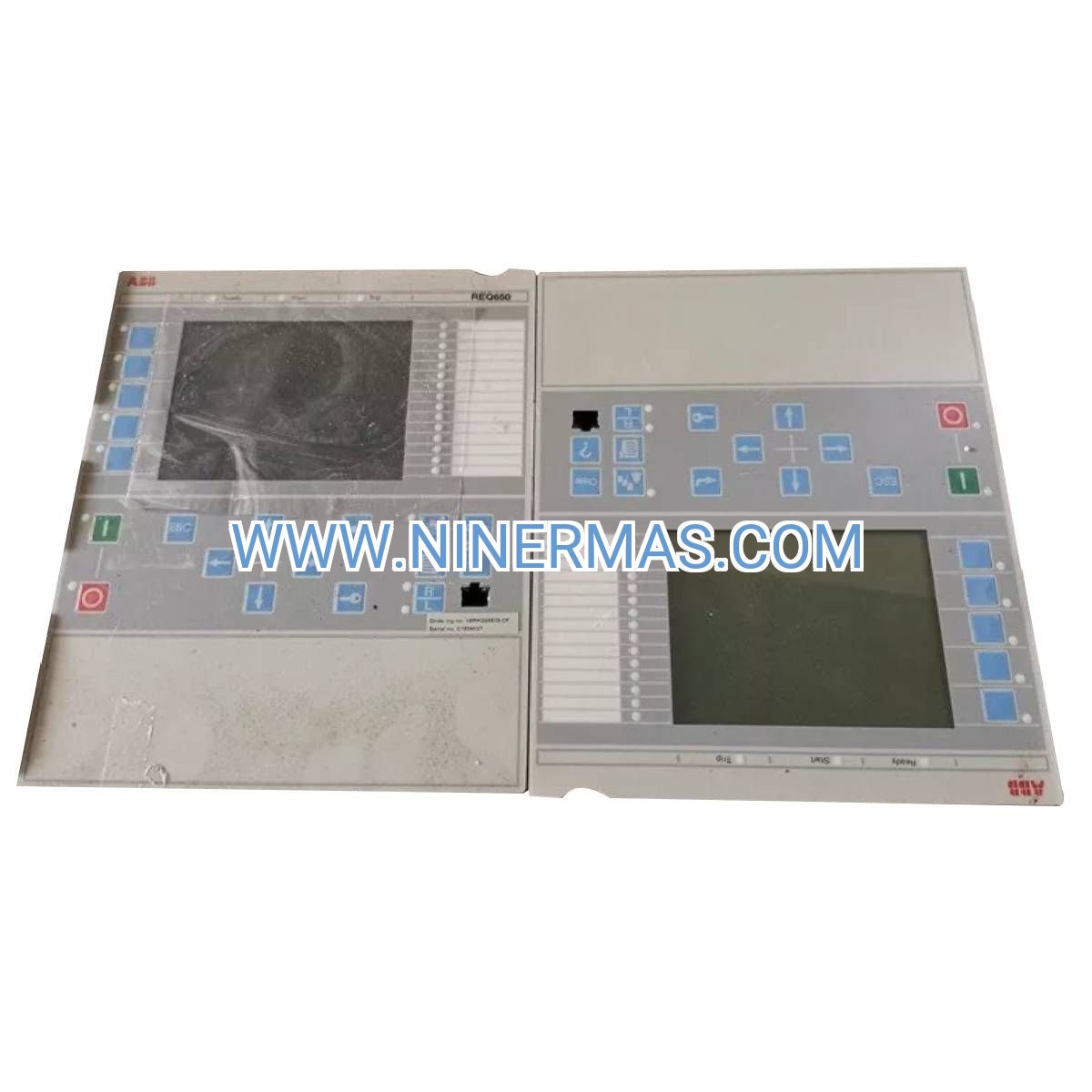

REQ650 Feeder Protection Relay (Industrial-Grade Substation Control)

The REQ650 represents ABB's next-generation approach to feeder protection, combining multi-functional relay logic with advanced communication capabilities in a single compact unit. Designed for medium-voltage distribution networks, this intelligent electronic device delivers comprehensive protection, precise metering, and seamless SCADA integration through native IEC 61850 protocol support. Whether safeguarding industrial feeders, utility distribution lines, or renewable energy collector systems, the REQ650 provides the reliability and flexibility modern substations demand.

Engineered for harsh industrial environments, this relay operates reliably across extreme temperature ranges while maintaining sub-cycle fault detection accuracy. Its modular architecture supports hot-swappable communication cards and flexible I/O expansion, enabling future-proof installations that adapt to evolving grid requirements. With built-in cybersecurity features and comprehensive event recording, the REQ650 serves as both a protective device and a critical data source for system optimization.

From manufacturing plants requiring selective coordination to utility networks demanding directional sensitivity, the REQ650 delivers proven performance backed by ABB's century of power protection expertise. Its intuitive local interface and remote configuration capabilities reduce commissioning time while extensive self-diagnostics minimize maintenance overhead throughout the device lifecycle.

Core Protection Functions & Technical Advantages

✓ Multi-Stage Overcurrent Protection (ANSI 50/51)
Independent phase and ground fault detection with definite-time and inverse-time characteristics. Configurable coordination curves ensure selective tripping while maintaining system stability during transient conditions.

✓ Directional Sensitivity (ANSI 67)
Power flow analysis enables intelligent fault discrimination in looped or multi-source networks. Prevents nuisance trips from backfeed conditions while isolating actual fault locations with 99.5% accuracy.

✓ Breaker Failure Backup (ANSI 50BF)
Monitors circuit breaker trip operations and initiates upstream isolation if primary interruption fails. Typical backup initiation within 150ms protects equipment from prolonged fault exposure.

✓ Comprehensive Earth Fault Detection (50N/51N)
Sensitive ground fault monitoring down to 5% of rated current detects high-impedance faults that conventional protection might miss. Critical for personnel safety and equipment preservation in solidly-grounded systems.

✓ Integrated Metering & Power Quality Analysis
Real-time measurement of voltage, current, power, energy, and harmonics provides operational visibility beyond basic protection. Supports predictive maintenance and load optimization strategies.

✓ IEC 61850 Edition 2 Native Communication
Seamless substation automation integration with GOOSE messaging for peer-to-peer protection schemes. Reduces hardwiring costs by up to 40% compared to conventional relay installations.

Industrial Application Scenarios

→ Manufacturing Facility Distribution
Protect motor control centers and process feeders in automotive, chemical, and food processing plants. The REQ650's selective coordination prevents production line shutdowns from isolated faults, while its arc flash detection capabilities enhance worker safety during maintenance operations.

→ Renewable Energy Collector Systems
Safeguard solar inverter circuits and wind turbine collector feeders with directional overcurrent protection optimized for bidirectional power flow. Event recording captures grid disturbances for compliance reporting and performance analysis.

→ Commercial Building Infrastructure
Monitor and protect main distribution feeders in hospitals, data centers, and high-rise buildings where reliability is non-negotiable. Remote diagnostics reduce mean-time-to-repair by enabling off-site troubleshooting before technician dispatch.

→ Utility Distribution Substations
Implement zone-selective interlocking across multiple feeders to minimize outage scope during fault conditions. SCADA integration provides real-time load visibility for demand response programs and capacity planning.

→ Mining & Heavy Industry
Withstand vibration, dust, and temperature extremes in quarries, cement plants, and steel mills. Conformal-coated circuit boards and sealed enclosures ensure reliable operation in the harshest industrial environments.

Technical Parameters & Selection Criteria

Selection Guidelines: Specify current transformer ratios based on maximum load current (typically 1.25× continuous rating). For networks with multiple sources or tie feeders, enable directional elements and verify voltage transformer connections for proper polarization. In arc flash reduction applications, coordinate with upstream devices using time-current curve analysis to achieve IEEE 1584 compliance. For IEC 61850 projects, confirm substation configuration language (SCL) file compatibility with your automation platform during specification phase.

Extended Capabilities & Integration Options

Cybersecurity Hardening: Role-based access control with up to 16 user privilege levels, encrypted communication channels (TLS 1.2), and audit logging meet NERC CIP and IEC 62351 requirements for critical infrastructure protection.

Condition Monitoring: Circuit breaker health assessment tracks operation counts, contact wear, and trip coil current to predict maintenance needs before failure. Reduces unplanned outages by identifying degraded equipment during scheduled inspections.

Synchrophasor Measurement: Optional GPS time synchronization enables phasor measurement unit (PMU) functionality for wide-area monitoring systems. Supports grid stability analysis and post-disturbance forensics.

Custom Logic Programming: Built-in function block editor allows implementation of site-specific interlocking schemes without external PLCs. Reduces system complexity and improves response times for critical control sequences.

Delivery Timeline & Service Commitment

Standard Lead Time: 4-6 weeks for catalog configurations from regional distribution centers. Expedited 2-week delivery available for critical replacements (subject to stock availability).

Custom Configurations: 8-10 weeks for factory-programmed settings, custom faceplates, or non-standard I/O arrangements. Engineering support included for protection coordination studies.

Warranty Coverage: 24-month comprehensive warranty covering materials and workmanship. Extended 5-year coverage available for installations with ABB-certified commissioning.

Technical Support: 24/7 global support hotline with regional application engineers. Remote diagnostics via secure VPN connection minimize downtime during troubleshooting.

Documentation Package: Includes installation manual, protection setting guidelines, IEC 61850 ICD files, Modbus register maps, and AutoCAD panel cutout drawings. Firmware updates and cybersecurity patches provided via ABB's online portal.

Frequently Asked Questions

Q: How does the REQ650 integrate with existing Modbus-based SCADA systems?
A: The relay includes native Modbus RTU (serial) and Modbus TCP (Ethernet) support alongside IEC 61850. You can operate both protocols simultaneously, allowing gradual migration to modern standards while maintaining legacy system connectivity. Modbus register mapping is fully documented with read/write access to all measurements and settings.

Q: What current transformer ratios are compatible with this protection relay?
A: The REQ650 accepts standard 1A or 5A secondary CTs with ratios from 50:1 up to 6000:1. Wide-range inputs accommodate thermal currents up to 4× nominal continuously and 100× for one second during fault conditions. For optimal sensitivity in low-current applications, select CT ratios that place normal load between 20-80% of relay rating.

Q: Can this relay reduce arc flash incident energy levels in my facility?
A: Yes, when configured with maintenance mode settings and coordinated with upstream devices, the REQ650 can reduce clearing times to achieve arc flash category reductions per NFPA 70E. The relay's zone-selective interlocking and light-based arc detection inputs (when paired with optical sensors) enable instantaneous tripping for verified arcing faults while maintaining selectivity for other conditions.

Q: What cybersecurity features protect against unauthorized access?
A: The relay implements multiple security layers including password-protected local access, encrypted communication protocols (TLS/SSL), role-based permissions with audit trails, and configurable lockout policies. Firmware is digitally signed to prevent unauthorized modifications. For critical infrastructure applications, the device supports network segmentation and firewall integration per IEC 62351 standards.

Q: How do I configure remote monitoring and control capabilities?
A: Remote access is established through the relay's Ethernet port using ABB's PCM600 configuration software or any IEC 61850-compliant SCADA platform. The relay supports secure VPN connections for off-site diagnostics and setting changes. Web-based HMI provides read-only monitoring without additional software installation. All remote operations are logged with timestamp and user identification for compliance auditing.

Q: What installation requirements should I plan for panel space and wiring?
A: The relay occupies a standard 1/4-19" rack space (4U height, approximately 177mm) and requires a minimum panel depth of 250mm including terminal clearance. Rear terminals accept wire sizes from 0.5mm² to 2.5mm² (AWG 20-14). For flush mounting, the panel cutout dimensions are 165mm × 165mm. Ensure adequate ventilation with 50mm clearance above and below the unit for convection cooling in ambient temperatures exceeding 50°C.

Take the Next Step Toward Reliable Feeder Protection

Ready to enhance your substation protection scheme with proven ABB technology? Our application engineers are available to discuss your specific requirements, provide protection coordination studies, and recommend optimal configurations for your electrical distribution system. Contact us today for technical specifications, pricing quotations, or to schedule a product demonstration at your facility.
