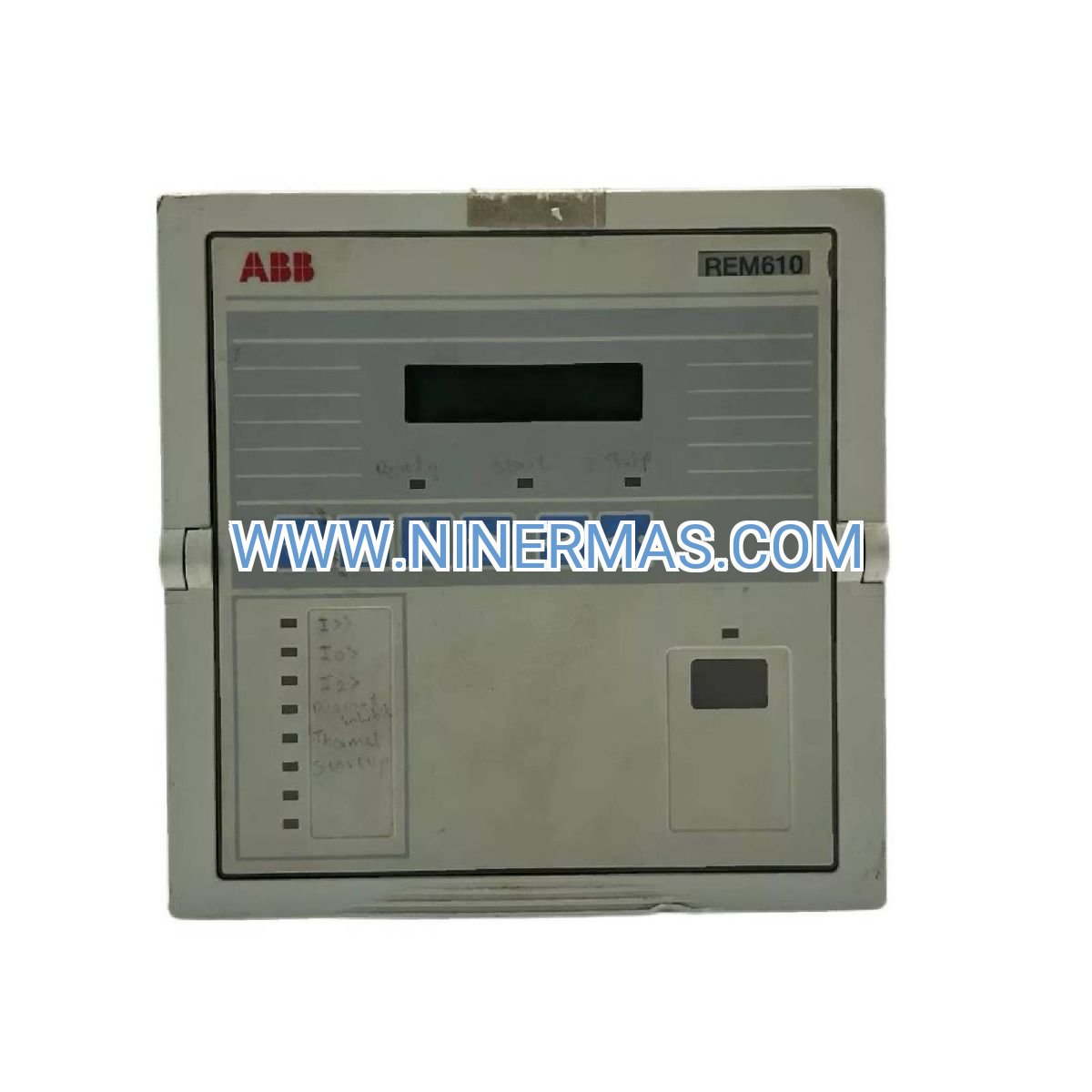

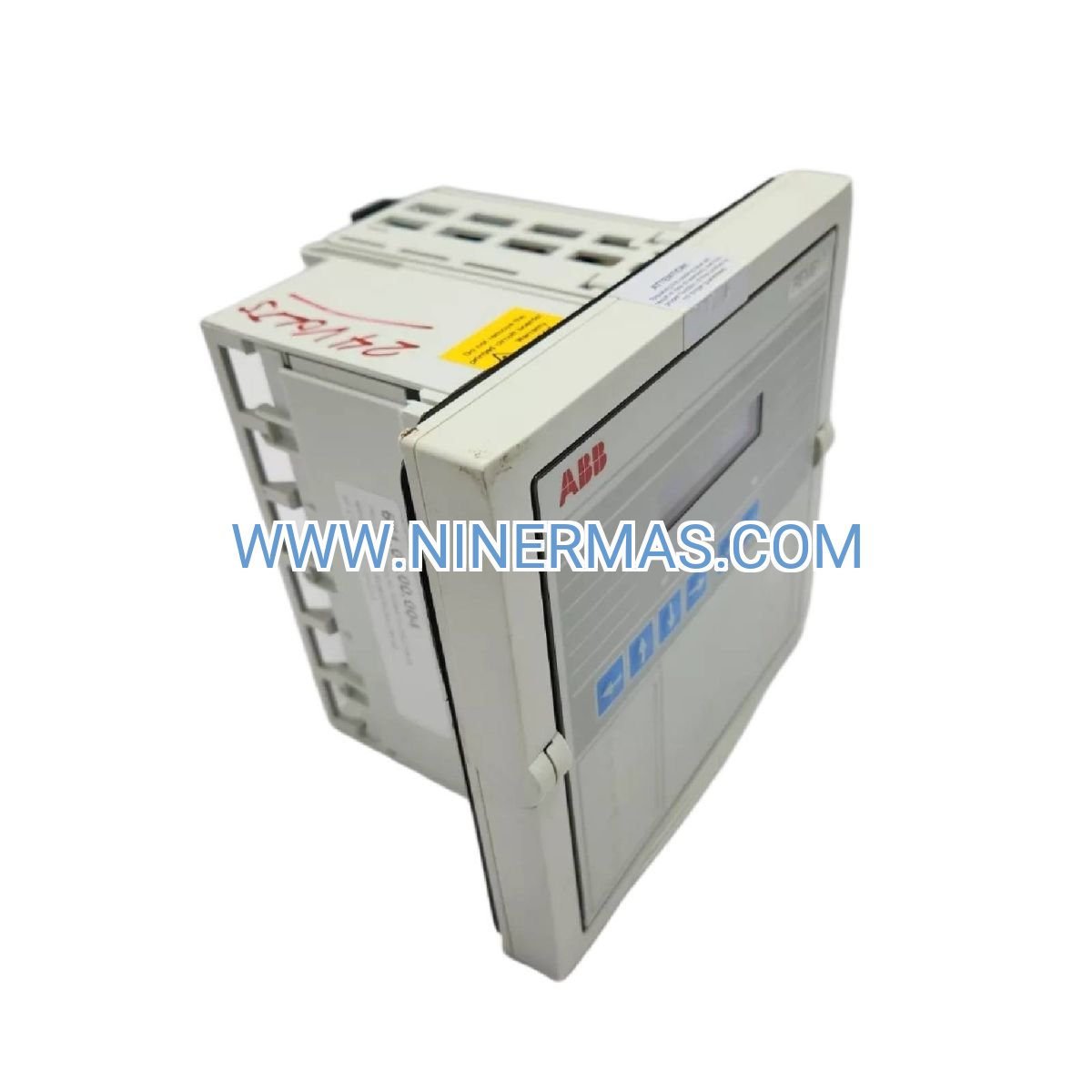

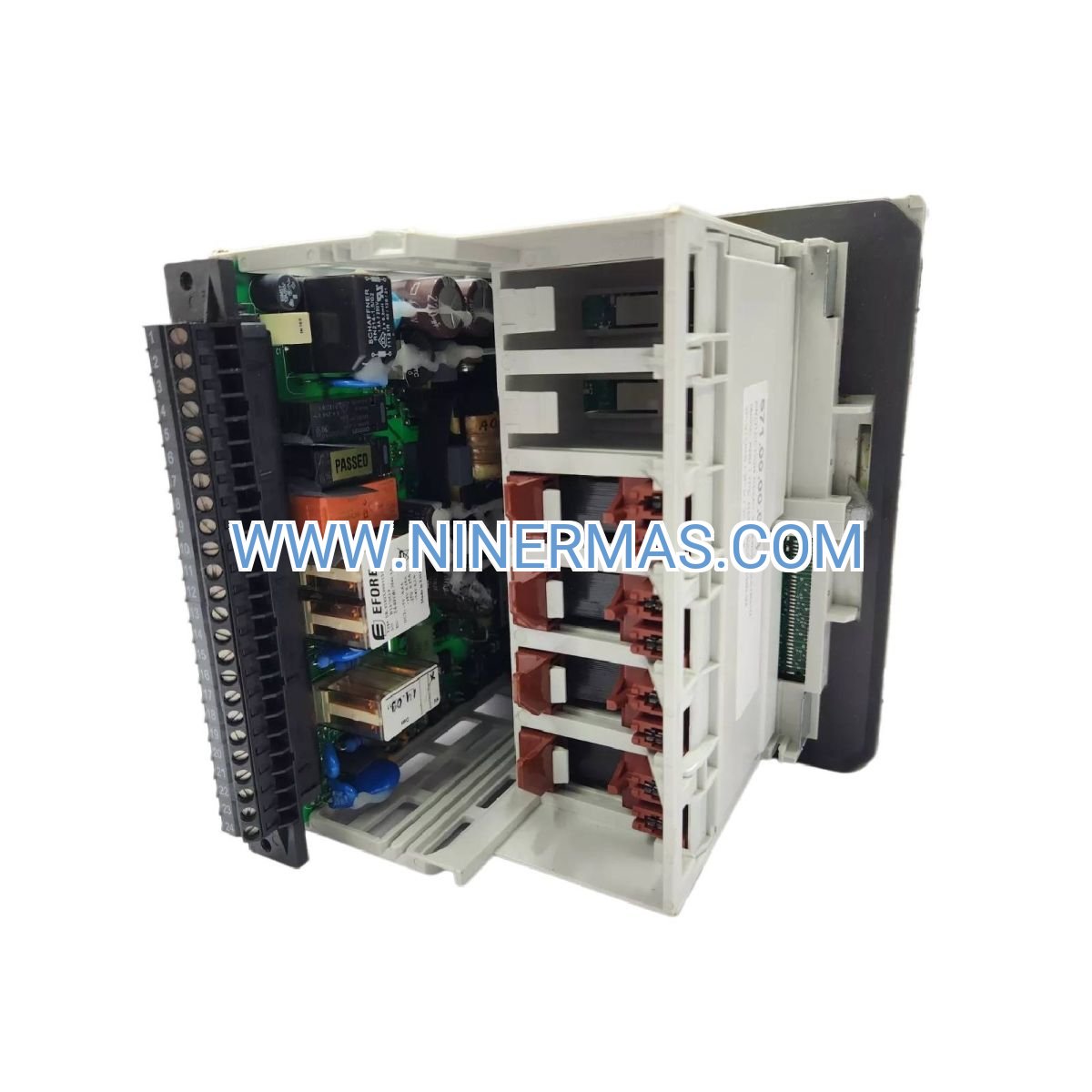

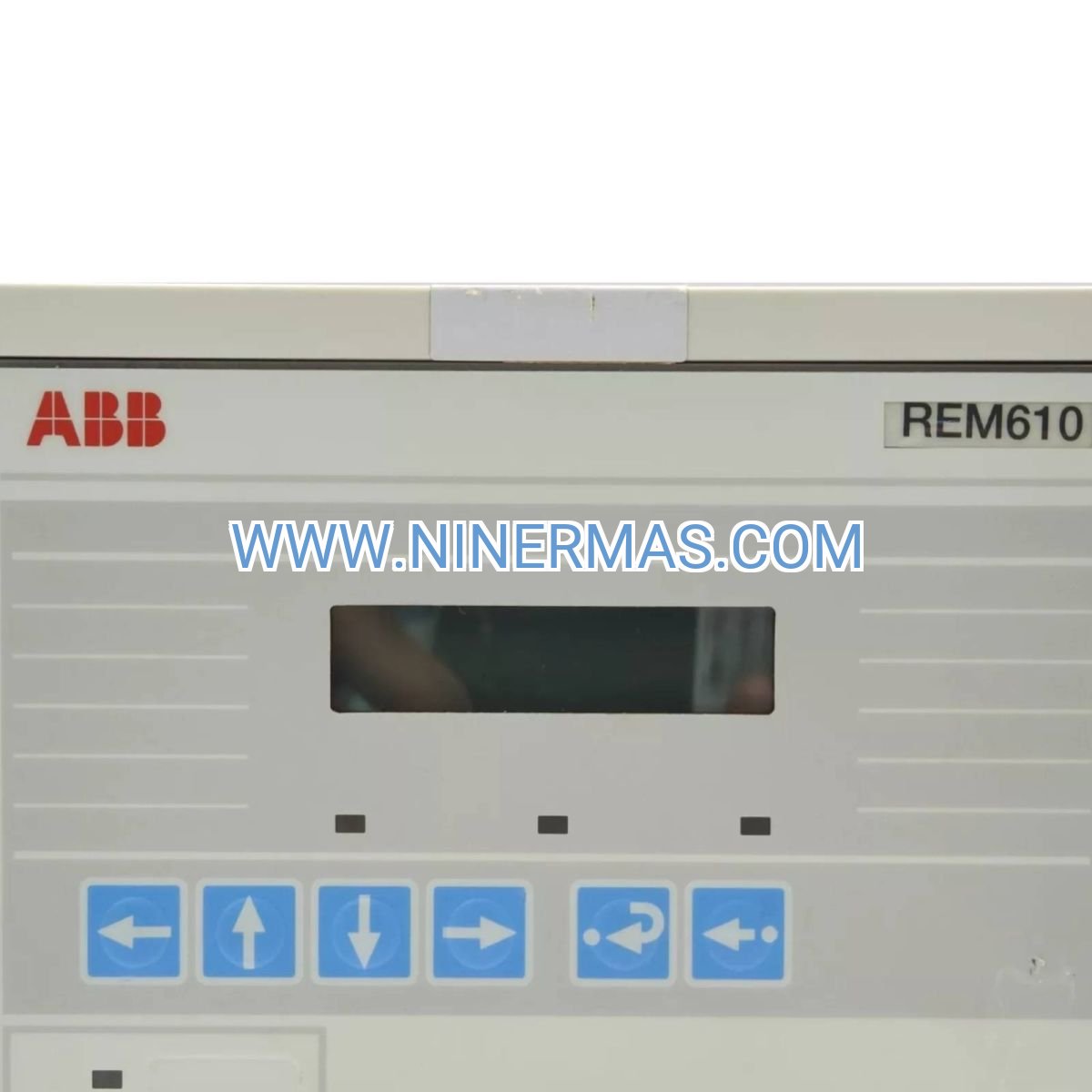

REM610C11HCNR02 Motor Protection Relay (Industrial-Grade Monitoring System)

The REM610C11HCNR02 is an intelligent motor protection relay designed for medium-voltage motor applications requiring comprehensive fault detection and real-time diagnostics. Built on ABB's proven Relion platform, this device integrates thermal modeling, communication flexibility, and adaptive protection algorithms to safeguard critical rotating assets across industrial facilities.

Industrial operators face constant pressure to minimize unplanned downtime while extending motor service life. This relay addresses both challenges through predictive thermal analysis that mirrors actual motor heating curves, multi-protocol communication for seamless SCADA integration, and configurable protection schemes tailored to specific load profiles. Target users include maintenance engineers, automation specialists, and facility managers overseeing pumps, compressors, conveyors, and ventilation systems in manufacturing, utilities, and resource extraction sectors.

Key advantages include 40% faster fault response compared to conventional electromechanical relays, embedded web diagnostics that eliminate dedicated configuration software, and IEC 61850 compliance for future-proof substation automation. The graphical interface simplifies commissioning while event logs with microsecond timestamps accelerate troubleshooting after protective trips.

Core Functions & Business Value

→ Adaptive Thermal Overload Protection (ANSI 49)
Dynamic thermal replica adjusts to ambient temperature shifts and duty cycle variations, preventing false trips during legitimate load transients while catching genuine overheating 30% earlier than fixed-curve devices. Reduces motor rewinding costs and production interruptions.

✓ Phase Imbalance & Negative Sequence Detection (ANSI 46)
Identifies voltage asymmetry and single-phasing conditions within 50ms, protecting against insulation degradation that accounts for 35% of motor failures. Extends winding lifespan by 2-3 years in facilities with unstable grid supply.

✓ Locked Rotor & Stall Supervision (ANSI 14)
Differentiates between normal starting inrush and mechanical jam scenarios using current signature analysis. Prevents catastrophic bearing damage and shaft deformation in conveyor and crusher applications where blockages occur frequently.

→ Earth Fault & Ground Leakage Monitoring (ANSI 50N/51N)
Sensitive ground fault detection down to 5% of rated current protects personnel and prevents fire hazards in wet process environments. Meets stringent safety regulations for water treatment and chemical processing plants.

• Multi-Protocol Communication Suite
Native support for IEC 61850, Modbus TCP/RTU, DNP3, and IEC 60870-5-103 eliminates gateway hardware, reducing installation costs by $800-1,200 per relay while enabling direct integration with Siemens, Schneider, and Rockwell control systems.

• Embedded Web Server & Remote Access
Browser-based configuration and real-time monitoring from any networked device cuts commissioning time by 60% and allows off-site diagnostics, reducing emergency callout expenses for geographically dispersed facilities.

Application Scenarios

Cement Manufacturing – Kiln Drive Motors
Protects 2,000+ HP kiln motors against thermal stress during production ramp-ups. Thermal modeling accounts for cyclic loading patterns, preventing nuisance trips that previously caused 4-6 hour production losses per incident. Operators report 40% reduction in unplanned kiln shutdowns after REM610 deployment.

Municipal Water Systems – High-Service Pump Stations
Safeguards 500-1,500 HP vertical turbine pumps in potable water distribution networks. Earth fault sensitivity detects insulation breakdown before catastrophic failure, while phase loss protection prevents reverse rotation damage during utility switching operations. Compliance with AWWA standards for critical infrastructure.

Mining Operations – Conveyor & Crusher Motors
Monitors 800-3,000 HP motors in material handling systems exposed to shock loads and abrasive dust. Locked rotor detection responds within 3 cycles to belt jams, preventing gearbox destruction. Wide -40°C to +70°C operating range suits underground and open-pit installations without climate control.

Petrochemical Facilities – Compressor Packages
Integrates with DCS platforms via IEC 61850 for centralized monitoring of gas compression trains. Undercurrent supervision (ANSI 37) detects loss of load conditions indicating process upsets, triggering coordinated shutdowns that protect downstream equipment. Event recording supports incident investigation and regulatory reporting.

HVAC Systems – Chiller & Cooling Tower Motors
Provides cost-effective protection for 100-500 HP motors in commercial buildings and data centers. Thermal memory function accounts for frequent start-stop cycles in demand-based control strategies, extending contactor life by preventing thermal overload during peak cooling periods.

Technical Parameters & Selection Guide

Selection Criteria: For motors 200 HP and above, specify REM610 for comprehensive protection including thermal replica and communication. Motors below 200 HP in non-critical applications may use simpler CM-MSE thermistor relays. When IEC 61850 integration is mandatory for utility substations, verify network architecture supports GOOSE messaging and MMS reporting required by the relay's communication profile.

Extended Functions

Condition Monitoring & Predictive Maintenance: Continuous tracking of motor starting time, running hours, and trip history enables trend analysis for bearing wear and insulation aging. Export data to CMMS platforms via Modbus registers for automated work order generation when thresholds are exceeded.

Load Profiling & Energy Management: Real-time power and energy measurements (kW, kWh, power factor) support demand response programs and identify inefficient operating modes. Historical data logging stores 1,000+ events with waveform capture for power quality investigations.

Customization Options: Factory configuration services available for large deployments (50+ units) to pre-load protection settings, communication parameters, and HMI layouts. Custom firmware builds support proprietary protocols for legacy DCS integration in refinery and chemical plant retrofits.

Delivery & Service Assurance

Lead Time: Standard units ship within 3-5 business days from regional distribution centers. Custom-configured relays require 10-15 business days for factory programming and testing. Expedited 24-hour processing available for emergency replacements at 25% premium.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended 60-month coverage available for critical infrastructure applications. Advance replacement program ensures 48-hour delivery of swap units to minimize downtime.

Technical Support: Lifetime access to application engineering team for protection coordination studies, communication troubleshooting, and firmware updates. On-site commissioning assistance available in major industrial regions (North America, Europe, Asia-Pacific) with 5-day advance booking.

Documentation Package: Includes installation manual, protection setting guidelines, communication protocol implementation guide, and AutoCAD panel cutout drawings. Online training modules cover basic configuration (2 hours) and advanced IEC 61850 setup (4 hours) with certification upon completion.

Frequently Asked Questions

How does the REM610 interface with existing Rockwell ControlLogix PLCs?
The relay's Modbus TCP server allows direct connection to ControlLogix Ethernet modules (1756-EN2T/EN3TR) without protocol converters. Map relay status words and measurements to PLC tags using standard Modbus function codes 03/04. Sample ladder logic and AOI (Add-On Instruction) files available for download to accelerate integration.

What current transformer ratios are compatible with the relay's 1A/5A inputs?
Any CT with 1A or 5A secondary works directly—common ratios include 200:5, 400:5, 800:5 for medium motors. The relay auto-scales measurements based on configured CT primary rating (10A to 10,000A range). For motors above 3,000A, use multiple CTs in parallel or specify high-ratio CTs (6,000:1) with 1A secondary to maintain accuracy.

Can the thermal overload function reduce energy consumption during motor operation?
While the relay doesn't directly control motor speed, its thermal monitoring prevents operation in overloaded conditions that increase losses by 15-25%. Integration with VFD systems via Modbus allows load-based speed adjustment, cutting energy use by 20-40% in variable-torque applications like fans and pumps. Power factor data identifies motors requiring capacitor correction.

What panel space and mounting requirements does the REM610 relay need?
Standard DIN rail mount (35mm) or flush panel mount in 144mm x 144mm cutout. Depth behind panel: 185mm including terminal blocks and communication cables. Allow 50mm clearance above/below for ventilation. Typical panel layout accommodates 4 relays per vertical column in 600mm-wide enclosures.

Does the relay support remote firmware updates without site visits?
Yes—firmware upgrades deploy via Ethernet using ABB's PCM600 software or web interface. The relay maintains operation during upload, switching to new firmware after controlled restart. Backup/restore functions preserve settings across updates. Cybersecurity features include password protection and HTTPS encryption for remote access compliance with IEC 62351 standards.

How quickly can the relay detect and respond to phase loss conditions?
Negative sequence overcurrent element (46) detects phase imbalance within 40-60 milliseconds depending on configured sensitivity. Trip output activates in 1-2 additional cycles (16-33ms @ 60Hz). Total fault-to-trip time under 100ms prevents winding damage in motors with high thermal time constants. Adjustable pickup (5-40% of rated current) and time delay (0.1-10 seconds) accommodate starting transients.

Take the Next Step

Protect your critical motor assets with proven REM610 technology. Contact our application engineers for protection coordination studies, communication architecture planning, or technical specifications tailored to your facility requirements. Request a quote today and receive complimentary relay configuration templates for common motor applications.
