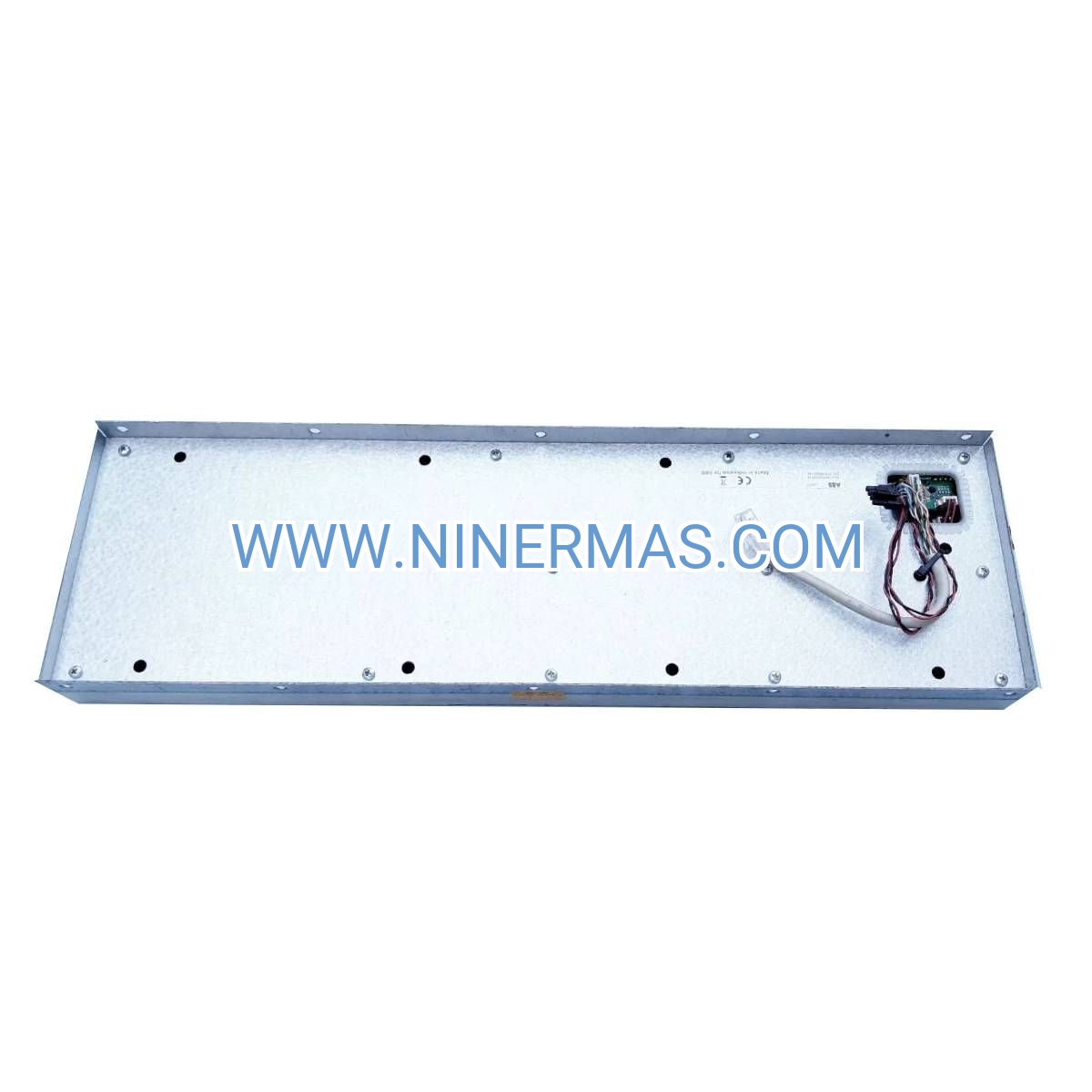

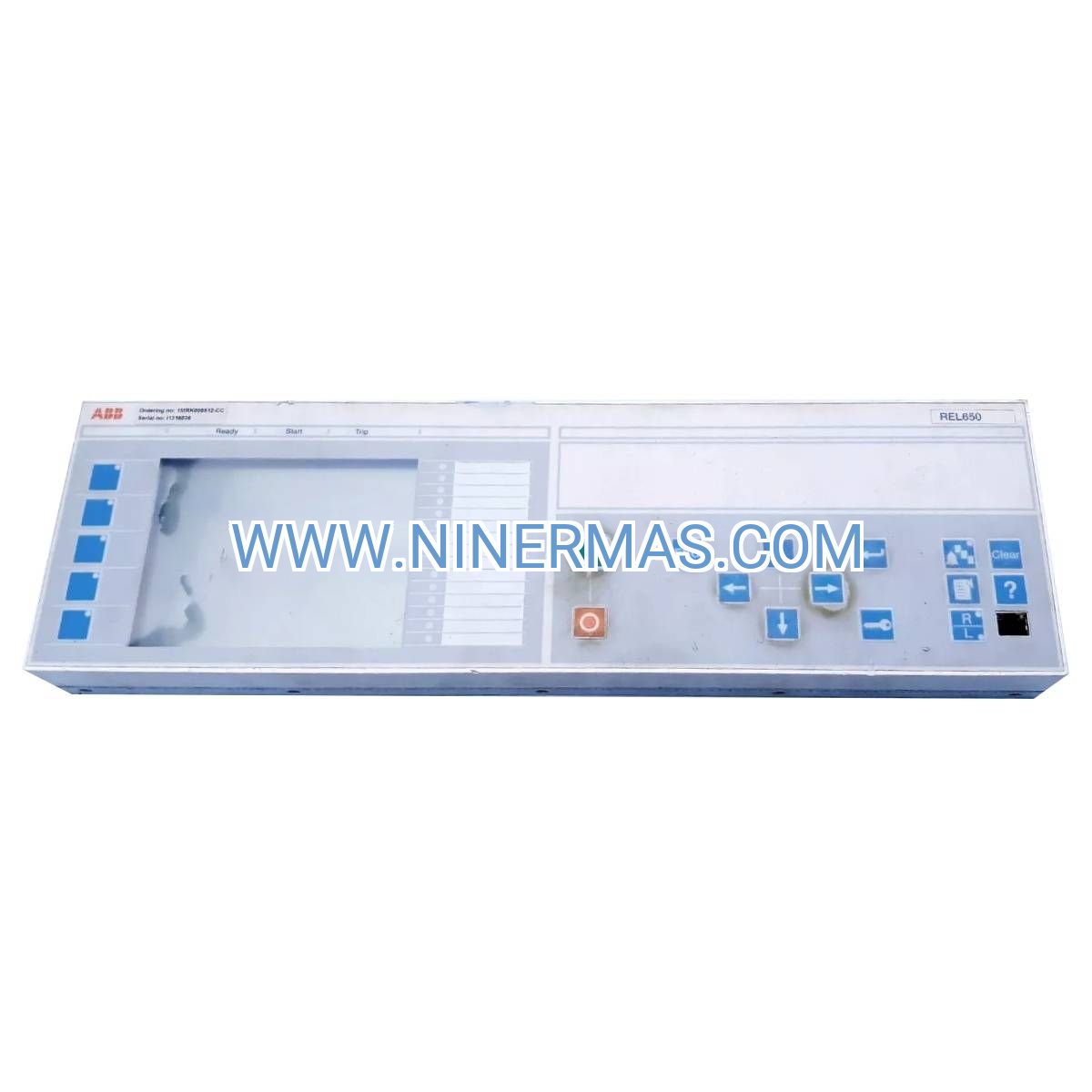

REL650 HMI Display Panel (Industrial-Grade Protection Relay Interface)

The REL650 HMI Display Panel represents ABB's commitment to operator-centric design in critical power protection infrastructure. This advanced human-machine interface transforms the Relion 650 series protection relays into fully accessible control points, enabling technicians to configure parameters, diagnose faults, and monitor system health without external tools or software dependencies.

Built for utility substations, industrial power distribution centers, and renewable energy facilities, the REL650 panel addresses the operational challenge of relay accessibility in remote or hazardous locations. Its ruggedized construction and intuitive navigation reduce commissioning time by up to 40% compared to PC-based configuration methods, while providing permanent on-site access for maintenance teams.

With multi-language support and password-protected security layers, this display panel serves as the primary interface for protection engineers managing REL650, RET650, and REF650 relay platforms across diverse geographical deployments.

Core Features & Business Value

→ High-Contrast Graphical LCD Display
Backlit screen with adjustable brightness ensures readability in direct sunlight or low-light control rooms, reducing operator errors during critical switching operations.

→ Membrane Keypad with Tactile Response
Sealed keypad design withstands dust, moisture, and chemical exposure common in industrial environments, maintaining functionality across 100,000+ actuation cycles.

→ Real-Time Event & Fault Record Access
Instant visualization of protection events eliminates the need for laptop connections during emergency troubleshooting, cutting diagnostic time from hours to minutes.

→ Multi-Level Password Security
Three-tier access control (view/operate/configure) prevents unauthorized setpoint changes while allowing controlled access for different personnel roles.

→ Extended Temperature Range (-25°C to +70°C)
Operates reliably in unheated outdoor enclosures and high-temperature industrial zones without performance degradation or display failure.

✓ Plug-and-Play Internal Bus Communication
Direct connection to relay backplane eliminates external wiring, reducing installation labor costs by 60% compared to legacy display systems.

Typical Application Scenarios

Utility Substation Commissioning
Protection engineers use the REL650 panel to perform on-site relay testing and parameter validation during new substation energization. The local interface eliminates dependency on network connectivity, accelerating commissioning schedules in remote locations where IT infrastructure may be incomplete.

Manufacturing Plant Maintenance Diagnostics
Plant electricians access fault records and relay status directly at motor control centers or switchgear lineups. This immediate diagnostic capability reduces unplanned downtime by enabling faster root-cause analysis without waiting for specialized engineering support.

Renewable Energy Farm Operations
Wind and solar farm operators monitor protection relay health across distributed generation sites. The panel's rugged design withstands temperature extremes and vibration in outdoor enclosures, providing reliable access in harsh environmental conditions.

Industrial Process Control Integration
Chemical plants and refineries integrate the REL650 display into DCS operator stations for centralized protection system oversight. Multi-language support accommodates multinational operations with diverse workforce requirements.

Emergency Response & System Restoration
Utility crews use the panel for rapid fault isolation during storm recovery operations. Password-protected emergency override functions enable controlled system restoration while maintaining audit trail compliance.

Technical Parameters & Selection Guide

Selection Recommendations: Choose the REL650 display panel when local relay access is required for commissioning, maintenance, or operational monitoring. For applications requiring only remote access via SCADA or engineering workstations, the display panel may be optional. Consider ordering as part of initial relay procurement to avoid retrofit installation costs.

Extended Functions & Integration Capabilities

Advanced Diagnostics: The panel provides access to relay self-test results, communication status, and analog input monitoring for comprehensive system health assessment.

Configuration Backup: Export relay settings to external devices via the display interface, enabling rapid configuration replication across multiple relay installations.

Event Timestamp Synchronization: Verify time synchronization status and adjust relay clock settings directly from the panel, ensuring accurate sequence-of-events recording.

Custom Display Screens: Configure user-defined display pages showing critical parameters specific to your application, reducing navigation time during routine checks.

Firmware Update Support: Initiate relay firmware updates through the display panel when combined with USB or Ethernet connectivity options.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom configurations or bulk orders may require 2-3 weeks for factory preparation.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options available for critical infrastructure applications.

Technical Support: Access to ABB-certified application engineers for installation guidance, configuration assistance, and troubleshooting support via phone and email.

Documentation Package: Includes installation manual, user guide, quick reference card, and compatibility matrix. CAD drawings and 3D models available for panel design integration.

Training Resources: Online video tutorials and webinar access for relay configuration and display panel operation best practices.

Frequently Asked Questions

Q: How does the REL650 display panel connect to the protection relay?
A: The panel connects via ABB's internal bus architecture through the relay's front panel connector. No external cables or communication modules are required—simply mount the display and secure the internal connector for immediate operation.

Q: What is the maximum cable distance for remote display mounting?
A: The REL650 is designed for direct front-panel mounting only. For remote display requirements, consider ABB's Ethernet-based HMI solutions or SCADA integration options that support extended communication distances.

Q: Can the display panel reduce energy consumption in substation control buildings?
A: While the panel itself consumes minimal power (typically <5W), its primary energy benefit comes from eliminating the need for continuously powered engineering laptops or dedicated HMI terminals at each relay location.

Q: What are the physical installation requirements for panel cutout dimensions?
A: The REL650 requires a standard DIN cutout matching the Relion 650 series relay dimensions. Exact specifications are provided in the installation manual, but it follows industry-standard panel mounting practices compatible with most switchgear manufacturers.

Q: Does the display support remote monitoring and control via network protocols?
A: The display panel provides local interface only. For remote monitoring, the REL650 relay itself supports IEC 61850, Modbus, and DNP3 protocols through separate communication modules. The display and network access operate independently.

Q: How do I configure multi-language settings for international facility operations?
A: Language selection is accessible through the display's system settings menu. Authorized users can switch between supported languages without requiring relay firmware changes or external configuration tools.

Get Your REL650 Display Panel Today

Enhance your protection relay infrastructure with professional-grade local control. Contact our technical sales team for compatibility verification, volume pricing, or integration support for your specific application.

Request a quote: Provide your relay model numbers and quantity requirements for customized pricing and delivery scheduling.
