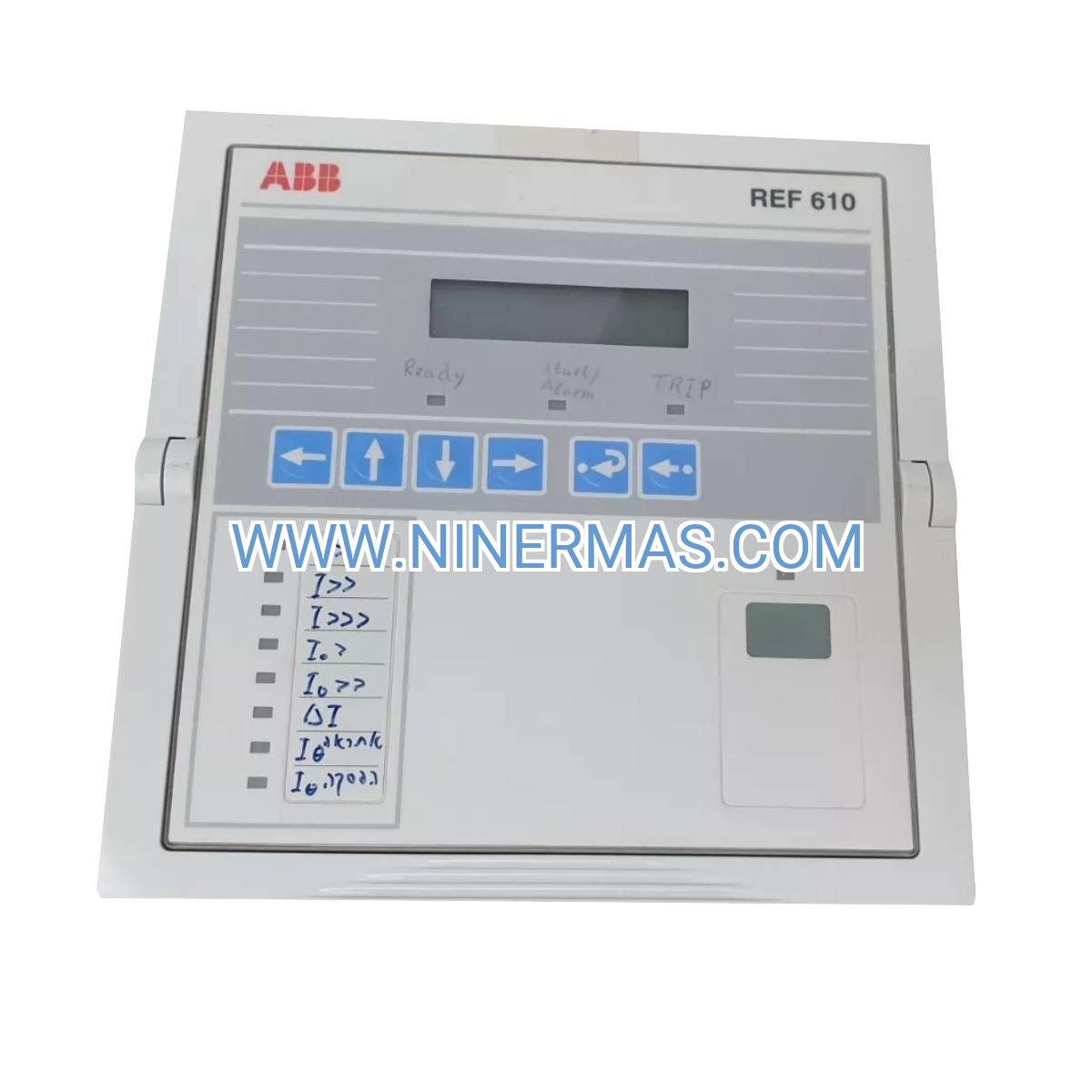

REF610C55HCNR Medium Voltage Feeder Protection Relay (Industrial-Grade Intelligence)

The REF610C55HCNR represents ABB's proven approach to medium-voltage feeder protection, combining ANSI-compliant protection functions with modern substation automation protocols. This relay serves as the primary defense layer for distribution feeders operating up to 36 kV, integrating overcurrent, earth-fault, directional, and thermal protection in a compact, field-proven platform.

Designed for utilities, industrial plants, and infrastructure operators managing critical distribution networks, the REF610C55HCNR addresses the challenge of coordinating multiple protection zones while maintaining selectivity and speed. Its IEC 61850 native architecture eliminates proprietary protocol barriers, enabling horizontal peer-to-peer communication and vertical SCADA integration without middleware complexity.

Whether you're upgrading legacy electromechanical relays, standardizing protection across multiple substations, or building greenfield renewable interconnections, this relay delivers the reliability, configurability, and diagnostic depth required for mission-critical feeder protection with minimal engineering overhead.

Core Protection Functions & Operational Advantages

→ Multi-Element Protection Suite: Combines ANSI 50/51 phase overcurrent, 50N/51N earth-fault, 67 directional overcurrent, and 49 thermal overload in one device—reducing panel footprint by 60% compared to discrete relay installations while improving coordination accuracy through unified time-current curve management.

✓ IEC 61850 Native Communication: Eliminates protocol converters with built-in GOOSE messaging for interlocking, MMS for SCADA reporting, and SCL file import/export—cutting commissioning time by 40% and enabling real-time horizontal communication between bay devices for advanced protection schemes.

→ Programmable Logic Engine: Executes custom protection logic, automatic transfer schemes, and load-shedding sequences without external PLCs—providing 128 configurable logic gates and 32 virtual inputs/outputs for application-specific automation that adapts to evolving operational requirements.

✓ Integrated Disturbance Recorder: Captures 15-cycle pre-fault and 45-cycle post-fault waveforms at 4 kHz sampling rate with synchronized event sequencing—delivering forensic-quality data for root cause analysis, protection performance validation, and system optimization without standalone fault recorders.

→ Harsh Environment Resilience: Operates reliably from -40°C to +70°C with conformal-coated PCBs and sealed front panel—proven in desert solar farms, arctic mining operations, and coastal substations where temperature extremes and humidity challenge conventional electronics.

✓ Local & Remote Configuration: Supports front-panel HMI programming, USB laptop connection, and network-based remote access—enabling protection engineers to modify settings, retrieve fault records, and perform diagnostics without site visits, reducing maintenance costs by 35%.

Industry-Specific Application Scenarios

Utility Distribution Substations: Primary substations feeding residential and commercial loads deploy the REF610C55HCNR to isolate faulted feeders within 100ms while maintaining service continuity on healthy circuits. The relay's directional overcurrent function distinguishes upstream faults from downstream events, preventing unnecessary breaker operations that impact thousands of customers. Utilities report 25% reduction in customer-minutes-interrupted after replacing electromechanical relays with REF610 installations.

Industrial Manufacturing Facilities: Automotive plants, semiconductor fabs, and food processing operations use this relay to protect critical production feeders where unplanned outages cost $50,000-$500,000 per hour. The thermal overload protection prevents motor and transformer damage from sustained overloads, while the disturbance recorder provides evidence for insurance claims and equipment warranty disputes. Maintenance teams leverage remote diagnostics to troubleshoot protection issues during production shifts without entering energized switchgear.

Renewable Energy Interconnections: Solar farms and wind installations connecting to utility grids face bidirectional power flow and fault contribution challenges that legacy relays cannot handle. The REF610C55HCNR's directional elements correctly identify fault direction regardless of generation status, while its IEC 61850 integration enables coordinated tripping with inverter controls. One 50 MW solar developer standardized on REF610 relays across 12 sites, reducing spare parts inventory by 70% and simplifying technician training.

Mining & Heavy Industry: Open-pit mines and steel mills operating in extreme environments (-30°C winters, dusty conditions) rely on the REF610C55HCNR's ruggedized construction and extended temperature rating. The relay protects feeders supplying draglines, crushers, and arc furnaces where fault currents exceed 40 kA and coordination with upstream protection requires precise time-current curve shaping. Operators value the relay's ability to distinguish between motor starting inrush and genuine fault conditions, eliminating nuisance trips that halt production.

Data Center & Mission-Critical Infrastructure: Tier III/IV data centers and hospitals deploy REF610 relays on generator feeders and utility tie breakers where protection failure could trigger catastrophic outages. The relay's self-monitoring diagnostics detect internal failures before they compromise protection, while dual communication ports provide redundant paths for alarm reporting. Facility managers use the relay's load profiling features to optimize generator sizing and identify opportunities for demand response participation.

Technical Parameters & Selection Criteria

Selection Guidance: Choose the REF610C55HCNR when you need comprehensive feeder protection with IEC 61850 integration for systems up to 36 kV. For applications requiring arc flash protection or breaker failure backup, consider the REF630 model. If your feeders operate below 15 kV and budget is constrained, the REF615 provides core protection at lower cost. Verify CT ratios, voltage inputs, and I/O requirements match your switchgear configuration before ordering—ABB offers multiple hardware variants within the REF610 family.

Advanced Integration & Customization Options

The REF610C55HCNR extends beyond basic protection through optional modules and software features. Add the GPS time synchronization module for sequence-of-events recording with 1ms accuracy across multiple substations—critical for analyzing cascading outages and validating protection coordination. The relay's web server interface enables browser-based monitoring without proprietary software, while the PCM600 configuration tool provides offline simulation and batch programming for multi-site deployments.

For renewable integration, enable the synchrocheck function (ANSI 25) to supervise breaker closing during islanded-to-grid transitions, preventing equipment damage from out-of-phase connections. The relay's four-quadrant metering tracks real/reactive power flow in both directions, supporting revenue metering verification and power quality analysis. Custom logic can implement automatic load transfer, generator synchronization, or demand-response curtailment without external controllers.

Cybersecurity features include role-based access control, encrypted communication (TLS 1.2), and audit logging compliant with NERC CIP requirements—essential for utilities subject to regulatory oversight. The relay supports remote firmware updates via IEC 61850, enabling security patches and feature enhancements without site visits or service interruptions.

Delivery Timeline & Service Commitments

Standard Lead Time: 4-6 weeks for factory-fresh units with full manufacturer warranty and certification documentation. Expedited 10-day delivery available for urgent projects at 15% premium—ideal for emergency replacements or fast-track construction schedules.

Warranty Coverage: 24-month comprehensive warranty covering materials, workmanship, and firmware defects. Extended 60-month warranty available for critical applications. Warranty includes advance replacement for failed units to minimize downtime—no depot repair delays.

Technical Support: Pre-sales application engineering assistance for protection coordination studies, CT sizing, and IEC 61850 network design. Post-sales support includes commissioning guidance, remote diagnostics, and firmware update planning. Access to ABB's global support network with 24/7 emergency hotline for critical infrastructure operators.

Documentation Package: Each relay ships with installation manual, protection function guide, IEC 61850 SCL files, Modbus register map, and factory test certificates. PCM600 configuration software license included—no recurring subscription fees. CAD drawings and 3D STEP models available for panel design integration.

Frequently Asked Questions

Q: How does the REF610C55HCNR interface with existing SCADA systems not supporting IEC 61850?
A: The relay includes Modbus RTU/TCP and DNP3 protocols as standard, enabling integration with legacy SCADA platforms. You can operate IEC 61850 for peer-to-peer device communication while using Modbus for SCADA reporting—both protocols run concurrently. For pure IEC 61850 SCADA migration, the relay's MMS server provides full data access without protocol gateways.

Q: What current transformer ratios and accuracy classes are compatible with this protection relay?
A: The relay accepts 1A or 5A secondary CTs with ratios from 10:1 to 10,000:1. For protection accuracy, use Class C100 or better CTs with knee-point voltage exceeding relay burden at maximum fault current. For metering functions, 0.2 or 0.5 class CTs are recommended. The relay's wide dynamic range handles transient currents up to 100x nominal without saturation.

Q: Can this relay achieve energy savings through load management or power factor correction?
A: While primarily a protection device, the REF610C55HCNR's metering and logic capabilities enable indirect energy savings. Use the power factor measurement to trigger capacitor bank switching, reducing reactive power charges by 10-15%. The load profiling feature identifies off-peak periods for demand response participation, potentially cutting demand charges by 20%. Thermal overload protection prevents motor efficiency degradation from sustained overloads.

Q: What are the physical installation requirements and panel space needed?
A: The relay mounts in standard 19-inch racks or vertical panels using the included bracket kit. Panel cutout is 138mm x 138mm (quarter-rack size). Minimum clearances: 50mm top/bottom for ventilation, 100mm rear for cable bending radius. The relay weighs 1.8 kg and operates on DIN rail or surface mounting. Typical installation time is 2-3 hours including wiring and initial configuration.

Q: Does the REF610C55HCNR support remote monitoring and diagnostics for offshore or unmanned sites?
A: Yes, the relay's dual Ethernet ports enable secure remote access via VPN or cellular routers. The web server interface provides real-time metering, event logs, and waveform retrieval without site visits. Email and SNMP trap notifications alert operators to faults, alarms, or self-test failures. Remote firmware updates and setting changes require authentication and create audit trail entries for compliance documentation.

Q: How does this relay handle high-resistance ground faults that traditional overcurrent protection might miss?
A: The sensitive earth-fault protection (50N/51N) detects ground currents as low as 5% of rated current, catching high-impedance faults that phase overcurrent elements cannot see. For systems with ungrounded or high-resistance grounded neutrals, the relay's voltage-based ground detection (59N, 64) identifies faults through zero-sequence voltage measurement. Directional earth-fault (67N) prevents false trips from capacitive charging currents in cable systems.

Secure Your Feeder Protection Upgrade Today

Ready to modernize your medium-voltage protection with proven ABB technology? Contact our application engineers for protection coordination studies, CT sizing verification, and IEC 61850 network design assistance. We maintain stock inventory for 4-6 week delivery and offer expedited shipping for critical projects.

Request a technical consultation: Share your single-line diagram and protection requirements for customized relay configuration recommendations. Our team provides pre-configured settings files to accelerate commissioning and reduce on-site engineering time by 50%.

Volume pricing available: Multi-unit orders for substation standardization projects qualify for tiered discounts and dedicated project management support. We coordinate factory acceptance testing, staged deliveries, and commissioning resources to match your construction schedule.
