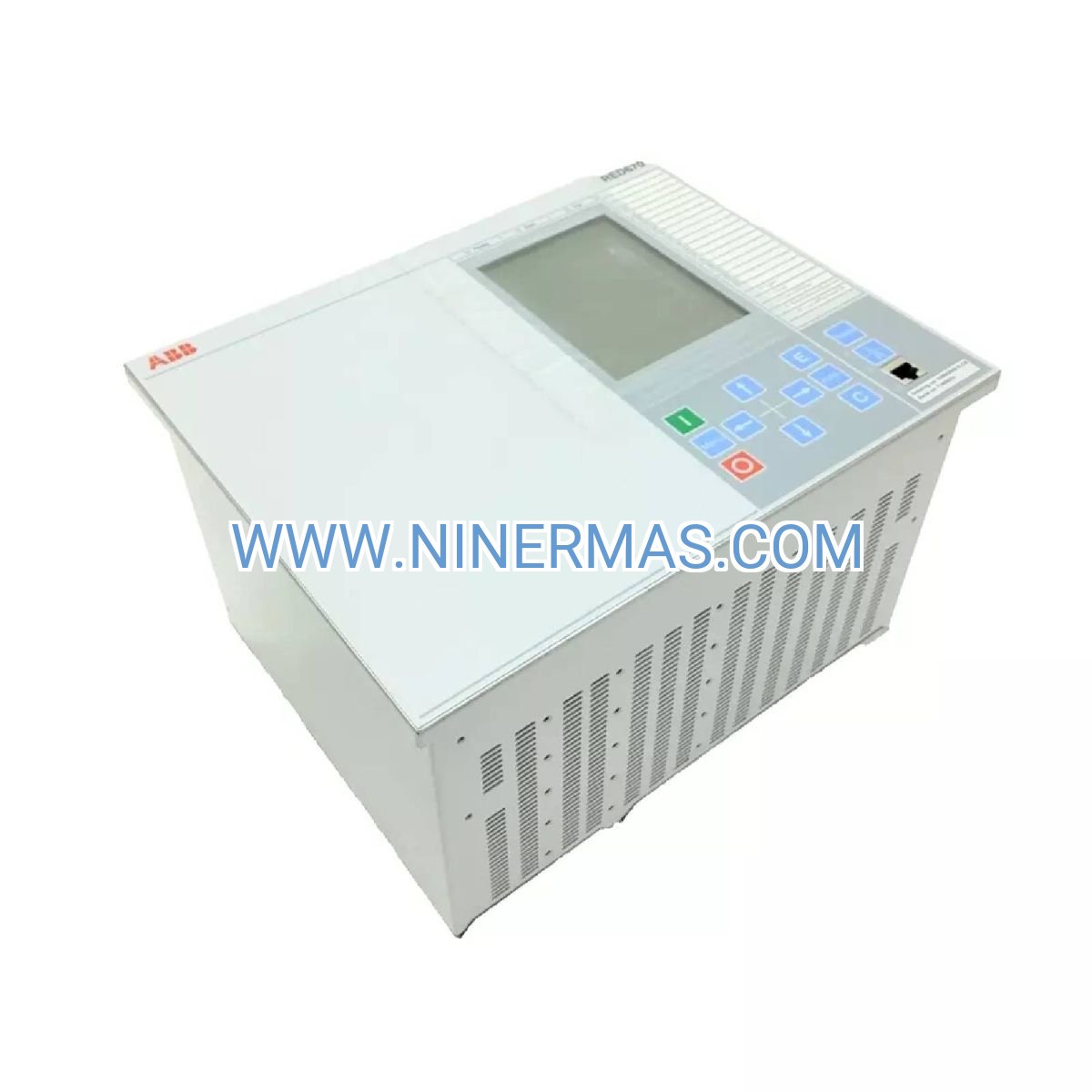

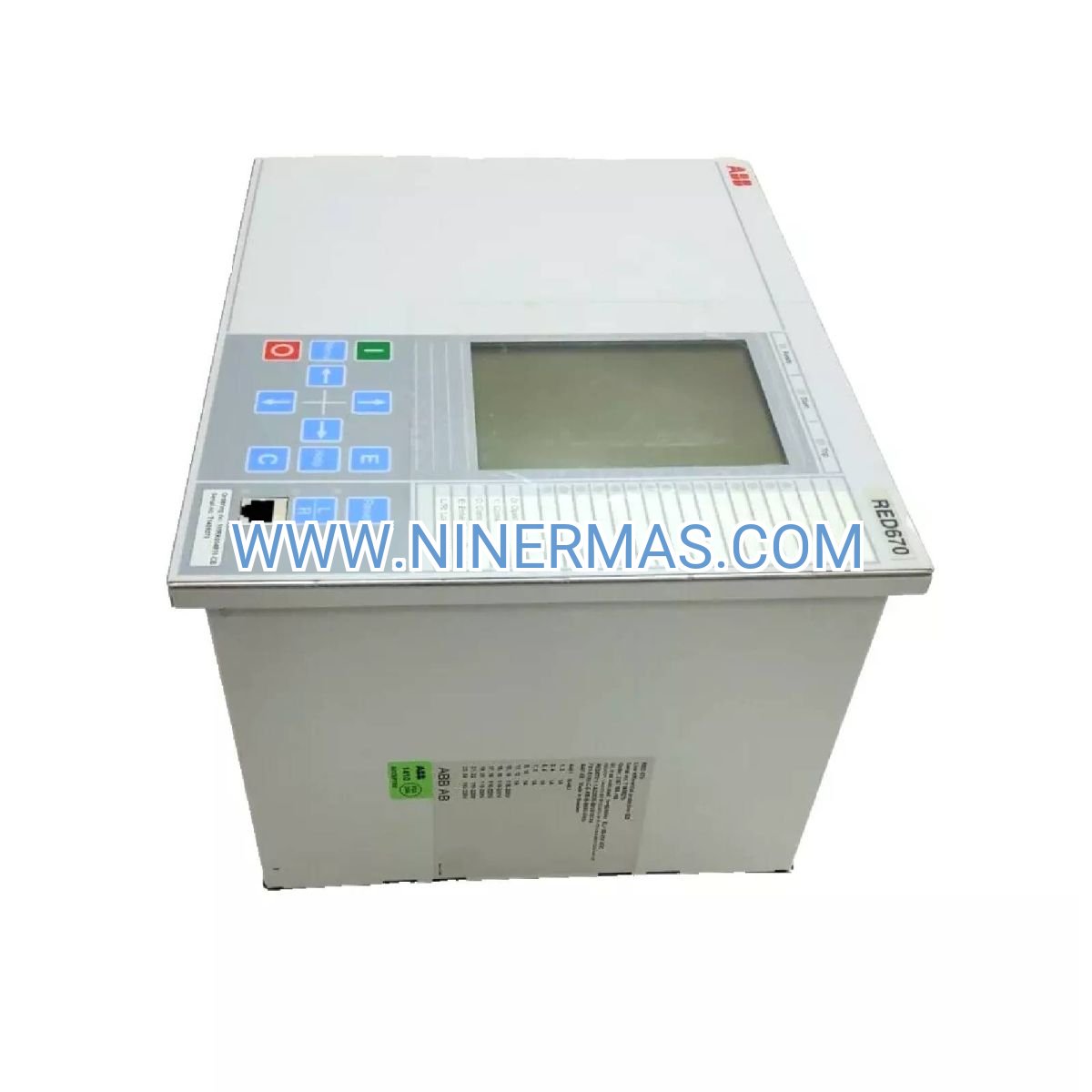

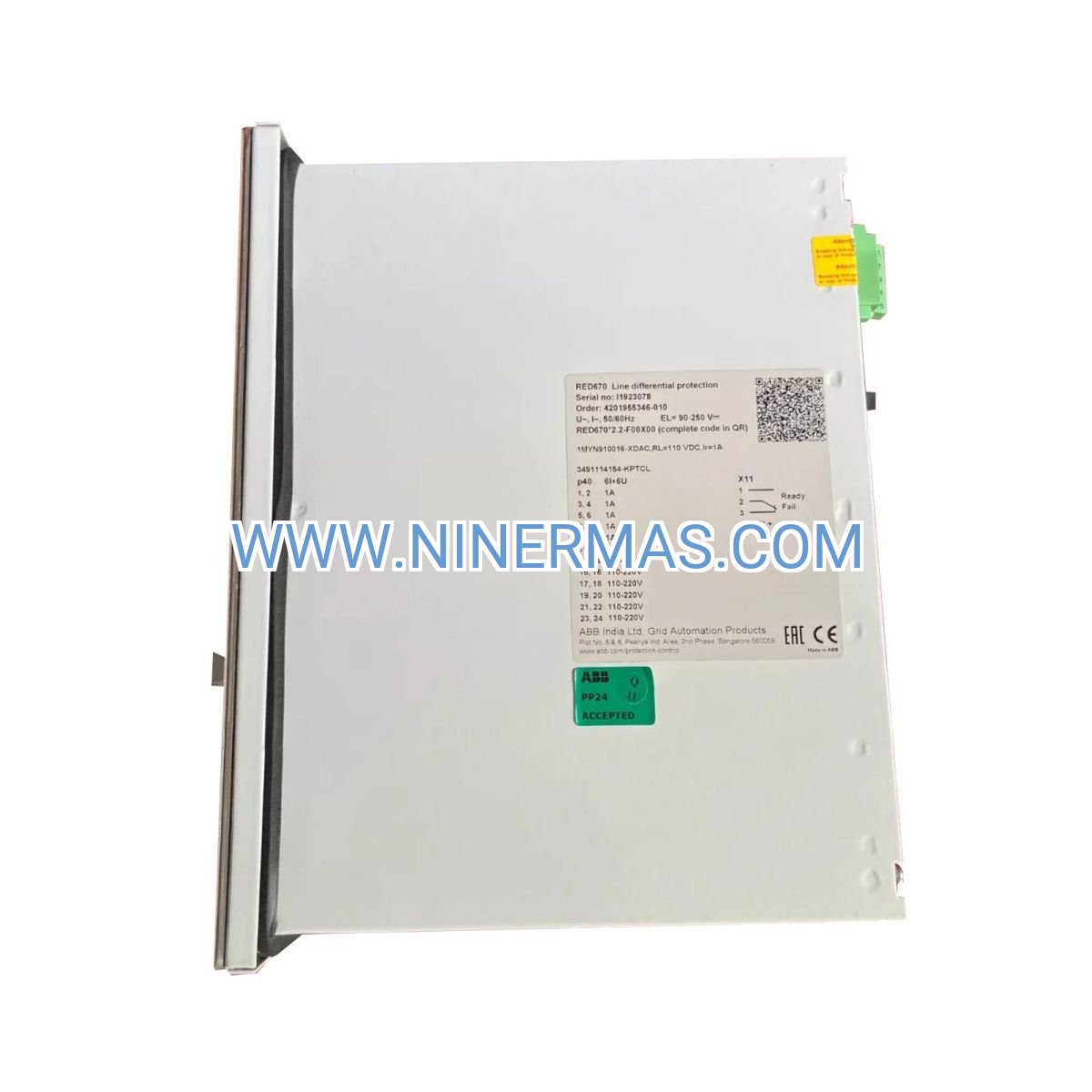

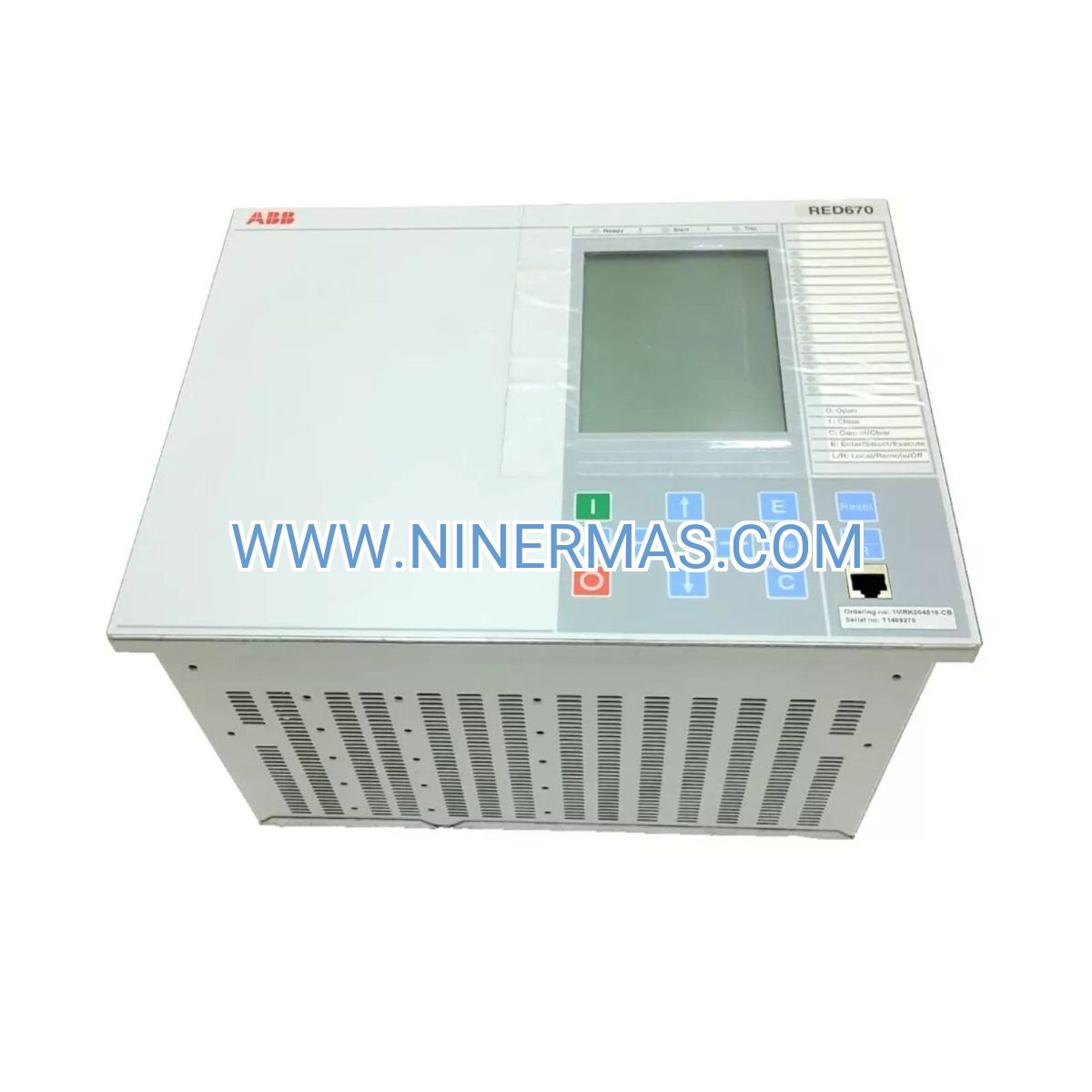

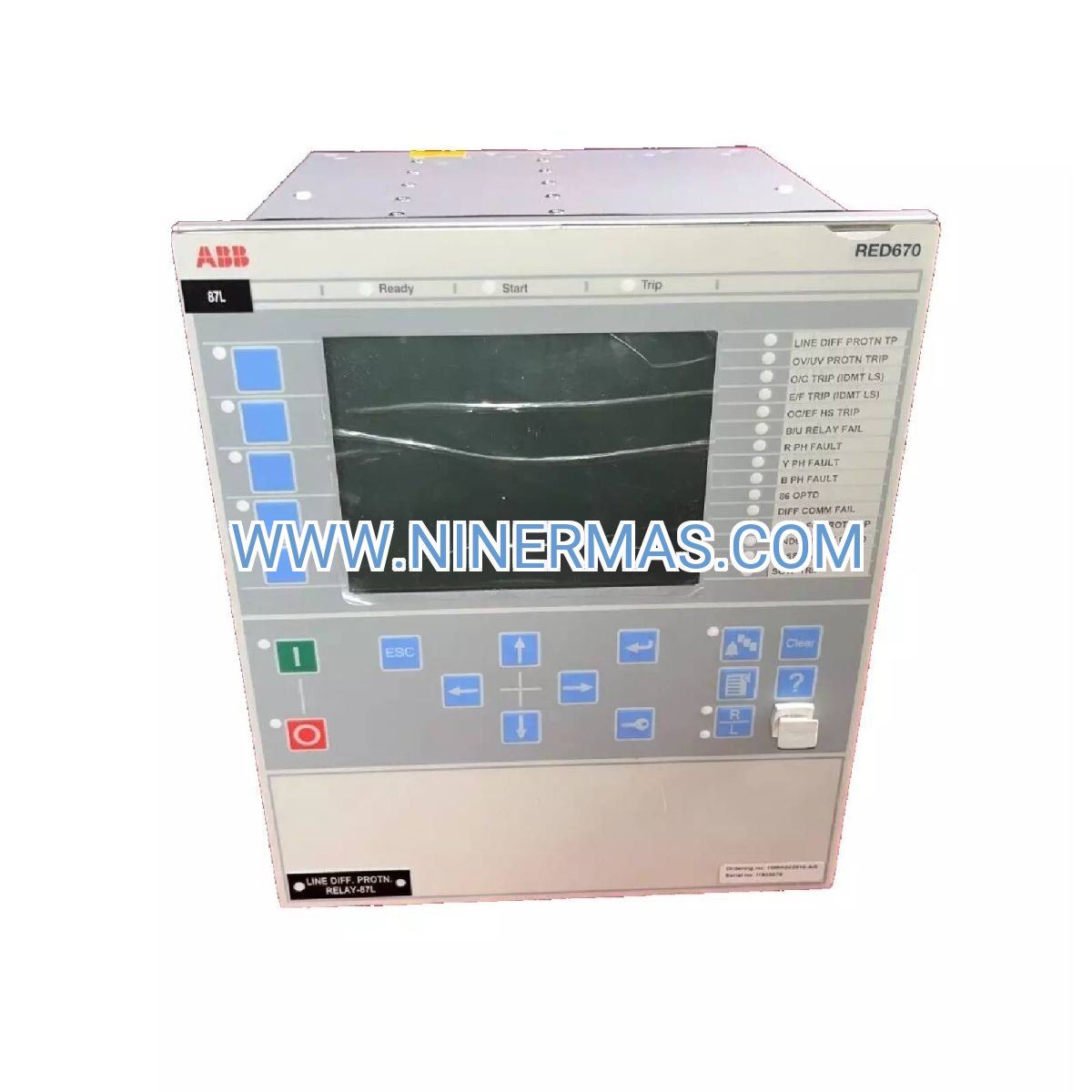

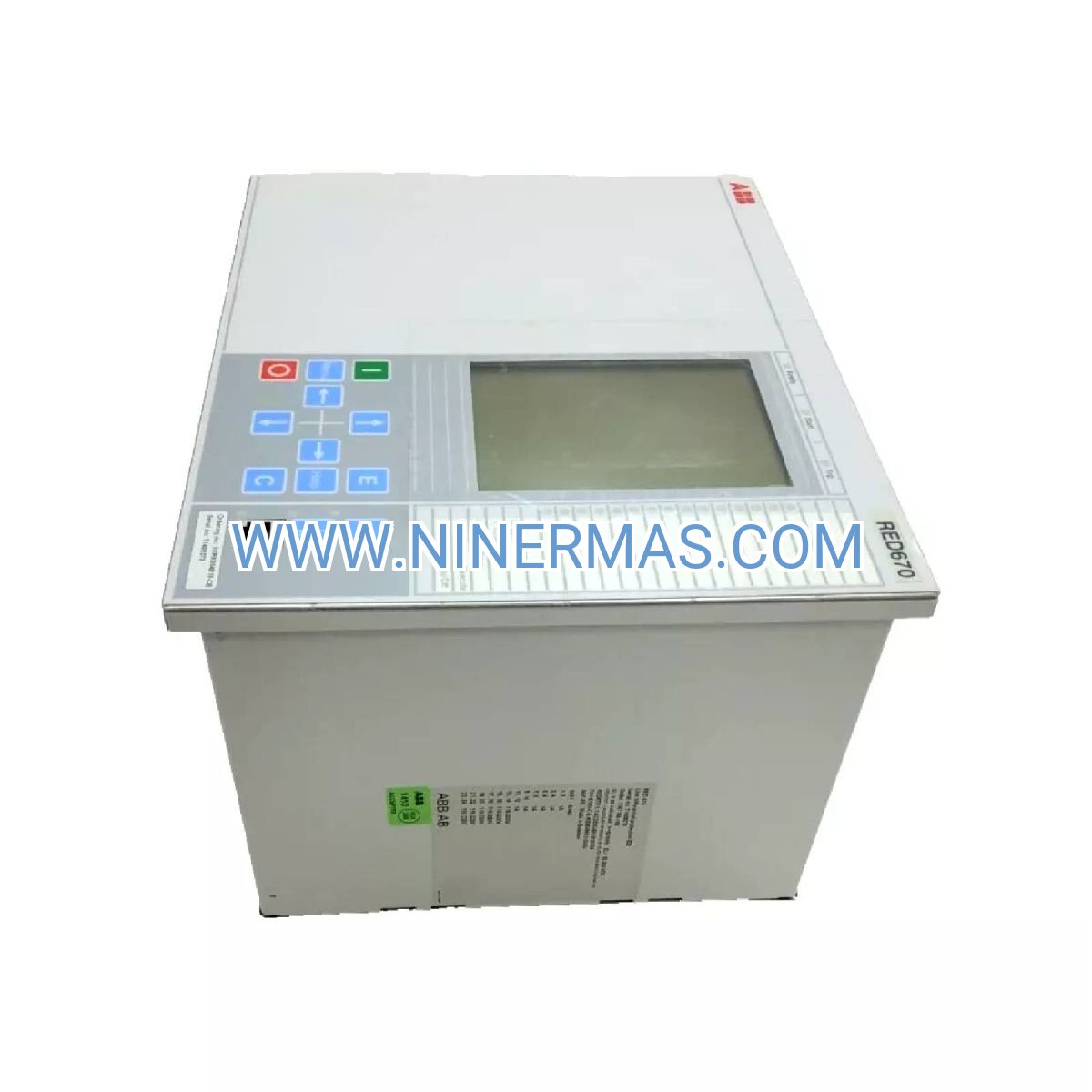

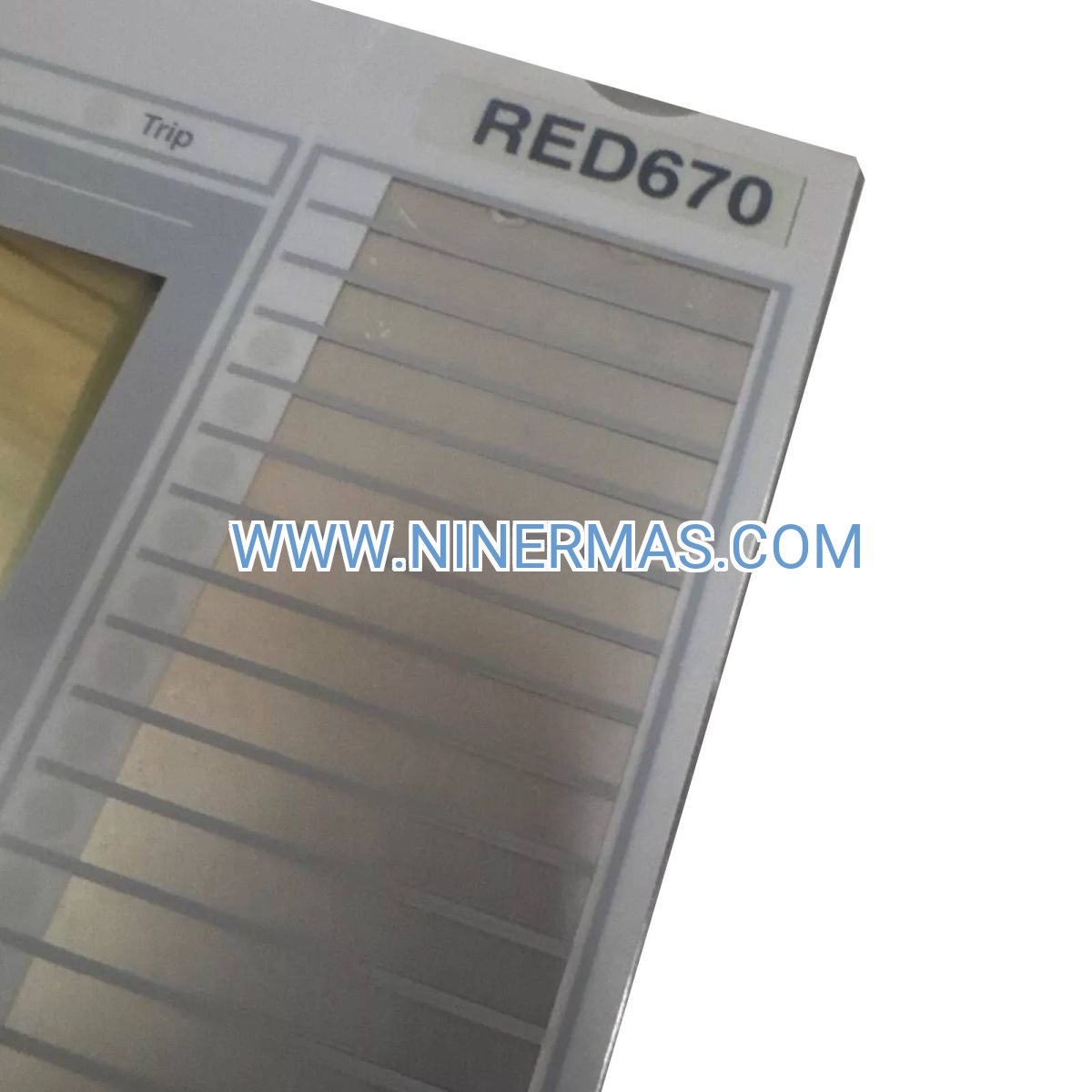

RED670 Differential Protection Relay (Industrial-Grade Transmission Security)

The RED670 is ABB's flagship line differential protection intelligent electronic device (IED) purpose-built for high-voltage transmission corridors operating at voltages up to 500kV. This relay combines ultra-fast fault discrimination with multi-protocol communication capabilities, delivering the reliability and precision demanded by utility operators managing critical grid infrastructure. Whether protecting simple two-terminal lines or complex multi-terminal configurations, the RED670 provides comprehensive security against phase and ground faults while maintaining selectivity during external disturbances.

Designed for substations where downtime translates to significant economic impact, this protection relay addresses the fundamental challenge of distinguishing genuine line faults from transient events or external system disturbances. Transmission system operators, protection engineers, and utility asset managers rely on the RED670 to maintain power flow continuity while ensuring rapid isolation of faulted sections. Its advanced differential algorithm processes current measurements from multiple line terminals simultaneously, enabling fault detection that remains stable during CT saturation, power swings, and evolving fault conditions.

Key advantages include sub-cycle operating speeds (typically under 15 milliseconds), native IEC 61850 Edition 2 compliance for seamless substation automation integration, and field-proven reliability across diverse climatic conditions from arctic installations to desert environments. The relay's modular architecture supports future functional expansion without hardware replacement, protecting capital investment over decades of service life.

Core Protection Capabilities & Technical Advantages

✓ Multi-Function Protection Suite: Primary line differential protection complemented by distance backup (21), breaker failure (50BF), synchrocheck (25), and directional overcurrent elements provide comprehensive coverage for all credible fault scenarios.

✓ High-Speed Fault Clearing: Achieves typical operating times below 15ms from fault inception to trip command, minimizing equipment stress and maintaining transient stability margins critical for interconnected power systems.

✓ Advanced Communication Architecture: Dual-redundant fiber optic channels with automatic switchover ensure continuous protection operation even during communication path failures. Supports direct fiber, multiplexed, and packet-based communication schemes.

✓ Precision Measurement Technology: 80 samples per power frequency cycle capture high-fidelity waveforms enabling accurate phasor calculation even during distorted conditions. 16-bit A/D conversion maintains measurement accuracy across the full dynamic range.

✓ Adaptive Protection Logic: Automatically adjusts sensitivity and operating characteristics based on real-time system conditions, maintaining security during weak infeed situations while preserving dependability for solid faults.

✓ Cybersecurity Hardening: Role-based access control (RBAC), TLS 1.2 encrypted communications, comprehensive event logging, and NERC CIP compliance features protect against unauthorized access and cyber threats.

Industrial Application Scenarios

→ Long-Distance Transmission Corridors: Protects lines spanning hundreds of kilometers where traditional distance protection faces challenges with fault resistance and load encroachment. The differential principle remains immune to line length and intermediate sources, providing consistent performance regardless of system configuration.

→ Series-Compensated Networks: Handles the complex protection challenges introduced by series capacitors, including voltage and current inversions that can compromise conventional protection schemes. Specialized algorithms maintain protection integrity throughout capacitor insertion and bypass operations.

→ Multi-Terminal Line Configurations: Supports three-terminal and teed line applications where traditional two-terminal differential schemes cannot provide adequate coverage. Simultaneous processing of current measurements from all terminals ensures comprehensive fault detection.

→ Renewable Energy Integration Points: Addresses protection coordination challenges at transmission interconnection points for wind farms and solar installations where bidirectional power flow and variable fault contribution levels require adaptive protection strategies.

→ Critical Infrastructure Protection: Deployed at strategic transmission nodes serving data centers, hospitals, military installations, and industrial complexes where power supply continuity directly impacts operational safety and economic viability.

Technical Parameters & Selection Criteria

Selection Guidance: When specifying the RED670, consider line configuration (two-terminal vs. multi-terminal), communication infrastructure availability (direct fiber vs. multiplexed channels), required protection functions beyond differential (distance backup, power swing blocking), and integration requirements with existing substation automation systems. For lines with series compensation or complex mutual coupling, consult with protection engineering specialists to optimize relay settings and communication schemes.

Extended Functionality & System Integration

Substation Automation Integration: Native IEC 61850 implementation enables seamless integration with station-level controllers, providing real-time operational data, remote control capabilities, and coordinated protection schemes across multiple bays. Generic Object-Oriented Substation Event (GOOSE) messaging supports high-speed peer-to-peer communication for interlocking and transfer trip applications.

Advanced Monitoring & Diagnostics: Continuous self-monitoring verifies measurement channel accuracy, communication path integrity, and internal processing health. Predictive maintenance alerts notify operators of developing issues before they compromise protection performance, enabling proactive intervention during scheduled outages.

Disturbance Analysis Tools: Integrated oscillography captures high-resolution waveforms during fault events with configurable pre-trigger and post-trigger recording windows. COMTRADE-format files facilitate detailed post-event analysis using industry-standard software tools, supporting root cause investigation and protection scheme validation.

Remote Configuration & Management: PCM600 engineering software provides centralized configuration management for single relays or entire fleets. Version control, change tracking, and automated backup functions streamline engineering workflows while maintaining configuration integrity across the asset lifecycle.

Delivery Timeline & Service Commitment

Standard Delivery: 8-12 weeks for catalog configurations with common I/O arrangements and communication options. Expedited delivery available for critical replacement applications subject to inventory availability.

Custom Configurations: 12-16 weeks for specialized I/O requirements, extended temperature ratings, or application-specific firmware modifications. Engineering consultation included to optimize relay specification for unique system requirements.

Warranty Coverage: 24-month comprehensive warranty covering materials, workmanship, and firmware defects. Extended warranty programs available for long-term asset protection.

Technical Support: Access to ABB's global protection engineering support network providing application assistance, commissioning guidance, and troubleshooting expertise. 24/7 emergency support available for critical infrastructure applications.

Documentation Package: Complete technical manual set including installation instructions, protection function descriptions, communication configuration guides, testing procedures, and IEC 61850 ICD files for system integration.

Frequently Asked Questions

Q: What communication infrastructure is required for RED670 differential protection operation?
A: The relay supports multiple communication schemes including direct fiber optic connections (most common for dedicated protection channels), multiplexed communication via SDH/SONET equipment, and packet-based communication over IP networks. Minimum bandwidth requirements are 64 kbps per channel with latency under 10ms for optimal performance. Dual-redundant paths are strongly recommended for critical applications.

Q: Can the RED670 protect lines with intermediate taps or multi-terminal configurations?
A: Yes, the relay explicitly supports three-terminal and teed line applications through its multi-terminal differential algorithm. Each line terminal requires a RED670 or compatible relay, with all units exchanging current phasor information via the communication channels. The differential calculation accounts for current contributions from all terminals simultaneously.

Q: How does the relay maintain protection security during CT saturation conditions?
A: Advanced algorithms monitor CT secondary current waveforms for saturation indicators including harmonic content and waveform distortion patterns. When saturation is detected, the relay dynamically adjusts operating thresholds and may temporarily block tripping if the differential current signature is consistent with CT saturation rather than an internal fault. This prevents false trips during external faults with high through-fault current.

Q: What cybersecurity features protect the relay from unauthorized access?
A: Comprehensive security measures include role-based access control with configurable user privileges, password complexity enforcement, encrypted communication protocols (TLS 1.2 for IP-based connections), detailed audit logging of all configuration changes and access attempts, and support for centralized authentication via RADIUS/LDAP servers. The relay meets NERC CIP compliance requirements for critical cyber assets.

Q: Is the RED670 compatible with existing ABB protection relays for communication and system integration?
A: The RED670 maintains backward compatibility with ABB's previous-generation line protection relays (RED500 series) for communication protocols and can interoperate in mixed-vintage installations. For IEC 61850 integration, the relay conforms to Edition 2 standards while maintaining compatibility with Edition 1 systems through appropriate configuration. PCM600 software manages configuration across all ABB relay generations from a unified platform.

Q: What testing and commissioning support is available for RED670 installations?
A: ABB offers comprehensive commissioning services including factory acceptance testing (FAT), site acceptance testing (SAT), and end-to-end communication verification. Field service engineers can perform complete relay testing using secondary injection equipment, validate protection settings against system studies, and conduct communication channel performance verification. Training programs are available for utility personnel covering relay operation, maintenance, and troubleshooting procedures.

Secure Your Transmission Infrastructure Today

Contact our protection engineering specialists to discuss your specific transmission line protection requirements. We provide technical consultation, system studies, relay specification assistance, and complete lifecycle support for RED670 deployments. Request a detailed quotation or schedule a technical review of your existing protection schemes.
