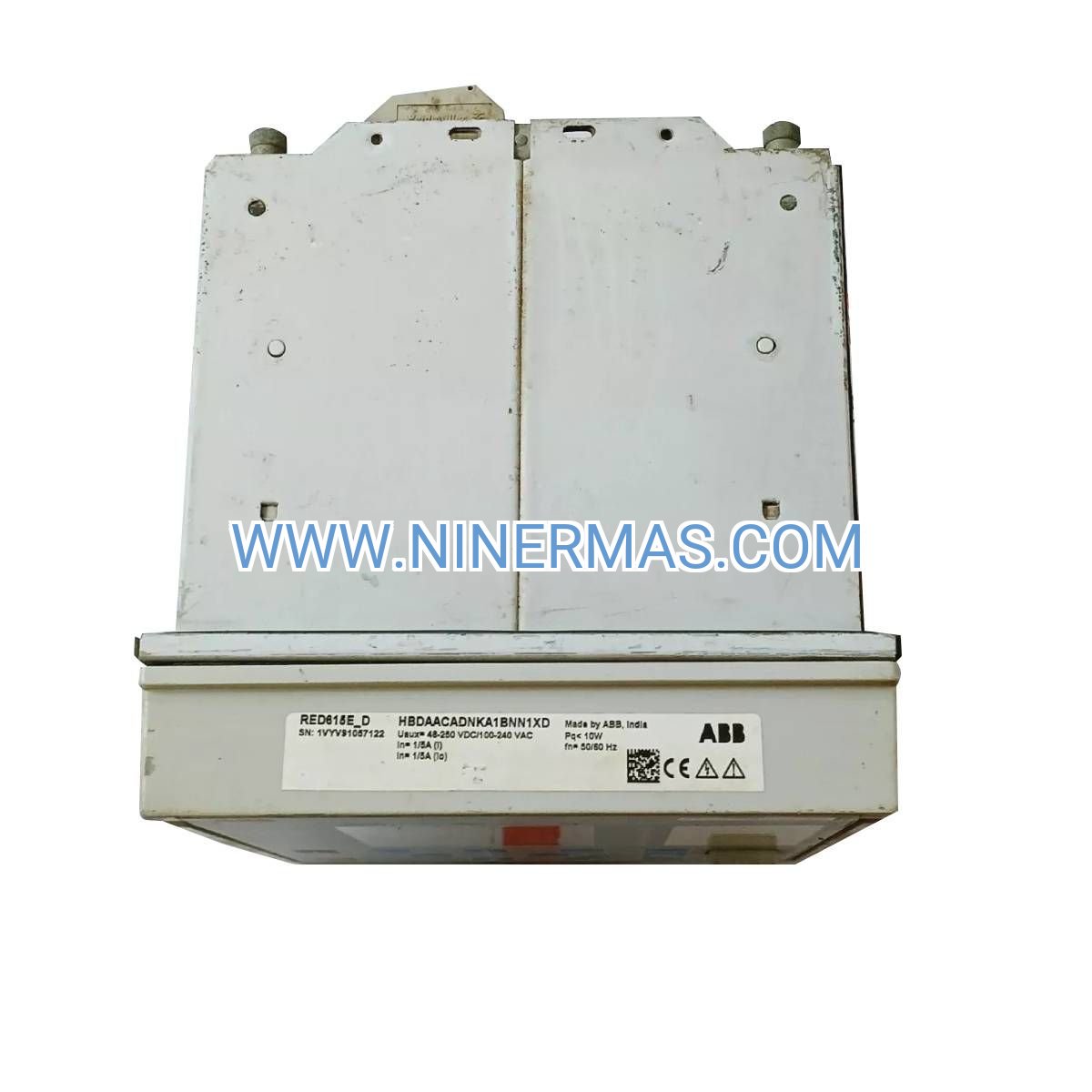

RED615 Industrial Differential Protection Relay (HBDCACADNHA1BNN11G)

The RED615 represents ABB's next-generation approach to differential protection, combining precision fault detection with comprehensive substation automation capabilities. Designed for mission-critical applications in power generation, transmission, and heavy industrial facilities, this relay delivers sub-cycle protection performance while maintaining seamless integration with modern SCADA architectures.

Built to withstand harsh industrial environments from Arctic installations to desert substations, the HBDCACADNHA1BNN11G variant addresses the specific challenges faced by power system engineers: false trip prevention during transformer inrush, adaptive sensitivity for evolving load conditions, and cybersecure communication in networked protection schemes. Whether you're protecting a 500 MVA generator-transformer unit or a critical manufacturing busbar, the RED615 provides the reliability your operation demands.

With over 100,000 ABB Relion series relays deployed globally, you're investing in proven technology backed by decades of protection engineering expertise. The RED615 doesn't just detect faults—it provides the intelligence to prevent them, the speed to minimize damage, and the data to optimize your protection strategy.

Core Protection Capabilities

→ High-Impedance Differential Algorithm: Percentage bias characteristic with adjustable slope settings (15%-80%) ensures stable operation during external faults while maintaining 95% sensitivity for internal winding failures. Harmonic blocking (2nd/5th) prevents nuisance trips during energization transients.

→ Multi-Zone Protection Architecture: Configure up to 6 independent differential zones within a single relay, ideal for generator-transformer units, dual-winding transformers, or complex busbar arrangements. Each zone operates independently with dedicated CT supervision and saturation detection.

→ Integrated Backup Protection: Four-stage overcurrent (ANSI 50/51), directional earth fault (67N), thermal overload (49), and breaker failure (50BF) functions eliminate the need for separate backup relays, reducing panel space and wiring complexity by 40%.

✓ Adaptive Protection Logic: Real-time load monitoring adjusts pickup thresholds automatically, maintaining optimal sensitivity across 10%-120% rated current range without manual intervention.

✓ Disturbance Recording: Captures 15 cycles pre-fault and 30 cycles post-fault data across all analog channels at 4 kHz sampling rate, providing forensic-quality waveforms for root cause analysis.

✓ Self-Monitoring Diagnostics: Continuous verification of CT circuits, trip coil continuity, power supply health, and communication links with automatic alarm generation and redundant trip path activation.

Application Scenarios

Power Transformer Protection (10-500 MVA): Utilities and industrial plants rely on the RED615 to protect critical step-up and step-down transformers. The relay's through-fault withstand capability (100x rated current for 1 second) and CT saturation detection prevent false trips during system disturbances, while maintaining <20ms operating time for internal faults. One European utility reported zero false trips across 200+ installations during a 5-year monitoring period.

Generator Stator Protection (5-300 MW): Combined-cycle plants and hydroelectric facilities use the RED615's split-phase differential function to detect inter-turn faults before they escalate to ground faults. The relay's 95% stator coverage (compared to 85% for conventional schemes) has prevented catastrophic generator failures in multiple documented cases, saving operators millions in avoided downtime and repair costs.

Large Motor Protection (>500 HP): Petrochemical compressors, mining conveyors, and water treatment pumps benefit from the RED615's locked rotor detection (ANSI 51LR) and negative sequence protection (46). The thermal model accurately predicts winding temperature based on load history, preventing thermal degradation while allowing temporary overloads during process upsets.

Busbar & Switchgear Protection: Data centers and manufacturing facilities deploy the RED615 for main and tie bus protection, where the relay's check zone supervision and CT polarity verification ensure protection security. The relay's ability to handle up to 12 feeder inputs makes it ideal for complex distribution schemes without requiring multiple devices.

Renewable Energy Integration: Wind farms and solar substations leverage the RED615's IEC 61850 GOOSE messaging for high-speed interlocking and the relay's wide frequency range (45-65 Hz) accommodates grid variations during islanding transitions. One 150 MW wind farm reduced protection commissioning time by 60% using standardized IEC 61850 configuration files.

Technical Specifications & Selection Guide

Selection Criteria: Choose the RED615 when your application requires differential protection with IEC 61850 connectivity. For feeder protection without differential requirements, consider the REF615. For transformer-specific applications with OLTC control, the RET615 offers additional functionality. Consult our application engineers for multi-relay coordination studies and protection scheme design.

Extended Integration Features

Substation Automation Integration: The RED615's native IEC 61850 implementation supports horizontal communication (GOOSE) for peer-to-peer interlocking and vertical communication (MMS) for SCADA integration. Pre-configured ICD files accelerate engineering, while the relay's built-in web server enables browser-based monitoring without proprietary software.

Condition Monitoring: Track circuit breaker operations, contact wear, and operating times to predict maintenance requirements. The relay logs 1,000+ events with millisecond timestamps, exportable via FTP or USB for trending analysis in third-party asset management systems.

Cybersecurity Compliance: Meets IEC 62351 and NERC CIP requirements with role-based access control (10 user levels), encrypted communications (TLS 1.2), and audit logging. Security updates delivered via ABB's Cyber Security Incident Response Team ensure ongoing protection against emerging threats.

Custom Logic Programming: Implement site-specific interlocks, automatic transfer schemes, or load shedding sequences using the relay's graphical logic editor. No external PLCs required for most automation tasks, reducing system complexity and failure points.

Delivery & Service Commitment

Lead Time: Standard configurations ship within 3-5 business days from our regional distribution centers. Custom-configured relays with application-specific settings require 10-15 business days. Expedited processing available for critical outage situations.

Warranty Coverage: 24-month comprehensive warranty covering materials, workmanship, and firmware defects. Extended warranty programs available for up to 5 years, including advance replacement and on-site commissioning support.

Technical Support: Unlimited access to ABB-certified protection engineers via phone, email, and remote desktop support. Average response time <4 hours for critical issues. Quarterly firmware updates and feature enhancements included at no additional cost.

Documentation Package: Each relay ships with installation manual, protection application guide, IEC 61850 configuration files, PCM600 software license, and sample test procedures. Online training modules and certification programs available through ABB University.

Frequently Asked Questions

How does the RED615 handle CT saturation during external faults?
The relay employs a dual-slope percentage differential characteristic combined with real-time CT saturation detection algorithms. When saturation is detected on one or more CT circuits, the relay automatically increases the restraint bias to prevent false tripping while maintaining sensitivity for internal faults. This adaptive approach has proven effective in systems with CT ratios up to 3000:5 and fault levels exceeding 50 kA.

Can I retrofit the RED615 into existing panels with legacy electromechanical relays?
Absolutely. The RED615's compact half-rack form factor (96mm width) fits standard 19" panels, and the relay accepts both 1A and 5A CT secondaries without hardware modifications. We provide migration guides for common legacy relay replacements (GE, Siemens, SEL) including terminal mapping and settings conversion spreadsheets. Most retrofits complete in 4-6 hours per panel.

What is the typical power consumption and heat dissipation?
The RED615 consumes less than 15 watts under normal operation, generating approximately 50 BTU/hr of heat. This low thermal footprint eliminates the need for forced ventilation in most installations and allows up to 8 relays in a standard 19" rack without temperature concerns. The relay operates reliably at ambient temperatures up to 70°C without derating.

Does the relay support redundant protection schemes?
Yes. The RED615 can be configured in primary/backup pairs with automatic switchover logic. The relay's dual Ethernet ports support redundant network topologies (PRP/HSR per IEC 62439), ensuring protection availability even during communication failures. Many utilities deploy RED615 pairs with diversified trip logic to achieve >99.99% protection system reliability.

How do I configure the relay for generator-transformer unit protection?
The RED615 includes pre-built application templates for common unit protection schemes. Using ABB's PCM600 software, select the "Generator-Transformer Unit" template, specify your CT locations and ratios, and the software automatically configures the differential zones, restraint characteristics, and backup protection elements. The entire configuration process typically takes 30-45 minutes, with built-in validation checks to prevent common engineering errors.

What remote monitoring capabilities are available?
The relay's embedded web server provides real-time metering, event logs, and waveform capture accessible from any standard browser—no proprietary software required for basic monitoring. For advanced analytics, the relay streams data to ABB Ability™ cloud platform, enabling predictive maintenance, fleet-wide benchmarking, and AI-powered anomaly detection across your entire protection system.

Ready to Upgrade Your Protection System?

Contact our protection engineering team for application-specific guidance, coordination studies, and volume pricing. We'll help you design a protection scheme that balances security, dependability, and cost-effectiveness for your specific installation.

Request a technical consultation: Our engineers will review your single-line diagrams, recommend optimal relay placement, and provide detailed settings calculations at no charge.
