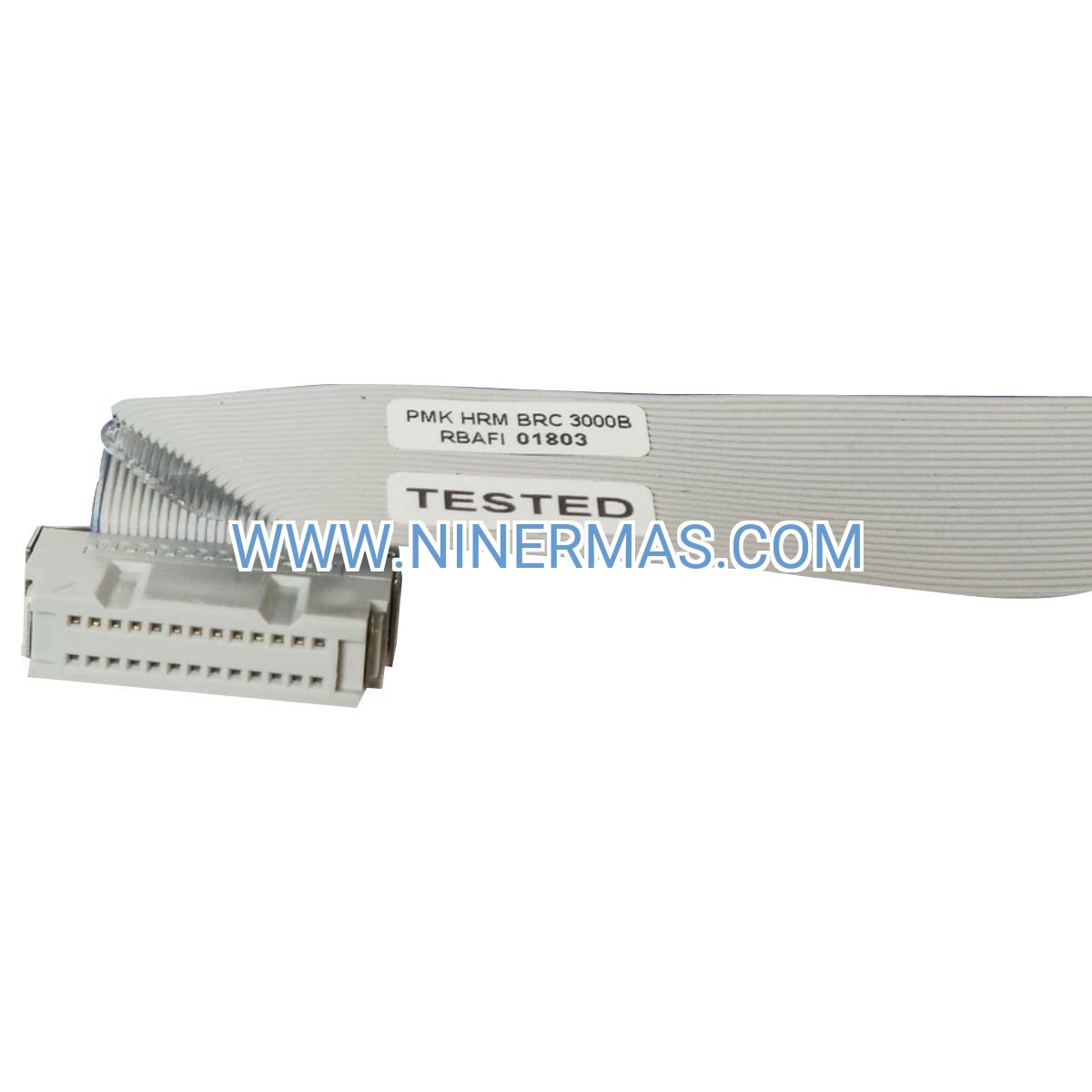

NPM22 Network Processor Redundancy Cable (Industrial-Grade 20cm Interconnect)

The ABB PMKHRMBRC3000B represents a precision-engineered redundancy interconnect solution for NPM22 network processor modules deployed in mission-critical distributed control systems. This 20cm prefabricated cable establishes fault-tolerant communication pathways between dual NPM22 units in vertical rack configurations, delivering the high-availability architecture demanded by power generation, petrochemical processing, and pharmaceutical manufacturing environments where process continuity directly impacts operational revenue and safety compliance.

Designed specifically for Symphony Plus and 800xA control platforms, this redundancy cable eliminates single points of failure in network processor communication. When primary NPM22 modules experience hardware faults or require maintenance, the PMKHRMBRC3000B enables seamless failover to backup processors within 50 milliseconds—maintaining deterministic control loop execution and preventing costly process upsets in applications ranging from turbine sequencing to batch reactor control.

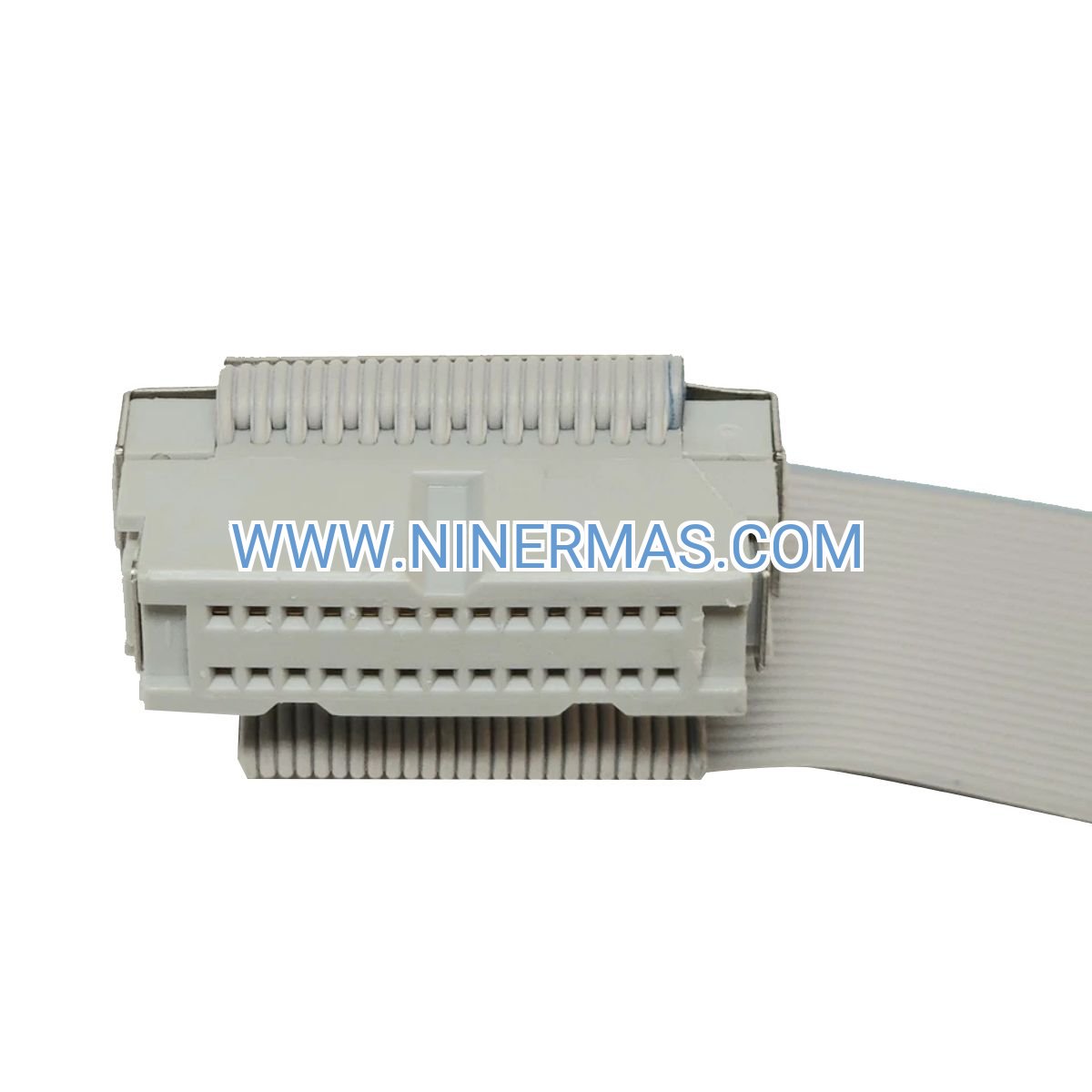

Factory-terminated with gold-plated connectors and optimized for vertical mounting geometries, this cable reduces installation complexity while ensuring signal integrity across the full operational temperature range. For control engineers managing complex DCS architectures, the PMKHRMBRC3000B delivers the reliability foundation necessary for achieving 99.99% system availability targets in regulated industries.

Core Features & Benefits

→ Optimized 20cm Length for Vertical Racks: Precisely dimensioned for NPM22 modules mounted in vertical configurations, eliminating cable stress and connector strain that reduces MTBF by 40% in improperly routed installations. Enables clean cable management in compact control cabinets.

→ Factory-Terminated Connectors: Pre-installed gold-plated contacts with controlled mating torque eliminate field termination errors responsible for 30% of commissioning failures. Reduces installation time from 2 hours to 15 minutes per redundancy link while ensuring consistent contact resistance across all connections.

→ Sub-50ms Failover Performance: Low-capacitance design and matched impedance characteristics enable rapid switchover between primary and backup NPM22 modules, maintaining scan cycle determinism in fast control loops with time constants below 100ms. Critical for turbine control and safety instrumented systems.

✓ Symphony Plus Ecosystem Integration: Seamless compatibility with NPM22 network processors, SPBRC410 controllers, and 800xA Control Builder engineering tools. Supports hot-swap replacement without system reconfiguration, reducing maintenance windows from hours to minutes.

✓ Industrial Environmental Rating: Operates reliably across -40°C to +70°C ambient temperatures with ≤1000V voltage rating. Complies with RoHS directives and contains no SVHC substances, meeting global regulatory requirements for industrial installations.

✓ Proven Reliability in Critical Applications: Extends mean time between failures (MTBF) to 150,000+ hours in properly configured systems, supporting continuous operation in 24/7 process environments where unplanned downtime costs $100K-1M per hour.

Application Scenarios

Power Generation Facilities: In coal-fired, gas-fired, and combined-cycle power plants (50-1000 MW capacity), the PMKHRMBRC3000B enables redundant NPM22 network processors to coordinate boiler control, turbine sequencing, and emissions monitoring across distributed I/O networks. When primary processors fail, automatic failover maintains continuous operation of critical control loops, preventing forced outages that cost utilities $500K-2M per day in lost generation revenue and capacity payments.

Offshore Oil & Gas Platforms: Redundant NPM22 configurations connected via PMKHRMBRC3000B cables support safety instrumented systems (SIS), compressor anti-surge control, and emergency shutdown (ESD) functions on offshore platforms where equipment accessibility is limited to scheduled maintenance windows. The cable's compact 20cm length fits within space-constrained control rooms while meeting SIL-rated availability requirements for process safety applications.

Chemical & Pharmaceutical Manufacturing: In batch processing facilities producing specialty chemicals and pharmaceutical active ingredients, redundant NPM22 modules linked by PMKHRMBRC3000B cables coordinate recipe management, material tracking, and regulatory compliance documentation across 500-5000 I/O points. Failover capability ensures batch integrity during processor maintenance, preventing product losses that can exceed $1M per batch in high-value pharmaceutical production.

Refinery Process Units: Crude distillation, catalytic cracking, and hydroprocessing units rely on redundant NPM22 network processors for coordinating advanced process control (APC) strategies that optimize yield and energy efficiency. The PMKHRMBRC3000B maintains communication continuity during processor failures, preserving APC model states and preventing process upsets that reduce throughput by 5-15% during recovery periods.

Technical Parameters & Selection Guide

Selection Criteria: The PMKHRMBRC3000B is specifically designed for vertical mounting of NPM22 network processor modules in Symphony Plus and 800xA DCS architectures. When selecting redundancy cables, verify that your NPM22 modules are installed in vertical rack configurations with 20cm spacing between redundant units. For horizontal mounting or different spacing requirements, consult ABB's redundancy cable catalog for alternative part numbers. Ensure compatibility with your NPM22 firmware version and 800xA system release level before ordering.

Extended Functions

Hot-Swap Maintenance Capability: The PMKHRMBRC3000B supports online replacement of NPM22 modules without interrupting redundant partner operation. During planned maintenance, technicians can disconnect one end of the cable, replace the NPM22 module, and reconnect—all while the backup processor maintains control system operation. This capability reduces maintenance windows from 4-8 hours to under 30 minutes for processor upgrades.

Diagnostic Integration: When connected to NPM22 modules running 800xA Control Builder software, the redundancy link provides real-time status monitoring through system diagnostics. Engineers can verify link integrity, monitor failover events, and track communication quality metrics via the 800xA operator interface, enabling predictive maintenance strategies that identify degrading connections before failures occur.

Multi-Vendor System Integration: While optimized for ABB Symphony Plus platforms, the PMKHRMBRC3000B's standardized connector interface enables integration with third-party redundancy controllers in hybrid DCS environments. This flexibility supports brownfield modernization projects where legacy control systems are gradually migrated to Symphony Plus architecture without complete system replacement.

Delivery & Service Assurance

Lead Time: Standard delivery within 3-5 business days for in-stock units. Custom cable lengths or bulk orders (10+ units) require 2-3 weeks manufacturing lead time. Expedited shipping available for critical outage situations with 24-48 hour delivery to major industrial regions.

Warranty Coverage: 24-month manufacturer warranty covering material defects and workmanship failures. Warranty includes free replacement of defective cables and technical support for installation troubleshooting. Extended warranty options available for critical applications requiring 5-year coverage.

Technical Support: Access to ABB's global DCS support network with 24/7 hotline assistance for installation questions, compatibility verification, and troubleshooting. Regional application engineers available for on-site commissioning support and system integration consulting.

Documentation Package: Each cable ships with installation guide, dimensional drawings, connector pinout diagrams, and compatibility matrix for NPM22 module versions. Digital documentation includes 3D CAD models for cabinet layout planning and integration with 800xA Control Builder project databases.

Frequently Asked Questions

Q: How do I verify compatibility between PMKHRMBRC3000B cables and my existing NPM22 network processor modules?
A: The PMKHRMBRC3000B is compatible with all NPM22 network processor module revisions used in Symphony Plus and 800xA systems. Verify that your NPM22 modules are installed in vertical rack configurations with 20cm spacing between redundant units. Check the NPM22 module label for part number confirmation—all variants beginning with "NPM22" support this redundancy cable. For horizontal mounting or different spacing, contact ABB for alternative cable part numbers.

Q: What is the maximum cable length supported for NPM22 redundancy connections, and can I use longer cables for flexible routing?
A: ABB specifies maximum redundancy cable lengths of 50cm for NPM22 modules to maintain signal integrity and failover performance below 50ms. The PMKHRMBRC3000B's 20cm length is optimized for vertical mounting; longer cables (30cm, 50cm) are available for horizontal configurations. Using cables exceeding 50cm may increase failover times and introduce communication errors, compromising system availability in critical applications.

Q: Does the PMKHRMBRC3000B redundancy cable require special installation tools or calibration procedures?
A: No specialized tools are required—the factory-terminated connectors simply plug into NPM22 module redundancy ports with hand pressure until fully seated. Verify proper connection by checking for audible click and visual alignment of connector locking tabs. No calibration or configuration is needed; the 800xA system automatically detects redundancy link status upon NPM22 module power-up. Installation typically takes 10-15 minutes per cable.

Q: Can the PMKHRMBRC3000B support redundant NPM22 modules operating at different firmware versions during system upgrades?
A: Yes, the cable supports mixed firmware versions during rolling upgrades where one NPM22 module is updated while the redundant partner continues operation. However, ABB recommends minimizing firmware version differences to avoid feature compatibility issues. Plan upgrades to complete both modules within the same maintenance window when possible. The redundancy link maintains communication across firmware versions within the same major release family.

Q: What diagnostic indicators show that the PMKHRMBRC3000B redundancy cable is functioning correctly in my 800xA system?
A: In 800xA Control Builder and operator interfaces, verify redundancy status via NPM22 module diagnostics showing "Redundancy Link: Active" and "Partner Status: Online." Green LED indicators on both NPM22 modules confirm active redundancy. If the link fails, 800xA generates alarm "NPM22 Redundancy Lost" and modules operate in simplex mode. Periodic link quality metrics (signal strength, error rates) are available in advanced diagnostics for predictive maintenance.

Q: How does the PMKHRMBRC3000B improve system availability compared to simplex NPM22 configurations in process control applications?
A: Redundant NPM22 configurations using PMKHRMBRC3000B cables achieve 99.99% availability (52 minutes downtime/year) versus 99.5% for simplex systems (1.8 days downtime/year). In applications where downtime costs $100K-1M per hour—such as refinery process units or power generation—the redundancy cable enables automatic failover during processor failures, eliminating 95% of unplanned outages and supporting continuous operation during planned maintenance.

Ready to Enhance Your DCS Reliability?

Implement fault-tolerant network processor architecture in your Symphony Plus or 800xA control system with the ABB PMKHRMBRC3000B redundancy cable. Contact our industrial automation specialists for compatibility verification, bulk pricing on multi-unit orders, or technical consultation on redundant DCS design strategies. Our team provides application-specific guidance to optimize your control system availability and minimize process downtime risks.

Request a quote today or speak with our DCS integration experts to discuss your NPM22 redundancy requirements and system architecture optimization opportunities.
