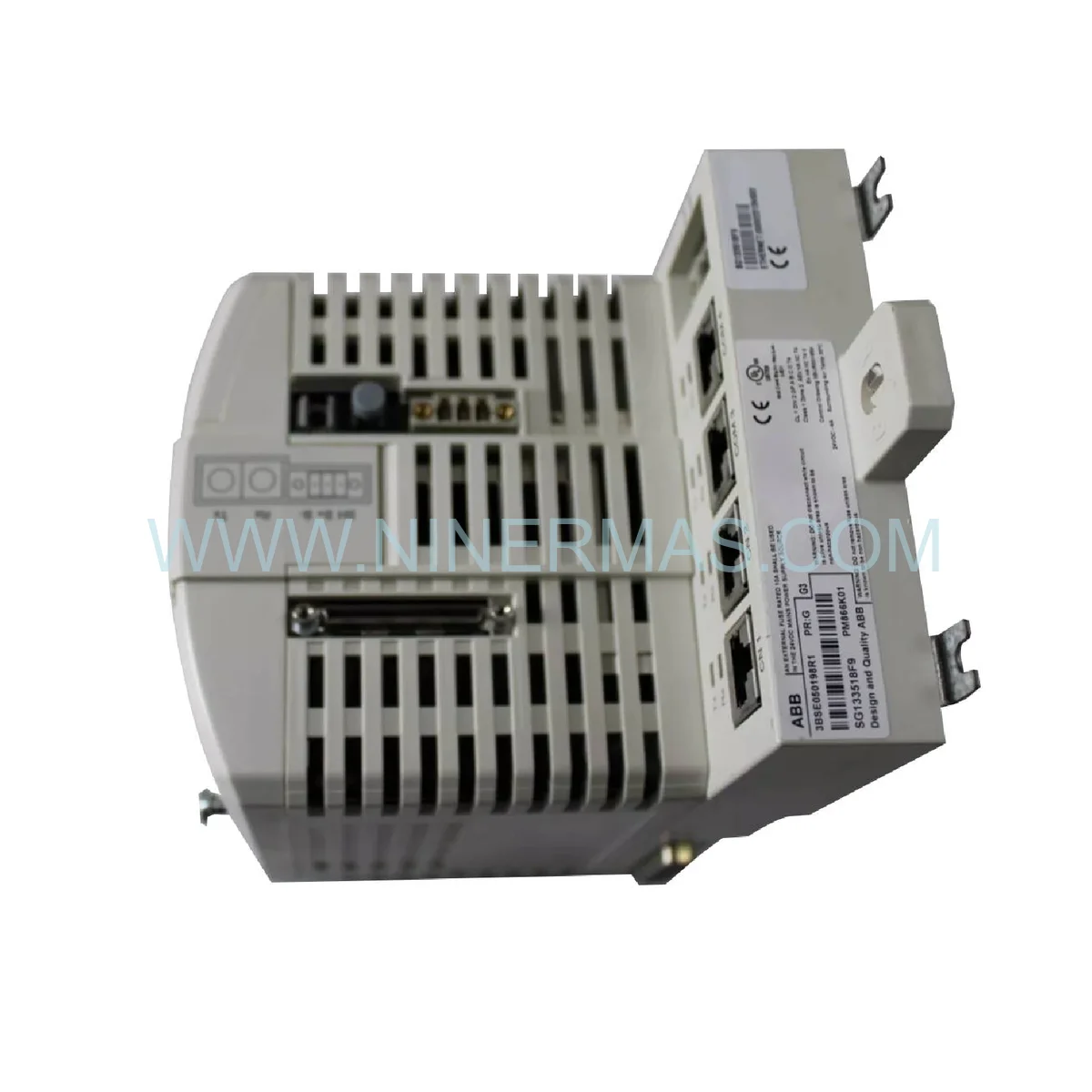

PM866K01 Processor Unit Kit (Industrial-Grade AC 800M Controller)

The ABB PM866K01 (3BSE050198R1) is a high-reliability processor unit kit designed for AC 800M distributed control systems. Engineered to deliver deterministic performance in process-critical environments, this controller serves as the computational backbone for refineries, chemical plants, power stations, and pharmaceutical facilities requiring 24/7 uptime and regulatory compliance.

Built for industries where downtime translates to revenue loss, the PM866K01 addresses challenges of legacy system obsolescence, limited I/O scalability, and single-point-of-failure risks. Target users include automation engineers, plant managers, and system integrators seeking future-proof control platforms with proven interoperability across ABB's 800xA ecosystem.

Key advantages include hot-swappable redundancy for uninterrupted operations, native support for 12,000+ I/O points enabling plant-wide consolidation, and microsecond-level scan cycle precision for time-sensitive control loops. The kit arrives pre-configured with firmware optimized for rapid commissioning and backward compatibility with S800 I/O infrastructure.

Core Features & Benefits

✓ Fault-Tolerant Redundancy: Automatic switchover between primary and standby processors ensures zero process interruption during maintenance or hardware failures—critical for continuous manufacturing operations.

✓ Massive I/O Scalability: Single controller manages up to 12,000 distributed I/O points, reducing hardware footprint and simplifying network architecture compared to multi-controller configurations.

✓ Deterministic Real-Time Performance: Guaranteed sub-millisecond scan cycles maintain control loop stability for high-speed batch processes, motion coordination, and safety instrumented systems (SIS).

✓ Universal Protocol Support: Native PROFIBUS DP, Modbus RTU/TCP, OPC UA, and Ethernet/IP connectivity eliminates third-party gateways when integrating legacy equipment or third-party devices.

✓ Embedded Diagnostics: Built-in web server provides real-time health monitoring, alarm analytics, and predictive maintenance alerts accessible via standard browsers—no proprietary software required.

✓ Regulatory Compliance Ready: Pre-validated for FDA 21 CFR Part 11, IEC 61508 SIL 3, and ATEX Zone 2 applications, accelerating certification timelines for regulated industries.

Typical Application Scenarios

→ Oil & Gas Upstream Production: Coordinates wellhead control, separator logic, and flare management across offshore platforms where environmental conditions demand ruggedized electronics and fail-safe redundancy protocols.

→ Chemical Batch Processing: Executes complex recipe sequences for specialty chemicals, managing precise temperature ramps, pH control, and ingredient dosing while maintaining full audit trails for quality assurance.

→ Combined-Cycle Power Plants: Integrates turbine control, heat recovery steam generator (HRSG) sequencing, and emissions monitoring to optimize thermal efficiency and meet grid code requirements.

→ Pharmaceutical Cleanroom Operations: Ensures validated control of HVAC systems, sterilization cycles, and material tracking with electronic batch records compliant with GMP standards.

→ Water Treatment Facilities: Manages multi-stage filtration, chemical dosing, and SCADA integration for municipal plants requiring remote monitoring and automated reporting to regulatory agencies.

Technical Parameters & Selection Guide

Selection Criteria: Choose PM866K01 when your application requires redundant processing, exceeds 5,000 I/O points, or demands integration with existing ABB 800xA infrastructure. For non-redundant applications under 3,000 I/O points, consider the PM864 series for cost optimization. Verify firmware compatibility with your current 800xA version before ordering—contact our technical team for migration assessments.

Extended Functions

IoT & Cloud Connectivity: Optional ABB Ability™ gateway enables secure data streaming to cloud analytics platforms for predictive maintenance, energy optimization, and remote expert support without compromising control network security.

Advanced Control Libraries: Pre-loaded function blocks for PID tuning, cascade control, feedforward compensation, and model predictive control (MPC) reduce engineering time by up to 60% compared to custom coding.

Customization Options: Factory configuration services available for pre-loaded application programs, custom I/O mapping, and network topology setup—delivered as turnkey solutions with factory acceptance testing (FAT) documentation.

Delivery Cycle & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units (factory-sealed packaging)
Custom Configuration: 10-15 business days for pre-programmed kits with FAT reports
Warranty Period: 12 months from shipment date covering manufacturing defects
Technical Support: Lifetime email/phone support from ABB-certified engineers
Documentation Included: Installation manual, quick start guide, firmware release notes, CE/UL certificates, material traceability records

Frequently Asked Questions

Q1: How does the PM866K01 interface with existing S800 I/O modules?
A: The processor uses ModuleBus communication protocol for seamless integration with S800 I/O clusters. Auto-discovery features detect connected modules during startup, and configuration can be imported from legacy PM860 controllers via the Control Builder software migration wizard.

Q2: What is the maximum network distance between the processor and remote I/O racks?
A: Using fiber optic ModuleBus extenders, you can achieve up to 10 km separation between the PM866K01 and distributed I/O stations—ideal for large plant footprints or hazardous area segregation.

Q3: Can this controller achieve SIL 3 safety ratings for emergency shutdown systems?
A: When configured in redundant mode with certified safety I/O modules and programmed per IEC 61508 guidelines, the PM866K01 supports SIL 3 applications. Third-party TÜV certification services are recommended for safety-critical deployments.

Q4: What cybersecurity features protect against industrial network threats?
A: Built-in firewall rules, role-based access control (RBAC), encrypted Ethernet communication (TLS 1.2), and audit logging comply with IEC 62443 standards. Regular firmware updates address emerging vulnerabilities.

Q5: Is remote programming and diagnostics possible without on-site visits?
A: Yes—via secure VPN tunnels, engineers can access the controller's web interface for diagnostics, upload program changes, and monitor real-time process data. Remote access requires proper network segmentation per ISA-99 best practices.

Q6: How much energy does redundant operation consume compared to simplex mode?
A: Redundant configurations (two PM866K01 units) consume approximately 30W total versus 15W for single-controller setups—a negligible increase considering the uptime benefits for critical processes.

Get Your Quote Today

Ready to upgrade your control infrastructure? Contact our automation specialists for application-specific recommendations, volume pricing, and technical feasibility assessments. We provide same-day quotations and can arrange factory training for your engineering team.
