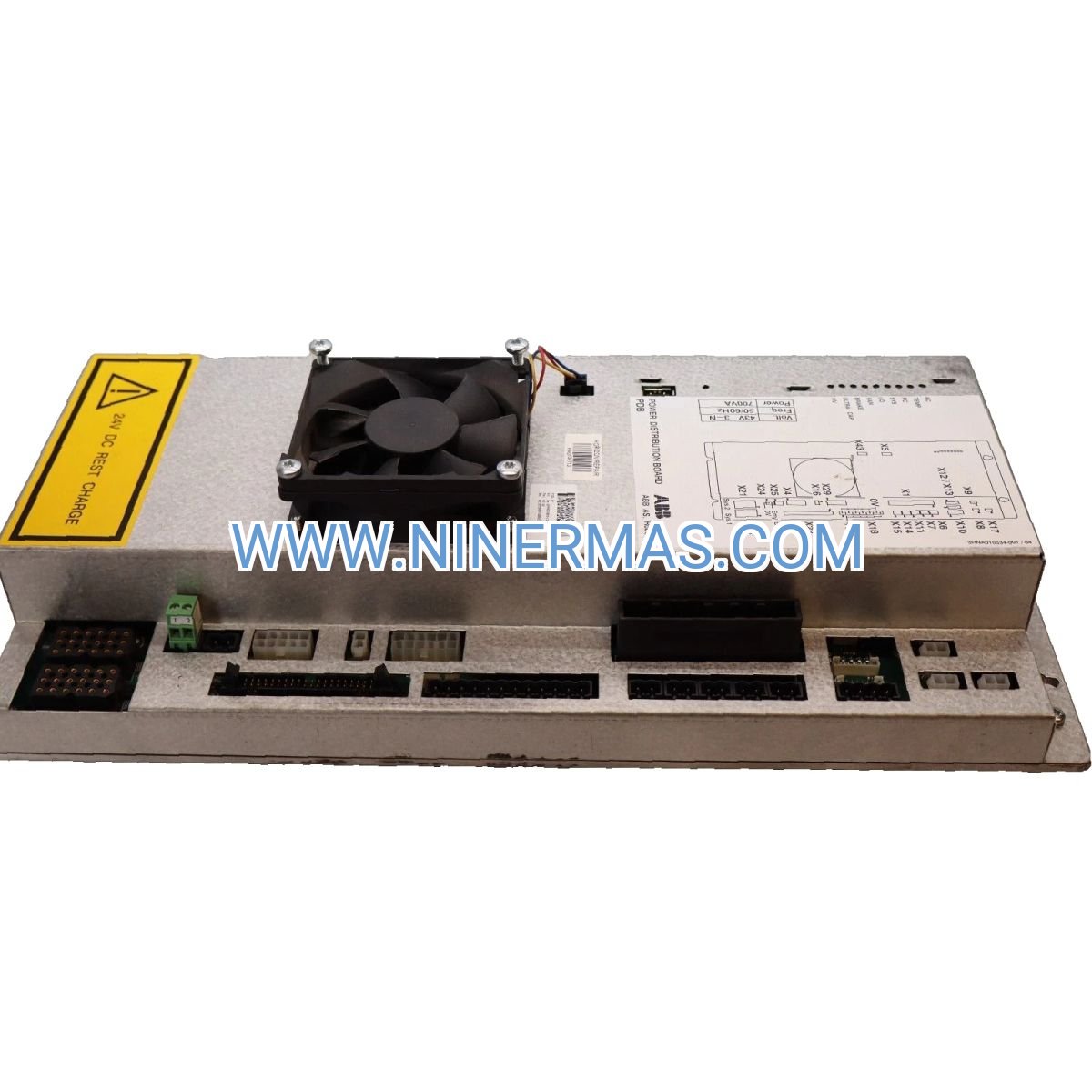

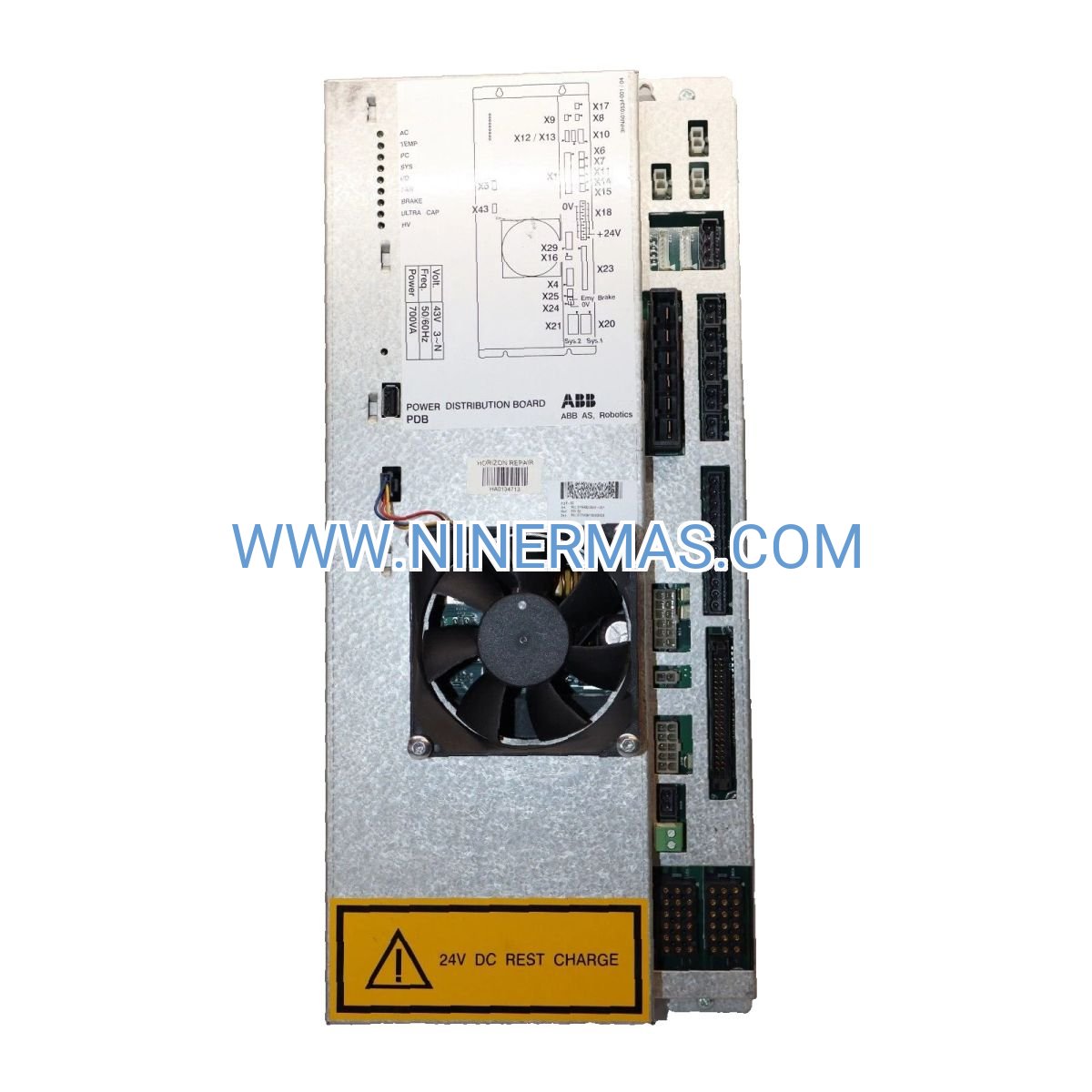

ABB PDB-02 Power Distribution Board – Industrial-Grade Voltage Control for Robotic Systems

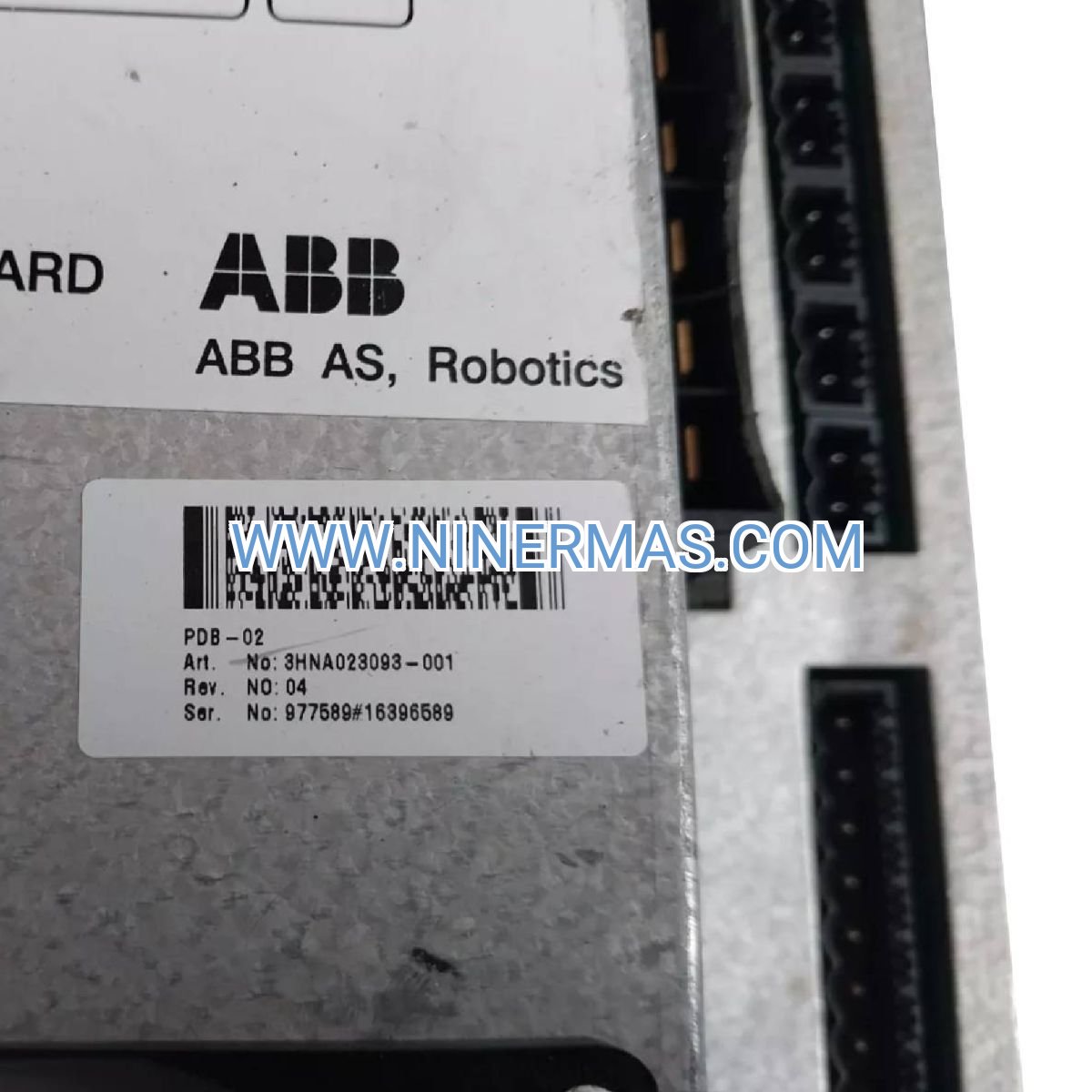

The ABB PDB-02 (Part No. 3HNA023093-001) represents Swiss precision engineering in power distribution technology, purpose-built for demanding industrial robotics environments. This mission-critical component delivers stable, regulated power across multi-axis robotic platforms while providing comprehensive circuit-level protection against electrical faults. Designed for seamless integration with ABB DSQC control architectures, the PDB-02 ensures uninterrupted operation in automated manufacturing cells where downtime translates directly to production losses.

Manufacturing facilities worldwide rely on this power board to maintain consistent voltage delivery to servo drives, motion controllers, and peripheral devices. Its robust construction withstands electromagnetic interference, thermal cycling, and mechanical shock common in factory environments. Whether you're operating automotive assembly lines, material handling systems, or precision welding stations, the PDB-02 provides the electrical backbone for reliable robotic performance.

Backed by ABB's global support network and comprehensive technical documentation, this genuine Swiss-manufactured component delivers long-term value through reduced maintenance intervals and extended system uptime. Contact our technical team to verify compatibility with your specific DSQC controller configuration.

Core Capabilities & Technical Advantages

The PDB-02 combines advanced power management with intelligent protection systems:

• ✓ Multi-Channel Power Distribution: Simultaneous voltage regulation across multiple output circuits ensures balanced power delivery to all connected robotic subsystems, eliminating voltage sag during peak load conditions
• ✓ Triple-Layer Circuit Protection: Integrated overcurrent, short-circuit, and thermal shutdown mechanisms safeguard expensive drive electronics and prevent cascading failures in multi-robot installations
• ✓ Real-Time Diagnostic Monitoring: Built-in status indicators and diagnostic interfaces enable predictive maintenance by alerting operators to degrading power quality before system failures occur
• ✓ Industrial-Grade Component Selection: Automotive-rated capacitors, military-spec connectors, and conformal-coated PCBs deliver reliable operation across -10°C to +55°C ambient temperatures
• ✓ Modular Integration Architecture: Standard DIN-rail mounting and color-coded terminal blocks reduce installation time by 40% compared to custom power distribution solutions
• → EMI/RFI Hardened Design: Shielded construction and filtered inputs maintain clean power delivery even in electrically noisy environments with VFDs, welders, and high-frequency switching equipment

Industry Applications & Use Cases

Automotive Manufacturing & Assembly: In body-in-white welding cells and final assembly stations, the PDB-02 powers synchronized multi-robot teams performing spot welding, material handling, and precision fastening operations. Its stable voltage output ensures consistent weld quality and positioning accuracy across 24/7 production schedules.

Electronics & Semiconductor Fabrication: Cleanroom-compatible robotic systems for wafer handling, component placement, and inspection rely on the PDB-02's low-noise power delivery to prevent electromagnetic interference with sensitive measurement equipment and maintain sub-micron positioning tolerances.

Food & Beverage Packaging: High-speed pick-and-place robots in packaging lines require rapid acceleration and deceleration cycles that create significant electrical transients. The PDB-02's robust filtering and regulation maintain servo drive stability during these demanding motion profiles.

Metal Fabrication & Machining: Robotic loading/unloading systems for CNC machines, press brakes, and laser cutters operate in environments with heavy electrical noise. The board's hardened design ensures reliable power distribution despite interference from nearby industrial equipment.

Pharmaceutical & Medical Device Production: Precision assembly robots in regulated manufacturing environments depend on the PDB-02's consistent power delivery to maintain validation compliance and ensure repeatable process outcomes required by FDA and ISO standards.

Technical Parameters & Selection Criteria

Selection Guidelines: Verify your DSQC controller model and firmware version before ordering. The PDB-02 is designed for multi-axis robotic systems requiring distributed power management. For single-axis or lower-power applications, consult ABB's product selector tool. Ensure your control cabinet provides adequate ventilation and meets ABB's environmental specifications for optimal board longevity.

Advanced Integration & Customization Options

The PDB-02 supports optional expansion modules for specialized applications including redundant power input configurations, extended temperature range operation (-25°C to +70°C), and integrated UPS interfaces for critical processes requiring ride-through capability during brief power interruptions. Custom cable assemblies and pre-configured terminal blocks are available to accelerate commissioning timelines.

For Industry 4.0 implementations, the board interfaces with ABB's Ability™ platform to enable cloud-based power quality monitoring, predictive maintenance analytics, and remote diagnostics. This connectivity allows maintenance teams to track power consumption trends, identify degrading components before failure, and optimize energy efficiency across multi-robot installations.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units; 2-3 weeks for factory-direct orders
Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship
Technical Support: Lifetime access to ABB-certified application engineers for integration assistance, troubleshooting, and configuration guidance
Documentation Package: Includes installation manual, wiring diagrams, RobotStudio configuration files, and compliance certificates (CE, UL, RoHS)

All units ship with factory calibration certificates and undergo 100% functional testing before dispatch. Expedited shipping available for critical downtime situations.

Frequently Asked Questions

Q: How does the PDB-02 integrate with existing ABB DSQC controller cabinets?
A: The board mounts directly to standard DIN rails inside ABB control cabinets. Connection points align with DSQC controller power input terminals, and pre-labeled ports match ABB's standard wiring color codes. Most installations complete in under 2 hours with basic electrical tools.

Q: What power capacity and voltage range does this distribution board support?
A: The PDB-02 handles input voltages from 380-480VAC three-phase and distributes regulated DC voltages to robot subsystems. Total power throughput depends on your specific DSQC controller configuration—consult the technical datasheet or contact our engineers for load calculations.

Q: Can this power board reduce energy consumption in multi-robot installations?
A: Yes. The PDB-02's efficient voltage regulation minimizes power losses compared to linear power supplies, typically reducing overall system energy consumption by 8-12%. Real-time monitoring capabilities also help identify inefficient operating patterns for further optimization.

Q: What are the environmental and installation requirements for reliable operation?
A: Install in a climate-controlled cabinet with ambient temperatures between -10°C and +55°C. Ensure minimum 50mm clearance on all sides for airflow. The board requires a clean, dry environment—avoid exposure to conductive dust, corrosive gases, or condensation.

Q: Does the PDB-02 support remote monitoring and predictive maintenance capabilities?
A: When connected to ABB controllers running compatible firmware, the board provides diagnostic data to RobotStudio and ABB Ability™ platforms. This enables remote power quality monitoring, trend analysis, and automated alerts for preventive maintenance scheduling.

Q: Is this power distribution board compatible with non-ABB robotic systems?
A: While engineered specifically for ABB DSQC ecosystems, the PDB-02 can integrate with other industrial control systems that meet ABB's electrical interface specifications. Contact our technical team to verify compatibility with your specific controller model and firmware version.

Ready to Enhance Your Robotic System Reliability?

Secure stable power delivery for your industrial automation investment. Our technical specialists are available to verify compatibility with your DSQC controller configuration, provide detailed integration guidance, and expedite delivery for critical applications. Request a quote today or contact our engineering team for application-specific recommendations.
