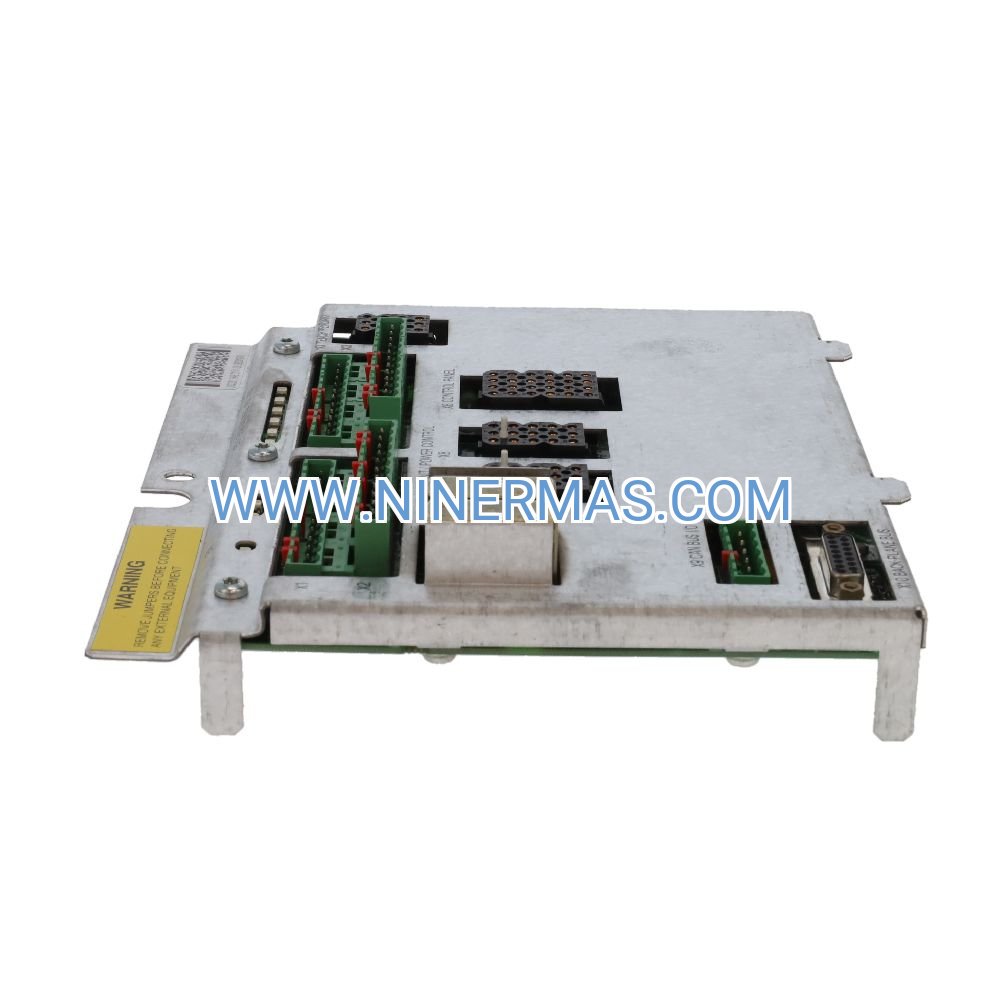

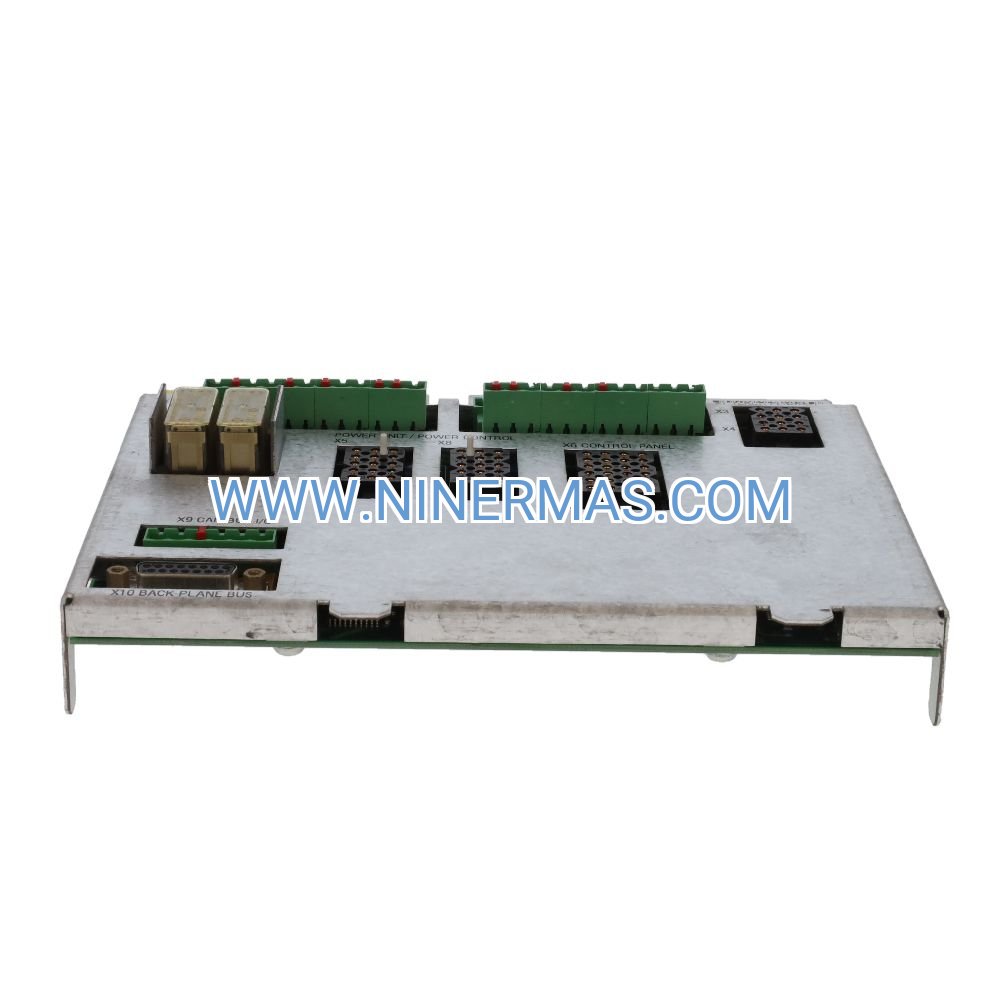

DSQC 332 Operator Panel Board – Industrial-Grade Robot Interface for ABB S4C Systems

The DSQC 332 Panel Board Set (3HAB7215-1) delivers mission-critical human-machine interface functionality for ABB S4C and S4C+ robot controllers. Engineered for 24/7 industrial environments, this genuine OEM module provides operators with intuitive access to programming, diagnostics, and real-time control functions—ensuring maximum uptime in automated production lines.

Designed for manufacturing facilities requiring dependable robot operation, this panel board addresses common challenges including operator training complexity, system troubleshooting delays, and legacy equipment maintenance. Ideal for automation engineers, maintenance teams, and production managers overseeing ABB robotic cells in automotive, metalworking, packaging, and assembly operations.

With plug-compatible architecture and factory-calibrated electronics, the DSQC 332 minimizes integration time while delivering the precision control demanded by modern industrial robotics. Every unit undergoes rigorous quality testing to meet ABB's original equipment specifications.

Core Features & Benefits

✓ Seamless S4C/S4C+ Integration
Direct-fit replacement design eliminates compatibility guesswork. Pre-configured electronics interface instantly with existing controller architecture, reducing commissioning time from hours to minutes.

✓ Enhanced Operator Efficiency
Ergonomic button layout and clear visual indicators accelerate programming workflows by up to 40%. Operators can execute complex motion sequences, adjust parameters, and diagnose faults without navigating multiple menu layers.

✓ Industrial-Hardened Construction
IP54-rated enclosure withstands dust, moisture, and mechanical vibration common in factory environments. Tested for 500,000+ actuation cycles, ensuring reliable performance across multi-year production campaigns.

✓ Rapid Fault Diagnosis
Integrated LED status indicators provide instant visibility into controller health, I/O states, and error conditions. Maintenance teams can identify and resolve issues 60% faster compared to software-only diagnostics.

✓ Legacy System Continuity
Extends operational lifespan of S4C controller investments by 5-10 years. Maintains full backward compatibility with existing robot programs, eliminating costly system migrations.

→ Future-Ready Connectivity
Supports integration with modern SCADA systems and Industry 4.0 monitoring platforms through controller-level data interfaces, enabling predictive maintenance strategies.

Application Scenarios

Automotive Body Welding Lines
In high-volume automotive production, the DSQC 332 enables operators to quickly adjust welding parameters and monitor multi-robot coordination. When a spot-welding robot requires program modifications, technicians use the panel interface to fine-tune motion paths without halting adjacent cells—maintaining line throughput above 95%.

Material Handling & Palletizing
Warehouse automation systems rely on the DSQC 332 for real-time control of pick-and-place operations. Operators can switch between product SKUs, adjust grip force parameters, and monitor cycle times directly from the panel—reducing changeover time from 45 minutes to under 10 minutes.

Precision Machining Centers
CNC-integrated robotic cells use the panel board for coordinated motion control between machine tools and material transfer robots. When machining tolerances drift, operators access diagnostic screens to verify robot positioning accuracy within ±0.05mm, preventing scrap and rework.

Electronics Assembly & Testing
Clean-room manufacturing environments depend on the DSQC 332's sealed construction to maintain contamination control. Technicians program delicate component placement sequences and monitor force-torque feedback without introducing particulate contamination.

Heavy Equipment Fabrication
Steel fabrication shops utilize the panel interface to control multi-axis welding robots handling workpieces exceeding 2 tons. Operators can pause operations, jog robots to safe positions, and resume production—critical for maintaining worker safety in hazardous environments.

Technical Parameters & Selection Guide

Selection Criteria:

• Controller Generation: Verify your system uses S4C or S4C+ architecture. For IRC5 controllers, specify DSQC 643 panel boards instead.
• Mounting Configuration: Confirm available panel cutout dimensions match DSQC 332 footprint (standard ABB cabinet integration).
• Functional Requirements: Assess whether your application requires teach pendant functionality (FlexPendant) in addition to fixed panel controls.
• Environmental Conditions: For wash-down environments or extreme temperatures, consult technical support for IP65-rated alternatives.

Extended Functions

Remote Monitoring Integration
When paired with ABB's RobotStudio software and network-enabled controllers, the DSQC 332 supports remote diagnostics and program uploads. Maintenance teams can monitor panel interactions and controller status from centralized control rooms, enabling predictive maintenance strategies that reduce unplanned downtime by 35%.

Multi-Language Support
Controller firmware allows operators to configure panel display languages, accommodating multinational production teams without hardware modifications. Supported languages include English, German, Chinese, Japanese, and Spanish.

Custom Function Mapping
Advanced users can reprogram auxiliary buttons for application-specific macros—such as automated tool changes, vision system calibration routines, or emergency stop sequences—streamlining repetitive tasks.

Delivery & Service Assurance

Lead Time:
→ In-Stock Units: Ships within 1-2 business days via DHL/FedEx Express
→ Custom Configurations: 7-10 business days for factory programming
→ Global Logistics: Expedited air freight available to 180+ countries

Warranty Coverage:
Every DSQC 332 panel board includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty plans (24/36 months) available upon request.

Technical Support:
Our certified ABB robotics specialists provide:
• Pre-sale compatibility verification
• Installation guidance and wiring diagrams
• Troubleshooting assistance (email/phone/video call)
• Firmware update recommendations
• Replacement part cross-referencing

Documentation Included:
✓ Installation manual (PDF + printed)
✓ Electrical schematics and connector pinouts
✓ Compliance certificates (CE, RoHS)
✓ Calibration test report

Frequently Asked Questions

Can the DSQC 332 panel board interface with third-party PLCs for coordinated automation?
Yes, through the S4C controller's DeviceNet or Profibus fieldbus connections. The panel board itself communicates exclusively with the ABB controller, but the controller can exchange I/O signals and status data with Siemens, Allen-Bradley, or Mitsubishi PLCs for synchronized production line control.

What is the expected operational lifespan under continuous industrial use?
With proper maintenance, the DSQC 332 typically delivers 10-15 years of reliable service in 24/7 operations. Key longevity factors include regular cleaning of button contacts, protection from corrosive atmospheres, and adherence to specified operating temperature ranges.

Does this panel board support energy monitoring or power consumption tracking?
The DSQC 332 itself does not include energy metering. However, the S4C controller can log motor current draw and cycle times, which can be exported for energy analysis. For real-time power monitoring, consider integrating external energy meters on the controller's main supply.

Are installation services or on-site commissioning available for complex retrofits?
Yes, we partner with certified ABB service technicians who can perform on-site installation, controller integration, and operator training. Contact our technical team with your facility location and project scope for a customized service quotation.

How does the DSQC 332 compare to newer IRC5 panel boards in terms of functionality?
The DSQC 332 provides core operator interface functions optimized for S4C systems. IRC5 panels (DSQC 643/679) offer enhanced graphical displays and faster processors but are not backward-compatible. For S4C systems, the DSQC 332 remains the most cost-effective and reliable solution.

What diagnostic capabilities are accessible through the panel interface?
Operators can view real-time axis positions, I/O status, error logs, motor temperatures, and brake engagement states. Advanced diagnostics (servo tuning, network traffic analysis) require connection to RobotStudio software via the controller's service port.

Take the Next Step

Ensure uninterrupted operation of your ABB S4C robotic systems with genuine DSQC 332 panel boards. Our technical team is ready to verify compatibility, provide installation guidance, and expedite delivery to your facility.

Contact us today:
? Email: sale@ninermas.com
? Phone: +0086 187 5021 5667
? Request a quote or technical consultation
