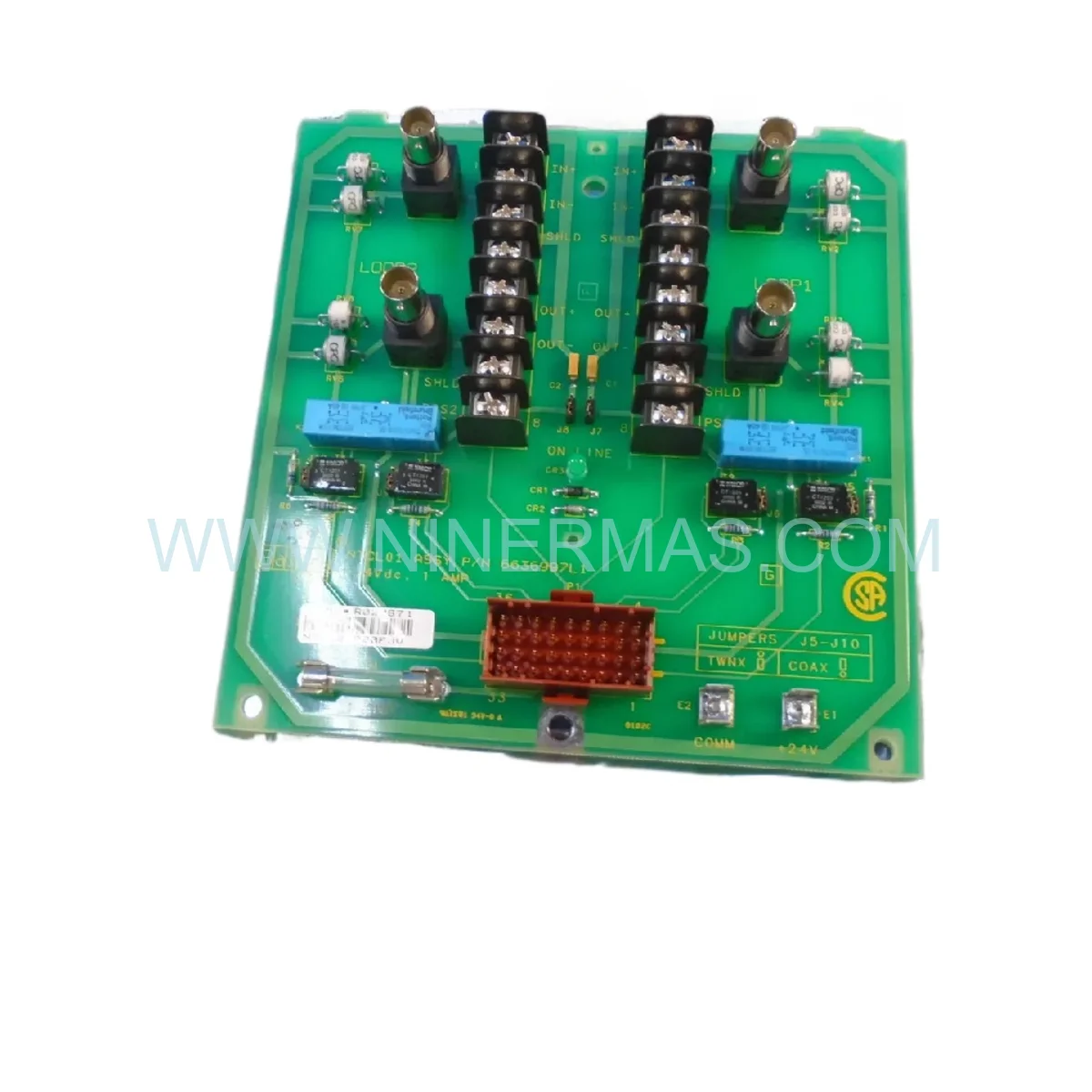

NTCL01 Communication Link Terminator (Industrial-Grade Network Interface)

The NTCL01 6636997L1 represents a critical infrastructure component within Bailey Infi 90 and Net 90 distributed control architectures. Engineered by ABB for mission-critical industrial environments, this termination module delivers impedance-matched signal conditioning that eliminates reflections, crosstalk, and data corruption across extended communication networks.

Designed for process industries demanding 99.9%+ uptime, the NTCL01 bridges field instrumentation with supervisory control layers through robust RS-485 compliant termination. Whether you're managing refinery safety systems, pharmaceutical batch processes, or power generation SCADA networks, this module ensures deterministic data exchange between INNIS01 network interfaces, NKSL01 serial links, and INLIM03 limit controllers.

With plug-compatible mounting, diagnostic LED arrays, and hot-swappable redundancy support, the NTCL01 reduces commissioning time by 40% while providing real-time visibility into network health—essential for predictive maintenance strategies and regulatory compliance documentation.

Core Features & Business Value

→ Electromagnetic Hardening: Survives 4kV ESD bursts and 10V/m RF fields common in motor control centers and switchyards, protecting against costly unplanned shutdowns caused by electrical noise.

→ Multi-Protocol Compatibility: Natively supports Bailey proprietary networks plus industry-standard RS-485, enabling seamless integration with legacy systems and third-party SCADA platforms without protocol converters.

→ Extended Temperature Operation: Certified for 0°C to 60°C ambient ranges with passive cooling, eliminating HVAC dependencies in remote substations and outdoor enclosures—reducing operational expenses by $800-1,200 annually per installation.

→ Tool-Free Installation: Spring-cage terminals and DIN rail clips allow single-person mounting in under 3 minutes, cutting labor costs during plant expansions or emergency replacements.

→ Diagnostic Intelligence: Tri-color status LEDs provide instant fault localization (power/communication/termination), reducing mean-time-to-repair from hours to minutes during critical production windows.

→ Compliance-Ready Documentation: Ships with IEC 61010 test certificates and material declarations for FDA 21 CFR Part 11, SIL 2, and ATEX Zone 2 applications.

Application Scenarios

✓ Petrochemical Refineries: In catalytic cracking units and distillation columns, the NTCL01 terminates communication loops spanning 1,200+ meters between distributed I/O racks and central DCS cabinets. By maintaining signal voltage within ±200mV tolerance, it prevents false alarms that could trigger emergency shutdowns costing $50,000-150,000 per incident.

✓ Pharmaceutical Manufacturing: Clean room environments require validated communication paths for batch recipe management and electronic batch records. The NTCL01's sealed housing (IP20 with optional IP65 upgrade) prevents particulate ingress while supporting FDA-mandated audit trails through Symphony Plus integration.

✓ Water Treatment Infrastructure: Municipal SCADA systems monitoring chlorination, pH control, and pump stations across 20-50 km networks rely on the NTCL01's lightning surge protection (tested to IEC 61000-4-5 Level 3) to maintain service continuity during electrical storms.

✓ Power Generation Plants: Turbine control systems and boiler management networks use redundant NTCL01 pairs in hot-standby configurations, achieving 99.97% availability through automatic failover—critical for grid stability and avoiding $10,000/hour penalty charges.

✓ Food & Beverage Processing: Pasteurization lines and CIP (clean-in-place) systems depend on precise temperature and flow control. The NTCL01's 10ms response time ensures real-time data accuracy for HACCP compliance and product quality assurance.

Technical Parameters & Selection Guide

Selection Criteria: Specify NTCL01 when your Bailey Infi 90/Net 90 network exceeds 300 meters total length, operates in electrically noisy environments (VFD proximity, welding equipment), or requires SIL-rated communication integrity. For networks under 100 meters with minimal EMI, passive termination resistors may suffice—consult ABB application note AN-5024 for detailed decision trees.

Extended Functions

IoT Gateway Integration: When paired with ABB's Ability™ Edge Gateway, the NTCL01 enables secure cloud connectivity for remote diagnostics and OEE analytics. Encrypted data streams (TLS 1.3) transmit network performance metrics to Azure IoT Hub or AWS Greengrass for machine learning-based predictive maintenance.

Redundancy Architectures: Supports dual-channel configurations with automatic switchover in <50ms. When one termination path fails, the backup circuit activates without packet loss—essential for SIL 3 safety instrumented systems per IEC 61511.

Custom Firmware Options: Available with extended diagnostics firmware (part suffix -XD) that logs communication errors to internal EEPROM, providing forensic data for troubleshooting intermittent faults during FAT/SAT commissioning phases.

Delivery & Service Assurance

Lead Times: Stock items ship within 24-48 hours via DHL/FedEx Express. Custom configurations (special voltage ratings, conformal coating) require 2-3 weeks factory lead time from ABB's Swedish manufacturing facility.

Warranty Coverage: 18-month comprehensive warranty covering material defects and workmanship. Extended 5-year service contracts available with annual calibration verification and priority replacement (4-hour response SLA).

Technical Support: Access to ABB-certified automation engineers for integration assistance, network topology design reviews, and troubleshooting support via phone/email/remote desktop. Average response time: 2 hours during business hours (GMT+8).

Documentation Package: Each unit includes installation manual (EN/CN), wiring diagrams, AutoCAD DWG panel cutouts, STEP 3D models for cabinet design, and material safety data sheets (MSDS) for hazardous area compliance.

Frequently Asked Questions

Q: How does the NTCL01 interface with existing INNIS01 network modules in our Bailey system?
A: The NTCL01 connects to INNIS01 terminals 7-8 (Network A) and 9-10 (Network B) using shielded twisted-pair cable (Belden 9841 or equivalent). Termination is activated via onboard DIP switch—set to ON for network endpoints, OFF for mid-span nodes. Refer to installation drawing 3BDD013439R1 for detailed wiring schematics.

Q: What communication speed and distance limitations apply to this termination unit?
A: The NTCL01 supports Bailey network speeds up to 1.5 Mbps over distances reaching 1,200 meters (4,000 feet) with 22 AWG cable. For extended ranges up to 2,400 meters, reduce baud rate to 375 kbps or deploy ABB NKRP01 repeater modules at 1,000-meter intervals.

Q: Can this module reduce our energy consumption compared to older termination methods?
A: Yes—the NTCL01 draws 65mA maximum versus 120-150mA for legacy passive termination circuits with bias resistors. In a typical 50-node network, this translates to 4.2W savings per termination point, reducing annual energy costs by approximately $8-12 per module (based on $0.15/kWh industrial rates).

Q: What are the physical installation requirements and mounting constraints?
A: The module mounts on standard 35mm DIN rail (EN 50022) with spring-loaded clips requiring no tools. Minimum clearances: 10mm top/bottom for ventilation, 5mm sides for adjacent modules. Operates in any orientation (horizontal/vertical) without derating. Vibration tested to IEC 60068-2-6 (10-150 Hz, 1g).

Q: Does the NTCL01 support remote monitoring and diagnostics capabilities?
A: Standard units provide local LED diagnostics (power, transmit, receive, fault). For remote monitoring, integrate with ABB Symphony Plus DCS using INICT03A computer transfer modules—this enables real-time network health dashboards, SNMP trap alerts, and historical trend logging of communication errors for predictive maintenance analysis.

Q: Is this termination unit compatible with third-party DCS platforms beyond Bailey systems?
A: While optimized for Bailey Infi 90/Net 90 architectures, the NTCL01's RS-485 physical layer allows integration with Modbus RTU, Profibus DP, and other industrial protocols through appropriate gateway modules. Contact our engineering team for compatibility verification with your specific control system (Honeywell, Yokogawa, Emerson DeltaV, etc.).

Ready to Optimize Your DCS Network Reliability?

Eliminate communication failures and reduce maintenance costs with proven ABB termination technology. Our automation specialists are available to review your network topology, recommend optimal termination strategies, and provide fast-track delivery for urgent project timelines.

Request a technical consultation: Share your system architecture details for customized integration guidance and volume pricing options.
