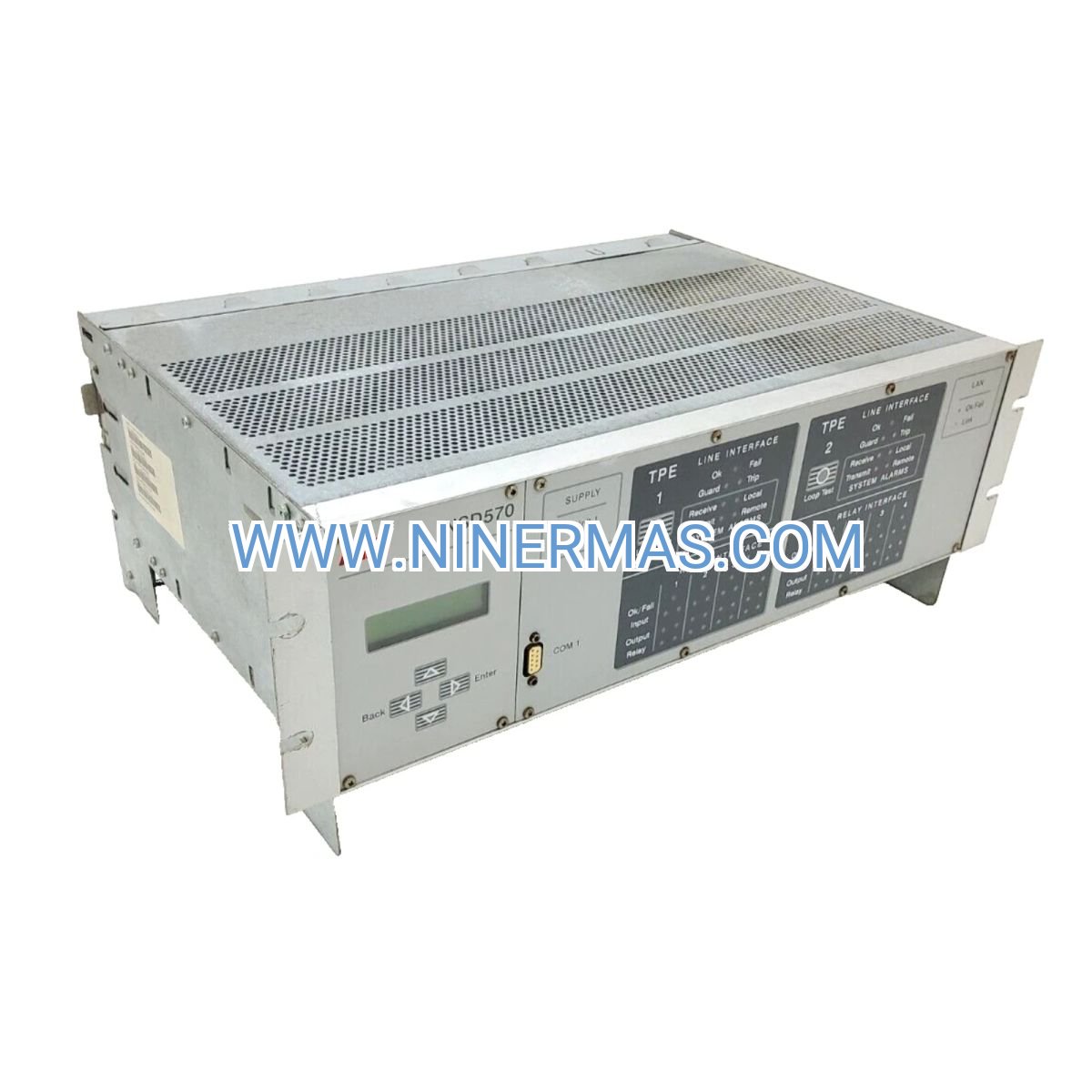

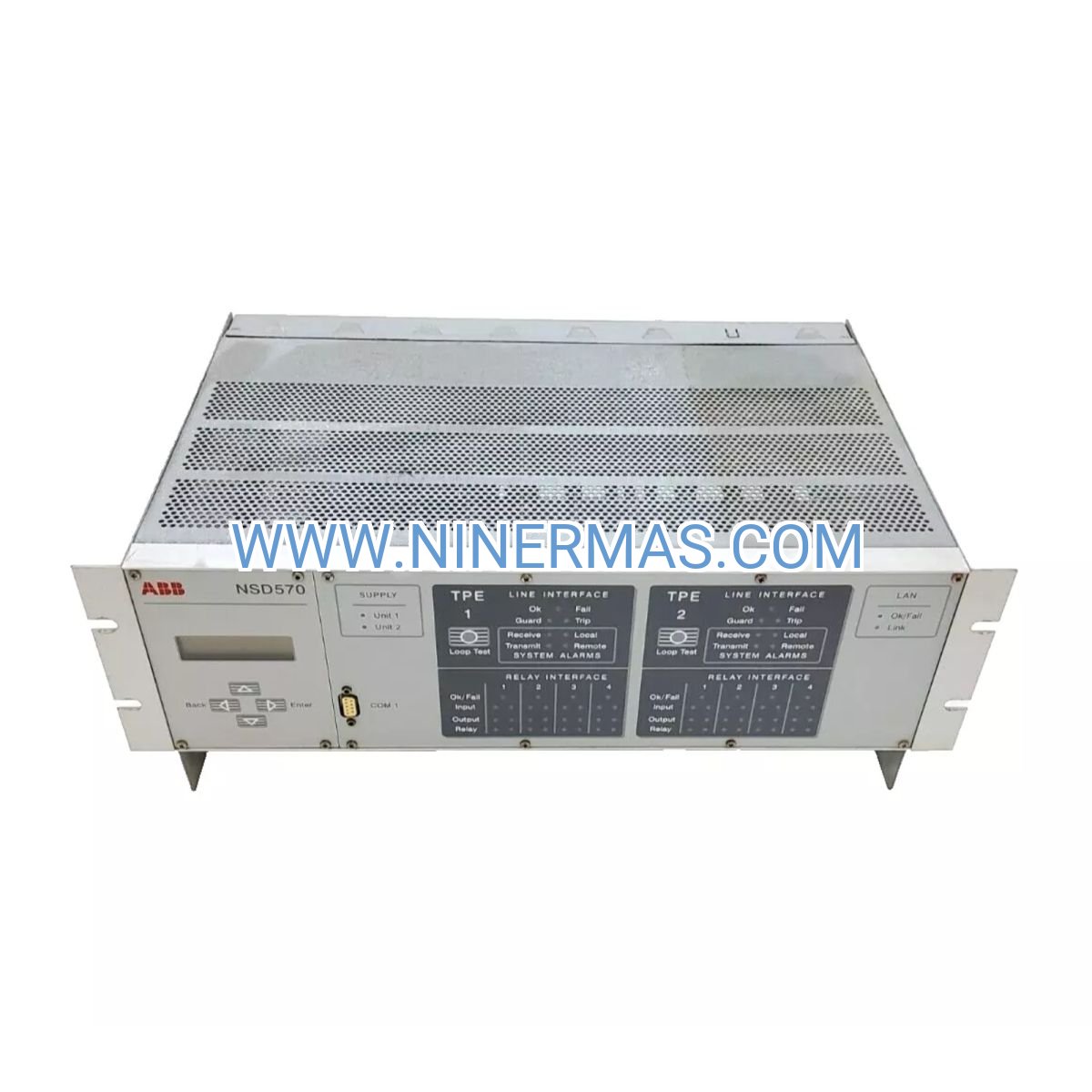

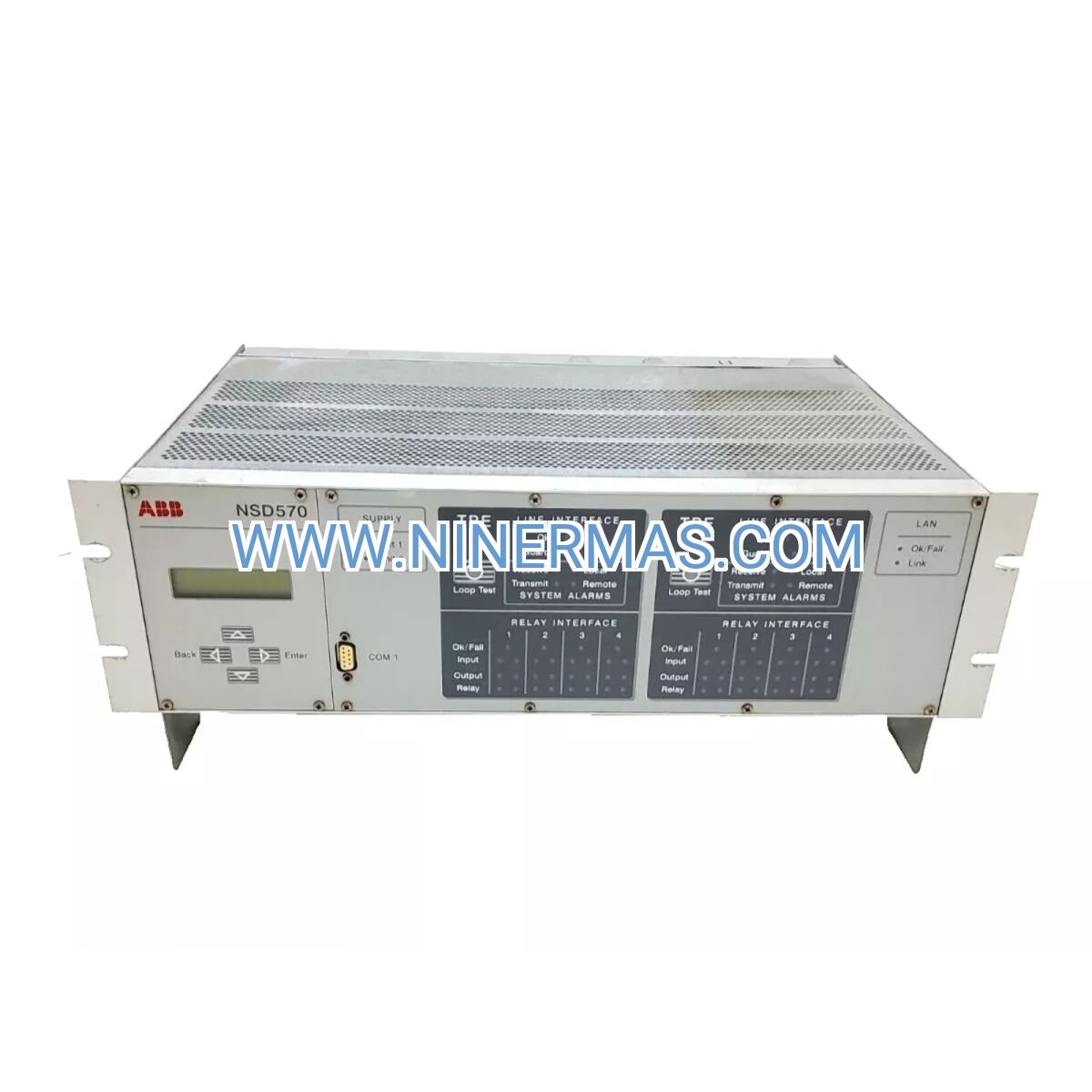

ABB NSD570 Teleprotection System (Industrial-Grade Communication Equipment)

The ABB NSD570 is a specialized teleprotection terminal designed for electric utilities requiring dependable fault detection and isolation across transmission networks. Utilizing power line carrier (PLC) technology, this system transmits protection signals over existing high-voltage conductors, eliminating the need for dedicated communication infrastructure. Engineered for mission-critical applications, it serves as the communication backbone for differential, distance, and directional comparison protection schemes.

Utilities face constant challenges in maintaining grid reliability while managing aging infrastructure and expanding networks. The NSD570 addresses these concerns by providing a robust, field-proven platform that operates in harsh electrical environments where fiber optics or microwave links are impractical or cost-prohibitive. Its adaptive signal processing automatically compensates for line impedance variations and electromagnetic interference, ensuring consistent performance across diverse operating conditions.

Key advantages include rapid deployment without trenching or tower modifications, compatibility with both legacy and modern relay systems, and comprehensive diagnostics that reduce mean time to repair. The system's modular design supports future upgrades while maintaining backward compatibility, protecting your infrastructure investment over decades of service life.

Core Features & Benefits

→ Multi-Frequency Operation: Supports 40-500 kHz frequency bands with automatic channel selection, enabling simultaneous protection and SCADA communication on the same transmission line without interference.

→ Sub-Millisecond Latency: Achieves end-to-end signal transmission in under 8 milliseconds, meeting the stringent timing requirements for high-speed differential protection on critical 500kV+ transmission corridors.

→ Environmental Resilience: Operates reliably from -40°C to +70°C with IP54-rated enclosures, withstanding extreme temperature swings, dust, and moisture typical of outdoor substation environments.

→ Universal Relay Interface: Provides both dry contact and voltage-level inputs/outputs, ensuring seamless integration with electromechanical, solid-state, and microprocessor-based protective relays from any manufacturer.

→ Built-In Diagnostics: Continuous self-monitoring with alarm outputs for carrier loss, signal degradation, and equipment faults, enabling predictive maintenance and reducing unplanned outages by up to 40%.

→ IEC 60834 Compliance: Fully certified to international teleprotection standards, guaranteeing interoperability with third-party equipment and meeting regulatory requirements across global markets.

Typical Application Scenarios

Transmission Line Differential Protection:
In 230kV-765kV transmission systems, the NSD570 enables current differential schemes by exchanging phasor data between line terminals. When internal faults occur, both ends detect the imbalance and issue simultaneous trip commands within 15 milliseconds, isolating the fault before cascading failures develop. This application is critical for utilities managing long-distance bulk power transfer where fault clearing speed directly impacts system stability.

Distance Protection Pilot Schemes:
For utilities using permissive overreach or blocking schemes, the NSD570 transmits directional information between substations to accelerate Zone 2/Zone 3 tripping. This reduces fault clearing times from 300-500ms to under 100ms, minimizing equipment damage and improving power quality for industrial customers sensitive to voltage sags.

Transfer Trip Applications:
In radial feed configurations or generation interconnections, the NSD570 provides direct transfer trip (DTT) functionality, allowing remote breaker control without complex logic. When a fault is detected at one location, the system instantly commands breaker opening at the remote terminal, preventing backfeed conditions and protecting de-energized line sections during maintenance.

Legacy System Modernization:
Utilities with aging analog teleprotection equipment use the NSD570 as a drop-in replacement, leveraging existing PLC coupling equipment and tuning units. The backward-compatible interface preserves investments in line traps and coupling capacitors while adding digital diagnostics and remote monitoring capabilities unavailable in 1980s-era systems.

Renewable Integration Projects:
Wind and solar farms connecting to transmission grids require fast fault clearing to meet grid code requirements. The NSD570 enables cost-effective protection coordination between the point of interconnection and the nearest utility substation, supporting distributed generation growth without expensive fiber optic installations across rural terrain.

Technical Parameters & Selection Guide

Selection Criteria: When specifying the NSD570, consider transmission line voltage (determines coupling equipment), protection scheme type (differential vs. distance), required communication speed (protection-only vs. combined SCADA), and existing infrastructure (new installation vs. retrofit). For lines exceeding 200km, evaluate signal attenuation and potential need for repeaters. Consult factory application engineers for complex multi-terminal configurations or integration with IEC 61850 substation automation systems.

Extended Functions

Remote Monitoring & Control: The NSD570 supports DNP3 and Modbus protocols, enabling integration with utility SCADA/EMS platforms. Operators can remotely monitor carrier signal strength, bit error rates, and equipment health metrics, facilitating centralized management of geographically dispersed teleprotection assets.

Cybersecurity Features: Optional encryption modules provide AES-256 protection for transmitted data, addressing NERC CIP compliance requirements for critical cyber assets. Role-based access control and audit logging support regulatory documentation needs.

Customization Options: Field-replaceable communication cards allow frequency band changes without returning equipment to the factory. Custom firmware can accommodate utility-specific protection logic or interface requirements, with factory validation testing available to ensure compatibility with existing systems.

Delivery & Service Assurance

Lead Time: Standard configurations ship within 6-8 weeks from order confirmation. Custom-configured units with specialized firmware or testing requirements typically require 10-12 weeks. Expedited production available for emergency replacements or critical project deadlines.

Warranty: 24-month comprehensive warranty covering materials, workmanship, and firmware defects. Extended warranty programs available for up to 60 months, including advance replacement and priority technical support.

Technical Support: Factory-trained application engineers provide pre-sales system design assistance, commissioning support, and troubleshooting guidance. 24/7 emergency hotline available for critical outage situations. Regional service centers offer on-site commissioning and training services.

Documentation: Each unit ships with installation manual, configuration software, test certificates, and CAD drawings for panel integration. IEC 61850 SCL files and relay setting examples provided for common protection schemes. Online knowledge base includes application notes, firmware updates, and video tutorials.

Frequently Asked Questions

Q: How does the NSD570 interface with modern IEC 61850 protection relays?
A: The system provides hardwired contact inputs/outputs for direct relay interfacing, while Ethernet ports support GOOSE messaging for advanced applications. A protocol gateway can map traditional teleprotection signals to IEC 61850 logical nodes, enabling hybrid protection schemes during substation modernization projects.

Q: What transmission line lengths can the NSD570 support effectively?
A: Typical range is 5-300 km depending on line voltage, conductor type, and frequency selection. Higher frequencies (200-500 kHz) work best for shorter lines with lower attenuation, while lower frequencies (40-100 kHz) penetrate farther on long EHV circuits. Factory application engineering can model your specific line parameters to confirm feasibility.

Q: Can this equipment reduce our protection system operating costs?
A: Yes, by eliminating monthly fees for leased communication circuits (fiber, microwave, or telecom channels), utilities typically achieve ROI within 18-36 months. Additional savings come from reduced site visits due to remote diagnostics and lower spare parts inventory compared to maintaining multiple communication technologies.

Q: What installation requirements should we plan for during substation upgrades?
A: The NSD570 requires standard 19-inch rack mounting (4U height), DC station battery connection, and coaxial cable runs to existing line coupling equipment. No specialized tools needed beyond basic electrical test equipment. Commissioning typically takes 4-8 hours per terminal including signal optimization and end-to-end testing.

Q: Does the system support remote firmware updates for cybersecurity patches?
A: Yes, authorized personnel can upload firmware via Ethernet or serial connections using encrypted update files. The dual-boot architecture ensures the previous firmware version remains available if an update fails, preventing equipment lockout. All update activities are logged for audit compliance.

Q: How does performance compare to fiber optic teleprotection systems?
A: While fiber offers higher bandwidth and immunity to electrical interference, PLC-based systems like the NSD570 provide comparable protection performance (sub-10ms latency) at significantly lower installed cost when existing transmission lines can serve as the communication medium. For protection-only applications on lines under 200km, performance differences are negligible in fault clearing times.

Get Expert Guidance for Your Grid Protection Project

Our application engineers are ready to evaluate your transmission line protection requirements and recommend the optimal NSD570 configuration. Contact us today for technical specifications, project pricing, or to schedule a consultation on integrating teleprotection into your substation modernization plan.
