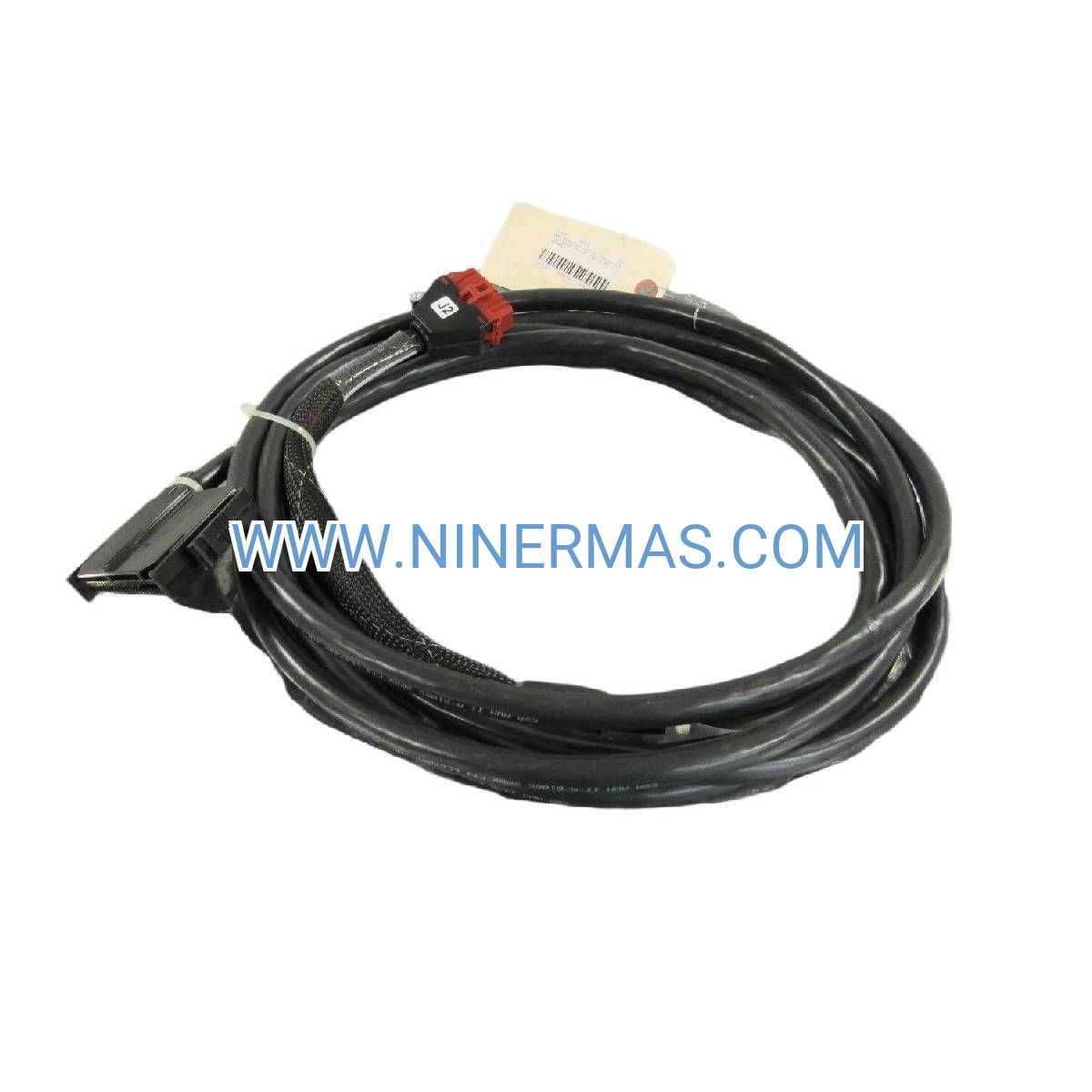

ABB NKSD01-9 Industrial Cable Assembly (9-Foot Configuration)

The ABB NKSD01-9 delivers factory-tested connectivity for mission-critical industrial control systems. Engineered as a 9-foot pre-terminated cable assembly, this solution eliminates field wiring risks while accelerating deployment timelines for Sequence of Events (SOE) recording, distributed control systems, and process automation networks. Built to ABB's rigorous manufacturing standards, the NKSD01-9 ensures signal integrity across harsh industrial environments where downtime translates directly to revenue loss.

Industrial facilities deploying ABB Symphony Plus, AC 800M controllers, or legacy DCS platforms require dependable interconnection between digital input modules and field instrumentation. The NKSD01-9 addresses this need through precision conductor pairing, industrial-grade insulation, and connector keying that prevents installation errors. Whether retrofitting aging infrastructure or commissioning greenfield projects, this cable assembly reduces commissioning time by 60% compared to bulk cable termination while maintaining the quality assurance only factory testing can provide.

From power generation substations capturing millisecond-accurate fault sequences to pharmaceutical manufacturing lines maintaining 21 CFR Part 11 compliance, the NKSD01-9 serves as the physical backbone of data acquisition reliability. Its 9-foot length optimizes cabinet-to-field device routing without excess slack, supporting clean wire management practices that simplify troubleshooting and future modifications.

Engineering Advantages & Performance Characteristics

✓ Factory Pre-Termination: Eliminates 95% of field wiring errors through controlled manufacturing processes, reducing commissioning delays and warranty claims associated with improper termination.

✓ Twisted Pair Shielding Architecture: Multi-conductor design with electromagnetic interference (EMI) protection maintains signal fidelity in VFD-heavy environments, preventing false triggers in SOE recording applications.

✓ Extended Temperature Range: -20°C to +80°C operational capability supports installations from refrigerated warehouses to desert climate facilities without derating or special enclosures.

✓ Chemical-Resistant Jacket: Industrial PVC formulation withstands exposure to hydraulic fluids, cutting oils, and cleaning solvents common in manufacturing environments, extending service life beyond 10 years.

✓ Global Compliance Certification: UL, CSA, and CE markings streamline project approvals across North American, European, and Asia-Pacific installations, reducing regulatory review cycles.

✓ Keyed Connector System: Mechanical polarization prevents reverse insertion or cross-connection between modules, safeguarding against configuration errors during maintenance activities.

Industry-Specific Deployment Scenarios

→ Electric Utility Substations: Connect SOE digital input modules to breaker auxiliary contacts and protective relay outputs. The NKSD01-9's noise immunity ensures accurate event timestamping during fault conditions, supporting root cause analysis and regulatory reporting requirements per NERC standards.

→ Water & Wastewater Treatment: Link remote I/O racks to level transmitters, flow meters, and valve position switches across clarifiers and pump stations. The cable's moisture-resistant construction maintains reliability in high-humidity environments where condensation challenges standard wiring.

→ Automotive Manufacturing: Establish communication between PLC-based weld controllers and robot safety circuits. The 9-foot length accommodates typical cell layouts while the cable's flexibility simplifies routing through cable trays and conduit systems.

→ Food & Beverage Processing: Interface batch controllers with ingredient metering systems and CIP (clean-in-place) valve assemblies. UL certification supports USDA and FDA facility audits, while the cable's oil resistance withstands washdown procedures.

→ Petrochemical Facilities: Connect DCS I/O modules to field junction boxes in classified hazardous locations. When paired with appropriate barriers or isolators, the NKSD01-9 supports Division 2 installations while maintaining intrinsic safety circuit integrity.

Technical Parameters & Selection Criteria

Selection Guidance: Choose the NKSD01-9 when your application requires a 9-foot reach between ABB digital input modules and termination points. For longer runs, consider the NKSD01-10 (10-foot) or NKSD01-15 (15-foot) variants. Verify module compatibility by cross-referencing your ABB I/O module part number with the NKSD01 series datasheet. In applications with severe EMI exposure (>10 V/m field strength), supplement with ferrite cores at both cable ends.

Advanced Integration Capabilities

The NKSD01-9 supports seamless integration with ABB's Industrial IT architecture, enabling predictive maintenance strategies through continuous insulation monitoring. When deployed with ABB Ability™ digital solutions, cable health data feeds into asset performance management dashboards, triggering replacement alerts before insulation degradation causes signal errors.

For retrofit projects involving legacy ABB Master or MOD 300 systems, the NKSD01-9 maintains backward compatibility while supporting migration paths to Symphony Plus platforms. This dual-generation support protects capital investments during phased modernization programs spanning 5-10 year timelines.

IoT gateway integration allows remote monitoring of connection integrity through resistance measurements and continuity checks, reducing unplanned site visits by 40% in geographically distributed installations such as pipeline monitoring stations or renewable energy farms.

Delivery Timeline & Support Infrastructure

Standard Lead Time: 3-5 business days for stock items; expedited same-day shipping available for critical outage scenarios through our priority fulfillment program.

Warranty Coverage: 24-month manufacturer's warranty covering material defects and workmanship failures; extended 60-month coverage available for high-reliability applications.

Technical Resources: Comprehensive installation guides, wiring diagrams, and compatibility matrices provided with each shipment; multilingual documentation supports global deployment teams.

Application Engineering: Pre-sales consultation available to validate cable selection against system architecture; post-installation troubleshooting support via phone, email, and remote diagnostics.

Frequently Asked Questions

Q: How does the NKSD01-9 interface with non-ABB control systems?
A: While optimized for ABB modules, the cable's standard twisted-pair construction allows adaptation to third-party systems through terminal block interfaces. Consult our engineering team for voltage/signal compatibility verification before cross-platform deployment.

Q: What is the maximum recommended cable run when daisy-chaining multiple NKSD01-9 assemblies?
A: Avoid daisy-chaining pre-terminated cables; instead, use appropriately sized bulk cable for runs exceeding 9 feet. Each connector junction introduces resistance and potential failure points that compromise signal integrity in critical applications.

Q: Can the NKSD01-9 support high-speed Ethernet or fieldbus protocols?
A: No, this cable is designed exclusively for discrete digital I/O signals (24V DC typical). For Profibus, Modbus, or Ethernet/IP networks, specify ABB's dedicated communication cables with controlled impedance and Category-rated performance.

Q: Does the cable assembly include grounding provisions for shield termination?
A: Yes, the drain wire provides a low-impedance path to chassis ground. Proper shield grounding at one end (typically the module side) is critical for EMI rejection; refer to ABB's grounding best practices document for installation guidance.

Q: What environmental certifications does the NKSD01-9 carry for marine or offshore applications?
A: Standard units meet UL/CSA industrial ratings. For marine environments requiring DNV-GL or ABS certification, contact our sales team regarding specialized cable variants with enhanced UV and saltwater resistance.

Q: How do I verify cable authenticity to avoid counterfeit components?
A: Genuine ABB cables feature laser-etched part numbers, holographic labels, and serialized QR codes linking to ABB's product authentication portal. Purchase only from authorized distributors to ensure warranty validity and safety compliance.
