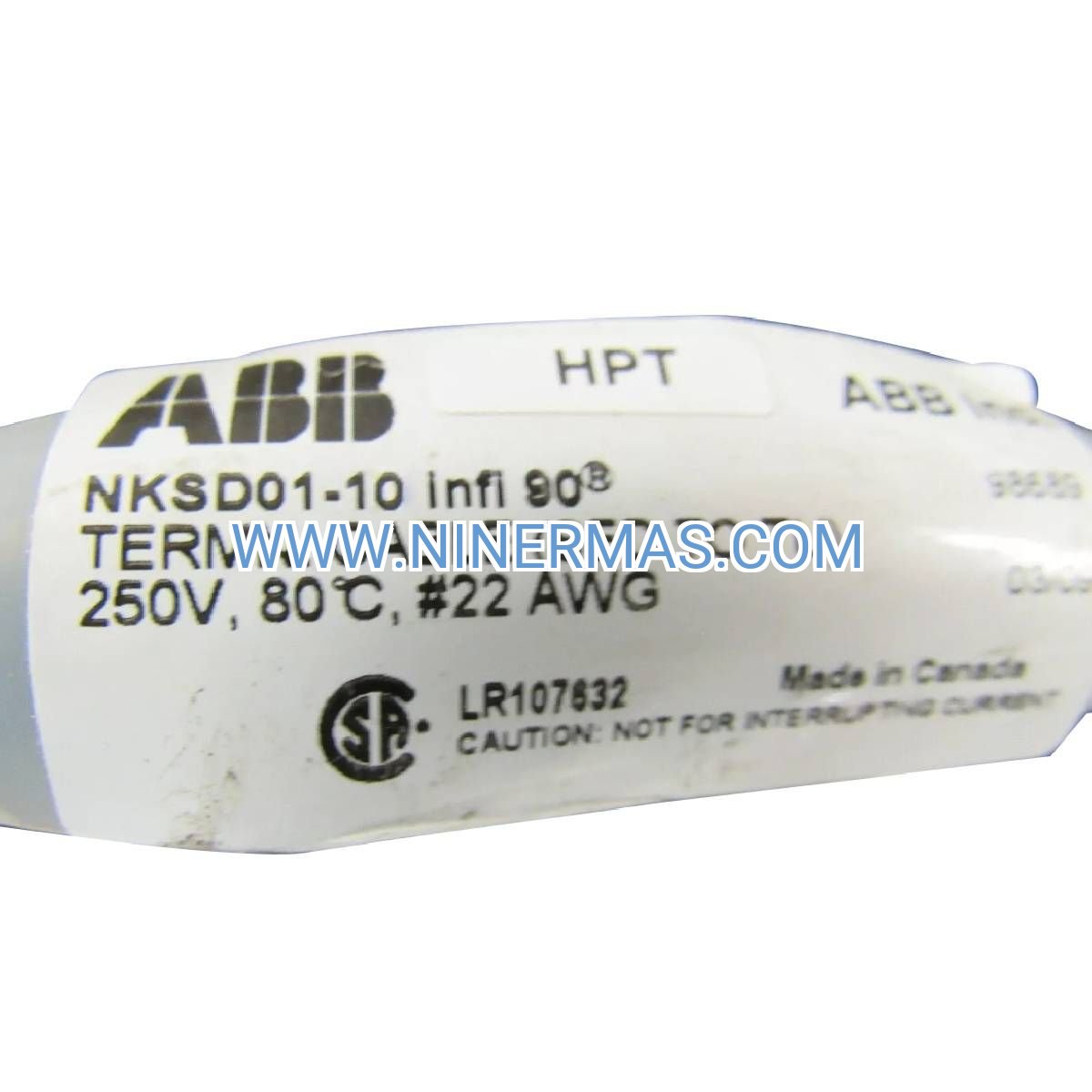

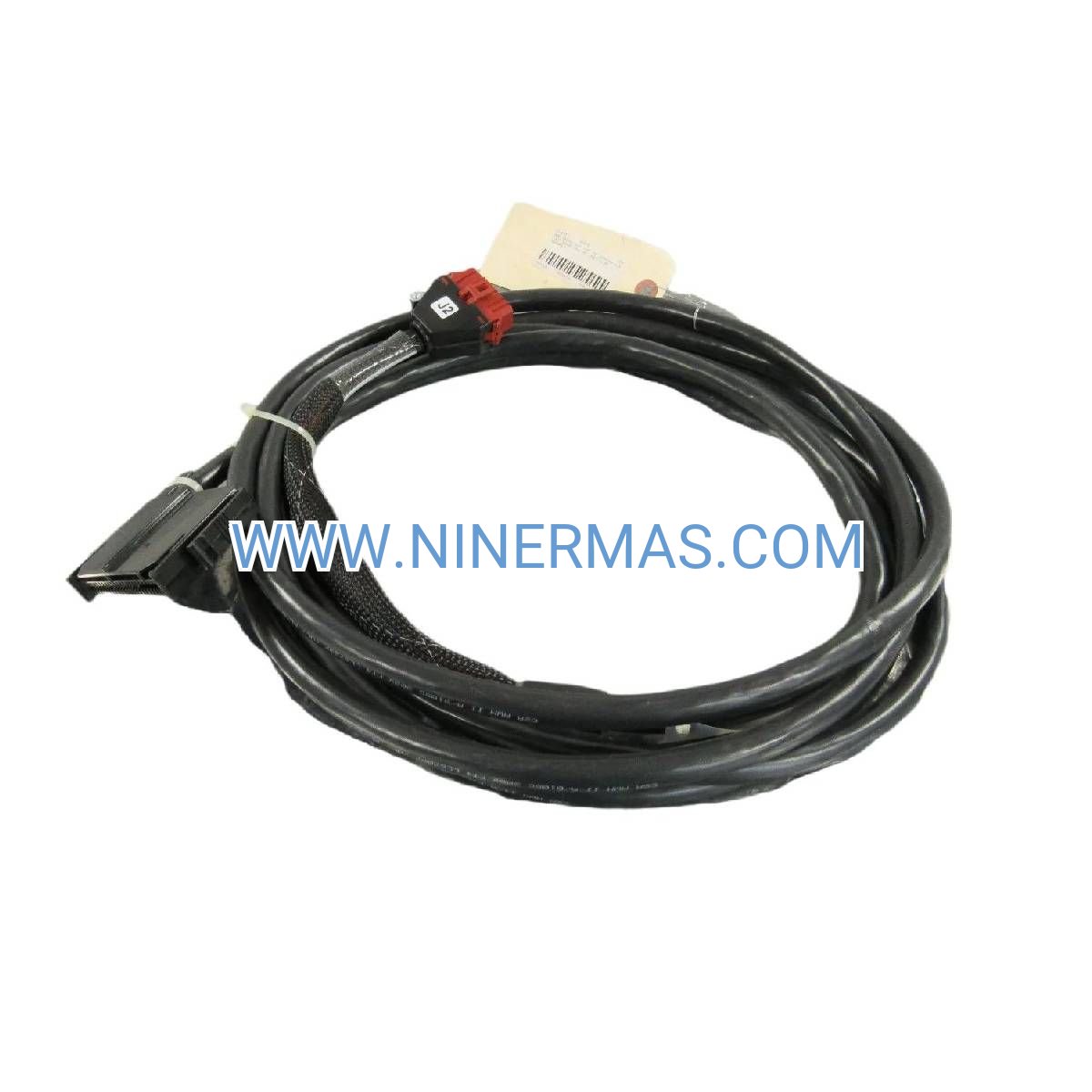

ABB NKSD01-10 Cable Assembly (Industrial-Grade SOE Interconnect Solution)

The NKSD01-10 represents a purpose-built 10-foot cable solution engineered for mission-critical event sequencing applications within ABB's S800 distributed I/O architecture. This pre-terminated assembly bridges Sequence of Events (SOE) modules to Digital Input termination blocks, delivering sub-millisecond timestamp accuracy essential for fault analysis, protective relay coordination, and regulatory compliance in power distribution and industrial automation environments.

Designed for control engineers and system integrators managing substations, process control rooms, or critical infrastructure installations, this cable eliminates field termination errors while maintaining signal integrity across the entire 10-foot span. The shielded PVC construction provides robust EMI rejection, ensuring that high-resolution event data remains uncorrupted even in electrically noisy industrial settings.

With keyed connectors preventing mis-wiring and RoHS-compliant materials supporting global deployment, the NKSD01-10 accelerates commissioning timelines while reducing long-term maintenance overhead. Whether retrofitting legacy systems or deploying new AC 800M controller networks, this cable delivers the reliability and precision demanded by modern SCADA and DCS applications.

Core Features & Technical Advantages

✓ Pre-Terminated Keyed Connectors: Factory-installed connectors with mechanical coding eliminate installation errors and reduce commissioning time by up to 40% compared to field-terminated alternatives.

✓ Shielded Signal Path: Continuous shield coverage provides >90% EMI rejection, preserving timestamp resolution down to 1-millisecond accuracy even in high-interference environments near VFDs and switchgear.

✓ Optimized 10-Foot Length: Engineered span balances cabinet routing flexibility with signal integrity requirements, supporting typical control panel layouts without requiring intermediate junction boxes.

✓ Industrial PVC Jacket: Abrasion-resistant outer layer withstands repeated flexing during installation and maintenance, rated for 0°C to +60°C continuous operation in NEMA-rated enclosures.

✓ S800 I/O Native Compatibility: Validated for use with SPSED01, DI885, and related SOE-capable modules, ensuring plug-and-play integration with AC 800M and Advant Controller platforms.

✓ RoHS & CE Compliance: Meets international environmental and safety standards, supporting deployment across EU, North American, and Asia-Pacific markets without regulatory barriers.

Application Scenarios & Industry Use Cases

→ Electric Utility Substations: Connects SOE modules to breaker status inputs for precise fault sequence reconstruction. Enables utilities to analyze protection scheme performance, validate relay coordination, and generate regulatory compliance reports with timestamp accuracy meeting IEEE C37.2 requirements.

→ Industrial Power Distribution: Links emergency shutdown systems to event recorders in manufacturing facilities. Captures critical sequences during motor starter trips, transformer faults, or arc flash events, supporting root cause analysis and insurance claim documentation.

→ Process Automation & SCADA: Integrates with DCS alarm management systems to timestamp process upsets, equipment failures, and operator interventions. Provides forensic data for batch process investigations and continuous improvement initiatives in chemical, pharmaceutical, and food processing plants.

→ Data Center & Critical Infrastructure: Monitors UPS transfer events, generator start sequences, and automatic transfer switch operations. Delivers the millisecond-level precision required for Tier III/IV facility compliance and SLA verification.

→ Renewable Energy Installations: Tracks grid synchronization events, inverter trips, and protective device operations in solar farms and wind installations. Supports performance analysis and grid code compliance reporting for utility-scale renewable projects.

Technical Parameters & Selection Guide

Selection Criteria: Choose the NKSD01-10 when your SOE module-to-DI termination distance falls within 8-12 feet to maintain optimal signal quality. For shorter runs (6-9 feet), consider the NKSD01-9 variant to minimize cable slack and improve cabinet aesthetics. Installations exceeding 12 feet should evaluate signal conditioning requirements or intermediate junction solutions to preserve timestamp accuracy. Always verify compatibility with your specific S800 I/O module revision using ABB's online configurator tool.

Extended Capabilities & System Integration

Multi-Channel Scalability: Deploy multiple NKSD01-10 assemblies in parallel to support high-density SOE applications monitoring 64+ digital inputs across distributed I/O racks. Cable shielding design prevents crosstalk between adjacent assemblies in densely packed control panels.

Retrofit Compatibility: Backward-compatible with legacy S800 I/O installations dating to 2005, enabling phased system upgrades without complete infrastructure replacement. Consult ABB technical bulletin TB-S800-2023-04 for specific module revision compatibility matrices.

Redundancy Support: Integrate with dual-redundant AC 800M controller configurations for high-availability applications. Cable design supports hot-swappable module replacement without disrupting parallel SOE channels.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units shipping from our Shanghai distribution center. Expedited same-day dispatch available for critical outage situations (contact sales team for eligibility).

Custom Length Options: Factory-custom cable assemblies available in 5-foot increments from 5ft to 50ft. Custom orders require 10-15 business days for manufacturing and quality validation.

Warranty Coverage: 12-month comprehensive warranty covering material defects, workload failures, and connector integrity issues. Extended 36-month coverage available for volume purchases (25+ units).

Technical Support: Unlimited access to our certified ABB integration specialists for installation guidance, troubleshooting assistance, and system optimization recommendations. Remote support available via email/phone; on-site commissioning support negotiable for large-scale deployments.

Documentation Package: Each shipment includes dimensional drawings, pinout diagrams, installation best practices guide, and compliance certificates (RoHS, CE). CAD models available in STEP and DWG formats upon request.

Frequently Asked Questions

How does cable length impact SOE timestamp accuracy in S800 systems?
Signal propagation delay increases approximately 1.5 nanoseconds per foot of cable length. The 10-foot NKSD01-10 introduces ~15ns delay, which is negligible compared to the S800 I/O system's 1-millisecond timestamp resolution. Accuracy degradation becomes measurable only beyond 50-foot cable runs or in installations with multiple junction points.

Can I use this cable for standard (non-SOE) digital input modules?
No. The NKSD01-10 features specialized pinout and shielding optimized for SOE modules' high-speed timestamp circuitry. Standard DI modules (DI810, DI820 series) require different termination cables (NTDI series cables). Using incorrect cables may result in module damage or unreliable operation.

What environmental conditions require upgrading from PVC to plenum-rated cables?
Plenum-rated cables are mandatory for installations in air-handling spaces (HVAC plenums) per NEC Article 300. The standard PVC-jacketed NKSD01-10 is suitable for conduit runs, cable trays, and enclosed control panels. For outdoor installations or corrosive environments, consult ABB for TPE or fluoropolymer jacket alternatives.

Does this cable support hot-swapping SOE modules during system operation?
While the cable itself supports hot-swap operations, you must follow ABB's safe hot-swap procedures outlined in manual 3BSE040662. Always verify that your AC 800M controller firmware version supports online module replacement, and ensure redundant I/O configurations are active before disconnecting any SOE module.

What is the maximum number of NKSD01-10 cables I can route in a single cable tray?
NEC Article 392 limits cable tray fill to 50% of cross-sectional area for control cables. A standard 4-inch ladder tray can accommodate approximately 40-50 NKSD01-10 assemblies depending on bend radius requirements and parallel power cable routing. Always maintain minimum 2-inch separation from high-voltage AC power cables to prevent EMI coupling.

Are there any known compatibility issues with third-party SOE modules?
The NKSD01-10 is engineered exclusively for ABB S800 I/O ecosystem components. While physical connectors may mate with certain Siemens or Schneider Electric modules, electrical characteristics and pinout assignments differ. Using non-ABB modules voids warranty and may cause equipment damage. Always verify compatibility through ABB's official product selector tool.

Ready to Enhance Your Event Monitoring Infrastructure?

Contact our industrial automation specialists today for technical consultation, volume pricing, or custom cable assembly quotes. Our team can assess your specific S800 I/O architecture and recommend optimal cable configurations to maximize system reliability and commissioning efficiency.
