ABB NGPS-12C Gate Driver Power Supply | ACS600 VFD Spare Parts

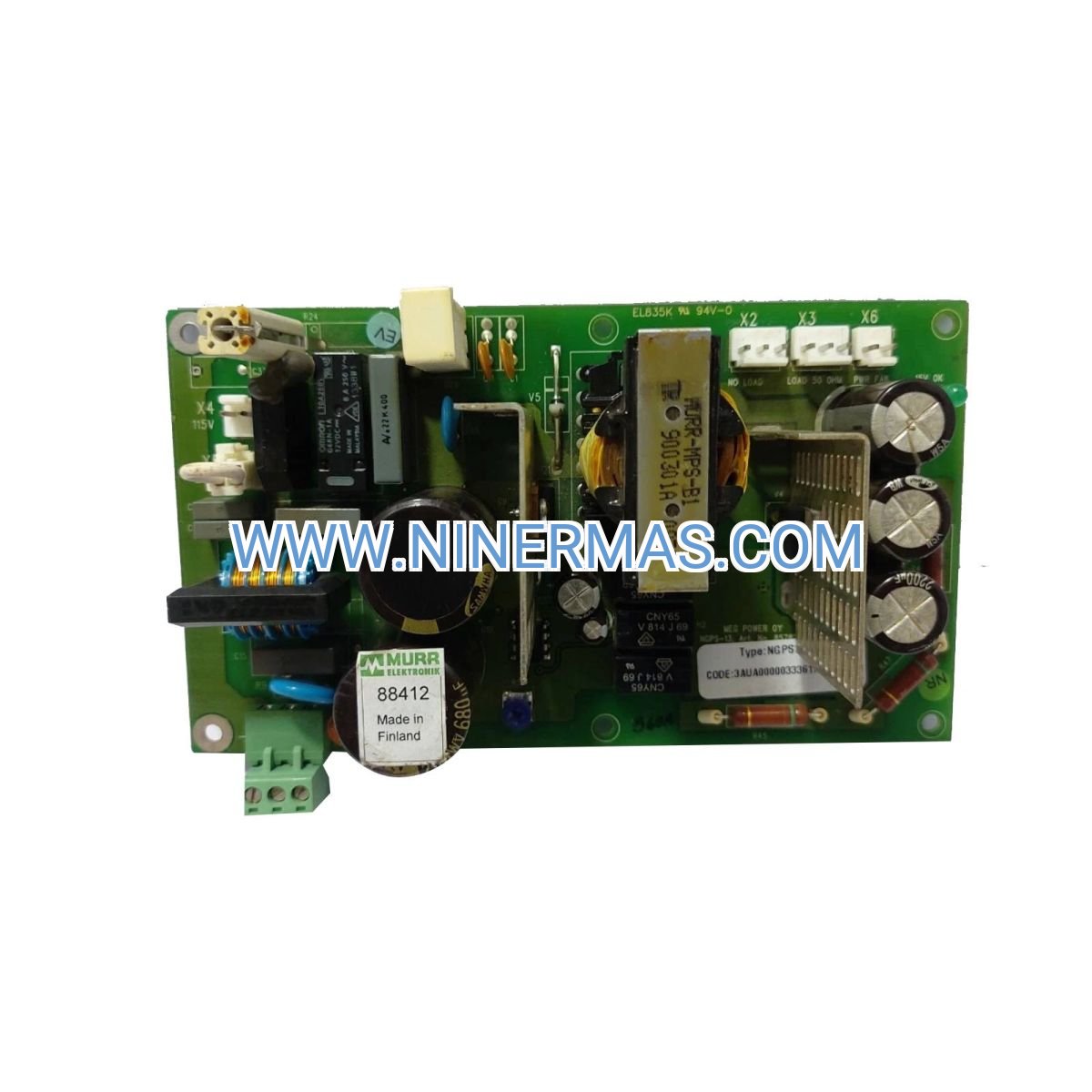

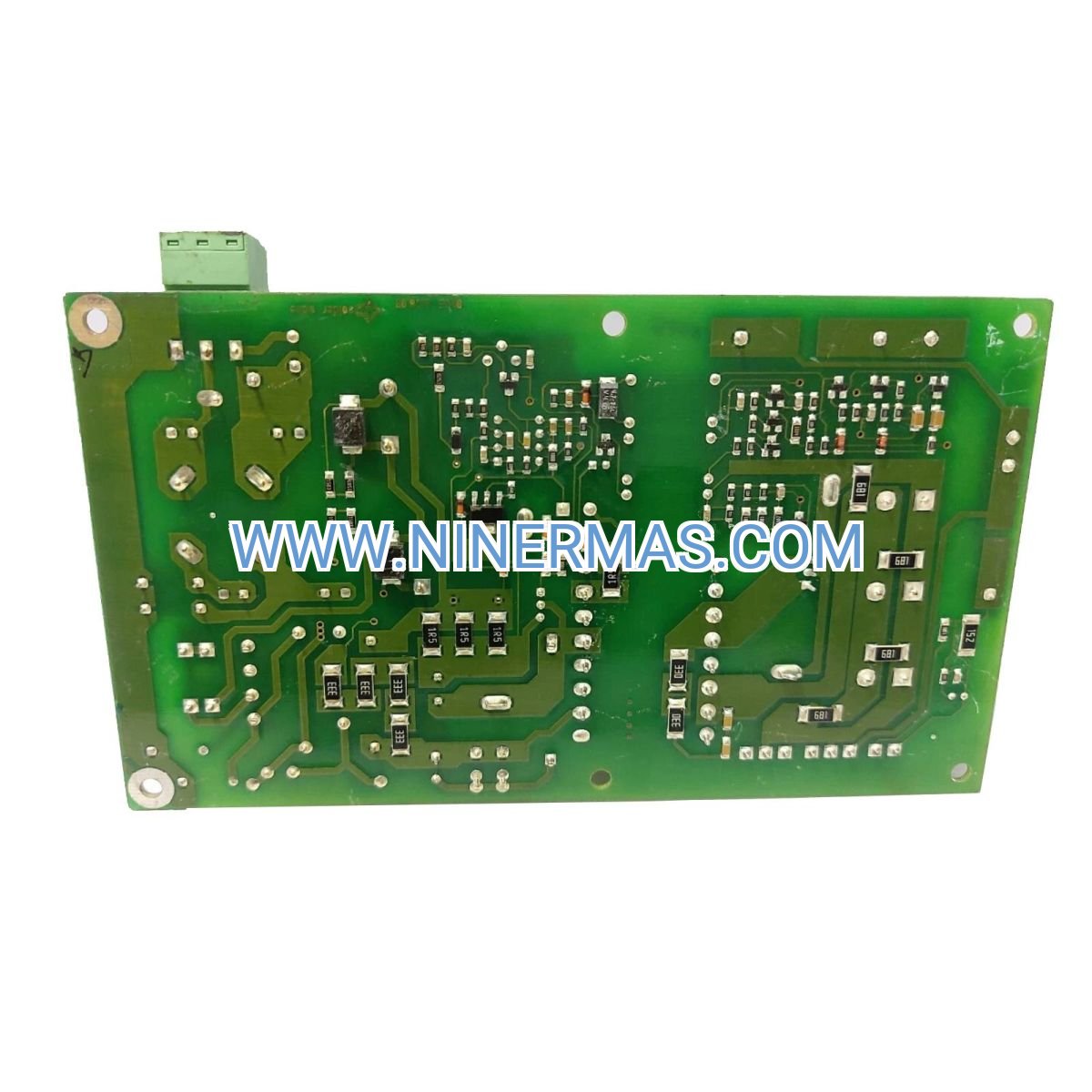

ABB NGPS-12C Gate Driver Power Supply Board (Industrial-Grade VFD Component)

The ABB NGPS-12C is a precision-engineered gate driver power supply board designed specifically for ACS600 series AC drives (frame sizes R12i and larger). Through advanced isolated DC-DC conversion and regulated output control, it delivers stable, low-noise power to IGBT gate driver circuits, ensuring reliable switching performance and protecting power semiconductors from voltage transients.

Ideal for industrial motor control systems requiring continuous operation—including HVAC chillers, pump stations, conveyor drives, and process automation equipment—this board addresses critical challenges such as gate driver undervoltage faults, IGBT misfiring, and drive nuisance trips caused by unstable auxiliary power.

Featuring standardized mounting dimensions and plug-compatible design, the NGPS-12C integrates seamlessly into existing ACS600 drive assemblies. It is suitable for OEM manufacturers, system integrators, maintenance contractors, and end-user facilities seeking genuine replacement parts or preventive spares. Contact our application engineers for compatibility verification, technical datasheets, and volume pricing.

Core Features & Technical Advantages

• Precision Voltage Regulation
  Maintains ±15V DC outputs with ±2% tolerance across full load range, ensuring consistent IGBT gate charge/discharge characteristics and minimizing switching losses.
• High Isolation & Noise Immunity
  Galvanic isolation up to 2.5kV between input and output stages prevents ground loop interference and protects sensitive gate driver ICs from main power circuit transients.
• Wide Input Voltage Range
  Accepts 18–36V DC input with built-in undervoltage lockout (UVLO) and overvoltage protection, accommodating supply fluctuations in industrial environments without shutdown.
• Thermal Management & Reliability
  Conformal-coated PCB with industrial-grade capacitors rated for 105°C operation, designed for 50,000+ hour MTBF in ambient temperatures up to 50°C with proper ventilation.
• Comprehensive Protection Functions
  Integrated overcurrent limiting, short-circuit shutdown, and thermal foldback safeguard both the power supply and downstream gate driver circuits, reducing catastrophic failure risk.
• Plug-and-Play Compatibility
  Direct replacement for original ABB part number NGPS-12C; retains identical connector pinouts, mounting holes, and electrical specifications—no firmware updates or parameter adjustments required.

Typical Application Scenarios

This gate driver power supply is engineered for demanding industrial environments where drive uptime and power quality are critical:

• HVAC & Building Automation
  Powers gate drivers in chiller compressor drives, air handling unit VFDs, and cooling tower fan controls, maintaining precise motor speed regulation for energy-efficient climate control.
• Water & Wastewater Treatment
  Supports pump station drives and blower motor controls in municipal water treatment facilities, where continuous operation and fault tolerance are essential for regulatory compliance.
• Material Handling & Conveyor Systems
  Ensures reliable gate driver operation in distribution center conveyor drives, baggage handling systems, and automated warehouse equipment operating 24/7.
• Process Industries & Manufacturing
  Applicable to extruder drives, mixer motor controls, and machine tool spindle drives in plastics, chemicals, metals processing, and discrete manufacturing where unplanned downtime incurs high costs.
• Preventive Maintenance & Spare Parts Inventory
  Recommended as critical spare for facilities operating multiple ACS600 drives, enabling rapid fault recovery and minimizing mean time to repair (MTTR) during power supply failures.

Technical Specifications & Selection Guide

To ensure proper fit and performance, verify the following parameters against your existing drive configuration:

Selection Considerations: When ordering, confirm your drive's frame size designation (visible on drive nameplate), input power supply voltage, and mounting configuration. For custom applications or non-standard drive modifications, provide drive serial number and electrical schematics to our engineering team for compatibility assessment.

Extended Capabilities & Integration Options

• Redundant Power Supply Configurations: Can be paralleled with secondary NGPS units (with external diode isolation) for mission-critical applications requiring N+1 redundancy.
• Remote Monitoring Integration: Output voltage test points accessible for connection to drive control board monitoring circuits or external data acquisition systems.
• Retrofit & Upgrade Compatibility: Suitable for upgrading older ACS600 drives with aging power supply boards exhibiting voltage drift or increased ripple noise.
• Multi-Drive System Support: Bulk procurement available for facilities standardizing on ACS600 platforms across multiple production lines or building systems.

Delivery, Service & Quality Assurance

Lead Time: Standard stock items ship within 2–5 business days; custom-tested or bulk orders typically 7–14 days depending on quantity and destination.

Warranty: Backed by 12-month limited warranty covering manufacturing defects and material failures under normal operating conditions.

Technical Support: Complimentary pre-sales application assistance and post-sales troubleshooting support via email and phone. Installation guidance, wiring diagrams, and dimensional drawings provided upon request.

Documentation Package: Each unit ships with installation instructions, connector pinout diagram, and electrical specifications sheet. Full technical manual and compliance certificates (CE, UL where applicable) available for download.

Quality Standards: Manufactured to ISO 9001 quality management standards; components sourced from authorized distributors to ensure authenticity and traceability.

Frequently Asked Questions (FAQ)

Q: How do I verify if the NGPS-12C is compatible with my existing ABB drive?
A: Check your drive nameplate for model designation—NGPS-12C is compatible with ACS600 series drives, frame sizes R12i through R18i. If your drive uses a different power supply board part number, contact us with your drive serial number for cross-reference verification.

Q: What are the symptoms of a failing gate driver power supply board?
A: Common indicators include intermittent gate driver fault codes, IGBT desaturation trips, erratic motor operation at low speeds, or complete drive shutdown with auxiliary power alarms. Measure output voltages at test points—readings outside ±15V ±5% suggest board degradation.

Q: Can this power supply be used in non-ABB drive applications?
A: While electrically compatible with any system requiring isolated ±15V DC gate driver power, mechanical mounting and connector interfaces are optimized for ACS600 drives. Custom integration into third-party equipment may require adapter harnesses or mounting brackets.

Q: What is the expected service life of the NGPS-12C under continuous operation?
A: Design life exceeds 50,000 hours (approximately 5.7 years of continuous operation) at rated load and 40°C ambient temperature. Actual lifespan depends on operating conditions—higher temperatures, frequent thermal cycling, or sustained overload reduce longevity.

Q: Do you provide installation and commissioning services?
A: We offer remote technical guidance for self-installation. For on-site commissioning, we can recommend qualified service partners in your region. Detailed installation procedures and safety precautions are included with each shipment.

Q: Are volume discounts available for multiple units or ongoing supply agreements?
A: Yes—contact our sales team with your annual forecast or project requirements for tiered pricing, consignment inventory programs, and dedicated account management for large facilities or OEM integrators.

Request Technical Support & Quotation

For detailed application engineering assistance, custom testing, or volume pricing, please provide the following information:

• Project name and application description
• ABB drive model and frame size (from nameplate)
• Quantity required (immediate and annual forecast)
• Input power supply specifications (voltage, source)
• Operating environment (temperature range, enclosure type)
• Delivery location and timeline requirements

Our application engineers will respond within one business day with compatibility confirmation, technical recommendations, and formal quotation.
