ABB NDIO-02 Digital I/O Adapter | ACS600/ACS800 Drive Expansion Module

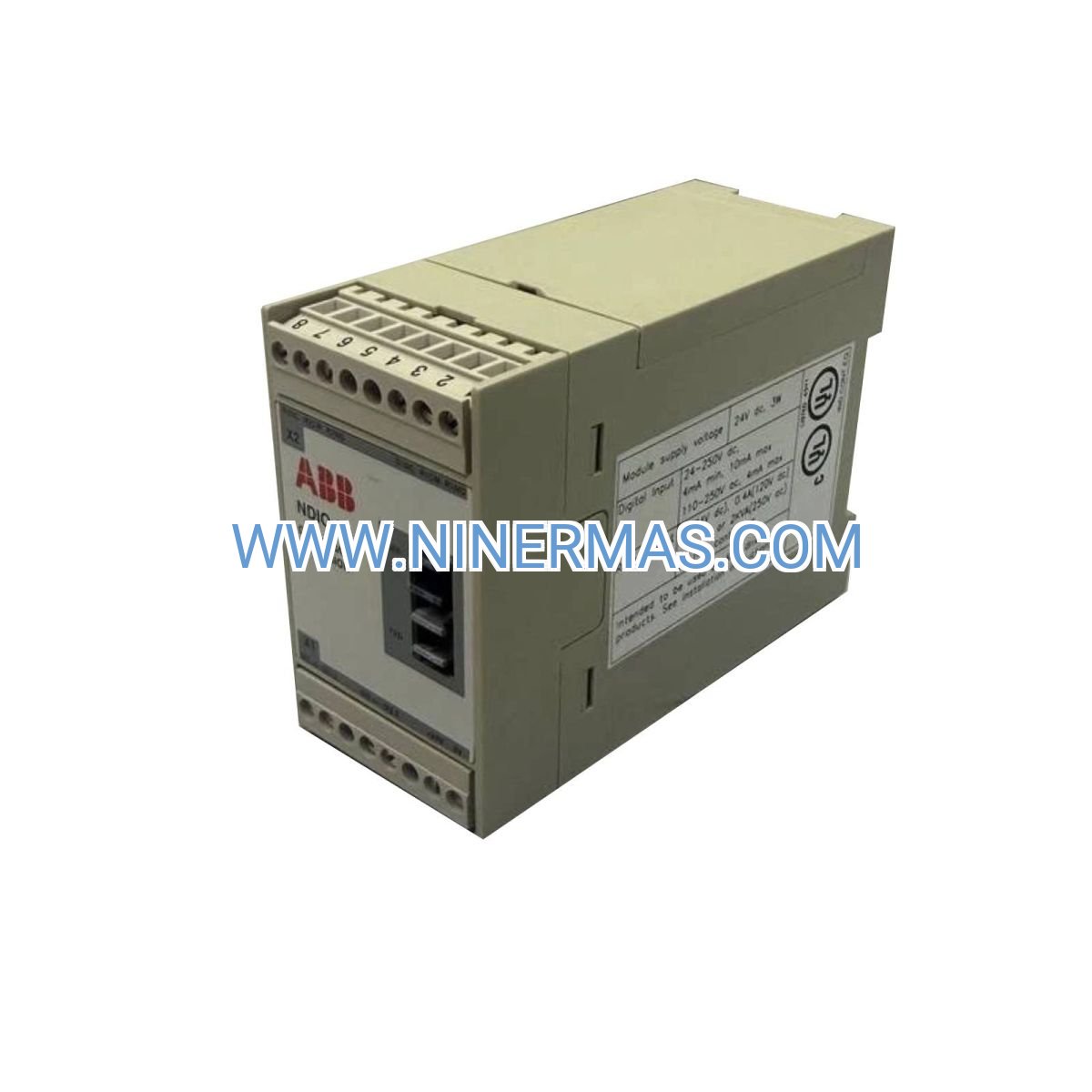

ABB NDIO-02 Digital I/O Adapter Module (Industrial-Grade Drive Expansion Solution)

The ABB NDIO-02 Digital I/O Adapter Module is a professional-grade expansion device designed for ACS600 and ACS800 series variable frequency drives. Through advanced DDCS (Drive-to-Drive Communication System) fiber optic interface, it enables seamless integration of additional digital inputs and relay outputs, delivering enhanced control flexibility, galvanic isolation protection, and reliable signal transmission for demanding industrial applications.

Ideal for process automation, manufacturing systems, HVAC control, and industrial machinery, this module addresses critical challenges including limited I/O capacity, electrical noise interference, complex control logic requirements, and the need for fail-safe operation in harsh environments.

Featuring standardized design with customizable configuration options, the NDIO-02 offers robust construction, EMC compliance, plug-and-play installation, and comprehensive diagnostic capabilities—making it the preferred choice for system integrators, automation engineers, OEM manufacturers, and facility maintenance teams. Contact our application engineers for technical consultation and configuration assistance.

Core Features & Technical Advantages

Expanded I/O Capacity
Provides 8 programmable digital inputs (24V DC) and 4 relay outputs (250V AC/30V DC), enabling complex control sequences, multi-point monitoring, and interlocking logic without additional PLCs or external controllers.

DDCS Fiber Optic Communication
Utilizes high-speed fiber optic interface for noise-immune data transmission, eliminating ground loop issues and ensuring reliable operation in electrically noisy environments such as motor control centers and high-power installations.

Galvanic Isolation Protection
All I/O channels feature complete galvanic isolation from drive electronics, protecting sensitive control circuits from voltage spikes, transients, and fault conditions while maintaining signal integrity.

Flexible Configuration Options
Supports user-programmable input/output functions through drive parameter settings, allowing customization for specific application requirements including start/stop control, fault monitoring, process interlocks, and status indication.

Industrial-Grade Reliability
Built to withstand harsh industrial environments with wide operating temperature range (-10°C to +50°C), conformal coating protection, and compliance with IEC/EN standards for EMC, safety, and environmental performance.

Simplified Installation & Diagnostics
Plug-and-play mounting on ACS drive chassis with automatic recognition, LED status indicators for quick troubleshooting, and comprehensive diagnostic information accessible through drive control panel or fieldbus interface.

Typical Application Scenarios

The NDIO-02 module is engineered for applications requiring enhanced I/O capability, electrical isolation, and reliable control signal management, particularly in:

Process Automation & Chemical Plants
Integrates with distributed control systems (DCS) for pump control, valve actuation, and process interlocking. Handles emergency shutdown signals, level switches, and pressure monitoring while maintaining isolation from hazardous area equipment.

Manufacturing & Material Handling Systems
Coordinates conveyor drives, robotic cells, and production line equipment through synchronized I/O control. Manages safety interlocks, position sensors, and multi-motor coordination in automotive, food processing, and packaging industries.

HVAC & Building Automation
Controls variable-speed fans, pumps, and compressors in commercial buildings and data centers. Interfaces with building management systems (BMS) for demand-based ventilation, temperature control, and energy optimization strategies.

Water & Wastewater Treatment
Manages pump stations, aeration systems, and chemical dosing equipment. Processes signals from flow meters, level transmitters, and pressure sensors while providing relay outputs for valve control and alarm annunciation.

Mining & Heavy Industry
Operates crushers, conveyors, and material processing equipment in demanding environments. Handles vibration sensors, emergency stops, and equipment interlocks with superior noise immunity and environmental protection.

Technical Specifications & Selection Guide

To ensure optimal system integration and performance, the NDIO-02 module offers the following technical characteristics:

Digital Inputs: 8 channels, 24V DC nominal (18-30V range), programmable active high/low, 10mA typical current, 3ms response time
Relay Outputs: 4 channels, SPDT contacts, 250V AC / 30V DC max, 2A resistive load, mechanical life >10 million operations
Communication Interface: DDCS fiber optic (ST connector), 2.5 Mbit/s data rate, up to 500m cable length
Power Supply: Derived from host drive, no external power required
Isolation Voltage: 2.5kV AC (I/O to logic), 4kV AC (input to output)
Operating Temperature: -10°C to +50°C (14°F to 122°F)
Protection Rating: IP20 (chassis mounted), conformal coating available
Compliance Standards: CE marked, UL/cUL listed, IEC 61800-5-1 EMC, RoHS compliant
Mounting: Direct installation on ACS600/ACS800 option slot, DIN rail adapter available
Dimensions: 45mm (W) × 170mm (H) × 120mm (D), weight approximately 0.3kg

Selection Considerations:
When specifying the NDIO-02 module, evaluate: required number of inputs/outputs, voltage levels of field devices, relay contact ratings for connected loads, fiber optic cable routing distance, environmental conditions (temperature/humidity/contamination), and compatibility with existing drive firmware version. For applications requiring analog I/O, Ethernet connectivity, or higher channel counts, consult our product selection guide for alternative expansion modules.

Advanced Integration Capabilities

Multi-Module Expansion: Up to 3 NDIO-02 modules can be installed on a single ACS800 drive, providing 24 digital inputs and 12 relay outputs for complex control architectures.

Fieldbus Integration: I/O status and control accessible via PROFIBUS DP, DeviceNet, Modbus RTU, or EtherNet/IP through drive communication modules, enabling seamless SCADA/PLC integration.

Safety Function Support: Compatible with ABB Safe Torque Off (STO) and Safe Stop 1 (SS1) safety modules when used in conjunction with certified safety relays and monitoring circuits.

Redundancy Options: Supports dual-channel input monitoring and output voting logic for critical control applications requiring fault-tolerant operation.

Delivery, Service & Technical Support

Lead Time: Standard modules ship within 3-5 business days from stock; custom configurations (special voltage, extended temperature, conformal coating) require 10-15 business days.
Warranty: 24-month manufacturer warranty covering materials and workmanship defects.
Installation Support: Comprehensive installation manual, wiring diagrams, and parameter setting guides included; remote technical assistance and on-site commissioning services available (region-dependent).
Documentation Package: Complete electrical schematics, I/O terminal assignments, fiber optic cable specifications, troubleshooting flowcharts, and integration examples provided with each module.

Frequently Asked Questions (FAQ)

Q: How does the NDIO-02 Digital I/O Adapter Module connect to ACS600/ACS800 drives?
A: The module installs directly into the drive's option slot and communicates via DDCS fiber optic interface. Connection requires a standard ST-type fiber optic cable (supplied separately) between the module and drive control board. The drive automatically recognizes the module upon power-up and enables I/O configuration through parameter settings.

Q: What is the maximum number of I/O modules that can be connected to a single drive?
A: ACS800 drives support up to 3 NDIO-02 modules (or combination with other I/O modules), providing maximum 24 digital inputs and 12 relay outputs. ACS600 drives typically support 1-2 modules depending on model and firmware version. Consult drive technical manual for specific limitations.

Q: Can the relay outputs switch AC and DC loads simultaneously?
A: Yes, each relay output features SPDT contacts rated for both AC (250V, 2A) and DC (30V, 2A) loads. However, contact life varies significantly based on load type—resistive loads provide longest life, while inductive loads (contactors, solenoids) require appropriate arc suppression (RC snubbers for AC, flyback diodes for DC).

Q: What environmental protection does the module provide for harsh industrial conditions?
A: Standard modules are IP20 rated for chassis mounting inside control cabinets. Optional conformal coating provides enhanced protection against humidity, dust, and chemical vapors. For extreme environments, consider installing the drive and module in NEMA 12/IP54 rated enclosures with appropriate climate control.

Q: Does the NDIO-02 support remote monitoring and data logging capabilities?
A: Yes, all I/O states are accessible through the drive's fieldbus interface (PROFIBUS, Modbus, EtherNet/IP, etc.) when equipped with appropriate communication modules. This enables real-time monitoring, historical data logging, and integration with SCADA/MES systems. The drive's internal event log also records I/O state changes for diagnostic purposes.

Q: Is the module compatible with third-party drives or only ABB products?
A: The NDIO-02 is specifically designed for ABB ACS600 and ACS800 series drives using proprietary DDCS communication protocol. It is not compatible with drives from other manufacturers or non-DDCS ABB drive families. For universal I/O expansion, consider standalone remote I/O systems with standard fieldbus interfaces.

Request Technical Consultation & Quotation

To receive detailed application engineering support, custom configuration recommendations, or project-specific pricing, please provide the following information: project name and industry sector, application description (process type, control requirements), host drive model and firmware version, required number of inputs/outputs and signal types, electrical specifications (voltage levels, load types), environmental conditions (temperature, humidity, contamination), installation location and cable routing distances, fieldbus/communication requirements, quantity and delivery timeline. Our drive systems specialists will respond within 24 hours with tailored solutions and technical documentation.
