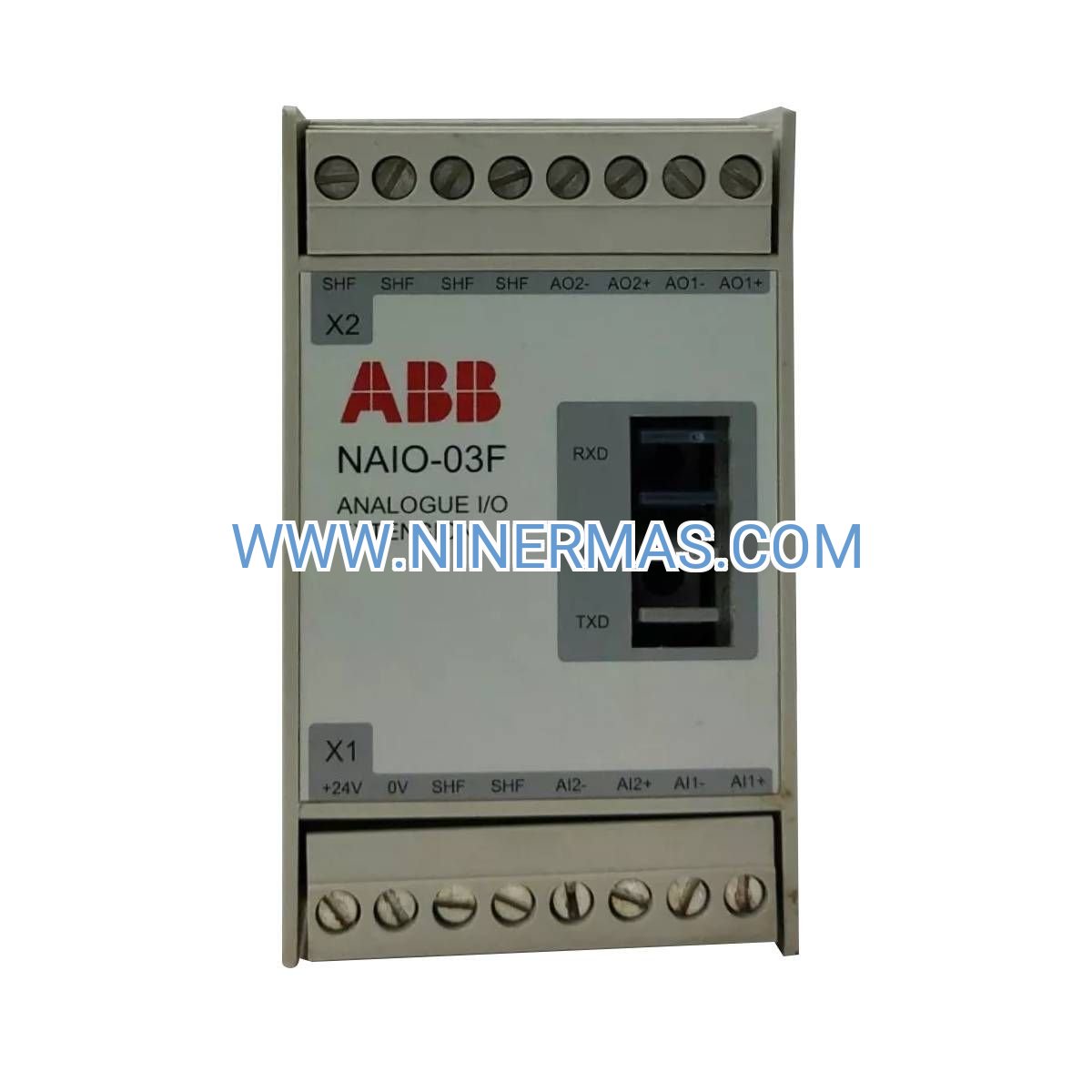

ABB NAIO-03F Analog I/O Module (Industrial-Grade Signal Interface)

The ABB NAIO-03F represents a professional-grade analog I/O extension solution designed for industrial control systems requiring reliable signal acquisition and output capabilities. Engineered with ABB's proven automation technology, this module serves as a critical interface between field instrumentation and control platforms in process industries, manufacturing facilities, and infrastructure applications.

Built to address the challenges of analog signal management in harsh industrial environments, the NAIO-03F delivers consistent performance across temperature extremes, electrical interference, and demanding operational conditions. System integrators and plant engineers rely on this module to expand I/O capacity while maintaining signal integrity and system reliability.

With its modular architecture and industry-standard mounting, the NAIO-03F streamlines installation, reduces commissioning time, and provides the flexibility to scale automation systems as production requirements evolve.

Core Capabilities & Technical Advantages

→ High-Resolution Signal Conversion
Advanced analog-to-digital conversion circuitry ensures accurate representation of sensor signals, enabling precise process control and data acquisition. Supports standard industrial signal ranges including 4-20mA, 0-10V, and thermocouple inputs.

→ Multi-Channel Architecture
Multiple independent I/O channels allow simultaneous monitoring and control of diverse process variables, reducing hardware footprint and system complexity while lowering total cost of ownership.

✓ Robust Environmental Performance
Operates reliably across -25°C to +60°C temperature range with IP20 protection rating. Industrial-grade components withstand electrical noise, vibration, and humidity typical of factory floor environments.

✓ Seamless System Integration
Direct compatibility with ABB automation platforms and industry-standard communication protocols. Configuration through ABB engineering tools enables rapid parameter setup and diagnostic access.

✓ Maintenance-Friendly Design
DIN rail mounting and modular connectivity support hot-swapping capabilities, allowing module replacement during operation without system shutdown—minimizing production interruptions and maintenance costs.

✓ Certified Quality & Compliance
Manufactured to international standards with CE, UL, and RoHS compliance. Factory-tested to ensure consistent performance in mission-critical applications.

Industry Applications & Use Cases

Chemical & Petrochemical Processing
Monitor reactor temperatures, pressure transmitters, and flow meters in continuous process operations. The NAIO-03F converts analog sensor signals into digital data for real-time process optimization, safety interlocks, and regulatory compliance reporting. Enables closed-loop control of distillation columns, heat exchangers, and batch reactors.

Water & Wastewater Treatment
Interface with pH sensors, turbidity meters, dissolved oxygen probes, and level transmitters in municipal and industrial water treatment facilities. Provides the signal conditioning necessary for automated chemical dosing, filtration control, and effluent quality monitoring.

Manufacturing & Assembly Lines
Integrate with PLCs and SCADA systems to control variable frequency drives, pneumatic valve positioners, and servo actuators. Supports precision manufacturing operations requiring tight tolerance control, including automotive assembly, electronics production, and packaging machinery.

Energy & Utilities Management
Collect analog data from power meters, current transformers, voltage sensors, and thermal imaging systems. Enables energy monitoring, demand response strategies, and predictive maintenance programs in industrial facilities, data centers, and commercial buildings.

Food & Beverage Production
Monitor critical process parameters including pasteurization temperatures, fermentation conditions, and CIP (clean-in-place) system performance. Ensures product quality, food safety compliance, and batch traceability in regulated production environments.

Technical Specifications & Selection Guide

Selection Criteria: When specifying the NAIO-03F for your application, consider total I/O point count requirements, signal types (voltage vs. current), required resolution and accuracy, environmental conditions, and integration with existing control platforms. Consult ABB technical documentation or contact our engineering team for application-specific guidance.

Advanced Features & System Capabilities

Diagnostic & Monitoring Functions
Built-in diagnostics provide real-time status indication for channel health, signal range violations, and communication integrity. LED indicators and software-accessible diagnostic registers simplify troubleshooting and reduce mean time to repair (MTTR).

Flexible Configuration Options
Software-configurable parameters including input ranges, filtering characteristics, and alarm thresholds allow customization to specific application requirements without hardware modifications. Configuration data can be stored and replicated across multiple modules for standardized deployments.

Scalable Architecture
Modular design supports incremental system expansion as production capacity grows or process complexity increases. Additional NAIO-03F modules can be added to existing installations without disrupting operational systems.

Delivery, Warranty & Technical Support

Lead Time: Standard delivery within 3-5 business days for in-stock units. Custom configurations or volume orders may require 7-14 business days. Express shipping available upon request.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options available for critical applications.

Technical Support: Access to ABB-certified technical specialists for application engineering, commissioning assistance, and troubleshooting support. Comprehensive product documentation, wiring diagrams, and configuration guides included.

Included Documentation: Installation manual, technical datasheet, compliance certificates, and quick-start guide. CAD drawings and 3D models available for download.

Frequently Asked Questions

Q: How does the NAIO-03F integrate with existing ABB control systems?
A: The NAIO-03F connects directly to ABB automation platforms via standard communication interfaces. Configuration is performed through ABB engineering software (such as Control Builder or Automation Builder), which provides intuitive parameter setup, channel mapping, and diagnostic access. The module auto-detects when added to the system bus, simplifying commissioning.

Q: What analog signal ranges and input types are supported?
A: The module supports industry-standard analog signals including 4-20mA current loops, 0-10V voltage inputs, and various thermocouple types. Specific channel configurations depend on the module variant—consult the technical datasheet or contact our engineering team to confirm compatibility with your sensor types.

Q: Can the NAIO-03F be installed in hazardous area applications?
A: The standard NAIO-03F is rated IP20 and designed for general industrial environments. For hazardous area installations (ATEX, IECEx zones), consult ABB's hazardous location product portfolio or contact our application engineers to identify appropriate solutions with intrinsic safety barriers or explosion-proof enclosures.

Q: What is the typical power consumption and heat dissipation?
A: Power consumption varies based on the number of active channels and signal types. Typical values range from 3-8W per module. Heat dissipation is minimal and does not require forced cooling in standard installations. Ensure adequate ventilation spacing per ABB installation guidelines when mounting multiple modules in enclosed panels.

Q: Is hot-swapping supported for maintenance without system shutdown?
A: Yes, the NAIO-03F supports hot-swap capability when used with compatible ABB control platforms. This allows module replacement during operation without halting the entire control system, minimizing production downtime. Follow proper hot-swap procedures outlined in the installation manual to ensure safe replacement.

Q: What calibration or maintenance is required over the module's lifecycle?
A: The NAIO-03F is factory-calibrated and typically requires no field calibration under normal operating conditions. Periodic verification of signal accuracy using calibrated test equipment is recommended as part of routine maintenance programs. ABB recommends annual inspection of terminal connections and diagnostic review to ensure optimal performance.

Get Started with ABB NAIO-03F

Ready to enhance your industrial control system with reliable analog I/O expansion? Contact our technical sales team for application consultation, pricing, and delivery options. We provide complete support from specification through commissioning to ensure successful integration.

Request a Quote: Email us your project requirements including I/O count, signal types, and delivery timeline.
Technical Consultation: Schedule a call with our automation specialists to discuss system architecture and integration.
Volume Pricing: Contact us for competitive pricing on multi-unit orders and project-based deployments.
