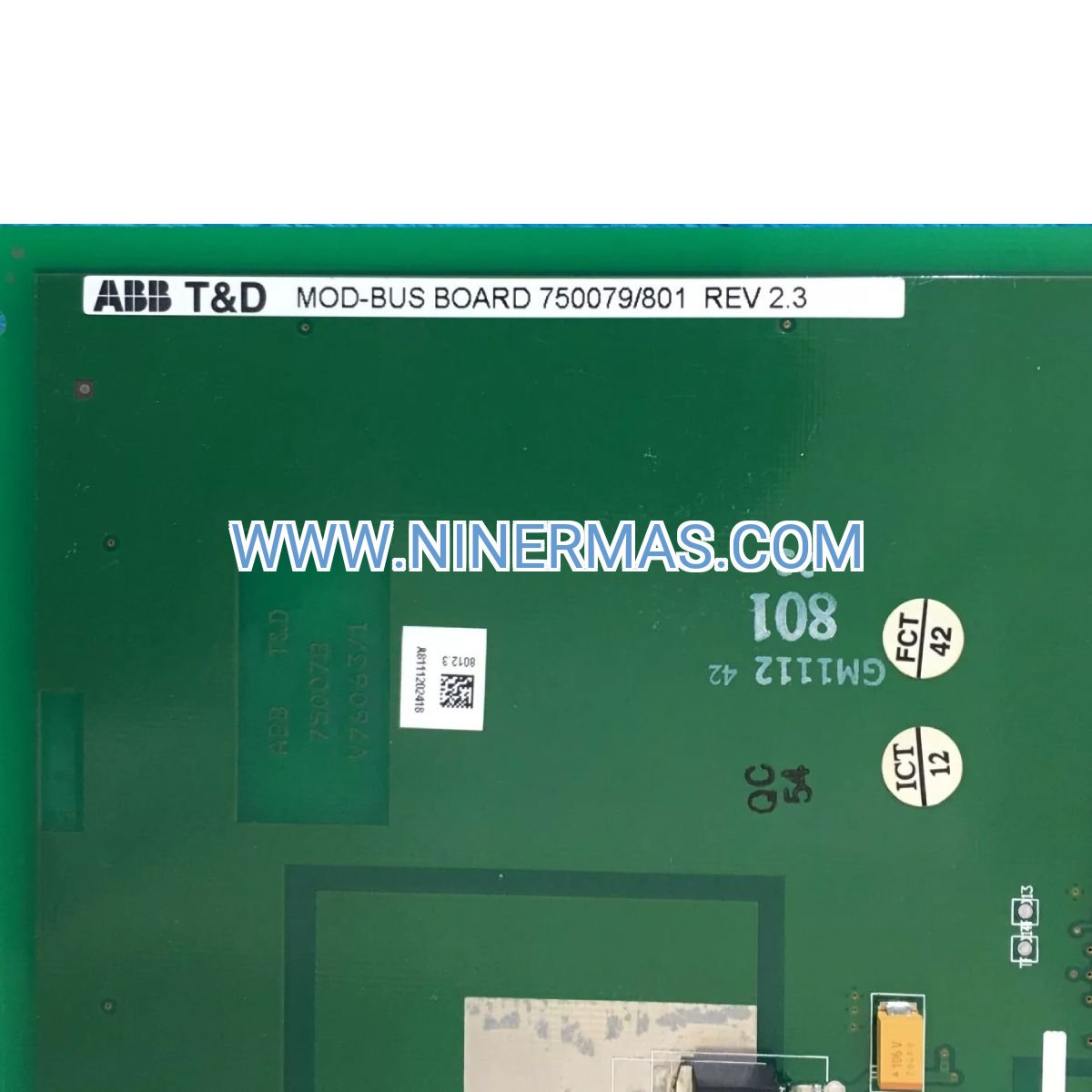

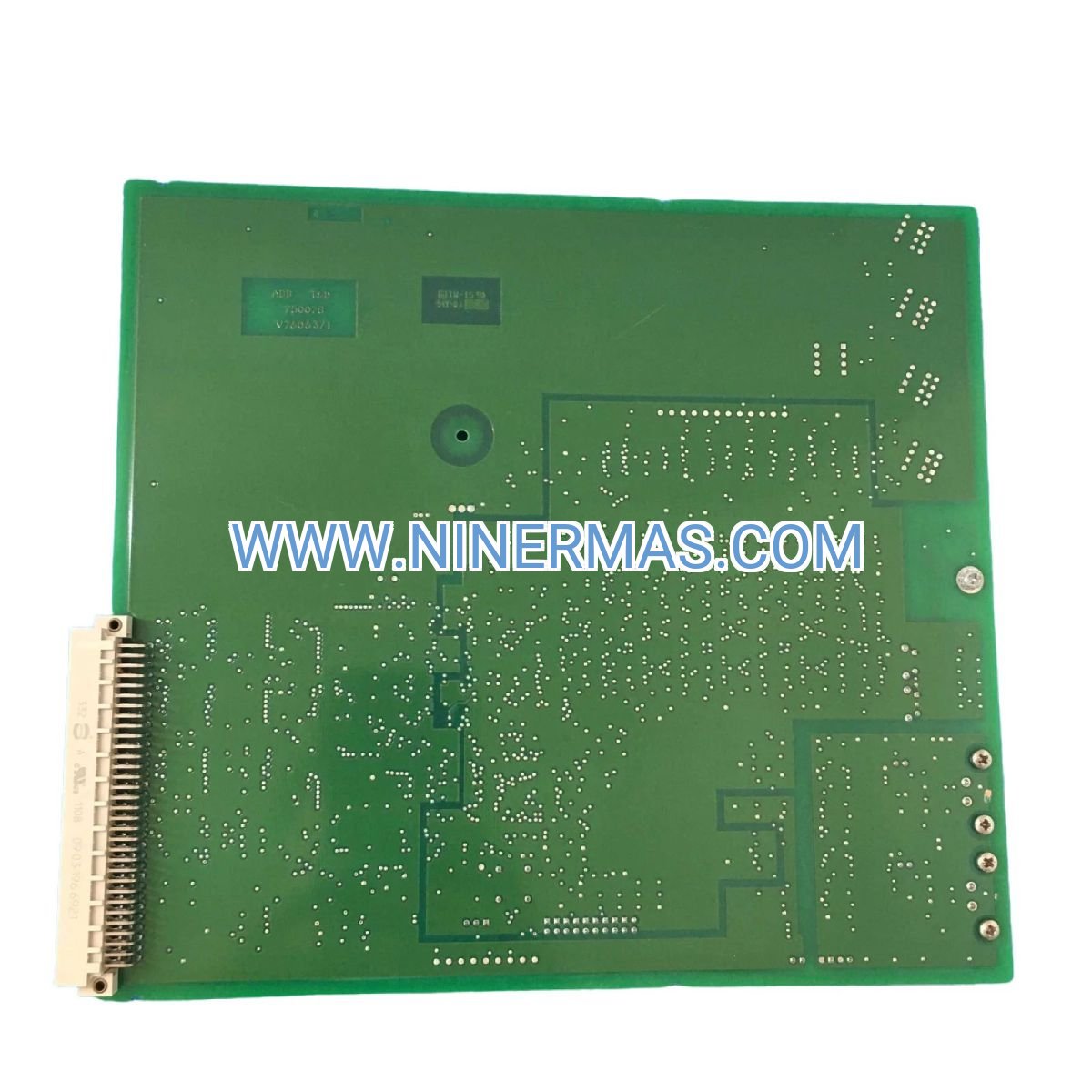

1VCF750079R801 MODBUS Interface Board (Industrial-Grade Protocol Gateway)

The ABB 1VCF750079R801 represents a proven solution for bridging legacy MODBUS equipment with contemporary automation architectures. Engineered for multi-vendor environments, this RS485-based communication module delivers deterministic data exchange across PLCs, SCADA platforms, and distributed I/O networks—eliminating protocol incompatibilities that delay commissioning and inflate integration costs.

Manufacturing facilities struggling with isolated control islands rely on this interface to unify disparate systems without forklift upgrades. Process engineers gain real-time visibility into equipment performance, while maintenance teams leverage centralized diagnostics to reduce mean time to repair (MTTR) by up to 40%. Whether retrofitting brownfield plants or scaling greenfield installations, the 1VCF750079R801 accelerates time-to-value through plug-and-play MODBUS connectivity.

Backed by ABB's industrial pedigree, this module withstands temperature extremes (-25°C to +60°C), electrical transients (2500V isolation), and electromagnetic interference—ensuring uptime in demanding applications from chemical processing to power generation. Ready to eliminate communication bottlenecks? Explore technical specifications and application guidance below.

Core Features & Business Value

→ Multi-Protocol Flexibility: Native support for MODBUS RTU and ASCII variants enables seamless integration with 90% of installed industrial equipment, reducing custom programming by 60-80 hours per project.

→ Automatic Configuration: Self-detecting baud rate (300 bps to 115.2 kbps) and address recognition cut commissioning time from days to hours, lowering labor costs by $2,000-$5,000 per installation.

→ Robust Electrical Protection: Integrated surge suppression (2kV transient immunity) and 2500V galvanic isolation prevent costly downtime from lightning strikes, motor startups, and VFD noise—protecting $50,000+ control systems.

✓ Extended Network Reach: RS485 differential signaling supports cable runs up to 1200 meters, eliminating expensive repeater infrastructure in large facilities (warehouses, water treatment plants, mining operations).

✓ Diagnostic Intelligence: Four-LED status array (power/TX/RX/error) accelerates troubleshooting by 70%, enabling technicians to isolate faults without oscilloscopes or protocol analyzers.

✓ Industrial-Grade Reliability: MTBF exceeding 450,000 hours (51+ years) and -40°C to +85°C storage rating ensure operation in unheated enclosures, outdoor kiosks, and mobile equipment.

Typical Application Scenarios

Pharmaceutical Manufacturing: Connect batch reactors, filling machines, and environmental monitoring systems to centralized MES platforms. The 1VCF750079R801 enables FDA 21 CFR Part 11 compliance through audit-trail integration, while CRC-16 error checking maintains data integrity for critical quality parameters (temperature ±0.1°C, pressure ±0.5%).

Food & Beverage Processing: Integrate legacy pasteurizers, CIP systems, and packaging lines with modern SCADA networks. Operators gain unified dashboards for OEE tracking, recipe management, and allergen traceability—reducing changeover times by 25% and minimizing product recalls.

Energy Management Systems: Aggregate data from power meters, UPS units, generator controllers, and solar inverters across campus microgrids. Facility managers achieve 15-20% energy savings through load profiling, demand response automation, and predictive maintenance of electrical infrastructure.

Material Handling & Logistics: Coordinate conveyor systems, sortation equipment, and automated storage/retrieval systems (AS/RS) in distribution centers. Real-time throughput monitoring and bottleneck detection improve order fulfillment rates by 30-40 units per hour.

Mining & Metals: Monitor crusher vibration, conveyor belt speed, and ore bin levels in remote processing plants. The board's -25°C cold-start capability and EMC hardening ensure reliable telemetry in Arctic operations and high-EMI smelting environments.

Technical Parameters & Selection Guide

Selection Criteria: Choose this board when integrating 2-32 MODBUS devices within 1200m radius. For TCP/IP networks, pair with ABB's Ethernet gateways. For hazardous areas (Class I Div 2), specify intrinsically safe barriers. Consult factory for custom firmware supporting proprietary MODBUS extensions.

Extended Functions

IoT Gateway Integration: Forward MODBUS data to cloud platforms (AWS IoT, Azure IoT Hub, ThingWorx) via third-party protocol converters. Enable remote diagnostics, predictive analytics, and mobile HMI access without modifying existing control logic.

Redundancy Configurations: Deploy dual boards in hot-standby mode for critical applications (pharmaceutical clean rooms, nuclear facilities). Automatic failover maintains communication during module replacement or power supply faults.

Custom Addressing Schemes: Program non-standard MODBUS registers for proprietary equipment (legacy PLCs, custom sensors). ABB engineering services provide firmware modifications with 4-6 week lead times.

Delivery & Service Assurance

Lead Times: Stock units ship within 24-48 hours via DHL/FedEx. Custom configurations (special firmware, extended temp ratings) require 3-4 weeks factory lead time. Expedited production available for critical outages (72-hour turnaround, premium applies).

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and firmware bugs. Extended 36-month plans available for $180 (includes advance replacement and priority support).

Technical Support: Lifetime access to application engineers (email/phone, 8-hour response SLA). Complimentary services include network design review, cable specification, and startup assistance. On-site commissioning available at $1,200/day plus travel.

Documentation Package: Each unit includes installation manual, wiring diagrams, MODBUS register map, and configuration software (Windows 10/11). CAD models (STEP/DWG) and PLC sample code (Structured Text, Ladder Logic) downloadable from support portal.

Frequently Asked Questions

How do I connect multiple MODBUS devices to a single PLC using this interface board?
Configure the board as a MODBUS slave with unique address (1-247). Wire all devices in daisy-chain topology using shielded twisted-pair cable. Enable termination resistors (120Ω) at both network ends. The PLC acts as master, polling each slave sequentially. Typical scan rates: 10-50ms per device depending on register count.

What cable specifications are required for reliable RS485 communication?
Use 24 AWG (minimum) shielded twisted-pair with 120Ω characteristic impedance (Belden 3105A or equivalent). Ground shield at one end only (preferably at power supply) to prevent ground loops. Maximum stub length: 1 meter. For outdoor runs, specify UV-resistant jacket and direct-burial rating.

Can this board reduce energy consumption in my facility's automation system?
Indirectly, yes. By enabling centralized monitoring of motors, compressors, and HVAC equipment, you can identify inefficient operation (excessive runtime, poor power factor). Customers report 12-18% energy savings after implementing MODBUS-based analytics and automated load shedding during peak demand periods.

What installation environment limitations should I consider?
Avoid mounting near high-frequency VFDs (maintain 300mm separation) or in direct sunlight (enclosure temp may exceed 60°C). Provide 50mm clearance above/below for convection cooling. In high-vibration applications (mobile equipment, reciprocating compressors), use DIN rail locking clips and conformal-coated PCB option.

How does remote monitoring capability integrate with existing SCADA systems?
The board exposes MODBUS registers to your SCADA master (Wonderware, Ignition, FactoryTalk). Configure polling intervals (1-10 seconds typical) and exception reporting for alarm conditions. For cloud connectivity, add an edge gateway (Opto 22 groov, Moxa UC-8100) to translate MODBUS to MQTT/OPC UA protocols.

What troubleshooting steps resolve common communication errors?
Verify LED indicators: solid green (power OK), flashing yellow (TX/RX activity), red (parity/CRC errors). Check baud rate consistency across all devices (9600 bps recommended starting point). Measure bus voltage (should be ±1.5-5V differential). Use protocol analyzer (Modbus Poll software) to confirm register addresses and function code support.

Take the Next Step

Eliminate protocol barriers and unlock the full potential of your automation infrastructure. Our engineering team is ready to assess your application requirements, recommend optimal configurations, and provide detailed ROI analysis. Contact us today for a complimentary network design consultation or request a demo unit for proof-of-concept testing in your facility.

Order now and receive: Free configuration software license ($250 value), priority technical support for 90 days, and access to our online training portal with 12+ hours of MODBUS troubleshooting tutorials.
