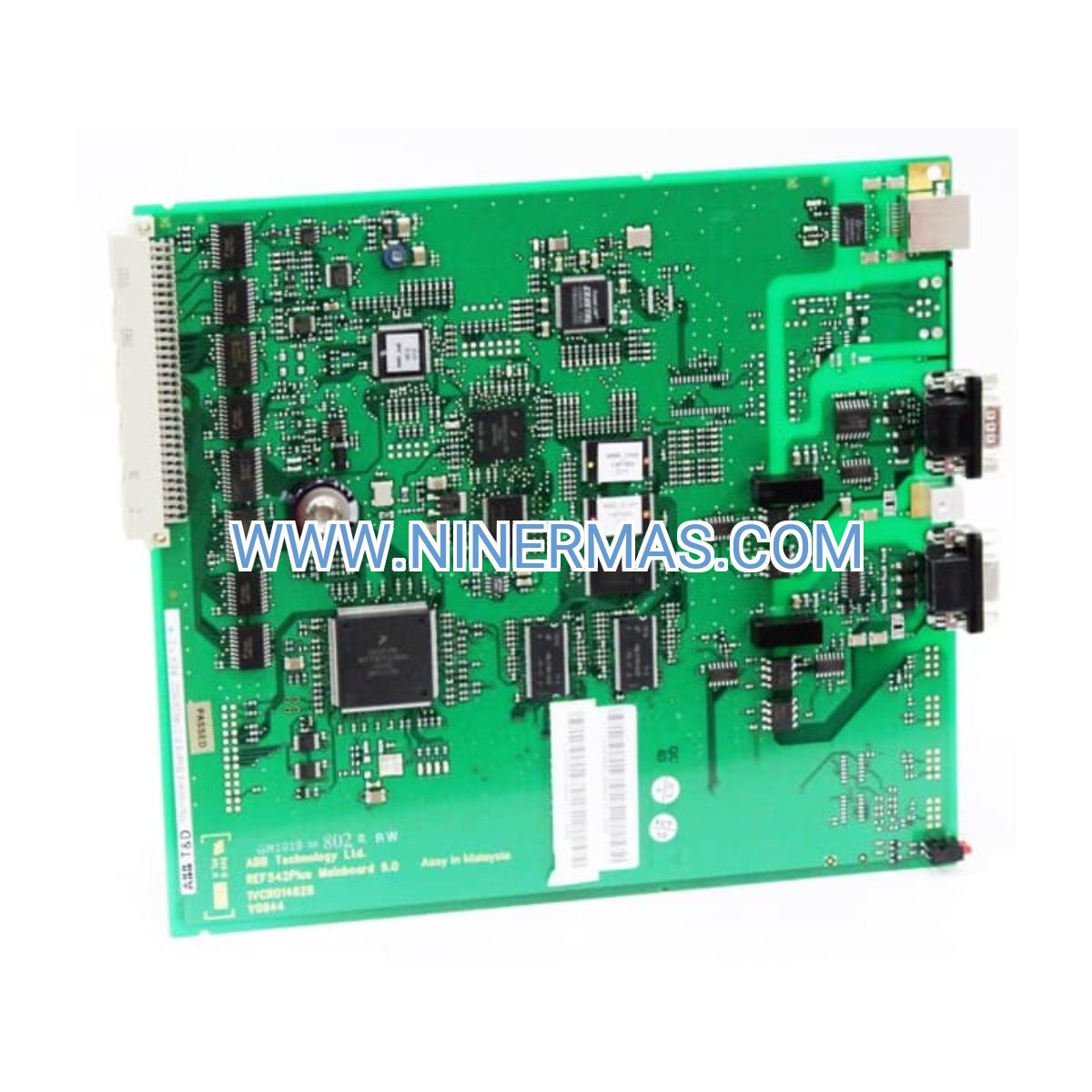

ABB 1VCR014629802 Main Board 6 (Industrial-Grade Drive Controller)

The ABB 1VCR014629802 Main Board 6 (Basic) delivers mission-critical control intelligence for variable frequency drive installations across manufacturing, process automation, and energy management sectors. Engineered in Malaysia to ABB's exacting standards, this primary control module orchestrates motor speed regulation, sensor integration, and system diagnostics within demanding industrial environments.

Designed for engineers and maintenance teams managing ABB drive ecosystems, this board solves recurring challenges: minimizing unplanned downtime through rapid swap-out capability, maintaining signal accuracy in electrically noisy facilities, and ensuring long-term operational stability across extreme temperature ranges. Its compact 0.27 kg footprint fits space-constrained enclosures while delivering full-featured control processing.

Whether you're upgrading aging drive infrastructure, stocking critical spares for 24/7 operations, or expanding automation capacity, the 1VCR014629802 provides proven reliability backed by comprehensive warranty coverage and global technical support.

Key Features & Performance Advantages

→ Plug-and-Play Replacement Protocol
Standardized connector layout and mounting dimensions enable technicians to complete board swaps during scheduled maintenance windows without extensive reconfiguration, reducing mean time to repair by up to 60% compared to legacy control architectures.

→ Enhanced Signal Conditioning Circuitry
Integrated noise suppression filters and differential input stages maintain encoder accuracy and sensor data integrity even in high-EMI environments with welding equipment, large contactors, and switching power supplies operating nearby.

→ Wide Operating Temperature Range
Optimized thermal pathways and component derating ensure stable operation from -10°C to +50°C ambient conditions, critical for installations in non-climate-controlled industrial spaces, outdoor enclosures, and process areas with heat-generating equipment.

✓ Built-In Diagnostic Capabilities
Onboard LED status indicators and serial communication ports accelerate fault isolation during troubleshooting sessions, enabling maintenance personnel to identify communication failures, power supply issues, or configuration errors within minutes rather than hours.

✓ CE and RoHS Compliance Certification
Meets European safety directives and environmental regulations, simplifying equipment export documentation and ensuring compatibility with corporate sustainability initiatives targeting hazardous substance reduction.

✓ Lightweight Modular Construction
At just 270 grams, the board reduces mechanical stress on mounting hardware and simplifies handling during installation in overhead or confined-space applications where technician access is limited.

Industrial Application Scenarios

Pump Station Automation
In municipal water distribution and wastewater treatment facilities, the board controls variable speed pumps responding to flow demand and pressure setpoints. Operators achieve 20-35% energy savings through optimized pump curves while extending mechanical seal life by eliminating start-stop cycling stress.

Conveyor System Coordination
Manufacturing and logistics operations deploy the board in material handling networks where synchronized belt speeds prevent product jams and optimize throughput. The control module manages acceleration ramps, emergency stop sequences, and zone-to-zone handoff timing across multi-section conveyor lines.

HVAC Fan Control Networks
Commercial buildings and industrial facilities use the board to modulate supply and exhaust fan speeds based on occupancy sensors, CO₂ levels, and temperature differentials. Facility managers report 30-45% HVAC energy reduction compared to constant-speed operation while improving indoor air quality metrics.

CNC Machine Tool Integration
Precision machining centers rely on the board's stable control outputs for spindle speed regulation and axis drive coordination. Manufacturers maintain tight tolerance requirements (±0.005mm) while reducing cycle times through optimized acceleration profiles and vibration damping algorithms.

Renewable Energy Installations
Wind turbine pitch control systems and solar tracker mechanisms depend on the board's reliable operation for continuous energy harvesting optimization. The module withstands outdoor temperature extremes and provides 10+ year service life in remote installations with limited maintenance access.

Technical Specifications & Selection Guide

Selection Criteria: Verify your existing drive's main board designation through the equipment nameplate or service manual before ordering. The "Basic" configuration suits standard single-controller applications; redundant or hot-standby systems require advanced board variants with failover support. Always confirm firmware version compatibility through your drive's diagnostic interface to ensure seamless integration.

Advanced Integration Options

SCADA System Connectivity: The board supports Modbus RTU and Profibus DP protocols for integration with supervisory control platforms, enabling centralized monitoring of drive status, fault codes, and performance metrics across distributed installations.

Predictive Maintenance Enablement: When paired with vibration sensors and thermal imaging systems, the board's diagnostic outputs feed condition monitoring platforms that predict bearing failures, cooling system degradation, and electrical connection issues 2-4 weeks before catastrophic failure.

Custom Parameter Programming: Engineering teams can optimize acceleration curves, current limits, and protection thresholds through ABB's DriveWindow configuration software, tailoring drive behavior to specific load characteristics and process requirements.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units with express shipping to major industrial centers worldwide. Expedited 24-48 hour processing available for critical breakdown situations requiring emergency replacement.

Warranty Coverage: Comprehensive 12-month manufacturer warranty protecting against material defects and workmanship failures. Warranty includes replacement unit shipment and technical support for installation verification.

Technical Support Access: Direct consultation with ABB-certified engineers for compatibility verification, troubleshooting assistance, and system integration guidance. Support available via email, phone, and remote diagnostic sessions.

Documentation Package: Each board ships with installation quick-start guide, connector pinout diagrams, and firmware compatibility matrix. Full technical manuals and CAD drawings available for download from our support portal.

Frequently Asked Questions

How do I verify this board matches my existing drive configuration?
Check your drive's main control board for the part number label (typically located near the primary connector). Cross-reference against your drive model's spare parts catalog or contact our technical team with your drive serial number for confirmation. The 1VCR014629802 designation must match exactly for proper operation.

What installation precautions prevent electrostatic damage during replacement?
Always use ESD wrist straps connected to facility ground and handle the board by its edges only. Work on anti-static mats and avoid touching component leads or connector pins. Disconnect all power sources and wait 5 minutes for capacitor discharge before removing the existing board. Verify proper connector seating with gentle pressure until locking tabs engage.

Can I upgrade drive functionality by installing this board in older models?
The board maintains existing drive capabilities but does not add new features to older drive platforms. Functionality is determined by the drive's power stage, firmware version, and option card configuration. Consult ABB's drive compatibility matrix to determine if firmware updates unlock additional features after board replacement.

What backup procedures are essential before board replacement?
Use ABB's DriveWindow software or the drive's front panel to save all parameter settings to a USB drive or PC before disconnecting power. Document custom I/O configurations, communication settings, and motor nameplate data. Photograph connector positions and cable routing for reference during reassembly. This preparation reduces commissioning time from hours to 15-20 minutes.

How does this board perform in high-vibration environments like mining or marine applications?
The board meets industrial vibration standards for fixed installations (IEC 60068-2-6) but is not rated for continuous high-vibration exposure exceeding 2G. For mobile equipment, offshore platforms, or heavy mining machinery, consider ABB's ruggedized board variants with conformal coating and reinforced solder joints designed for extreme mechanical stress.

What diagnostic indicators help identify board failure versus other drive issues?
Board-specific failures typically present as complete loss of drive communication, erratic display behavior, or fault codes in the 2xxx-3xxx range (communication/control faults). Power supply failures show different symptoms (no display, no fan operation). The board's LED pattern during power-up provides specific fault codes—consult the drive manual's diagnostic section for LED sequence interpretation.

Order Your Replacement Board Today

Minimize production disruptions and maintain drive system reliability with genuine ABB components. Our global logistics network delivers to 180+ countries with full shipment tracking and customs documentation support. Volume pricing available for maintenance departments stocking multiple units across facility networks.

Contact our technical sales team for compatibility verification, volume quotes, or expedited processing: sale@ninermas.com | +0086 187 5021 5667
