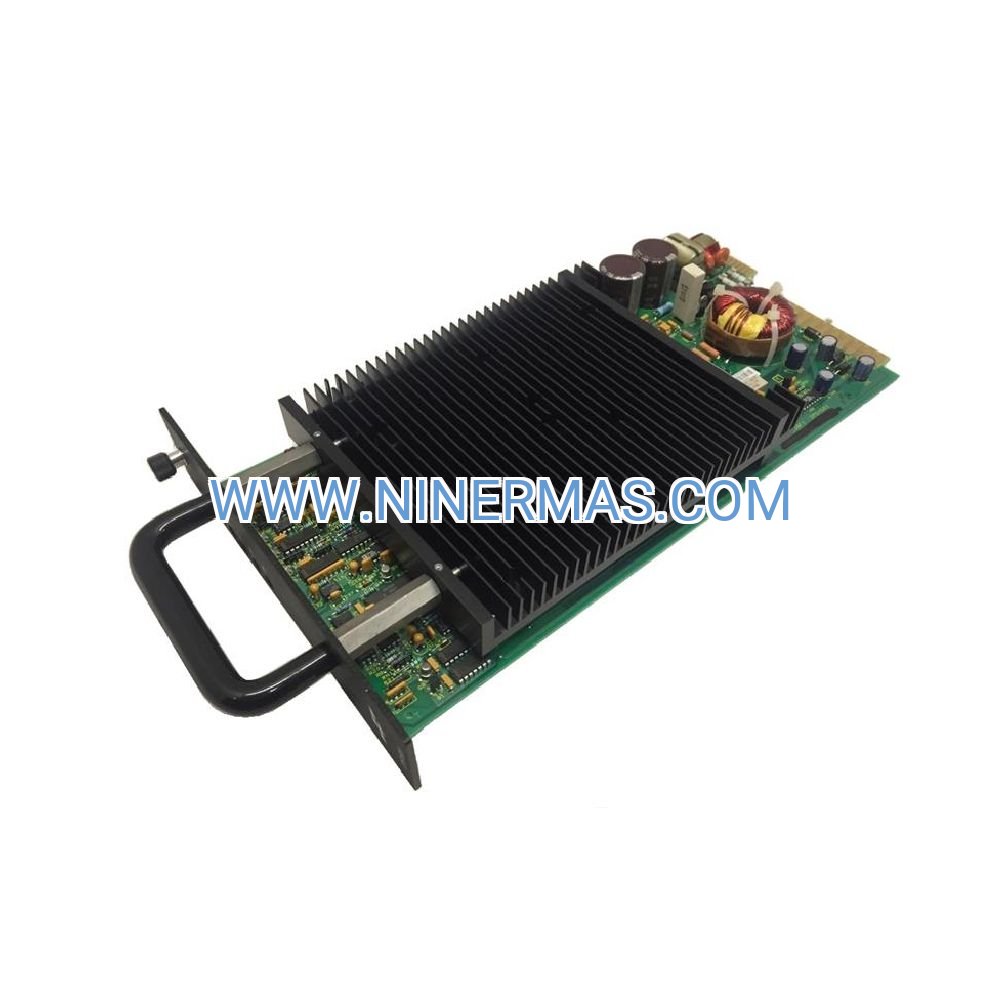

ABB IPSYS01 Power Module (Industrial-Grade 275W Solution)

The ABB IPSYS01 System Power Module represents a cornerstone component for mission-critical industrial automation infrastructure. Delivering a continuous 275-watt output with Swedish engineering precision, this power module addresses the fundamental challenge of maintaining stable, interference-free voltage across distributed control networks. Designed for system integrators, plant engineers, and automation professionals managing complex manufacturing environments, the IPSYS01 combines thermal resilience with compact footprint efficiency.

Industrial facilities face constant pressure to minimize downtime while maximizing equipment longevity. The IPSYS01 answers this challenge through intelligent protection circuitry and wide input tolerance, ensuring your PLCs, I/O racks, and communication gateways receive clean, regulated power even during grid fluctuations. Whether you're retrofitting legacy systems or designing greenfield installations, this module's proven track record in harsh factory conditions makes it a reliable foundation for your control architecture.

With factory-sealed construction and comprehensive EMC compliance, the IPSYS01 eliminates common power-related failures that plague production lines. Its DIN-rail mounting system enables rapid deployment, while diagnostic indicators provide instant visibility into operational status—reducing troubleshooting time and maintenance costs across your facility.

Core Capabilities & Business Value

→ Wide Input Voltage Range: Accommodates 85-264VAC global power standards, eliminating the need for custom configurations across multi-site deployments. Reduces spare parts inventory and simplifies international project specifications.

→ Multi-Layer Protection Architecture: Integrated overcurrent, overvoltage, and short-circuit safeguards prevent cascade failures in control cabinets. Protects downstream equipment investments worth thousands of dollars per incident.

→ High-Efficiency Conversion (>85%): Minimizes heat dissipation and reduces cooling requirements in enclosed panels. Translates to lower HVAC costs and extended component lifespan in temperature-sensitive environments.

✓ Compact DIN-Rail Form Factor: Occupies minimal cabinet space (standard 35mm rail compatible), allowing higher component density in retrofit projects where panel real estate is constrained.

✓ EMC Compliance (EN 61000 Series): Certified immunity to electromagnetic interference ensures reliable operation adjacent to VFDs, servo drives, and high-frequency switching equipment without signal degradation.

✓ Continuous 275W Output: Sufficient capacity to power complete PLC systems including CPU, I/O modules, communication cards, and peripheral sensors—eliminating the need for multiple smaller supplies.

Industrial Application Scenarios

Automated Manufacturing Lines: In automotive assembly plants and electronics production facilities, the IPSYS01 powers distributed I/O networks controlling robotic welding stations, pick-and-place systems, and quality inspection cameras. Its stable output prevents false triggers in high-speed counting applications where millisecond precision determines throughput rates.

Process Control & SCADA Systems: Chemical processing plants and water treatment facilities rely on the IPSYS01 to maintain uninterrupted power to flow meters, pressure transmitters, and valve actuators. The module's surge protection capability safeguards against lightning-induced transients common in outdoor installations with long cable runs.

Building Automation & HVAC Control: Commercial facilities use the IPSYS01 to energize BMS controllers managing lighting, climate control, and access systems. Its low standby power consumption aligns with green building certifications while ensuring 24/7 operational availability.

Material Handling & Logistics: Warehouse automation systems depend on the IPSYS01 for powering conveyor controllers, barcode scanners, and sortation logic. The module's vibration-resistant construction withstands the mechanical stress of high-throughput distribution centers.

Energy Management Systems: Renewable energy installations and microgrid controllers utilize the IPSYS01 for monitoring and control functions. Its wide input range accommodates fluctuating generator outputs in off-grid or backup power scenarios.

Technical Parameters & Selection Guide

Selection Criteria: Choose the IPSYS01 when your application requires 200-275W of 24VDC power with enterprise-grade reliability. For systems exceeding 275W, consider parallel redundant configurations or ABB's higher-capacity SA811F series. Verify that your total load (including 20% safety margin) falls within the continuous rating to prevent thermal derating in high-ambient environments.

Extended Integration Capabilities

Communication Protocol Support: While the IPSYS01 itself is a passive power component, it seamlessly integrates with ABB's System 800xA and AC 800M controllers that support PROFIBUS, Modbus RTU, and Ethernet/IP networks. Its clean power output prevents communication errors in fieldbus segments.

Redundancy Options: Deploy in N+1 configurations using external diode modules for mission-critical applications requiring zero-downtime power. Compatible with ABB's redundancy controllers for automatic failover switching.

Customization Availability: Standard unit ships with screw terminals; optional spring-clamp terminal blocks available for tool-free maintenance in high-vibration environments. Consult factory for conformal coating options in corrosive atmospheres.

Delivery Timeline & Service Assurance

Standard Lead Time: In-stock units ship within 1-2 business days via express courier. Typical delivery to major industrial hubs: 3-5 days domestic, 7-10 days international (customs clearance dependent).

Custom Configuration: Pre-wired assemblies with terminal blocks and surge protection require 10-15 business days for integration and testing.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended service agreements available for critical infrastructure applications.

Technical Support: Access to ABB-certified application engineers for sizing calculations, panel layout reviews, and troubleshooting assistance. Remote diagnostics support available during commissioning phase.

Documentation Package: Each unit includes installation manual, wiring diagrams, CE/UL certification documents, and dimensional drawings in PDF format. CAD models (STEP/IGES) available upon request for panel design integration.

Frequently Asked Questions

Q: What connection methods does the IPSYS01 power module support for integration with existing control panels?
A: The module features screw-type terminal blocks rated for 2.5mm² wire gauge, accommodating both solid and stranded conductors. Terminals accept ferrules for vibration-resistant connections. Input terminals are clearly marked L/N/PE, while output provides +24V and 0V terminals with integrated strain relief.

Q: Can this 275W power supply handle the inrush current from multiple PLC racks during simultaneous startup?
A: Yes, the IPSYS01 incorporates soft-start circuitry that manages inrush currents up to 150% of rated output for 5 seconds. This accommodates the capacitive charging demands of typical PLC backplanes and I/O modules during power-on sequences without nuisance tripping.

Q: How does the IPSYS01 contribute to energy efficiency improvements in industrial facilities?
A: With >85% conversion efficiency, the module wastes less than 40W as heat compared to older linear supplies that might dissipate 100W+ for equivalent output. Over a 10-year operational lifespan, this translates to approximately 525 kWh energy savings per unit—reducing both electricity costs and HVAC load in climate-controlled environments.

Q: What installation clearances are required for proper thermal management and maintenance access?
A: Maintain 50mm (2 inches) clearance above and below the module for convective airflow. Side-by-side mounting is permissible with no spacing required. Ensure ambient temperature remains below 50°C for full 275W output; derate by 2.5% per degree above 50°C up to maximum 70°C.

Q: Does the IPSYS01 support remote monitoring capabilities for predictive maintenance programs?
A: The standard unit provides local LED status indication (power good, overload, fault). For remote monitoring, integrate with ABB's SM811K monitoring modules that offer dry contact outputs for SCADA alarm integration. Advanced diagnostics require pairing with ABB's System 800xA DCS platform.

Q: Is the IPSYS01 suitable for hazardous area installations requiring ATEX or IECEx certification?
A: The standard IPSYS01 is rated for general industrial use (non-hazardous locations). For Zone 2/Division 2 applications, the module must be installed within a certified enclosure meeting area classification requirements. ABB offers explosion-proof power supply variants for Zone 1/Division 1 environments—consult our team for specific model recommendations.
