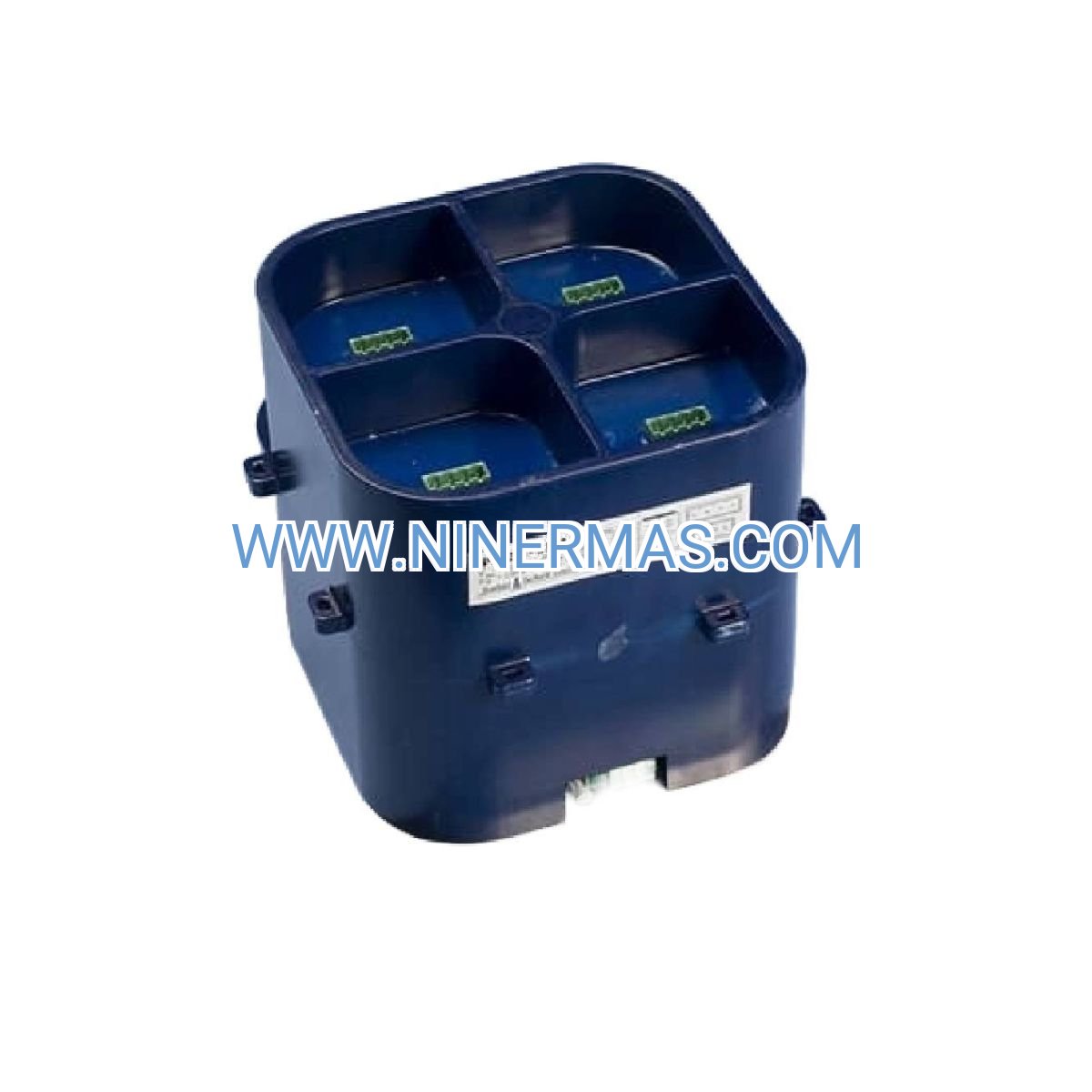

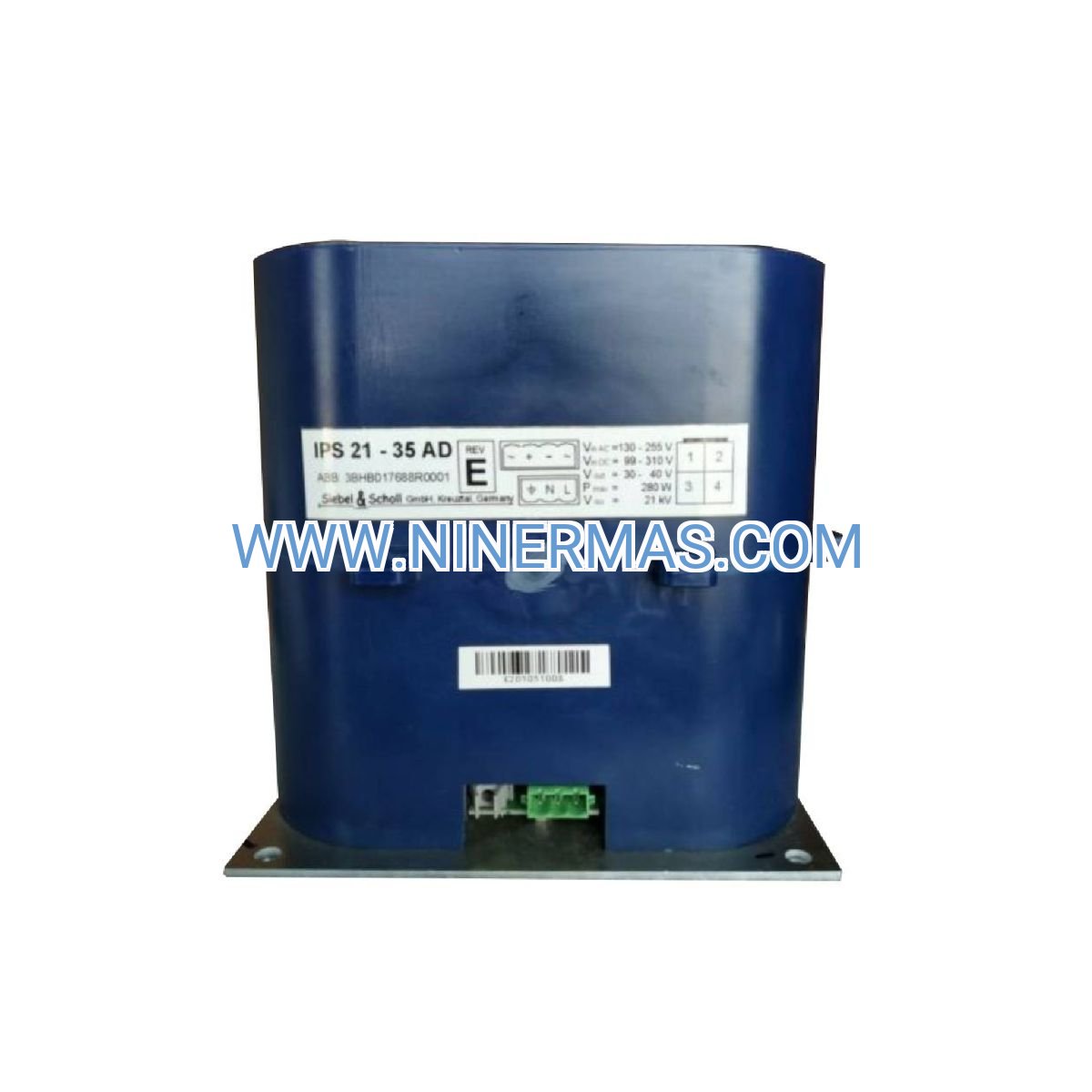

ABB 3BHB017688R0001 IPS Module – Industrial-Grade Isolated Power for Critical Control Systems

The ABB 3BHB017688R0001 represents a precision-engineered isolated power supply (IPS) designed specifically for ACS5000 water-cooled and ACS6000 medium voltage drive platforms. This module delivers galvanically isolated, ultra-stable 5V DC power to sensitive analog measurement circuits, gate driver electronics, and communication interfaces where electrical noise immunity and voltage precision directly impact drive performance and system reliability.

Engineered for industrial environments where electromagnetic interference, ground potential differences, and transient voltage spikes threaten control circuit integrity, this IPS module provides 2500V AC isolation barrier combined with sub-10mV ripple performance. The result is noise-free power delivery that enables accurate current sensing, precise temperature monitoring, and reliable gate signal transmission in multi-megawatt motor drive applications across water treatment, HVAC, mining, and process industries.

With German manufacturing heritage and automotive-grade component selection, the 3BHB017688R0001 ensures 100,000+ hour MTBF in properly ventilated installations, making it the preferred choice for mission-critical drive systems where unplanned downtime carries significant operational and financial consequences.

Key Technical Advantages & Performance Characteristics

→ 2500V Galvanic Isolation Barrier: High-frequency transformer architecture eliminates ground loop currents and blocks common-mode transients between power stages and control electronics, protecting sensitive ADCs and microcontrollers from voltage spikes generated during IGCT switching events.

→ Ultra-Low Noise Output (<10mV Ripple): Multi-stage LC filtering with ceramic capacitor arrays delivers clean power essential for 12-bit/16-bit analog-to-digital conversion accuracy, ensuring precise feedback signals for vector control algorithms and diagnostic systems.

→ Tight Voltage Regulation (±2%): Maintains stable 5V output across 0-1A load range with <50μs transient response, preventing voltage sag during gate driver activation or communication interface startup that could cause logic errors or system resets.

✓ 85% Conversion Efficiency: Advanced switching regulator topology minimizes heat generation, reducing cooling requirements and extending component lifespan in high-ambient-temperature cabinet installations.

✓ Comprehensive Protection Suite: Integrated overcurrent limiting (120% threshold), overvoltage crowbar (6.5V clamp), and thermal shutdown (85°C junction) safeguard both the power supply and downstream circuits from fault propagation.

✓ Wide Input Voltage Range (18-32V DC): Accommodates voltage variations in auxiliary power bus systems, maintaining regulated output despite fluctuations in drive cabinet 24V supply during motor starting transients or grid disturbances.

Industrial Application Scenarios & Value Delivery

Water & Wastewater Treatment Plants:
In municipal water pumping stations utilizing ACS5000 drives for variable-speed centrifugal pumps, the IPS module powers isolated current transformers and pressure transducers. The galvanic isolation prevents ground potential differences between distributed pump houses from corrupting 4-20mA analog signals, ensuring accurate flow control and preventing pump cavitation or overpressure conditions that damage infrastructure.

Mining Conveyor & Crusher Systems:
ACS6000 medium voltage drives controlling 3.3kV-11kV motors in ore processing facilities rely on the IPS module to supply gate driver boards for IGCT power semiconductors. The 2500V isolation withstands high dv/dt transients during switching, preventing false triggering and ensuring reliable torque delivery in continuous-duty conveyor applications where mechanical failures cause costly production stoppages.

HVAC Chiller & Cooling Tower Drives:
Data centers and commercial buildings using ACS5000 drives for centrifugal chiller compressors depend on precise temperature and pressure monitoring. The IPS module's <10mV ripple enables accurate thermistor and RTD measurements, optimizing refrigerant superheat control and preventing compressor liquid slugging that leads to mechanical damage and refrigerant loss.

Process Industry Variable Speed Drives:
Chemical plants and refineries employing ACS6000 drives for compressor and pump applications require isolated power for Modbus RTU and PROFIBUS communication interfaces. The IPS module prevents ground loop currents between control room PLCs and field-mounted drives, eliminating communication errors that cause process upsets or safety system false trips.

Steel Mill Rolling & Finishing Lines:
High-performance ACS drives in reversing mill applications demand fast gate driver response and accurate current feedback. The IPS module's 50μs transient response maintains stable power during rapid load changes, enabling precise torque control for material thickness regulation and preventing cobble conditions that damage mill equipment.

Technical Specifications & Selection Parameters

Selection Criteria: Calculate total load current by summing gate driver logic (typically 300mA), analog measurement circuits (200mA), communication interfaces (200mA), and reserve 30% margin for transient demands. Verify cabinet ambient temperature does not exceed 50°C to maintain full 1A output rating. For applications requiring >1A, parallel multiple IPS modules with individual load distribution to prevent cross-coupling.

Advanced Integration Features & System Compatibility

Load Distribution Architecture: The 1A output capacity supports multiple isolated circuits when properly allocated. Recommended distribution includes dedicated outputs for gate driver logic power (300mA max), analog signal conditioning (200mA max), serial communication transceivers (200mA max), and diagnostic LED indicators (100mA max). Use separate wire pairs for each load group with appropriate gauge selection (22 AWG minimum for 200mA loads) to minimize voltage drop.

EMI Suppression & Grounding: The module chassis must connect to drive cabinet ground plane via low-impedance path (<0.1Ω) for effective common-mode noise suppression. The isolated output ground creates a separate reference plane for analog circuits, implementing star grounding topology where all signal grounds converge at a single point near the IPS output terminals. This prevents circulating ground currents that inject noise into measurement circuits.

Thermal Management: The switching regulator generates approximately 8W heat dissipation at full load (15% loss from 85% efficiency). Ensure minimum 50mm clearance above and below the module for natural convection cooling. In sealed cabinets or ambient temperatures exceeding 45°C, forced air circulation (200 LFM minimum) maintains junction temperatures within safe operating limits and preserves electrolytic capacitor lifespan.

Delivery Timeline & Quality Assurance

Standard Lead Time: 3-5 business days for in-stock units from regional distribution centers (US, Singapore, China). Express shipping available for emergency replacements with same-day dispatch for orders placed before 2 PM local time.

Custom Orders: Factory-direct procurement for bulk quantities (10+ units) requires 4-6 weeks lead time from ABB Germany manufacturing facility. Volume pricing available for OEM integrators and maintenance contractors.

Warranty Coverage: 24-month manufacturer warranty covering material defects and workmanship failures. Extended warranty programs available for critical infrastructure applications requiring 5-year coverage with advance replacement service.

Technical Support: Lifetime application engineering assistance including power budget calculations, noise troubleshooting, and thermal analysis. Phone and email support staffed by power electronics engineers familiar with ACS drive architectures and common integration challenges.

Documentation Package: Each unit ships with installation manual, electrical schematic, dimensional drawings, and compliance certificates (CE, UL, RoHS). CAD models (STEP format) and SPICE simulation models available for download from technical library.

Frequently Asked Questions

Q: Can this isolated power supply module replace older ABB IPS versions in legacy ACS5000 installations?
A: The 3BHB017688R0001 maintains electrical and mechanical compatibility with previous IPS generations used in ACS5000 drives manufactured after 2005. Verify mounting hole patterns and connector pinouts match your specific drive control board revision. For drives manufactured before 2005, consult factory documentation or contact our engineering team for retrofit compatibility assessment.

Q: What output current capacity remains available when operating at 55°C cabinet ambient temperature?
A: Apply 20% derating above 50°C ambient, reducing maximum continuous output from 1.0A to 0.8A at 55°C. The thermal shutdown circuit activates at 85°C junction temperature (approximately 65°C ambient at full load), providing protection against thermal runaway. Improve cooling with forced air circulation to maintain full 1A rating in high-temperature environments.

Q: How does galvanic isolation improve measurement accuracy in motor drive applications?
A: The 2500V isolation barrier breaks ground loop paths between high-voltage power circuits and low-voltage control electronics. Without isolation, ground potential differences (often 10-100mV in distributed systems) appear as measurement errors in current transformer and voltage divider circuits. Isolation eliminates these errors, improving ADC accuracy from ±2% to ±0.5% and enabling precise vector control and diagnostic functions.

Q: What installation practices minimize electromagnetic interference from the switching power supply?
A: Route input and output cables in separate wire trays with minimum 100mm separation. Use twisted-pair wiring for output connections to reduce radiated emissions. Install ferrite beads on input power lines near the module terminals (Fair-Rite 2643625002 or equivalent). Connect module chassis to cabinet ground with short, wide copper strap (<100mm length, >10mm width) for low-impedance RF return path. These measures reduce conducted and radiated EMI below EN 55011 Class A limits.

Q: Can multiple IPS modules operate in parallel to increase total output current capacity?
A: Parallel operation is not recommended due to lack of active current sharing circuitry, which causes unequal load distribution and potential overload of one module. Instead, distribute loads across multiple IPS modules with dedicated output circuits. For example, use one module for gate drivers (600mA) and a second module for analog circuits and communication interfaces (400mA). This approach provides redundancy and prevents single-point failure.

Q: What diagnostic indicators help troubleshoot power supply failures in drive systems?
A: The module provides LED status indication: green LED confirms input power presence and output voltage regulation within ±5%; red LED indicates fault conditions (overcurrent, overvoltage, or thermal shutdown). Measure output voltage with calibrated multimeter – readings below 4.9V suggest overload or internal regulator failure; readings above 5.3V indicate feedback circuit fault. Check input voltage under load to rule out auxiliary power supply issues before replacing IPS module.
