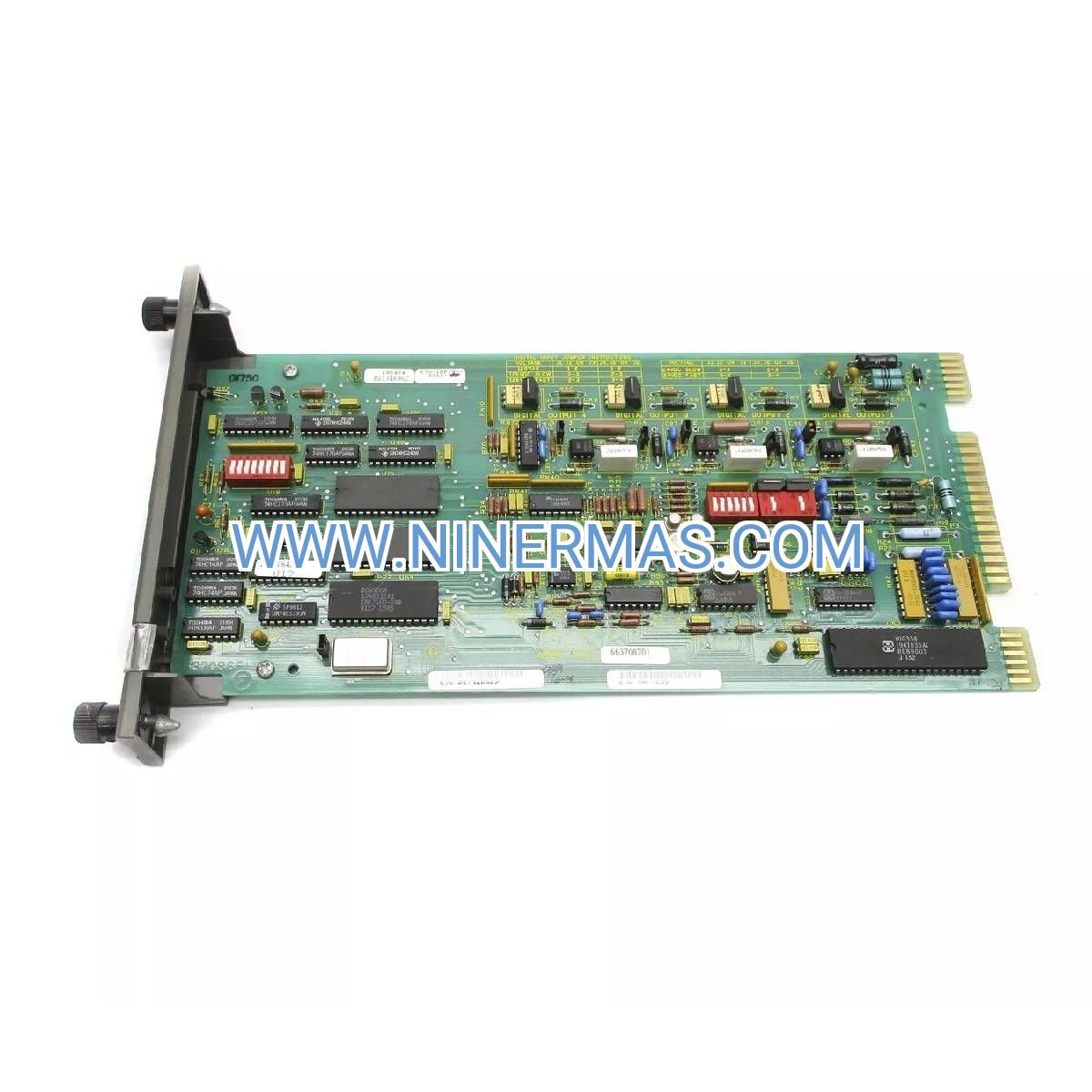

ABB IMFAI02 Fast Analog Input Module (Industrial-Grade 16-Bit Precision)

The ABB IMFAI02 represents a professional-grade solution for high-speed analog signal acquisition in mission-critical industrial environments. Engineered with 8 differential input channels and true 16-bit resolution, this module transforms analog sensor data into actionable intelligence for process optimization, quality control, and predictive maintenance systems.

Designed for manufacturers and system integrators who demand uncompromising accuracy, the IMFAI02 addresses the challenge of capturing fast-changing process variables while maintaining signal integrity in electrically noisy industrial settings. Whether you're monitoring temperature fluctuations in pharmaceutical reactors, tracking pressure variations in hydraulic systems, or analyzing vibration signatures in rotating equipment, this module delivers the precision and reliability your operations require.

With proven compatibility across ABB's automation portfolio and support for industry-standard communication protocols, the IMFAI02 accelerates deployment timelines while reducing integration complexity. Its hot-swappable architecture and comprehensive diagnostics ensure maximum uptime in 24/7 production environments.

Core Features & Technical Advantages

✓ 16-Bit Resolution Across All Channels
Capture 65,536 discrete measurement levels per channel, enabling detection of subtle process variations that 12-bit or 14-bit modules miss. Critical for applications requiring ±0.1% full-scale accuracy, such as pharmaceutical batch control and precision machining.

✓ 8 Differential Analog Inputs
Simultaneous monitoring of multiple process variables reduces hardware footprint and wiring costs. Differential input architecture provides superior common-mode noise rejection compared to single-ended designs, essential for long cable runs in industrial facilities.

✓ High-Speed Sampling Architecture
Fast conversion rates ensure real-time capture of transient events and rapid process changes. Ideal for applications like servo control feedback, vibration analysis, and quality inspection systems where millisecond-level response matters.

✓ Channel-to-Channel & Bus Isolation
Electrical isolation protects against ground loops, voltage spikes, and cross-channel interference. Maintains measurement integrity even when sensors operate at different ground potentials or in high-EMI environments like motor control centers.

✓ Extended Temperature Range (-40°C to +70°C)
Reliable operation in extreme conditions—from outdoor installations in cold climates to high-temperature industrial ovens. Eliminates the need for climate-controlled enclosures in many applications, reducing total cost of ownership.

✓ Hot-Swappable Design with Built-In Diagnostics
Replace modules during operation without system shutdown. Real-time health monitoring alerts maintenance teams to potential issues before failures occur, supporting predictive maintenance strategies and minimizing unplanned downtime.

Industry Applications & Use Cases

→ Chemical & Pharmaceutical Manufacturing
Monitor reactor temperatures, pressure vessels, and flow rates with the precision required for FDA 21 CFR Part 11 compliance. The module's high resolution enables tight process control windows, reducing batch variability and improving product consistency.

→ Power Generation & Distribution
Track voltage, current, and power quality parameters in substations and generation facilities. Fast sampling rates capture power transients and harmonics, supporting grid stability analysis and equipment protection schemes.

→ Automotive & Aerospace Testing
Acquire data from strain gauges, thermocouples, and pressure transducers during component validation and environmental testing. 16-bit resolution reveals material behavior patterns that inform design optimization and failure analysis.

→ Food & Beverage Processing
Ensure pasteurization temperatures, fermentation conditions, and packaging line parameters remain within specification. Accurate measurement supports HACCP compliance and reduces product waste from out-of-spec batches.

→ Water & Wastewater Treatment
Monitor pH, dissolved oxygen, turbidity, and chemical dosing systems. Precise analog inputs enable optimal chemical usage, reducing operating costs while maintaining discharge permit compliance.

Technical Specifications & Selection Guide

Selection Criteria: Choose the IMFAI02 when your application requires simultaneous monitoring of 8 or fewer analog signals with resolution better than 14-bit. For applications needing more than 8 channels, consider multiple modules or ABB's higher-density I/O solutions. Verify input range compatibility with your sensors (e.g., 4-20mA, 0-10V) and confirm communication protocol support with your control system.

Advanced Integration Capabilities

The IMFAI02 seamlessly integrates with ABB's AC 800M controllers, System 800xA DCS platforms, and third-party PLCs supporting standard industrial protocols. Configuration is streamlined through ABB's Control Builder engineering environment, which provides graphical function block programming, automatic I/O mapping, and comprehensive diagnostic views.

For Industry 4.0 initiatives, the module supports OPC UA connectivity, enabling direct data access from MES, SCADA, and cloud analytics platforms. This eliminates traditional data silos and accelerates digital transformation projects focused on predictive maintenance, energy optimization, and overall equipment effectiveness (OEE) improvement.

Custom scaling, filtering, and alarm functions can be configured at the module level, reducing controller processing overhead and improving system response times. Redundant communication paths ensure continued operation even during network disruptions.

Delivery, Warranty & Technical Support

Lead Time: Standard configurations ship within 3-5 business days. Custom-configured modules or large-volume orders may require 2-3 weeks. Contact our team for expedited delivery options.

Warranty: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical applications.

Technical Support: Access to ABB-certified application engineers for configuration assistance, troubleshooting, and system optimization. Remote diagnostic support available during commissioning and operation.

Documentation: Each module ships with installation manual, wiring diagrams, configuration software, and sample application code. Online resources include video tutorials, application notes, and firmware updates.

Frequently Asked Questions

Q: How does the IMFAI02 connect to existing ABB control systems?
A: The module communicates via ABB's ModuleBus or industry-standard fieldbus protocols (Profibus, Modbus, etc.). It mounts directly in ABB S800 I/O racks or compatible third-party chassis. Configuration is performed through ABB Control Builder or compatible engineering tools.

Q: What input signal types and ranges does the module support?
A: The IMFAI02 accepts configurable voltage inputs (typically 0-10V, ±10V) and current inputs (4-20mA, 0-20mA). Input ranges are software-selectable per channel, allowing mixed sensor types on a single module. Consult the technical datasheet for complete range specifications.

Q: Can this module reduce energy consumption in my facility?
A: Yes—precise analog measurement enables tighter process control, reducing energy waste from over-processing, excessive heating/cooling, or inefficient motor operation. Customers report 5-15% energy savings after upgrading from lower-resolution I/O to 16-bit modules in HVAC and compressed air systems.

Q: What are the installation requirements and mounting options?
A: The module requires a compatible ABB S800 I/O rack or third-party DIN-rail mounting system. Installation involves securing the module to the rack, connecting field wiring to terminal blocks, and configuring via engineering software. Typical installation time is 30-60 minutes per module for experienced technicians.

Q: Does the IMFAI02 support remote monitoring and diagnostics?
A: Yes—when integrated with ABB System 800xA or compatible SCADA systems, the module provides real-time diagnostic data including channel status, signal quality, and fault conditions. This enables remote troubleshooting and predictive maintenance strategies that reduce site visits and downtime.

Q: How does 16-bit resolution compare to standard 12-bit modules?
A: 16-bit resolution provides 16 times more measurement granularity than 12-bit modules (65,536 vs. 4,096 discrete levels). This translates to detecting 0.0015% signal changes versus 0.024% changes—critical for applications like pharmaceutical batch control, precision temperature regulation, and quality assurance where small variations indicate process drift.

Get Started with ABB IMFAI02

Ready to upgrade your analog input capabilities? Contact our technical sales team for application-specific recommendations, pricing, and delivery timelines. We provide complimentary system design reviews to ensure optimal module selection and configuration for your unique requirements.

Request a Quote: Email your application details, required channel count, and sensor specifications to receive a customized proposal within 24 hours.
