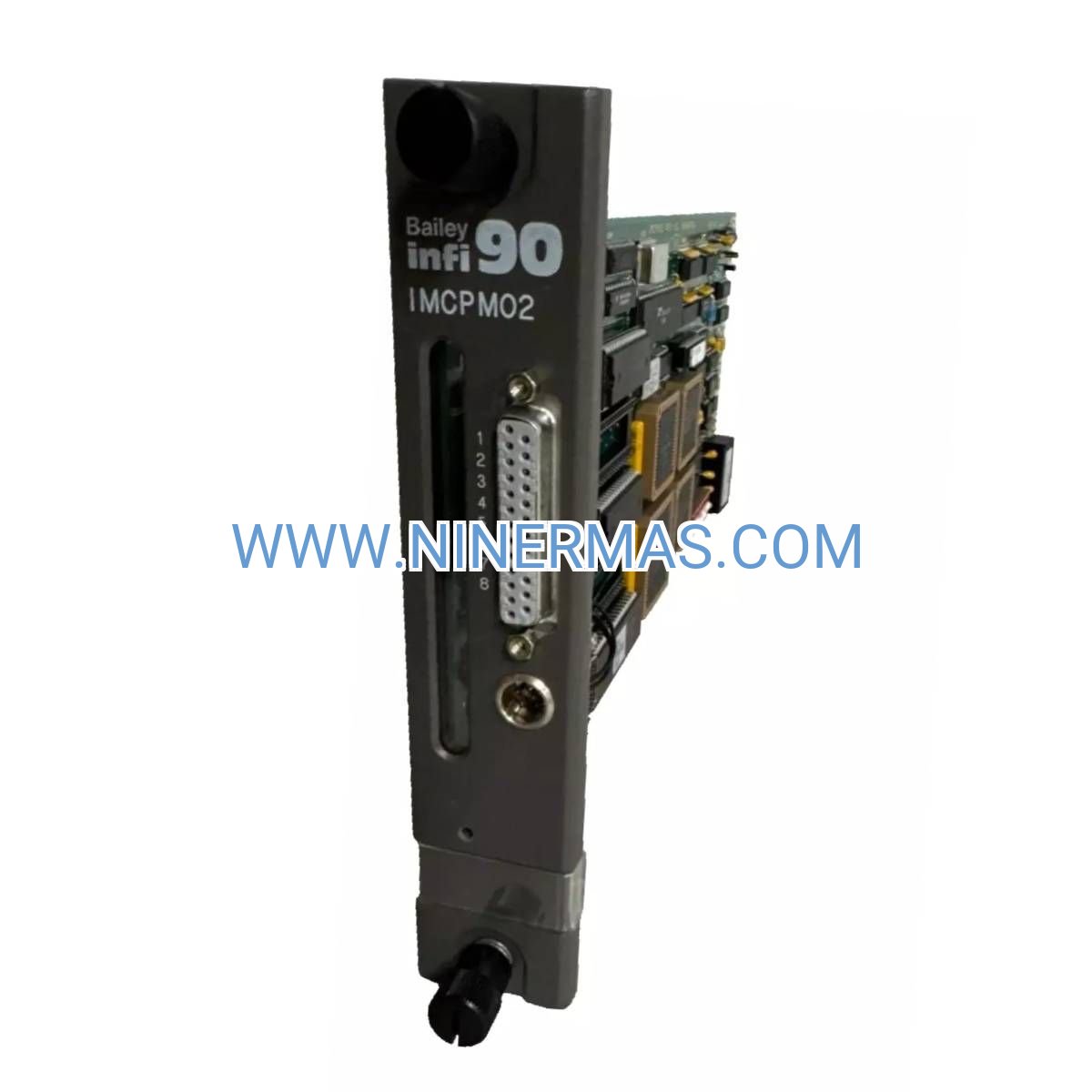

IMCPM02 Communication Port Module (Industrial-Grade RS232 Serial Interface)

The IMCPM02 represents a proven serial communication solution engineered for Harmony Rack HW control platforms. This dedicated RS232 port module establishes dependable point-to-point data links between automation controllers and peripheral equipment across pharmaceutical manufacturing, food processing, and chemical production facilities. Built to withstand demanding industrial environments, the module delivers consistent serial protocol performance for legacy device integration and real-time data acquisition tasks.

Process engineers and system integrators deploy the IMCPM02 when connecting Harmony Rack controllers to operator terminals, barcode readers, analytical instruments, and weighing systems that require RS232 serial communication. The module eliminates communication bottlenecks in batch control systems, recipe management applications, and quality assurance workflows where reliable data transfer directly impacts production efficiency and regulatory compliance.

Key advantages include backplane-powered operation eliminating external power supplies, flexible baud rate configuration from 300 to 115200 bps, comprehensive parity and flow control options, and visual TX/RX indicators for rapid troubleshooting. The module's slot-based installation enables quick deployment and replacement without disrupting adjacent system components.

Core Features & Benefits

✓ Backplane-Powered Architecture
Draws operating power directly from the Harmony Rack backplane, eliminating external power supply requirements and reducing installation complexity. This design simplifies wiring, lowers component count, and enhances system reliability by removing potential power supply failure points.

✓ Wide Baud Rate Flexibility (300-115200 bps)
Supports industry-standard baud rates from 300 to 115200 bits per second, ensuring compatibility with legacy instrumentation operating at slower speeds and modern devices requiring high-speed data transfer. This range accommodates diverse equipment portfolios without requiring protocol converters.

✓ Comprehensive Protocol Configuration
Offers selectable data formats (7/8 bits), stop bits (1/2), parity options (None/Even/Odd/Mark/Space), and flow control mechanisms (RTS/CTS hardware, XON/XOFF software). This flexibility ensures seamless integration with equipment from multiple manufacturers and communication standards.

✓ Visual Diagnostic Indicators
Integrated LED indicators display module status and real-time TX/RX activity, enabling technicians to verify communication health at a glance. This feature accelerates troubleshooting during commissioning and reduces mean time to repair during operational issues.

✓ Industrial Temperature Rating (0°C to +60°C)
Qualified for continuous operation across standard industrial temperature ranges, the module maintains communication integrity in climate-controlled facilities and moderately harsh environments. Extended storage rating (-40°C to +85°C) protects spare inventory in warehouse conditions.

→ Dual Protocol Support (ASCII & Binary)
Handles both ASCII text-based protocols and binary data streams, providing versatility for connecting text-oriented terminals and binary-protocol instruments within the same automation architecture.

Typical Application Scenarios

Pharmaceutical Batch Manufacturing
In pharmaceutical production environments, the IMCPM02 connects Harmony Rack batch controllers to electronic balances, pH meters, and recipe management terminals. The module enables precise ingredient weighing data transfer, real-time pH monitoring during fermentation processes, and batch record documentation required for FDA 21 CFR Part 11 compliance. Serial communication reliability directly impacts batch traceability and audit trail integrity.

Food Processing Quality Control
Food processing facilities utilize the module to interface Harmony Rack PLCs with metal detectors, checkweighers, and barcode verification systems on packaging lines. The RS232 link transmits product weight data, metal detection results, and lot code verification status to the central control system, enabling automated reject mechanisms and production reporting that support HACCP compliance and quality assurance protocols.

Water Treatment SCADA Integration
Municipal water treatment plants deploy the IMCPM02 to connect Harmony Rack controllers with legacy turbidity meters, chlorine analyzers, and flow totalizers equipped with RS232 outputs. The module facilitates continuous water quality monitoring, chemical dosing control, and regulatory reporting by bridging modern control platforms with established analytical instrumentation investments.

Chemical Manufacturing Data Logging
Chemical production facilities employ the module to link Harmony Rack systems with chromatography equipment, spectrophotometers, and process recorders. Serial data acquisition supports real-time quality monitoring, automated sampling coordination, and electronic batch record generation that streamline production documentation and regulatory submissions.

Packaging Line Printer Integration
Manufacturing operations connect the IMCPM02 to thermal transfer printers and label applicators for on-demand product labeling. The module transmits variable data including lot numbers, expiration dates, and serialization codes from the Harmony Rack controller to printing equipment, ensuring accurate product identification and supply chain traceability.

Technical Parameters & Selection Guide

Selection Criteria: Choose the IMCPM02 when your application requires point-to-point RS232 connectivity between a Harmony Rack controller and a single peripheral device. Verify that your connected equipment supports RS232 voltage levels (±3V to ±15V) and operates within the module's baud rate range. For applications requiring multi-drop networks or longer cable distances exceeding 15 meters, consider RS485 communication modules or fiber optic solutions instead. Confirm connector type compatibility (DB9 vs. terminal block) based on your peripheral equipment's interface requirements.

Extended Functions

Protocol Conversion Compatibility: The IMCPM02 integrates seamlessly with third-party RS232-to-Ethernet converters, enabling remote serial device access over TCP/IP networks. This capability supports centralized monitoring of distributed serial instruments without requiring dedicated point-to-point wiring to the control room.

Data Logging Integration: When paired with Harmony Rack data acquisition software, the module facilitates continuous logging of serial instrument readings to SQL databases or CSV files. This function supports trend analysis, statistical process control, and long-term equipment performance monitoring.

Customization Options: For applications with unique communication requirements, ABB offers engineering services to develop custom serial protocols, implement specialized data parsing routines, and create tailored integration solutions that address specific industry or equipment challenges.

Delivery Timeline & Service Guarantee

Standard Delivery: In-stock IMCPM02 modules ship within 1-3 business days via express courier services. Typical delivery timeframes range from 5-7 business days for domestic shipments and 7-12 business days for international destinations, subject to customs clearance procedures.

Custom Configuration: Modules requiring pre-configured communication parameters or specialized connector assemblies ship within 10-15 business days following order confirmation and specification approval.

Warranty Coverage: Every IMCPM02 module includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Warranty service includes free replacement of defective units and technical support for configuration-related issues.

Technical Support: Our automation specialists provide complimentary pre-sales consultation, communication parameter configuration assistance, protocol troubleshooting guidance, and integration support throughout your project lifecycle. Support channels include email, phone, and remote desktop assistance.

Documentation Package: Each module ships with installation instructions, communication parameter reference tables, connector pinout diagrams, and sample configuration files compatible with ABB Harmony engineering software.

Frequently Asked Questions

What is the recommended approach for connecting RS232 devices located more than 15 meters from the Harmony Rack?
For distances exceeding the 15-meter RS232 limitation, implement RS232-to-RS485 converters at both ends of the communication link, or deploy fiber optic RS232 extenders that support distances up to 2 kilometers. These solutions maintain signal integrity and eliminate voltage drop issues associated with long copper cable runs.

Does the IMCPM02 support simultaneous bidirectional communication?
Yes, the module supports full-duplex operation when connected devices and communication protocols permit simultaneous transmit and receive operations. However, actual bidirectional performance depends on the connected equipment's capabilities and the implemented communication protocol.

How do I verify proper communication between the IMCPM02 and a connected serial device?
Monitor the TX and RX LED indicators during communication attempts. The TX LED illuminates when the module transmits data, while the RX LED activates upon receiving data. If only one LED activates, verify cable wiring (particularly TX/RX crossover), baud rate matching, and parity settings between the module and connected device.

Can the module interface with USB-based serial devices using a USB-to-RS232 adapter?
While technically possible, this configuration introduces an additional conversion layer that may cause timing issues or compatibility problems. For optimal reliability, connect directly to native RS232 ports on industrial equipment. If USB connectivity is required, consider Harmony Rack modules with native USB support.

What configuration software is required to set communication parameters?
Communication parameters are configured through ABB's Harmony engineering software suite during system programming. Parameter settings include baud rate, data format, parity, and flow control options. Some parameters may be adjustable during runtime depending on your application program design.

Is the IMCPM02 compatible with Modbus RTU serial protocol?
The module provides the physical RS232 interface layer. Modbus RTU protocol implementation occurs at the application software level within your Harmony Rack controller program. Consult ABB's Modbus function block libraries for implementing Modbus RTU master or slave functionality over the RS232 connection.

Ready to Integrate Reliable Serial Communication?

Contact our industrial automation specialists today to discuss your Harmony Rack serial communication requirements. We provide technical consultation, communication parameter recommendations, and complete integration support to ensure successful IMCPM02 deployment in your control system.

Request a quotation: Email your application details and quantity requirements to receive a detailed proposal within 24 hours.

Technical inquiry: Speak with our automation engineers to verify compatibility, discuss protocol requirements, and plan your serial communication architecture.
