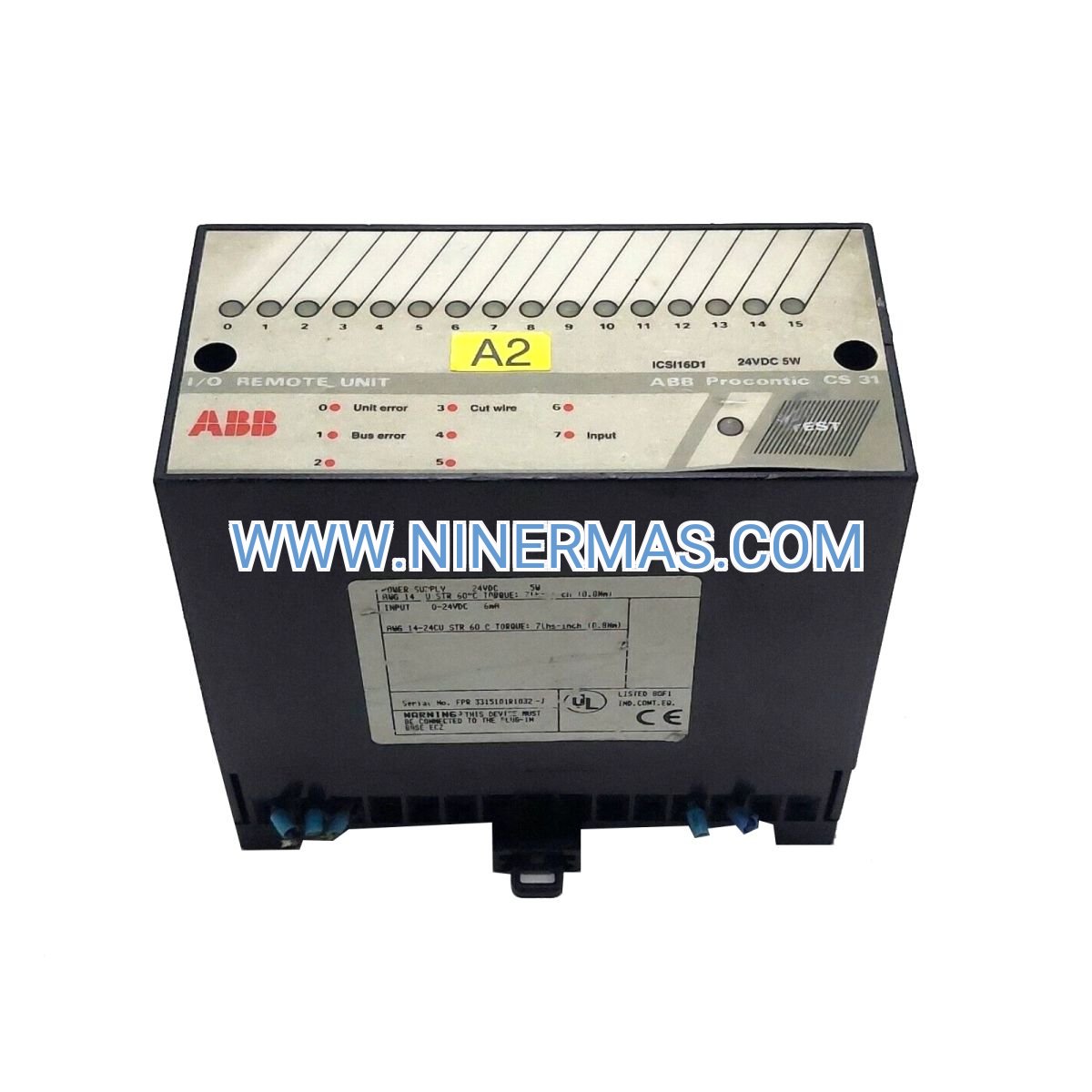

ICSI16D1 Binary Input Module (Industrial-Grade Digital Signal Interface)

The ICSI16D1 represents ABB's commitment to precision digital signal acquisition for mission-critical process control environments. Engineered specifically for Procontrol P14 distributed control architectures, this 16-channel binary input module transforms field-level discrete signals into actionable intelligence for supervisory systems. Whether monitoring turbine status in power generation facilities or tracking valve positions in petrochemical plants, the ICSI16D1 delivers deterministic performance where milliseconds matter and downtime is not an option.

Industrial operators face constant pressure to maintain visibility across hundreds of discrete field devices while ensuring signal integrity in electrically noisy environments. The ICSI16D1 addresses these challenges through galvanically isolated input channels, transient suppression circuitry, and hot-swappable architecture that enables maintenance without process interruption. For control engineers managing legacy Procontrol P14 installations or expanding existing DCS footprints, this module provides seamless backward compatibility with proven reliability metrics.

What sets the ICSI16D1 apart is its combination of sub-5-millisecond response times, industrial temperature tolerance (-20°C to +60°C), and diagnostic capabilities that reduce troubleshooting time by up to 40%. With over 200,000 hours MTBF and compliance to IEC 61131 standards, this binary input module serves as the foundation for safety-critical interlocking systems and regulatory-compliant data acquisition across energy, manufacturing, and infrastructure sectors.

Core Capabilities & Business Value

✓ 16 Galvanically Isolated Input Channels
Each channel features optical isolation to eliminate ground loop interference and protect upstream controllers from field-level voltage transients. This architecture ensures that a fault on one input cannot cascade to adjacent channels or compromise system integrity—critical for SIL-rated safety applications.

→ Sub-5ms Signal Processing Latency
Deterministic scan cycles enable real-time response to emergency shutdown signals, high-speed counting applications, and synchronous event capture across distributed I/O networks. Reduce false trip rates and improve process stability through precise timestamp correlation.

✓ Hot-Swappable Rack Installation
Replace failed modules or upgrade configurations without halting production processes. Automatic address recognition and bumpless transfer protocols maintain control continuity during live maintenance operations, translating to measurable uptime improvements.

→ Integrated Diagnostic LEDs & Self-Test Routines
Channel-level status indicators accelerate fault isolation, while continuous background diagnostics detect wiring faults, power supply anomalies, and communication errors before they impact operations. Reduce mean time to repair (MTTR) by providing technicians with actionable troubleshooting data.

✓ Conformal-Coated PCB Assembly
Moisture-resistant coating and industrial-grade components withstand corrosive atmospheres, temperature cycling, and vibration exposure common in heavy industrial environments. Extend service intervals and reduce spare parts inventory costs.

→ Procontrol P14 Native Protocol Support
Seamless integration with ABB's engineering software suite eliminates protocol conversion overhead and simplifies configuration management. Leverage existing operator training and maintenance procedures without introducing new technology learning curves.

Industry-Specific Application Scenarios

Power Generation & Cogeneration Facilities
Monitor turbine bearing temperature alarms, generator breaker positions, cooling water flow switches, and auxiliary system status across combined-cycle plants. The ICSI16D1's redundant controller compatibility ensures continuous visibility during planned controller switchovers, while its fast response time captures transient events during grid disturbances. Operators gain confidence in alarm validity through isolated input architecture that rejects electrical noise from high-voltage switchgear.

Oil & Gas Production & Refining
Acquire valve limit switch confirmations, pump seal failure indicators, flame detector signals, and emergency shutdown chain status across upstream and downstream operations. Compliance with hazardous area wiring practices is simplified through the module's isolated input design, which permits longer cable runs without signal degradation. Integration with existing Procontrol P14 safety systems maintains certification continuity during plant expansions.

Chemical Processing & Batch Manufacturing
Interface with reactor pressure switches, agitator motor contactors, level transmitter alarms, and quality control sensor outputs in pharmaceutical and specialty chemical production. The module's diagnostic capabilities reduce batch rejection rates by providing early warning of sensor drift or wiring faults. Hot-swap functionality enables preventive maintenance during scheduled production changeovers without extending downtime windows.

Water & Wastewater Treatment Infrastructure
Collect pump run status, valve position feedback, high/low level alarms, and chemical feed system interlocks across municipal and industrial treatment facilities. The ICSI16D1's wide operating temperature range accommodates outdoor enclosure installations, while its robust construction withstands high-humidity environments. Simplified wiring through multi-channel density reduces panel space requirements in retrofit projects.

Metals & Mining Material Handling
Monitor conveyor belt alignment switches, crusher overload contacts, dust collector filter status, and emergency stop circuits in ore processing and material transport systems. Galvanic isolation protects control systems from ground potential differences common in large-scale conveyor networks, while fast input response captures high-speed event sequences during automated material sorting operations.

Technical Parameters & Selection Criteria

Selection Guidelines: When specifying the ICSI16D1, verify that field devices provide 24V DC signal levels and that total cable capacitance remains below 0.3µF per channel to maintain response time specifications. For applications requiring AC input compatibility or higher channel density, consult ABB's Procontrol P14 I/O catalog for alternative module options. Ensure adequate ventilation in I/O rack enclosures when operating above 40°C ambient temperature.

Advanced Integration & Connectivity Options

The ICSI16D1 supports ABB's redundant controller architectures through automatic switchover protocols that maintain input state visibility during controller failover events. Configuration data is stored in non-volatile memory, enabling rapid module replacement without re-engineering. For applications requiring remote diagnostics, the module's status information is accessible via Procontrol P14's SCADA interface, allowing predictive maintenance teams to monitor channel health trends and schedule interventions before failures occur.

Integration with third-party SCADA platforms is facilitated through OPC DA/UA gateways that map individual input points to standardized tag structures. The module's deterministic scan cycle synchronizes with controller execution timing, ensuring consistent data presentation to historian systems and advanced process control algorithms. For cybersecurity-sensitive installations, the ICSI16D1 operates within the Procontrol P14's isolated process network, eliminating direct exposure to enterprise IT infrastructure.

Delivery Timelines & Support Infrastructure

Standard Lead Time: 3-5 business days for in-stock units; custom configurations or bulk orders may require 2-3 weeks for factory fulfillment and quality verification.

Warranty Coverage: 24-month manufacturer's warranty covering defects in materials and workmanship under normal operating conditions. Extended warranty programs available for critical sparing applications.

Technical Support: Access to ABB-certified application engineers for configuration assistance, troubleshooting guidance, and system integration planning. Remote diagnostic support available during commissioning phases.

Documentation Package: Includes installation manual, wiring diagrams, configuration software utilities, and compliance certificates. CAD drawings and 3D models available for panel design integration.

Frequently Asked Questions

Q: Can the ICSI16D1 interface directly with 120V AC field devices such as motor contactors or solenoid valves?
A: No, the ICSI16D1 is designed exclusively for 24V DC signal levels. For AC input applications, consider ABB's ICSO series modules or implement external signal conditioning relays to convert AC signals to 24V DC logic levels before connection.

Q: What is the maximum cable distance between field devices and the ICSI16D1 module while maintaining specified response times?
A: Cable runs up to 300 meters are supported using shielded twisted-pair wiring with capacitance ≤100pF/m. For longer distances or electrically noisy environments, implement local I/O concentrators or fiber-optic signal extenders to preserve signal integrity.

Q: Does the module support energy monitoring or power consumption tracking for connected field devices?
A: The ICSI16D1 provides binary state information only (on/off status). For energy measurement applications, integrate dedicated power monitoring modules or current transducers that output 24V DC status signals to the ICSI16D1's inputs.

Q: How does the hot-swap capability work during live system operation without causing false alarms?
A: The Procontrol P14 controller detects module insertion/removal via backplane communication and automatically freezes input states during the swap event. Upon detecting the new module, the controller performs a controlled re-initialization that prevents spurious alarm generation. Proper procedure requires configuring "maintenance mode" in the control logic.

Q: Is the ICSI16D1 compatible with SIL 2 or SIL 3 safety-rated applications?
A: While the module features robust isolation and diagnostic capabilities, it is not certified as a standalone safety component. For SIL-rated applications, integrate the ICSI16D1 within a certified Procontrol P14 safety system architecture that includes redundant modules, voting logic, and periodic proof testing per IEC 61508 requirements.

Q: What diagnostic information is available for predictive maintenance and troubleshooting?
A: The module reports channel-by-channel status including wire-off detection, overvoltage conditions, backplane communication health, and internal self-test results. This data is accessible through the Procontrol P14 engineering interface and can be mapped to SCADA alarm systems for proactive maintenance scheduling.

Get Your ICSI16D1 Binary Input Module Today

Ready to enhance your Procontrol P14 system's signal acquisition capabilities? Contact our industrial automation specialists for technical consultation, pricing information, and delivery scheduling. We provide application-specific configuration guidance and can coordinate with your existing ABB service agreements for seamless integration support.

Request a quote now: Share your project requirements including channel count, environmental conditions, and timeline—our team will respond within 24 hours with a tailored solution proposal.
