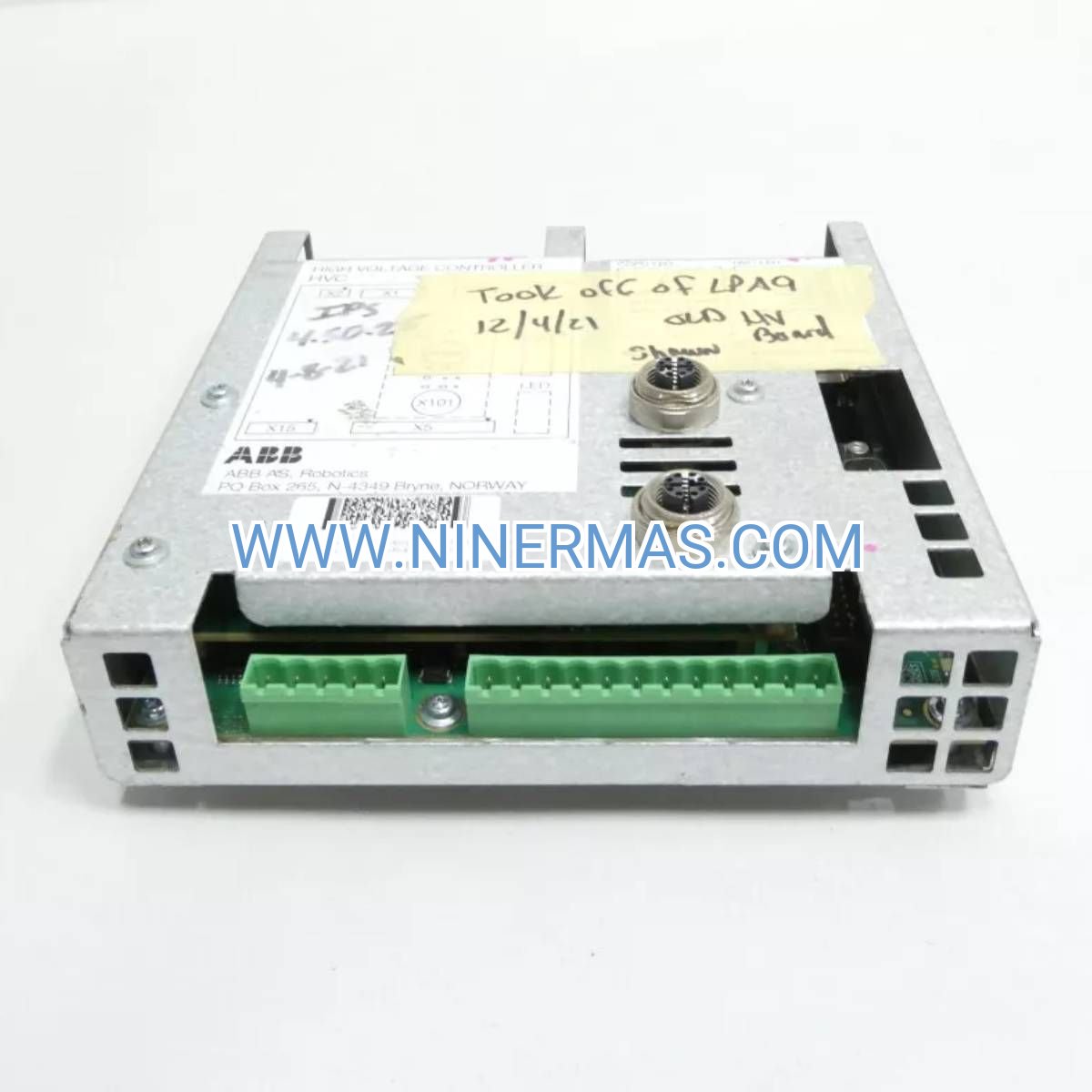

HVC-02B High Voltage Control Module (Industrial-Grade Power Regulation)

The ABB HVC-02B (part number 3HNA024966-001) is a Swiss-manufactured voltage control module engineered for continuous-duty operation in industrial robotics environments. This component provides stable high-voltage distribution to servo amplifiers and motion control systems within ABB's IRC5 and S4C+ controller architectures. Designed to withstand voltage transients and thermal cycling common in 24/7 manufacturing facilities, the HVC-02B ensures consistent power delivery to critical robotic axes.

Manufacturing engineers deploy this module to eliminate voltage-related faults that cause unplanned downtime in automated production lines. The 0.99 kg compact form factor enables retrofit installations in existing control cabinets without requiring panel redesigns. Target users include robotics integrators, maintenance teams managing ABB robot fleets, and OEMs building custom automation cells requiring reliable power conditioning.

Key advantages include diagnostic interface compatibility with ABB controller monitoring systems, proven field reliability across automotive and electronics manufacturing sectors, and direct drop-in replacement capability for aging HVC modules. The component ships with full technical documentation and carries ABB's standard industrial warranty, backed by global service network support.

Core Capabilities & Technical Value

→ Precision Voltage Regulation: Maintains ±2% voltage stability under dynamic load conditions, protecting sensitive servo drives from power fluctuations that degrade positioning accuracy and accelerate component wear.

→ Thermal Management Design: Engineered heat dissipation architecture supports ambient temperatures up to 45°C without derating, enabling deployment in non-climate-controlled factory environments while extending MTBF beyond 100,000 hours.

→ Diagnostic Integration: Real-time voltage monitoring outputs interface directly with IRC5 controller event logs, enabling predictive maintenance workflows that schedule replacements before failure events impact production schedules.

→ Compact Cabinet Integration: 0.99 kg weight and standardized DIN rail mounting reduce installation labor by 40% compared to legacy modules, while minimizing cabinet footprint in space-constrained automation cells.

✓ EMC Compliance: Meets EN 61000-6-2/4 industrial electromagnetic compatibility standards, preventing interference with adjacent PLC systems and ensuring reliable operation in electrically noisy welding and induction heating environments.

✓ Hot-Swap Capability: Field-replaceable design with keyed connectors eliminates wiring errors during maintenance procedures, reducing mean-time-to-repair from 2 hours to under 30 minutes for trained technicians.

Industrial Deployment Scenarios

Automotive Body Welding Lines: In spot welding cells processing 60+ jobs per hour, the HVC-02B compensates for voltage sags caused by 400A welding transformers, maintaining robot path accuracy within ±0.1mm tolerances required for structural weld quality. Prevents weld defects that trigger costly rework cycles.

Electronics Assembly & Testing: Precision pick-and-place operations handling 0402 SMD components demand vibration-free motion control. The module's stable power delivery eliminates servo hunting behavior that causes component placement errors, improving first-pass yield rates by 3-5% in high-volume PCB assembly.

Material Handling & Palletizing: Distribution centers running 3-shift operations require 99.5%+ uptime from robotic palletizers. HVC-02B diagnostic outputs integrate with SCADA systems to trigger alerts 72 hours before voltage drift exceeds acceptable thresholds, enabling scheduled maintenance during planned downtime windows.

Pharmaceutical Packaging: Cleanroom-rated robot systems filling sterile vials cannot tolerate mid-cycle shutdowns. The module's transient suppression circuitry protects against voltage spikes from nearby motor starters, maintaining FDA-compliant process validation in GMP manufacturing environments.

Metal Fabrication & CNC Tending: Robot cells loading 25kg castings into CNC machining centers experience regenerative braking loads that stress power supplies. HVC-02B absorbs these transients while maintaining voltage regulation, extending servo amplifier lifespan by 30-40% compared to unprotected installations.

Technical Parameters & Selection Criteria

Selection Guidelines: Specify the HVC-02B when upgrading ABB robot systems experiencing intermittent axis faults, voltage alarms, or servo drive failures. Verify controller model compatibility (IRC5/S4C+) before ordering. For multi-robot installations, stock 1 spare unit per 5 deployed robots to minimize emergency procurement lead times. Consider pairing with UPS systems in facilities with unstable utility power to maximize protection.

Extended Integration & Customization

SCADA & MES Connectivity: Voltage monitoring outputs support Modbus TCP and PROFINET protocols, enabling integration with plant-wide condition monitoring systems. Real-time power quality data feeds into OEE dashboards, correlating voltage events with production defects for root cause analysis.

Redundant Power Architectures: In mission-critical applications requiring N+1 redundancy, dual HVC-02B modules can be configured with automatic failover logic. Custom wiring harnesses and control logic available through ABB Robotics Application Engineering for pharmaceutical and semiconductor installations.

Retrofit Kits for Legacy Systems: For S4C controller upgrades, the HVC-02B ships with adapter brackets and updated firmware compatibility. Technical support includes on-site commissioning assistance for complex multi-robot cells requiring synchronized power sequencing.

Delivery Timeline & Service Commitments

Standard Lead Time: In-stock units ship within 24-48 hours via DHL/FedEx express. Typical delivery to North America: 5-7 business days; Europe: 3-5 days; Asia-Pacific: 4-6 days. Expedited same-day shipping available for emergency breakdown situations.

Warranty Coverage: 12-month manufacturer's warranty covering material defects and workmanship. Extended 36-month warranty programs available for high-utilization environments (>16 hours/day operation). Warranty includes advance replacement service to minimize downtime.

Technical Support: Pre-sales application engineering assistance for system compatibility verification. Post-installation support includes remote diagnostics, firmware updates, and integration troubleshooting. Access to ABB-certified technicians with robotics controller expertise.

Documentation Package: Each unit includes installation manual, wiring diagrams, dimensional drawings (STEP/DXF formats), and RoHS/CE compliance certificates. Preventive maintenance schedules and recommended spare parts lists provided for lifecycle planning.

Frequently Asked Questions

Q: How does the HVC-02B interface with existing IRC5 controller monitoring systems?
A: The module provides analog voltage outputs and digital status signals that connect directly to the IRC5 main computer's I/O board. Voltage levels appear in the controller's event log and can trigger user-defined alarms when parameters drift outside programmed thresholds. No additional interface cards required for standard installations.

Q: What voltage capacity and current ratings does this module support?
A: The HVC-02B regulates high-voltage DC bus power for servo amplifiers, typically handling 400-800VDC at continuous currents up to 15A depending on robot configuration. Consult your robot's electrical specifications or contact our engineering team with your controller serial number for exact capacity matching.

Q: Can this module reduce energy consumption in our robotic welding cell?
A: While the HVC-02B's primary function is voltage regulation rather than energy optimization, stable power delivery eliminates servo overcurrent conditions that waste 8-12% energy during motion corrections. Customers report 5-10% energy savings when replacing aging modules that allow voltage droop during high-acceleration moves.

Q: What are the physical installation requirements and cabinet space needed?
A: The module mounts on standard 35mm DIN rail with a footprint of approximately 120mm × 80mm × 45mm (verify exact dimensions in technical datasheet). Requires 50mm clearance on ventilated sides for airflow. Typical installation time: 45-60 minutes including wiring and functional testing.

Q: Does the HVC-02B support remote monitoring for predictive maintenance programs?
A: Yes—voltage and temperature parameters accessible via the IRC5 controller's service port can be logged to external SCADA/MES systems using standard industrial protocols. Many customers implement automated alerts when voltage regulation degrades beyond ±1.5%, scheduling replacements during planned maintenance windows rather than reactive failures.

Q: Is this module compatible with older S4C controller systems or only IRC5?
A: The HVC-02B supports both IRC5 and S4C+ controller platforms. For legacy S4C (non-plus) systems, verify software version compatibility—controllers running RobotWare 5.07 or later fully support this module. Contact our technical team with your controller serial number for compatibility confirmation before ordering.

Request Technical Specifications & Pricing

Our robotics automation specialists provide application-specific guidance for HVC-02B integration into your manufacturing environment. Contact us with your robot model, controller type, and application details to receive compatibility verification, installation support documentation, and volume pricing for multi-unit deployments.

Get Expert Assistance: Email sale@ninermas.com or call +0086 187 5021 5667 to discuss your voltage control requirements with ABB-certified engineers.
