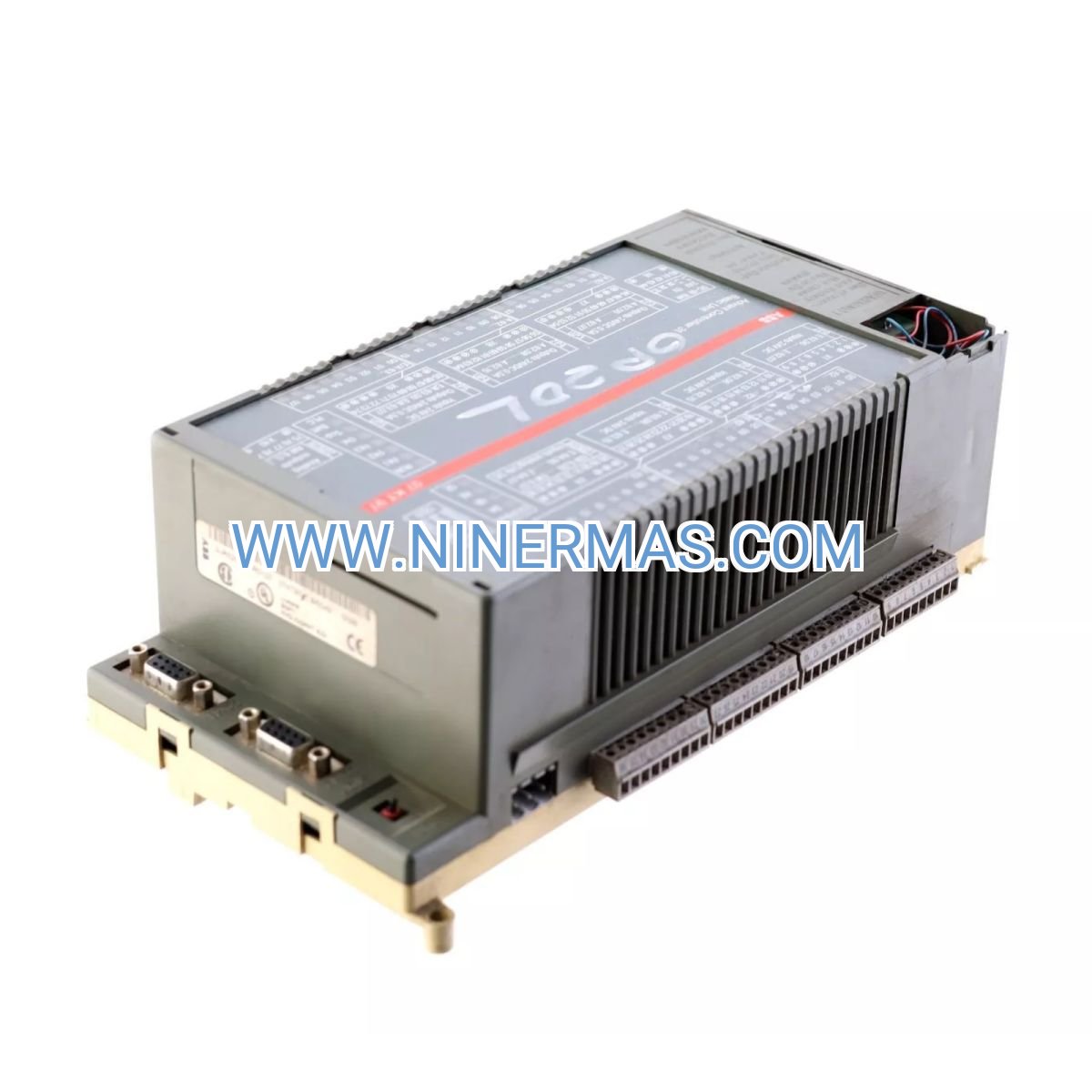

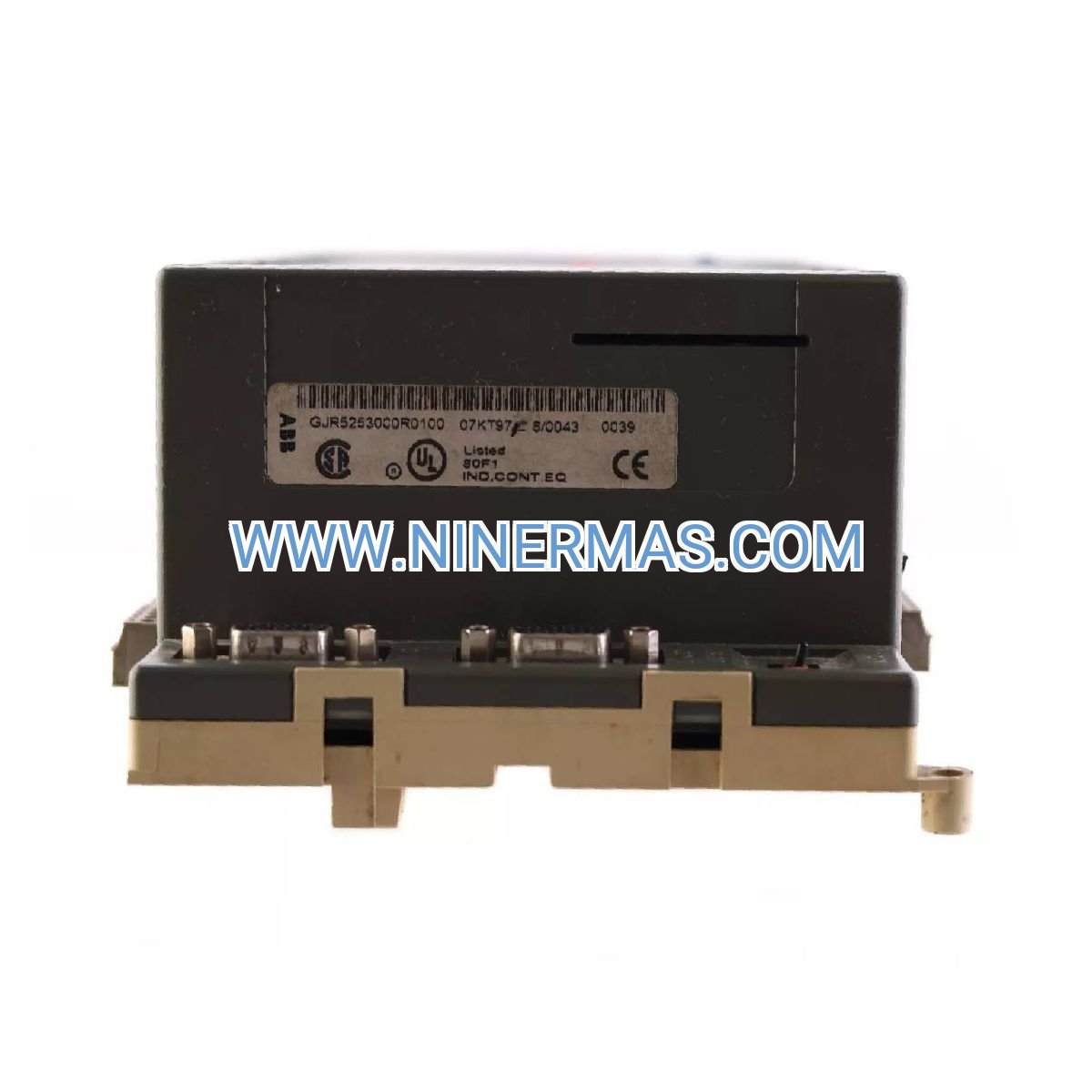

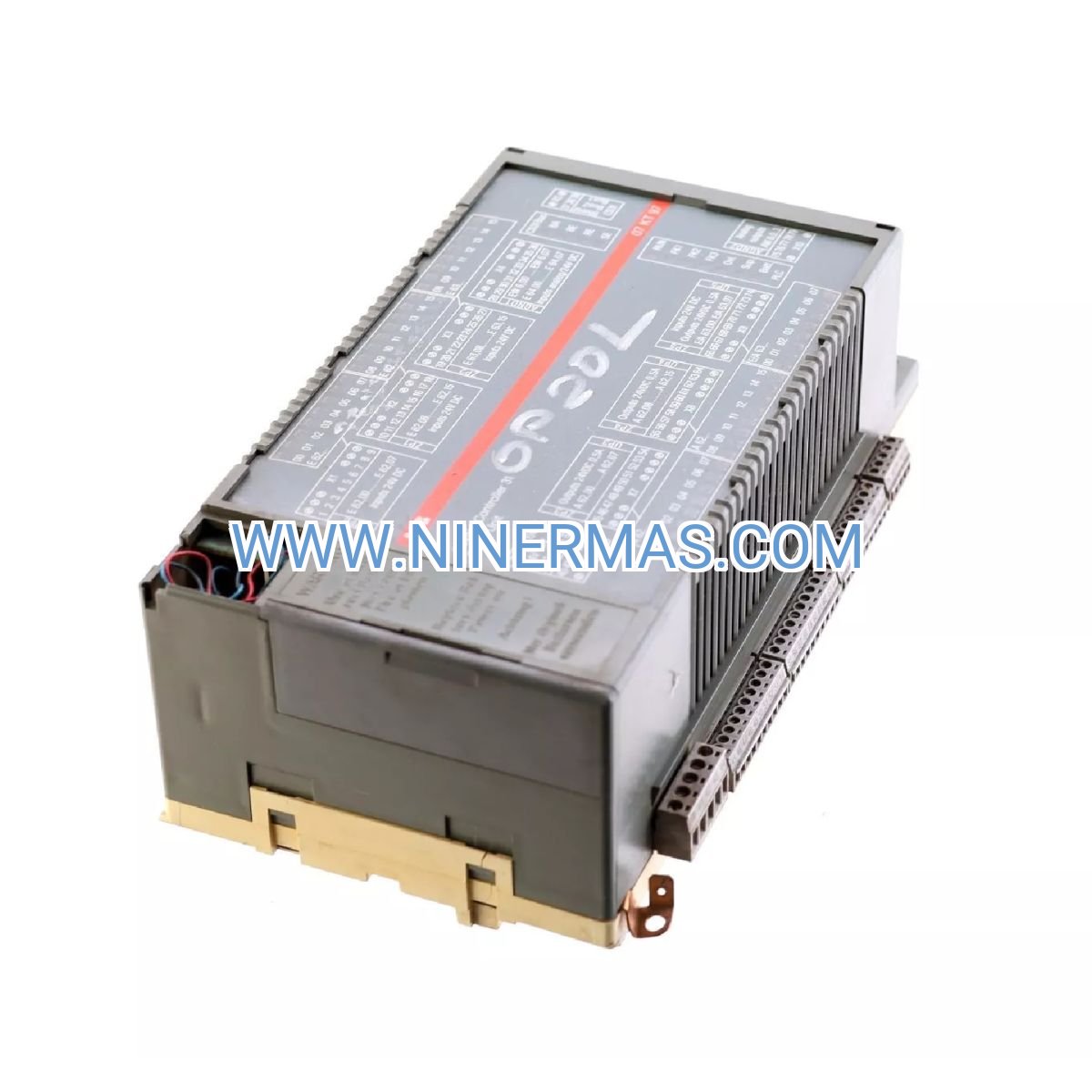

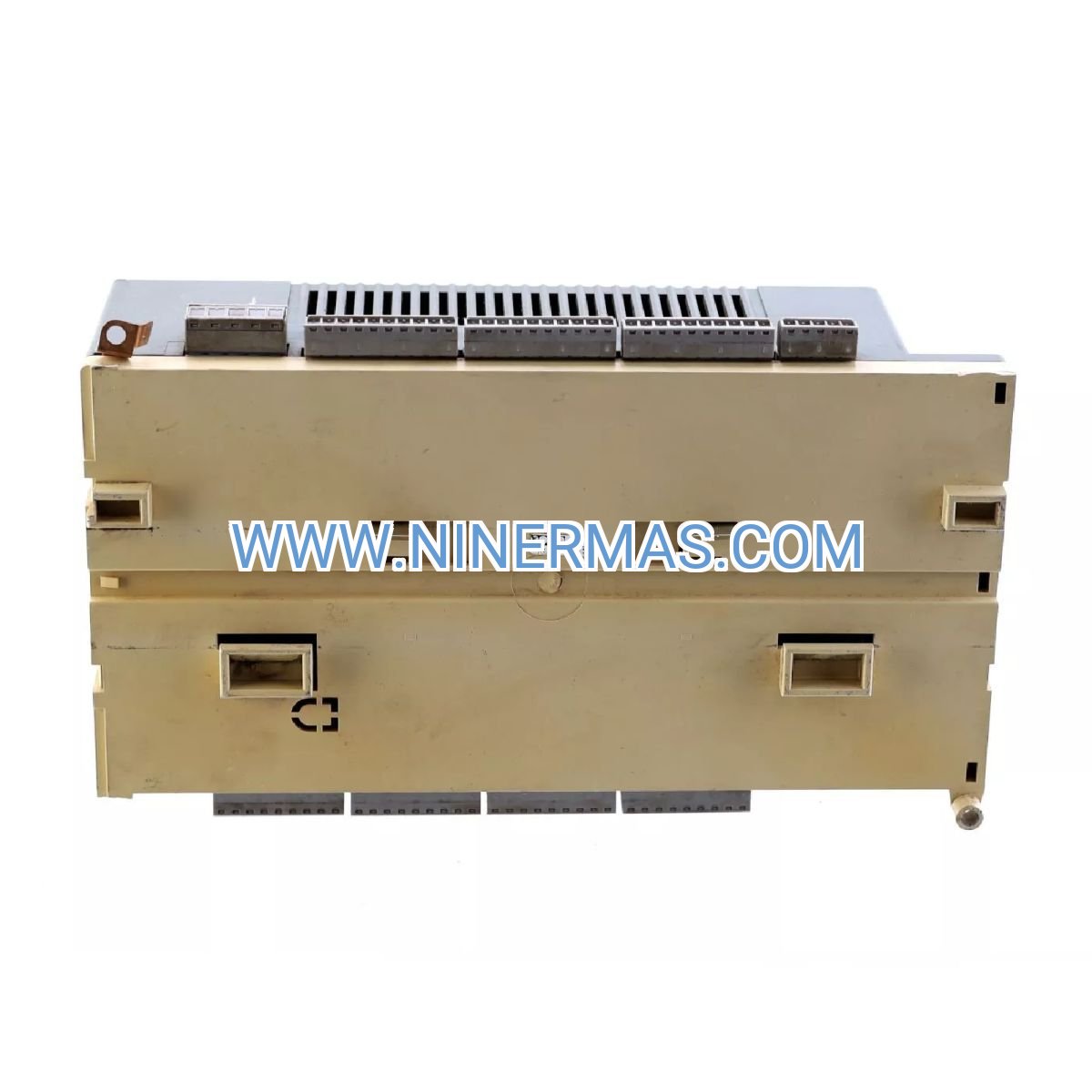

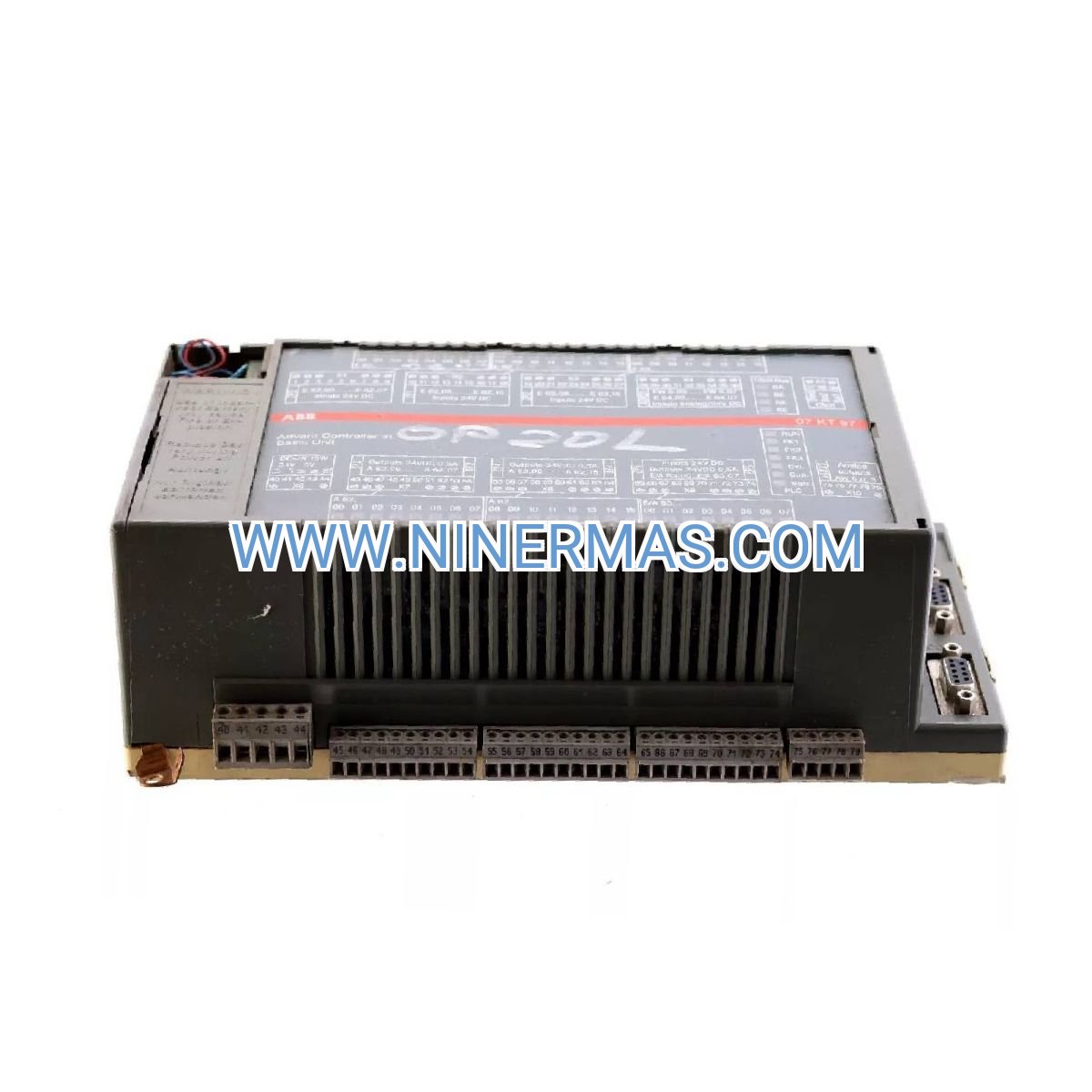

ABB 07KT97 Analog Output Module — Industrial-Grade 4-Channel Process Controller

The ABB 07KT97 (GJR5253000R0100) represents a proven solution for high-precision analog signal generation in distributed control environments. Engineered for ABB's Advant OCS platform, this four-channel analog output module delivers deterministic control of valves, actuators, and variable frequency drives across chemical processing, oil & gas, power generation, and manufacturing operations where process stability directly impacts product quality and operational efficiency.

Built on decades of ABB's process automation expertise, the 07KT97 combines 16-bit signal resolution with comprehensive fault diagnostics and galvanic isolation architecture. Whether regulating temperature loops in pharmaceutical reactors, controlling flow ratios in continuous blending systems, or managing pressure cascades in gas processing facilities, this module provides the accuracy and reliability demanded by mission-critical industrial processes.

With configurable output ranges, hot-swappable operation, and seamless integration into Advant Station programming environments, the 07KT97 reduces commissioning time while ensuring long-term system maintainability. Factory-certified components and industrial-grade construction deliver operational lifespans exceeding 15 years in harsh process environments.

Key Performance Features & Industrial Benefits

✓ Precision Signal Generation
16-bit digital-to-analog conversion produces smooth, stepless output signals essential for proportional valve control and VFD speed regulation. Eliminates control hunting and oscillation in tight-tolerance applications such as reactor temperature management and distillation column pressure control.

✓ Dual-Range Output Flexibility
Software-configurable 4-20mA current loop or 0-10VDC voltage output per channel accommodates diverse field instrumentation without hardware modifications. Supports mixed-mode applications where current signals drive remote actuators while voltage signals interface with local positioners.

✓ Complete Galvanic Isolation
Channel-to-channel and channel-to-logic electrical isolation prevents ground loops, enhances noise immunity in electrically noisy environments, and protects control logic from field voltage transients. Critical for installations near VFDs, welding equipment, and high-power switching devices.

✓ Intelligent Diagnostics & Fault Management
Continuous monitoring of output current, wire integrity, and load conditions with automatic fault reporting to DCS operator stations. Wire break detection, short-circuit protection, and configurable fail-safe states minimize process disruptions and enable predictive maintenance strategies.

✓ Hot-Swappable Architecture
Module replacement during live operation without process shutdown through automatic configuration download and bumpless output transfer. Reduces maintenance windows and supports continuous production requirements in 24/7 process facilities.

✓ Industrial Environmental Hardening
Conformal-coated circuitry withstands moisture, corrosive gases, dust, and temperature cycling from 0°C to +55°C. EMC-compliant design meets IEC 61000 immunity standards for operation in high-interference industrial environments.

Industrial Application Scenarios

→ Chemical Batch Processing
Challenge: Pharmaceutical batch reactors require precise temperature control within ±0.5°C to ensure product consistency and regulatory compliance.
Solution: The 07KT97 drives steam control valves and cooling water modulators with 16-bit resolution, maintaining tight temperature bands throughout exothermic reactions. Fault diagnostics alert operators to valve positioning errors before batch quality is compromised.
Value: Reduces batch rejection rates by 23% and ensures FDA 21 CFR Part 11 audit trail compliance through integrated DCS alarming.

→ Oil & Gas Separation Systems
Challenge: Three-phase separators in offshore platforms demand coordinated level and pressure control to prevent hydrocarbon carryover and optimize production rates.
Solution: Multiple 07KT97 modules regulate dump valves, back-pressure controllers, and gas compressor anti-surge valves through cascaded control loops. Galvanic isolation protects against electrical noise from nearby VFDs and motor starters.
Value: Increases separator efficiency by 18%, reduces unplanned shutdowns by 34%, and extends equipment service intervals through predictive valve diagnostics.

→ Power Plant Boiler Control
Challenge: Coal-fired boiler combustion optimization requires coordinated control of fuel feeders, combustion air dampers, and flue gas recirculation to meet emissions limits while maximizing thermal efficiency.
Solution: The 07KT97 provides 4-20mA signals to pneumatic actuators controlling air-fuel ratio, with fail-safe outputs ensuring safe shutdown during communication loss. Hot-swappable design enables maintenance without unit outage.
Value: Achieves NOx emissions reduction of 12% while improving boiler efficiency by 2.3%, translating to $340K annual fuel savings for a 500MW unit.

→ Food & Beverage Blending
Challenge: Continuous beverage production lines require precise ingredient ratio control to maintain flavor consistency across production batches.
Solution: Four 07KT97 output channels drive metering pump VFDs for syrup, water, CO2, and flavoring streams. Software-based linearization compensates for pump non-linearities across flow ranges.
Value: Reduces ingredient waste by 8%, improves batch-to-batch consistency to within 0.3% variation, and supports rapid recipe changeovers for multi-product lines.

→ Water Treatment pH Neutralization
Challenge: Industrial wastewater treatment systems must maintain discharge pH between 6.5-8.5 despite varying influent chemistry and flow rates.
Solution: The 07KT97 controls chemical metering pumps for acid and caustic dosing through cascaded pH control loops with feedforward compensation. Wire break detection prevents overdosing incidents.
Value: Eliminates regulatory violations, reduces chemical consumption by 15%, and provides audit-ready compliance documentation through DCS historical trending.

Technical Specifications & Selection Guide

Selection Criteria:

• Choose 4-20mA current outputs for long cable runs (>100m) or electrically noisy environments
• Select 0-10VDC voltage outputs for local actuators and positioners requiring low-impedance signals
• Specify 16-bit resolution for applications requiring <0.01% control precision (pharmaceutical, semiconductor)
• Ensure adequate I/O rack power budget (8W per module plus field device loop power)
• Verify compatibility with Advant OCS controller firmware version (consult ABB compatibility matrix)

Advanced Integration & Customization Options

Redundant Controller Pairing
Supports dual-controller configurations with automatic failover and bumpless transfer of output values. Critical for SIL 2 safety-instrumented systems and high-availability process units where unplanned shutdowns cost $50K-$500K per hour.

HART Protocol Overlay
When paired with HART-compatible field devices, enables digital communication over 4-20mA signal wires for remote device configuration, diagnostics, and calibration without field visits. Reduces commissioning time by 40% and supports predictive maintenance programs.

Custom Linearization Tables
Software-configurable multi-point linearization compensates for non-linear valve characteristics, pump curves, and actuator response. Improves control loop performance in applications with inherent non-linearities such as equal-percentage control valves and centrifugal pump VFD control.

OPC UA Connectivity
Integrates with modern SCADA systems, MES platforms, and cloud analytics through OPC UA gateways. Enables real-time production monitoring, energy management dashboards, and Industry 4.0 digital twin applications while maintaining deterministic control performance.

Delivery, Warranty & Technical Support

Lead Time: Stock items ship within 24-48 hours; custom-configured modules require 5-7 business days for factory programming and testing.
Warranty: 24-month manufacturer warranty covering materials and workmanship; extended 60-month protection available for critical applications.
Technical Support: Lifetime access to ABB-certified application engineers for loop tuning, troubleshooting, and system optimization. Remote diagnostic support available 24/7 for emergency situations.
Documentation: Complete package includes installation manual, wiring diagrams, calibration certificates, configuration files, and IEC 61508 safety manual for SIL applications.

Commissioning Services: Optional on-site commissioning assistance includes module installation, I/O checkout, loop tuning, operator training, and as-built documentation. Typical 2-day engagement reduces startup time by 60% and ensures optimal control performance from day one.

Frequently Asked Questions

Q: Can the 07KT97 analog output module interface with third-party DCS systems?
A: The module is designed specifically for ABB Advant OCS architecture and requires Advant controller and I/O rack infrastructure. For integration with non-ABB systems, consider ABB's AC 800M platform which offers multi-vendor protocol support including Modbus, PROFIBUS, and Foundation Fieldbus.

Q: What is the maximum cable distance for 4-20mA output signals?
A: Current loop outputs support cable runs up to 1000 meters (3280 feet) with standard 18 AWG shielded twisted-pair cable. Actual distance depends on cable resistance and field device input impedance; consult ABB application note AN-IO-047 for detailed calculations.

Q: How does the module handle output faults during controller communication loss?
A: Each channel supports configurable fail-safe behavior including hold-last-value, ramp-to-zero over defined time period, or jump-to-preset safe state. Fail-safe mode activates within 100ms of communication loss detection, ensuring controlled process shutdown.

Q: Is hot-swapping supported in non-redundant controller configurations?
A: Yes, the module supports hot-swap replacement in both redundant and non-redundant systems. In non-redundant configurations, outputs briefly enter fail-safe mode during module replacement (typically 2-5 seconds) before resuming normal operation with restored configuration.

Q: Can I mix 4-20mA and 0-10VDC outputs on the same module?
A: Absolutely. Each of the four channels is independently configurable for either current or voltage output through software configuration. This flexibility allows a single module to serve mixed field device populations without requiring separate current and voltage output modules.

Q: What calibration interval does ABB recommend for the 07KT97?
A: ABB recommends annual calibration verification for general industrial applications. For regulated industries (pharmaceutical, food & beverage) or SIL-rated safety applications, semi-annual calibration may be required per industry standards. The module supports in-situ calibration without removal from the I/O rack.

Start Your Process Control Upgrade Today

Ready to enhance your distributed control system with proven ABB analog output technology? Our process automation specialists are available to discuss your specific application requirements, recommend optimal I/O configurations, and provide detailed technical specifications. Contact us for same-day quotations, expedited delivery options, and comprehensive pre-sale engineering support.

Request a Quote: Email your system architecture, I/O count requirements, and project timeline
Technical Consultation: Schedule a 30-minute call with ABB-certified engineers
Sample Program: Evaluation units available for qualified system integrators and OEMs
